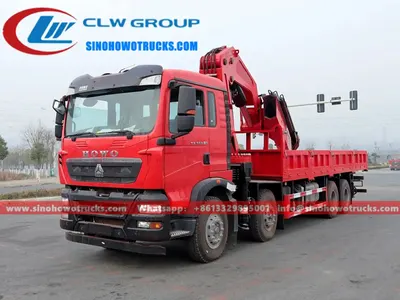

Side view of the HOWO crane truck showing the 7-section knuckle boom and cargo body

Rear view of the HOWO crane truck with the crane mounted on the subframe and control panel visible

Sinotruk Howo 30 ton truck mounted knuckle boom crane Vietnam

Name: Sinotruk Howo 30 ton truck mounted knuckle boom crane Vietnam
Brand: Sinotruk HOWO

The Sinotruk HOWO 30 ton truck mounted knuckle boom crane is a 6x4 heavy duty vehicle built on a Sinotruk HOWO chassis with a 336 HP diesel engine and 10 speed manual gearbox. It is designed for construction, logistics, and infrastructure projects that require on site lifting and loading without relying on external cranes. The crane has a maximum lifting capacity of 19.1 tons at 11 meters radius and a working height of 14.9 meters, making it suitable for handling heavy materials in urban, industrial, and remote site environments where access is limited.

Request A Quote Email Specification

Key Benefits

30 ton knuckle boom crane with 19.1 ton maximum capacity at 11 m radius for heavy lifting in tight spaces
6x4 HOWO chassis with 336 HP engine ensures strong performance on rough terrain and long hauls
Single cylinder synchronization guy cable technology improves lifting efficiency and control
Pentagon and hexagon boom design increases anti-bending strength and stability
Float three-point bridge structure reduces stress on the chassis during travel
Self-developed slewing machine with greater drive force adapts to varied working conditions
Anti-slewing impulse equipment enhances vehicle safety during crane operation
Compact hinge point design saves space and improves maneuverability
Optional radio remote control and top seat control allow flexible operator positioning
All structural components made from high-strength steel for durability and long service life

Buyer Profile

Who It Is for

Construction and civil engineering contractors managing on site material handling
Municipal and regional infrastructure departments operating maintenance fleets
Industrial plant maintenance teams needing mobile lifting for repairs
Logistics and freight companies handling heavy cargo without third party crane support
Utility and power line contractors deploying equipment in remote or low access areas
Government procurement agencies equipping public works fleets with multi-purpose vehicles

Operating Problems

Problems It Solves

Need for a separate crane rental and scheduling delays during material handling
Limited access to job sites where large cranes cannot maneuver or park
High cost and downtime from transporting and setting up a mobile crane
Inefficient loading and unloading due to lack of on board lifting capability
Frequent breakdowns and maintenance delays from using low durability crane systems
Safety risks from improper crane setup or unstable lifting in uneven terrain

Where It Works

Application Scenarios

Construction sites with limited crane access where a mobile crane cannot enter
Road and bridge maintenance crews lifting heavy pipes, beams, or equipment
Industrial parks requiring on site loading and unloading of machinery and parts
Port and warehouse operations handling heavy containers or steel sections
Remote infrastructure projects where transporting a separate crane is impractical
Utility and telecom crews installing poles and transformers in rural or difficult terrain

Engineering

Technical Features

30 ton knuckle boom crane with 7 arm sections and 14.9 m maximum lifting height
Max lifting capacity of 19.1 tons at 11 m working radius
Single cylinder synchronization guy cable system for smooth and precise operation
Pentagon and hexagon boom design with symmetrical center for enhanced bending resistance
Float three-point bridge structure reduces chassis stress during travel
Self-developed slewing machine with high drive force for stable crane rotation
Anti-slewing impulse equipment prevents sudden movement during operation
Compact hinge point design minimizes overall footprint and improves clearance
Over-wind alarm fitted to prevent boom overextension and damage
Integral lifting winch improves hydraulic system efficiency and lift duration
All structural parts constructed from high-strength steel for long-term reliability
Optional radio remote control and top seat control for operator flexibility
6x4 HOWO chassis with 336 HP diesel engine and 10 speed manual gearbox
Max speed of 89 km/h for efficient transport between sites
Curb weight of 5000 kg with 6000 kg rated loading weight on cargo body
Cargo body dimensions: 10000 x 2300 x 550 mm for large volume material transport

Specifications

Technical Data


Chassis	Sinotruk HOWO 6x4 left or right hand drive
Engine	336 HP diesel
Gearbox	10 shift manual
Overall Size	12000 x 2450 x 3560 mm
Crane Type	Knuckle boom crane
Max Lifting Capacity	19.1 tons at 11 m radius
Max Lifting Height	14.9 m
Working Radius	11 m
Arm Sections	7
Cargo Body Capacity	6000 kg rated loading weight
Cargo Body Dimensions	10000 x 2300 x 550 mm
Curb Weight	5000 kg
Max Speed	89 km/h
Emissions	2088 ml
Cab	One and a half
Lead Time	20 days
Shipping Port	China main port
Payment	T/T
Crane Brand	Palfinger, XCMG, or Chengli (China’s top brand)

Build Materials

Materials

High-strength steel used in all crane structural components and chassis frame
Steel cargo body with reinforced floor and side panels for heavy load transport
Aluminium alloy used in crane control panels and non-load bearing parts
Rubber seals and gaskets in hinge points and boom joints for weather resistance
Paint finish applied to match customer requirements, including logo and colour

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and verified for correct wheelbase and drive configuration
Cargo body is fabricated from high-strength steel and welded to the chassis frame
Crane boom sections are assembled and tested for alignment and movement
Single cylinder synchronization system is installed and calibrated
Slewing machine and anti-slewing impulse equipment are fitted and tested
Float three-point bridge structure is integrated to reduce chassis stress
Crane is mounted to the subframe and connected to the driveline and hydraulic system
Control systems including radio remote and top seat are installed and tested
Vehicle is painted and branded according to customer specifications
Final inspection includes crane operation, load testing, and safety system checks

Testing

Quality Control

Every truck undergoes 100 percent testing before delivery
Crane performance tested under rated load and maximum reach
Hydraulic system pressure tested for leaks and stability
Safety systems including over-wind alarm and anti-slewing impulse verified
Photos and videos of the finished truck sent to buyer before balance payment
In-house testing available for pressure and non-destructive testing on structural components

Build to Order

Customization Options

Left or right hand drive chassis to match local traffic regulations
Crane brand selection: Palfinger, XCMG, or Chengli
Optional radio remote control or top seat control for operator positioning
Cargo body colour and logo applied free of charge
Custom paint finish and livery to match fleet or brand identity
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

Mobile crane with separate transport vehicle	Higher cost and setup time, but greater lifting capacity and reach
Telescopic boom crane on same chassis	Better stability and reach at full extension, but less flexible in tight spaces
Standard flatbed truck with external crane	More reliable and faster to deploy, but requires coordination and scheduling with third party crane services

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local road rules
Use only the designated crane lifting points and avoid overloading beyond 19.1 tons at 11 m radius
Engage anti-slewing impulse equipment before starting crane rotation
Check over-wind alarm function before each lift and stop if triggered
Perform daily checks on hydraulic hoses, seals, and boom joints for wear
Store the crane in the stowed position with boom secured during transport

Buyer Questions About This Truck

What is the lead time for this crane truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and crane configuration.

Can the crane be Palfinger or XCMG instead of Chengli?

Yes. The crane brand can be selected from Palfinger, XCMG, or Chengli. Confirm your preference at order stage.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the crane be fitted with radio remote control?

Yes. Radio remote control is available as an optional fitment. Specify at order stage.
