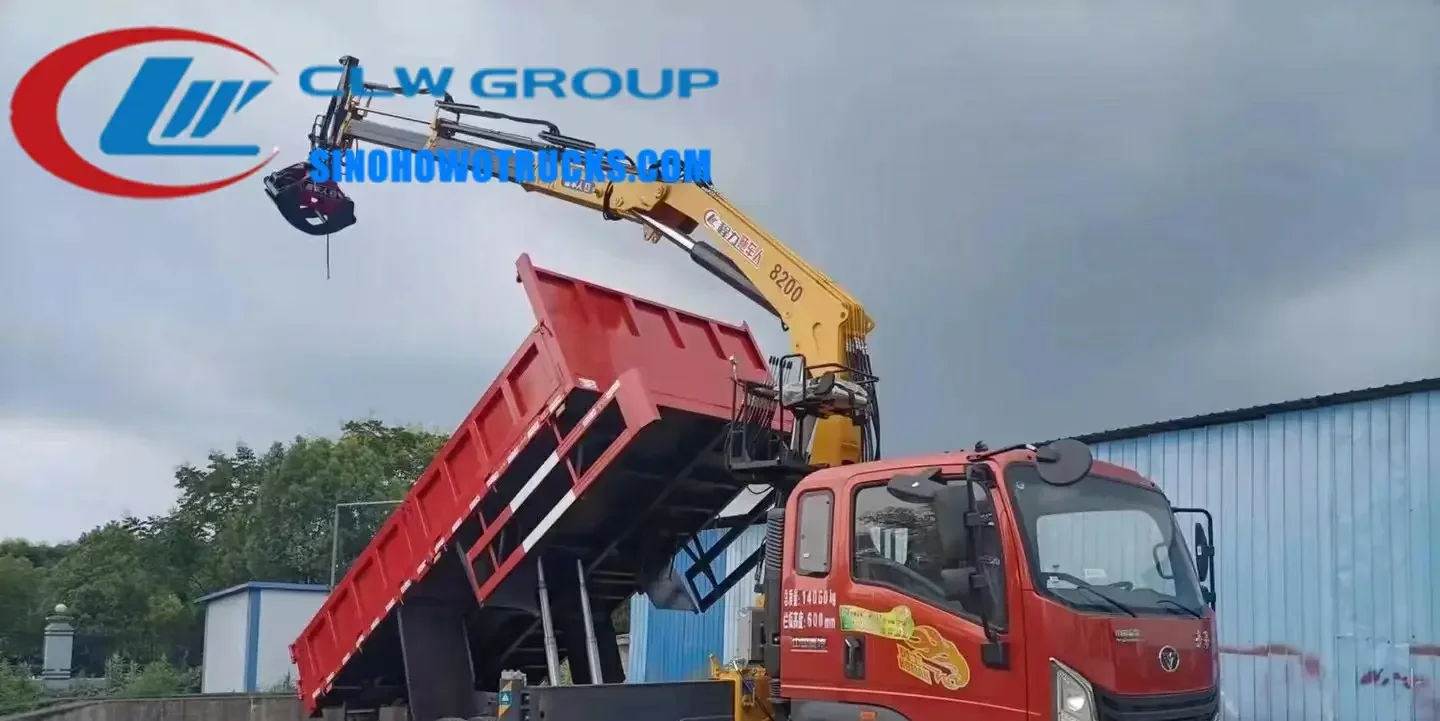

The Sinotruk Homan small knuckle boom truck with tipping box is a 4x2 chassis vehicle built for urban and rural construction, utility, and material handling tasks. It features a 140 HP diesel engine, a 6-speed manual gearbox, and a 4-ton tipping cargo box with a knuckle boom crane for self-loading and unloading. Designed for operators who need to move heavy materials without relying on external cranes, it operates efficiently in tight spaces and on uneven terrain. The crane provides 360-degree rotation, extension, and precise control for lifting and placing loads in confined areas.
| Chassis Model | ZZ1107G451CD1R |
|---|---|
| Chassis Manufacturer | Sinotruk Homan |
| Drive Configuration | 4x2 left or right hand drive |
| Engine | CUMMINS ISF3.8s3154, 115 kW / 154 hp, 3760 cc, diesel |
| Emission Standard | Euro 3 |
| Gearbox | 6-speed manual |
| Wheelbase | 4500 mm |
| Overall Dimensions | 8995 x 2496 x 3320 mm |
| Total Mass | 16000 kg |
| Curb Weight | 7740 kg |
| Rated Payload | 8065 kg |
| Cargo Box Capacity | 4 tons |
| Cargo Box Type | Tipping box |
| Crane Type | Knuckle boom crane (optional telescopic boom) |
| Crane Control | Top seat or radio remote control optional |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| 6x4 truck with crane | Higher payload capacity but less maneuverable in tight urban spaces |
|---|---|
| Mobile crane on separate chassis | More expensive to hire and transport, slower to deploy on site |
| Standard flatbed truck | No lifting capability, requires external crane for loading and unloading |
Generally 20 days after the advance payment is received. The exact date depends on crane type and equipment list.
Yes. The crane can be specified as either knuckle boom or telescopic boom at order stage.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance payment.
Yes. The chassis is ordered in left or right hand drive to match your local traffic rules. Confirm this at order stage.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. Overseas engineers make regular return visits and provide technical training before delivery.
Yes. The cargo box colour and logo are applied free of charge based on your request.
Send us your destination port and we will quote price, lead time and freight.
