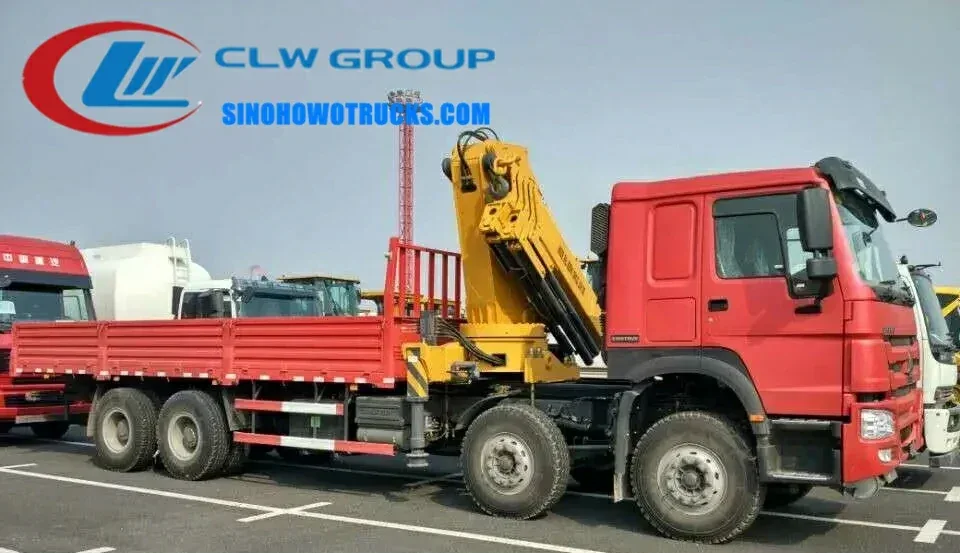

12 wheel Sinotruk HOWO 15 ton knuckle boom truck in construction site with crane extended and boom at 360 degree rotation

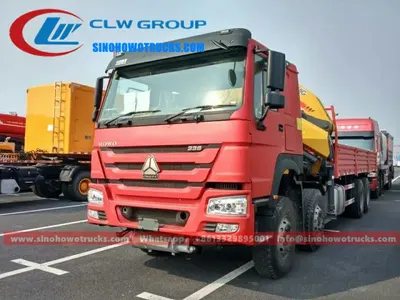

Side view of the HOWO knuckle boom truck showing the high-strength steel boom and hydraulic system

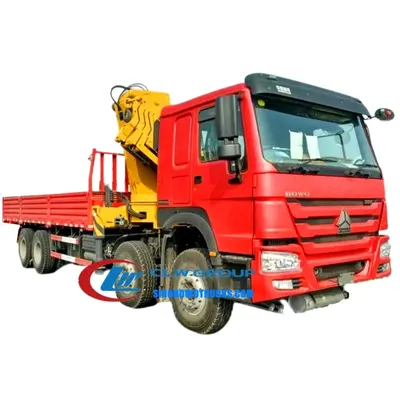

Rear view of the truck-mounted crane with the float three-point bridge structure and tandem axle

12 wheel Sinotruk Howo 15tons knuckle boom truck Tunisia

Name: 12 wheel Sinotruk Howo 15tons knuckle boom truck Tunisia
Brand: Sinotruk HOWO

The 12 wheel Sinotruk HOWO 15 tons knuckle boom truck is a 6x4 heavy-duty crane vehicle built on a ZZ3257N3847A chassis with a 371 HP diesel engine and 10 speed manual gearbox. It is designed for construction, infrastructure, and industrial sites where a mobile crane must operate independently without external lifting support. The truck-mounted knuckle boom crane can rotate 360 degrees, extend and lift up to 15 tons, and is suitable for loading and unloading heavy materials in remote or low-access areas. It is used by contractors, utilities, and municipal fleets in countries including Tunisia, Nigeria, and Kenya where road conditions and site access limit the use of larger mobile cranes.

Request A Quote Email Specification

Key Benefits

12 wheel 6x4 HOWO chassis provides high stability and load distribution on rough terrain and unpaved roads
371 HP WD615.47 engine delivers strong performance with no overhaul required within 500,000 km
Knuckle boom crane with single cylinder synchronization and guy cable technology improves lifting efficiency
Pentagon and hexagon boom design increases anti-bending capacity and structural reliability
Float three-point bridge structure reduces stress on the chassis during travel
Optional radio remote control and top seat control allow flexible operation from multiple positions
High-strength steel construction ensures long service life under heavy-duty use
Self-designed slewing machine and anti-slewing impulse equipment improve safety during lifting

Buyer Profile

Who It Is for

Construction and civil engineering contractors operating in developing markets
Utility and power line maintenance companies in Africa and Southeast Asia
Municipal and port authorities managing infrastructure with limited crane availability
Mining and quarry operators needing mobile lifting on rough terrain
Government procurement agencies equipping local fleets with multi-purpose vehicles
Equipment rental companies offering crane services without fixed crane bases

Operating Problems

Problems It Solves

Lack of fixed crane infrastructure at remote or temporary work sites
High cost and delay of hiring external mobile cranes for short-term tasks
Poor road conditions that prevent large cranes from accessing job sites
Need for a single vehicle that can transport, lift, and deploy heavy loads without support
Inadequate lifting capacity of smaller truck-mounted cranes on tough terrain
Long downtime due to crane breakdowns when spare parts are not locally available

Where It Works

Application Scenarios

Construction sites with limited access where mobile cranes cannot reach
Road and bridge maintenance crews needing to lift heavy equipment on rural or unpaved roads
Utility companies installing poles, transformers, and cables in remote or difficult terrain
Mining and quarry operations transporting and placing heavy machinery and tools
Municipal and port authorities handling cargo and containers without fixed crane infrastructure
Emergency response teams deploying equipment in disaster zones with damaged access roads

Engineering

Technical Features

6x4 HOWO chassis with 3825+1350 mm wheelbase and 90# saddle for heavy load transfer
WD615.47 engine, 371 HP, 9726 cc displacement, Euro II emission standard
HW19710 10F&2R manual transmission with HW70 PTO for power take-off
HC 16 tandem rear axle and HF9 front axle with drum brakes for load stability
ZF8198 steering machine (RHD) for precise handling in tight spaces
Knuckle boom crane with single cylinder synchronization and guy cable system
Pentagon and hexagon boom design with symmetrical center for higher anti-bending strength
Float three-point bridge structure reduces chassis stress during transit
Self-developed slewing machine with greater drive force for varied lifting conditions
Anti-slewing impulse equipment enhances vehicle safety during crane operation
Optional radio remote control and top seat control for operator flexibility
All structural components made from high-strength steel for durability

Specifications

Technical Data


Model	ZZ3257N3847A 6×4
Engine	WD615.47, 371 HP, 9726 cc, Euro II
Transmission	HW19710 manual, 10F&2R, with HW70 PTO
Cab	HW76, one bed, with A/C
Rear Axle	HC 16 tandem axle
Front Axle	HF9 with drum brakes
Overall Size	8545 x 2496 x 3280 mm
Wheelbase	3825+1350 mm
Steering Machine	ZF8198 (RHD)
Saddle	90# (3.5 inch)
Fuel Tank Capacity	300 L
Tires	12
Crane Type	Knuckle boom crane (optional telescopic boom)
Lifting Capacity	15 tons
Boom Design	Pentagon and hexagon, symmetrical center
Control Options	Radio remote control, top seat control optional
Lead Time	20 days
Shipping Port	China main port
Payment	T/T
Chassis Drive	Left or right hand drive (RHD/LHD)
Cab Colour	Custom colour and logo free of charge

Build Materials

Materials

High-strength steel used in all structural components including boom and chassis
Steel frame and body with galvanized or painted finish for corrosion resistance
Aluminium alloy used in crane control panels and access doors where applicable
Rubber seals and gaskets in hinge points and joints for weather and dust protection
Steel cable and hydraulic hoses rated for high-pressure and long-term use

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against the crane and body layout
Knuckle boom crane is assembled with single cylinder synchronization and guy cable system
Boom structure is welded using high-strength steel with precision alignment
Float three-point bridge and slewing mechanism are installed to reduce chassis stress
Crane control systems including radio remote and top seat are tested for function
Body and cargo box are fabricated and attached to the subframe with reinforced joints
All electrical and hydraulic systems are pressure tested and leak checked
Final assembly includes cab, cab interior, and paint application to customer colour
100 percent test of crane operation, lifting capacity, and safety systems before delivery
Photos and videos of the completed truck are sent to the buyer before balance payment

Testing

Quality Control

All vehicles built to GB7258 Road Vehicle Safety Technical Conditions
Crane components tested under full load and dynamic stress conditions
Hydraulic systems pressure tested and leak checked before final assembly
Every truck undergoes 100 percent functional test before shipment
Photos and videos of the finished truck are provided before balance payment
In-house testing for structural integrity and crane safety compliance

Build to Order

Customization Options

Crane type can be knuckle boom or telescopic boom based on customer requirement
Left or right hand drive chassis to match local traffic regulations
Cab colour and logo applied free of charge to match fleet livery
Optional radio remote control and top seat control fitted as per order
Lifting capacity and boom reach adjusted to site-specific load profiles
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

8 wheel knuckle boom truck with 10 ton capacity	Lower lifting capacity but better maneuverability in urban or narrow access areas
Mobile crane on a flatbed trailer	No need for a separate towing vehicle and faster deployment, but less lifting height and reach
Telescopic boom crane on a 6x4 chassis	Better stability on uneven ground but less reach and less compact when folded

Operating Notes

Use Guide

Confirm left or right hand drive and local road regulations before placing the order
Inspect the crane and chassis for damage upon delivery and report any issues immediately
Use the radio remote control or top seat control only after checking the surrounding area for personnel and obstacles
Do not exceed 15 tons lifting capacity or the maximum boom reach specified in the manual
Perform daily checks on hydraulic fluid levels, cable tension, and brake function
Store the crane in the folded position and secure all components during transit
Free operator training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this knuckle boom truck?

Generally 20 days after the advance payment is received. The exact date depends on crane type and chassis availability.

Can the crane be telescopic instead of knuckle boom?

Yes. The standard is knuckle boom, but telescopic boom is available as an option. Specify at order stage.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before balance payment.

Is right hand drive available?

Yes. The chassis is ordered in left or right hand drive to match local traffic rules. Confirm at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms are EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the cab colour and logo be changed?

Yes. The cab colour and logo are free of charge and can be customized to match your fleet livery.
