Home/ All Trucks/ Howo Truck Mounted Crane/Sinotruk Homan 3 ton truck crane Ethiopia

Sinotruk Homan 3 ton truck crane with telescopic boom in urban construction site

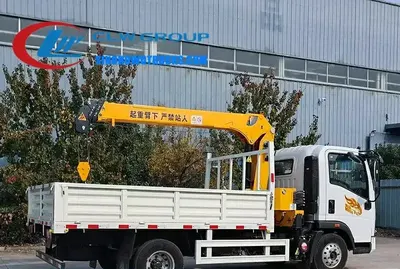

Side view of the 4x2 HOWO truck crane showing the telescopic boom and cab

Rear view of the truck crane with the crane arm extended and hydraulic lines visible

Sinotruk Homan 3 ton truck crane Ethiopia

Name: Sinotruk Homan 3 ton truck crane Ethiopia
Brand: Sinotruk HOWO

The Sinotruk Homan 3 ton truck crane is a 4x2 HOWO chassis mounted crane built for construction, logistics, and municipal operations in regions with limited access to fixed cranes. It is designed for loading and unloading freight on-site without needing a separate crane, reducing downtime and labour costs. The crane has a 3-ton rated capacity and a telescopic boom with a maximum lift of 4 tons at minimum outreach, suitable for urban and rural infrastructure projects, equipment transport, and maintenance work in challenging terrain.

Request A Quote Email Specification

Key Benefits

4x2 HOWO chassis provides stable handling and strong off-road capability on unpaved and uneven roads
131 HP Sinotruk diesel engine delivers reliable power with no overhaul required for 500,000 km
Telescopic boom with single cylinder synchronization technology improves lifting efficiency and control
360-degree slewing with over-wind alarm and anti-slewing impulse equipment enhances operational safety
Float three-point bridge structure reduces stress on the chassis during travel and improves vehicle longevity
Self-developed slewing machine with high drive force adapts to varied working conditions
Compact hinge point design saves space and allows tighter turning in confined areas
Optional radio remote control and top seat control improve operator visibility and convenience

Buyer Profile

Who It Is for

Municipal engineering and infrastructure departments in developing countries
Construction contractors working on remote or low-access roads and sites
Utility and telecom companies managing rural network maintenance and upgrades
Mining and quarry operators needing mobile lifting for equipment transport
Government procurement agencies equipping local maintenance and repair units
Private logistics firms operating in areas with no fixed crane availability

Operating Problems

Problems It Solves

Lack of access to fixed or mobile cranes in remote or rural areas with poor road networks
High cost and delay of hiring external cranes for short-term or repetitive lifting tasks
Inability to move heavy equipment on unpaved or uneven terrain due to poor vehicle stability
Overloading or damage to chassis from improper crane mounting or unbalanced loads
Limited operator visibility and control during lifting in tight or obstructed spaces
High maintenance and downtime from crane systems not designed for continuous field use

Where It Works

Application Scenarios

Urban construction sites with limited crane access and tight working spaces
Rural road and bridge maintenance teams transporting and installing heavy components
Municipal utilities deploying equipment for power line, telecom, and water pipe installations
Mining and quarry operations moving tools, pipes, and machinery on rough terrain
Logistics companies handling heavy cargo at remote depots without crane infrastructure
Emergency repair crews installing temporary structures or lifting damaged parts after natural disasters

Engineering

Technical Features

4x2 HOWO chassis with 3280 mm wheelbase and 18° departure angle for improved off-road performance
131 HP Sinotruk diesel engine with Euro VI emission standard and 89 km/h maximum speed
6-speed manual gearbox with 11/9+7 leaf spring suspension for durable handling
Telescopic boom with 3 to 4 meter extension and 4-ton maximum lift capacity
Single cylinder synchronization guy cable system for smooth and balanced boom movement
Float three-point bridge structure reduces dynamic stress on the chassis during transit
Anti-slewing impulse equipment prevents sudden movement during crane operation
Over-wind alarm and safety interlocks prevent overextension and mechanical failure
Self-developed slewing machine with high torque drive force for varied lifting conditions
All structural components made from high-strength steel for durability and load resistance
Optional radio remote control and top seat control for improved operator positioning

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left or right hand drive
Engine	131 HP diesel, Euro VI emission standard
Gearbox	6-speed manual
Overall Size	5995 x 2250 x 3050 mm
Gross Vehicle Weight	4495 kg
Rated Load	800 kg
Max Load at Minimum Outreach	4 tons
Boom Type	Telescopic
Max Boom Extension	3 to 4 meters
Wheelbase	3280 mm
Tyre Size	6 / 7.00r16LT 8PR
Cab	Single row, 3 passengers, air conditioner
Fuel	Diesel
Max Speed	89 km/h
Departure Angle	18°
Container Size	3300 x 2100 x 500 mm
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

High-strength steel used in all structural components of the crane and chassis
Galvanized steel and corrosion-resistant coating on crane frame and boom
Aluminium alloy used in cab and control panels for weight reduction
Rubber bushings and sealed joints in suspension and pivot points for long-term durability
Premium grade hydraulic hoses and fittings for high-pressure system reliability

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for alignment and frame integrity
Crane subframe is welded and aligned to the chassis with precision mounting points
Telescopic boom is assembled with single cylinder synchronization system and guy cables
Hydraulic system is installed and tested for leaks and pressure stability
Slewing mechanism and anti-slewing impulse equipment are fitted and calibrated
Float three-point bridge structure is integrated to reduce chassis stress
Control systems including radio remote and top seat control are tested
Vehicle is painted and logos applied as per customer request
Final 100% test includes crane lift, slewing, boom extension, and safety interlocks
Photos and videos of the completed truck are sent to the buyer before balance payment

Testing

Quality Control

All structural welds inspected using non-destructive testing methods
Hydraulic system pressure tested to 1.5 times working pressure
Crane operation tested under full load and extreme reach conditions
Every truck undergoes 100% functional test before delivery
Photos and videos of the finished truck are provided before balance payment
Crane components meet GB/T 3811 standard for crane design and safety

Build to Order

Customization Options

Left or right hand drive chassis to match local traffic regulations
Crane type can be changed from telescopic to knuckle boom on request
Optional radio remote control and top seat control available at extra cost
Tank colour and logo applied free of charge to match customer branding
Cargo box loading capacity can be adjusted to 4 tons with structural reinforcement
Manufacture to customer technical drawings and specifications

Comparison

How It Compares With the Alternatives

4x2 mobile crane with 5 ton capacity	Higher capacity but larger footprint and less maneuverable in tight urban spaces
Truck with fixed crane attachment	Less flexible in boom positioning and requires more setup time
Used truck crane from international auction	Higher risk of hidden damage and no local support or warranty

Operating Notes

Use Guide

Confirm left or right hand drive chassis at order stage to match local traffic rules
Do not exceed 4 tons at minimum outreach and 800 kg at maximum outreach
Use the over-wind alarm and anti-slewing impulse systems to prevent operational hazards
Inspect hydraulic hoses and joints before each shift for leaks or wear
Keep the crane boom fully retracted during travel to reduce chassis stress
Perform routine maintenance on the slewing mechanism and hydraulic system every 500 hours

Buyer Questions About This Truck

What is the lead time for this truck crane?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and crane configuration.

Can the crane be knuckle boom instead of telescopic?

Yes. The standard is telescopic boom, but knuckle boom is available as an option. Confirm the requirement at order stage.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage because it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the crane be controlled remotely?

Yes. Radio remote control is available as an optional fitment. It can be added at the factory before shipment.
