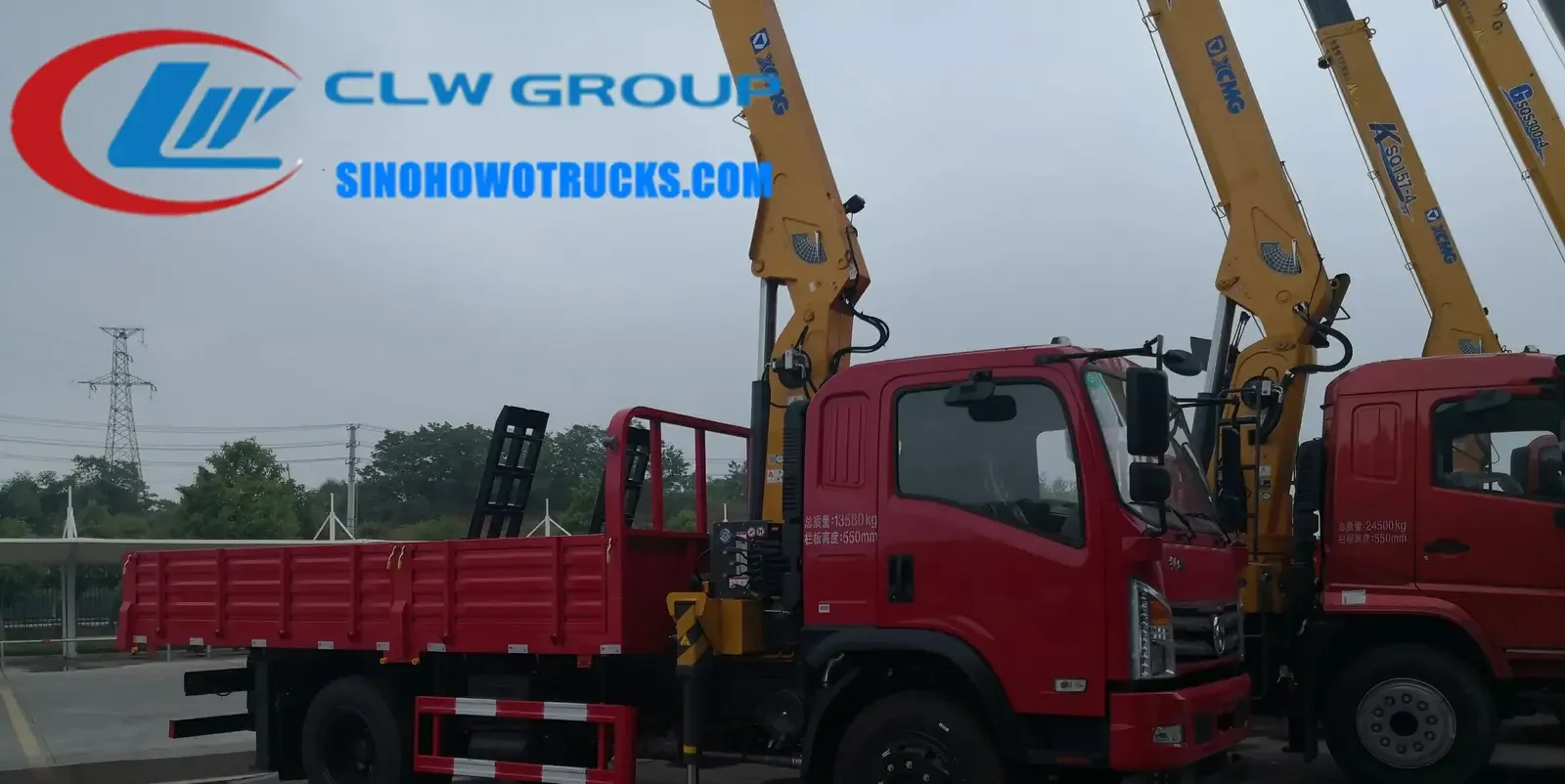

Sinotruk CDW 5 ton truck with crane in Laos, rear view showing mounted crane and cargo box

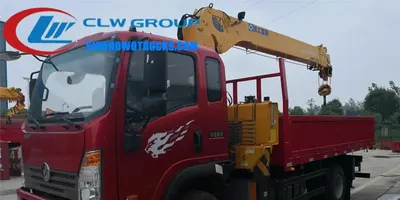

Side view of the Sinotruk CDW 5 ton truck with crane, showing 4x2 chassis and boom extension

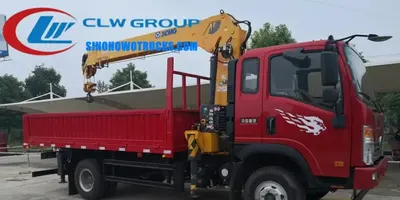

Front view of the Sinotruk CDW 5 ton truck with crane, highlighting the cab and cargo box

Sinotruk CDW 5 ton truck with crane Laos

Name: Sinotruk CDW 5 ton truck with crane Laos
Brand: Sinotruk HOWO

The Sinotruk CDW 5 ton truck with crane is a 4x2 left hand drive vehicle built on a HOWO chassis, designed for construction, logistics, and industrial site operations where a self-loading crane is required without needing a separate crane unit. It carries a 7000 kg payload and features a 160 HP diesel engine, 6-speed manual gearbox, and a high-strength cargo box with a 4800 x 2300 x 550 mm internal dimension. The crane is mounted on the rear and can rotate 360 degrees, extend and lift with precision, enabling efficient loading and unloading of heavy materials on uneven or remote sites.

Request A Quote Email Specification

Key Benefits

4x2 HOWO chassis provides stable handling and reliable performance on rural and unpaved roads
160 HP turbocharged engine delivers consistent power with no overhaul needed within 500,000 km
Crane with single cylinder synchronization and guy cable technology improves lifting efficiency
Pentagon and hexagon boom design increases anti-bending strength and load capacity
Float three-point bridge structure reduces stress on the chassis during travel
Optional radio remote control and top seat control allow flexible operation from multiple positions
High-strength steel construction ensures long-term durability under heavy use

Buyer Profile

Who It Is for

Construction companies operating in Southeast Asia and Africa with limited crane access
Industrial maintenance departments managing plant equipment replacement and repair
Logistics and freight operators needing self-loading capability for heavy cargo
Utility and telecom contractors installing infrastructure in remote or low-access areas
Government and municipal works departments managing road and bridge maintenance
Equipment rental companies offering mobile crane services with lower operational cost

Operating Problems

Problems It Solves

Lack of crane availability on remote or rural job sites delays material handling and increases downtime
High cost and scheduling delays when hiring external mobile cranes for short-term tasks
Inability to transport and deploy cranes on unpaved or narrow access roads due to vehicle size
Frequent need to reposition or reconfigure cranes due to poor stability or weak boom design
High maintenance and downtime from crane systems that are not built for continuous field use
Limited flexibility in crane operation due to fixed control positions and no remote control option

Where It Works

Application Scenarios

Construction sites in Laos and Southeast Asia where access roads are unpaved and crane transport is limited
Industrial maintenance teams needing to lift heavy components without waiting for external crane hire
Logistics operators transporting and offloading heavy machinery or steel beams in remote locations
Utility contractors installing poles or transformers in rural areas with no crane availability
Mining and quarry operations requiring mobile lifting for equipment and material handling
Emergency response teams deploying equipment quickly during infrastructure repair after natural events

Engineering

Technical Features

4x2 left hand drive HOWO chassis with 4500 mm wheelbase and 8100 mm overall length
YC4E160-33 160 HP turbocharged diesel engine with high pressure common rail injection
Straight-4 cylinder engine with 4.257 L displacement and 118 kW max output
6-speed manual gearbox for smooth gear shifting under load
7000 kg payload capacity with a 4800 x 2300 x 550 mm cargo box
Crane with single cylinder synchronization and guy cable technology for balanced lifting
Pentagon and hexagon boom design with high anti-bending capacity and symmetrical load distribution
Float three-point bridge structure reduces chassis stress during transit
Self-developed slewing machine with greater drive force for varied working conditions
Over-wind alarm and anti-slewing impulse equipment improve operational safety
Optional radio remote control and top seat control for operator flexibility
All structural components made of high-strength steel for durability and load resistance

Specifications

Technical Data


Chassis	Sinotruk HOWO 4x2 left hand drive
Engine	YC4E160-33, 160 HP, turbocharged, high pressure common rail
Engine Type	Straight-4 cylinders, 4.257 L displacement
Max Output	118 kW
Emission Standard	Euro 2 (China National 3)
Gearbox	6-speed manual
Payload	7000 kg
Curb Weight	Approx. 5800 kg
Wheelbase	4500 mm
Overall Dimension	Approx. 8100 x 2450 x 3400 mm
Box Dimension	4800 x 2300 x 550 mm
Crane Type	Telescopic or knuckle boom, optional
Crane Control	Radio remote control or top seat control, optional
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

High-strength steel used in crane structure and chassis frame
Steel cargo box with reinforced sides and floor for heavy load transport
Aluminium alloy components used in crane control panels and access doors
Toughened paint finish applied to body and crane for corrosion resistance
Rubber seals and gaskets used in crane joints and door mechanisms

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for alignment and frame integrity
Cargo box is fabricated from high-strength steel and welded to the chassis frame
Crane subframe is mounted and aligned with the chassis using precision jigs
Crane boom, hydraulic system, and control components are assembled and tested
Single cylinder synchronization and guy cable system is calibrated for balanced lifting
Float three-point bridge structure is installed to reduce chassis stress during travel
Electrical and hydraulic systems are pressure tested and checked for leaks
Vehicle is painted and logos applied as per customer specification
Final inspection includes crane operation test, load test, and safety system verification

Testing

Quality Control

Every truck undergoes 100 percent testing before delivery
Crane systems are tested under full load and extreme angles to verify stability
Hydraulic and electrical systems are pressure tested and inspected for leaks
All welds on the crane and chassis are checked using non-destructive testing
Safety features such as over-wind alarm and anti-slewing impulse are verified
Photos and videos of the finished truck are sent to the buyer before balance payment

Build to Order

Customization Options

Crane type can be selected as telescopic or knuckle boom based on lifting needs
Radio remote control and top seat control are available as optional fitments
Cargo box dimensions and internal layout can be adjusted to suit specific loads
Tank color and logo are provided free of charge and can be customized
Chassis can be ordered in left or right hand drive to match local traffic rules
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

Mobile crane on a 6x4 chassis	More expensive to operate and less maneuverable in tight urban or rural areas
Truck with crane and no remote control	Slower operation and less safe in high-risk lifting zones
Used crane truck from a third party	Higher risk of mechanical failure and no warranty on crane components

Operating Notes

Use Guide

Confirm left or right hand drive at order stage as it cannot be changed after production
Use the radio remote control or top seat control only when the crane is fully supported and stable
Do not exceed the 7000 kg payload limit to avoid chassis and suspension damage
Check hydraulic fluid levels and pressure before each shift and after long idle periods
Engage the anti-slewing impulse system when traveling on uneven terrain
Perform routine maintenance on the crane’s hydraulic system and joints every 500 hours

Buyer Questions About This Truck

What is the lead time for this truck?

Generally 20 days after the advance payment is received. The exact date depends on crane type and customization.

Can the crane be remote controlled?

Yes. Radio remote control is available as an optional fitment.

Is the crane type adjustable?

Yes. You can choose between telescopic or knuckle boom crane at order stage.

Can the truck be right hand drive?

No. The standard is left hand drive. Right hand drive is not available for this model.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms are EXW, FOB, CFR, or CIF.

What payment terms do you offer?

T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before balance payment.

Can the cargo box be customized?

Yes. The box dimensions and internal layout can be adjusted to suit your load requirements.
