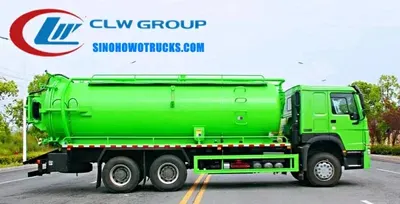

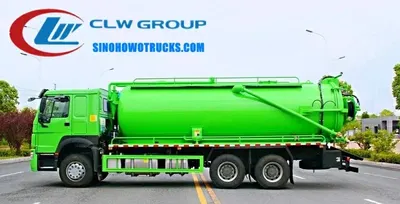

The Sinotruk HOWO 22 ton vacuum cleaning truck is a 6x4 heavy-duty sewer maintenance vehicle designed for municipal sanitation departments and waste contractors that must clear blockages in underground pipelines and empty septic tanks under high pressure and strong vacuum. It combines a high-pressure jetting system with a 16000 to 20000 litre vacuum tank to clear solid waste, sludge, and debris from sewer lines, manholes, and septic pits. The truck operates in urban and rural environments where access is limited and infrastructure is aging, and it is built to withstand continuous operation in harsh conditions.
| Chassis | Sinotruk HOWO 6x4 |
|---|---|
| Engine | Sinotruk WD615.47, 371 HP, diesel |
| Engine Displacement | 9726 ml |
| Emission Standard | Euro 2 |
| Overall Dimensions | 10400 x 2500 x 3500 mm |
| Curb Weight | 12000 kg |
| Loading Weight | 20000 kg |
| Tank Volume | 16000 L or 20000 L |
| Tank Material | 6mm thick carbon steel |
| Tank Shape | Cylindrical |
| Vacuum Pumps | Double 5 ton Weilong |
| Suction Pressure | -0.3 MPa |
| Suction Depth | More than 6 metres |
| High Pressure Pump | Tianjin Tongjie standard, Germany Pinfu optional |
| Suction Pipe | Standard 8 m, extendable to 12 m |
| Dredge Pressure | 16-24 MPa |
| Dredge Flow | 75-275 litres per minute |
| Exhaust Flow | 6-35 cubic metres |
| Drive Type | 6x4 |
| Wheelbase | 5800+1400 mm |
| Axles | 3 |
| Tires | 10, 12.00R20 |
| Production Time | 20 days |
| Lead Time | 20 days after advance payment |
| Shipping | Ro-ro, bulk ship or container from China main port |
| 4x2 vacuum truck with 10000 L tank | Lower cost and better turning radius but less capacity and weaker suction for deep or blocked lines |
|---|---|
| Separate jetting and vacuum trucks | Higher total cost and longer turnaround time, but more specialized for each task |
| Used imported vacuum truck | Higher risk of breakdown and parts unavailability, but may have higher initial performance |
Production time is 20 days after the advance payment is received. The exact delivery date depends on chassis availability and shipping mode.
Yes. Tank volume ranges from 3000 L to 30000 L. Specify your requirement at order stage.
T/T with 30 percent deposit and 70 percent before delivery. Photos and videos of the finished truck are sent before the balance payment.
Yes. The standard is Veyron; Shandong water ring pump is optional. Germany Pinfu is available for high-pressure jetting systems.
By Ro-ro, bulk ship, or container from a China main port. Trade terms are EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support.
Yes. We manufacture to customer supplied technical drawings and specifications, including hose length, nozzle type, and equipment layout.
Send us your destination port and we will quote price, lead time and freight.
