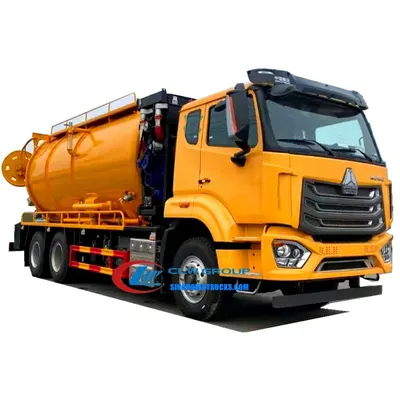

The Sinotruk HOWO 25-ton Combination Vacuum Jetting Truck is a 12 cubic meter sewage clearing vehicle built on a 4x4 chassis with a 371 HP diesel engine and 10-speed manual gearbox. It is designed for municipal sanitation departments and waste contractors that need to clear blockages in sewer lines using high-pressure jetting and then remove debris and sludge via vacuum suction. The truck operates in urban and rural environments where access is limited and where traditional cleaning methods are ineffective due to clogged or collapsed pipes.
| Chassis | Sinotruk HOWO 4x4 |
|---|---|
| Engine | SINO Truck Diesel WD615.46, 371 HP, Euro II |
| Gearbox | HW13710, 10 forward, 2 reverse |
| Overall Size | 9300 x 2500 x 3500 mm |
| Wheelbase | 4300+1350 mm |
| Curb Weight | 9500 kg |
| Loading Weight | 10,000 kg |
| Tank Capacity | 12 cubic meters |
| Tank Material | Q235 high tension steel, 5mm thickness |
| Vacuum Pump | Italian brand Jurop PN84D |
| Vacuum Pressure | -0.092 MPa |
| Suction Hose | 5 meters rubber pipe |

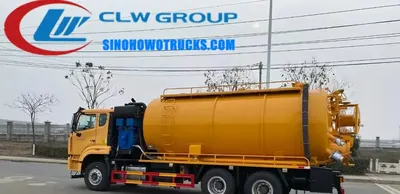

| Dumping System | Middle tipper, hydraulic controlled rear door and middle lift |
| Cabin | HW76 standard, RHD, 1 sleeper, air conditioner, 3 passengers |
| Production Time | 20 days |
| Lead Time | 7 to 30 days after deposit |
| Shipping Mode | Ro-ro, bulk ship, or container from China main port |
| 4x2 vacuum truck with 8 cubic meter tank | Lower cost and lighter weight but less capacity and reduced off-road ability |
|---|---|
| Dedicated jetting truck without vacuum system | Can clean pipes faster but cannot remove sludge or debris after cleaning |
| Used imported vacuum truck | Higher initial cost but lower long-term reliability and parts availability |
Production time is 20 days. Delivery time depends on shipping mode and chassis availability, generally 7 to 30 days after deposit.
Yes. The standard tank is Q235 high tension steel. Stainless steel is available on request. Specify water quality and storage duration for material confirmation.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match your traffic rules. Confirm this at order stage as it cannot be changed later.
By Ro-ro, bulk ship, or container from a China main port. Trade terms are EXW, FOB, CFR, or CIF.
The whole vehicle is guaranteed for one year and core parts for two years. We provide 15 years of spare parts and technical support.
Yes. Send us your preferred layout for jetting nozzles, suction pipes, and storage lockers, and we will build it to your specifications.
Send us your destination port and we will quote price, lead time and freight.
