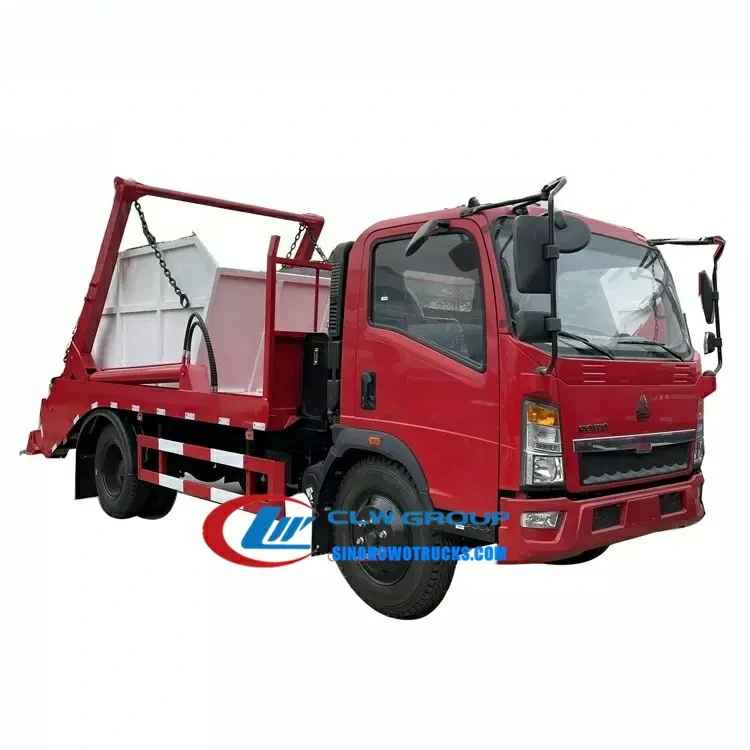

Sinotruk 3.5 t skip truck in urban waste collection setting with swing arm lifting a 5m3 skip body

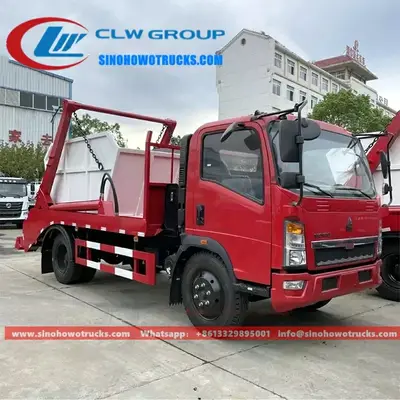

Side view of the HOWO 3.5 t skip truck showing the high strength steel swing arm and hydraulic cylinder

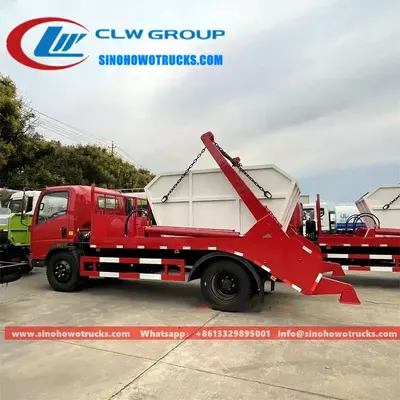

Rear view of the skip truck with the rear support leg deployed and the skip body being lifted

Sinotruck 3.5 t skip truck for sale Ecuador

Name: Sinotruck 3.5 t skip truck for sale Ecuador
Brand: Sinotruk HOWO

The Sinotruk 3.5 t skip truck is a 5m3 waste collection vehicle built on a 4x2 HOWO chassis with a 110HP diesel engine and 5-speed manual gearbox. It is designed for municipal waste contractors and private haulers that need to collect refuse from multiple containers using a single truck. The detachable skip body allows one vehicle to serve several bins, reducing the number of trucks needed and improving route efficiency. The swing arm system lifts and dumps the container with a hydraulic double cylinder and rear support leg, enabling fast and safe operation in urban and rural areas.

Request A Quote Email Specification

Key Benefits

Detachable skip body allows one truck to serve multiple waste containers, improving fleet utilization
4x2 HOWO chassis with Cummins engine delivers reliable performance and no overhaul required within 500,000 km
High strength steel swing arm system supports repeated lifting and dumping cycles without fatigue
Hydraulic double cylinder with manual and automatic control enables flexible operation in tight spaces
Sewage collection box at the base of the fill device prevents re-pollution by capturing liquid waste
Rectangular or trapezoidal skip body shapes available to match site layout and access constraints

Buyer Profile

Who It Is for

Municipal sanitation departments managing waste collection with limited vehicle budgets
Private waste haulers operating on fixed routes with multiple container drop points
Construction and quarry site managers needing to move debris in bulk
Industrial park operators managing waste from multiple tenants
Rural and remote area contractors with long haul distances and low traffic density
Contractors supplying waste services under government or private tenders

Operating Problems

Problems It Solves

High cost of owning multiple trucks for container-based waste collection
Inefficient use of vehicles when containers are not full or not ready for pickup
Contamination from liquid waste spilling during lifting and dumping
Lack of space for large trucks to turn or access narrow streets
Slow loading times due to manual or single-point lifting systems
Inconsistent service levels when trucks are unavailable due to maintenance

Where It Works

Application Scenarios

Municipal waste collection in small towns and peri-urban areas with limited access for large trucks
Private waste haulers operating on fixed routes with multiple drop-off points
Construction sites and industrial parks where waste is collected in standardized skip containers
Rural communities with low population density but high waste volume per household
Tourist areas and markets that generate large amounts of waste during peak seasons
Contractors managing multiple sites with shared container fleets

Engineering

Technical Features

4x2 HOWO chassis with 3360 mm wheelbase and one and a half cab for three passengers
YN4102QBZL 4-cylinder direct injection diesel engine, 85 kW, 290 N·m torque, Euro II emission standard
5-speed manual transmission with power-assisted steering and A/C available
Hydraulic double cylinder lifting system with rear support leg and backplane limit
Swing arm system with chain drive and 16 MPa hydraulic working pressure
Skip body with sealed or semi-enclosed design, rectangular or trapezoidal shape
Sewage collection box at the base of the fill device to capture liquid waste
Manual and automatic control options for the lifting mechanism
7.00R16 radial tires on the chassis for durability on rough roads

Specifications

Technical Data


Chassis	HOWO 4X2
Engine	YN4102QBZL 85 kW, 290 N·m, 3760 ml, Euro II
Transmission	5-speed manual
Overall Size	6200 x 2200 x 2800 mm
Curb Weight	3850 kg
Gross Weight	4495 kg
Rated Load	500 kg
Skip Capacity	5 m³
Skip Shape	Rectangular or Trapezoidal
Skip Type	Sealed or Semi-Enclosed
Lifting System	Hydraulic double cylinder with manual and automatic control
Hydraulic Pressure	16 MPa
Wheelbase	3360 mm
Cab Type	One and a half cab, 3 passengers allowed
Tire Size	7.00R16 radial
Steering	Left or right hand drive
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

Q235A carbon steel skip body with welded construction for durability
High strength steel swing arm system with chain drive for repeated lifting
Aluminium alloy components on the control box and lifting mechanism for corrosion resistance
Radial tires with reinforced sidewalls for rough terrain and long life
Sealed or semi-enclosed skip body with internal drainage channel and sewage box

How It Is Built

Manufacturing Process

Chassis is received from Howo Motor Group and wheelbase is verified against the skip body drawing
Skip body is cut and formed from Q235A carbon steel with internal drainage channel and sewage box
Welding and assembly of the swing arm system and lifting cylinder mounts
Hydraulic system is installed with dual control (manual and electric) and pressure tested
Control box and electrical wiring are fitted and tested for safety and function
Skip body is mounted on the chassis and the swing arm system is aligned with the lifting cylinder
Final inspection includes full operation test of lifting, dumping, and safety locks
Vehicle is cleaned and prepared for shipment with photos and videos sent before balance payment

Testing

Quality Control

All vehicles are 100 percent tested before delivery
Hydraulic systems tested at 16 MPa pressure with no leaks or failure
Swing arm and lifting mechanism tested for 500 cycles under full load
Skip body inspected for weld integrity and drainage function
Photos and videos of the finished truck sent to the buyer before balance payment
Complies with GB7965 for vehicle safety and performance in waste collection

Build to Order

Customization Options

Skip body shape: rectangular or trapezoidal to match site access
Skip type: sealed or semi-enclosed based on local waste handling rules
Tank color and logo applied free of charge
Left or right hand drive chassis to match local traffic regulations
Skip body material can be changed to stainless steel on request
Custom control panel layout and electrical configuration available

Comparison

How It Compares With the Alternatives

Standard waste collection truck with fixed body	Higher initial cost per vehicle but lower operating cost per tonne when handling multiple containers
Small 2.5 t skip truck	Higher payload and better stability on uneven ground but requires more space to maneuver
Front-loading compactor	Better for high-volume routes but cannot use detachable containers and has higher maintenance cost

Buyer Questions About This Truck

What is the lead time for this skip truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and customization level.

Can the skip body be stainless steel instead of carbon steel?

Yes. The standard body is Q235A carbon steel. Stainless steel is available on request. Please specify water exposure and waste type for material confirmation.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is ordered in left or right hand drive to match your traffic regulations. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year. Core components are covered for two years. Overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the skip body shape be changed?

Yes. The standard shape is rectangular. Trapezoidal is available. Send us your site layout or access constraints and we will confirm the best fit.
