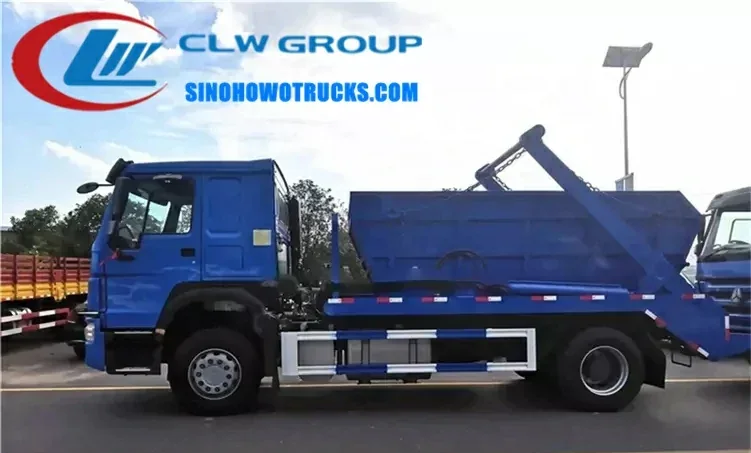

Sinotruk HOWO 12m3 skip loader truck with swing arm lifting a sealed skip bin at a waste collection site

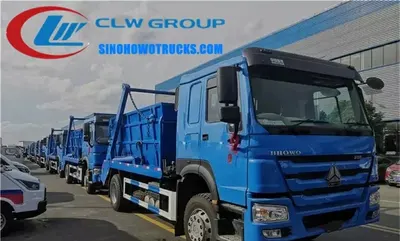

Side view of the HOWO skip loader truck showing the high strength steel swing arm and hydraulic system

Rear view of the skip loader truck with the 12m3 sealed bin mounted on the chassis

Sinotruk Howo 12m3 skip loader truck for sale Surinam

Name: Sinotruk Howo 12m3 skip loader truck for sale Surinam
Brand: Sinotruk HOWO

The Sinotruk HOWO 12m3 skip loader truck is a 4x2 chassis-based waste collection vehicle designed for municipal and commercial waste contractors that need to manage multiple refuse containers across a service area. It uses a detachable skip bin system with a high strength steel swing arm to lift and dump containers without requiring manual labor. The truck is built for repeated loading cycles in urban and rural environments where access is limited and hygiene is critical. It is supplied with a Cummins WD615.62 engine, 266 HP, and a 10-speed manual gearbox, delivering reliable performance over long distances and varied terrain.

Request A Quote Email Specification

Key Benefits

12m3 detachable skip bin allows one truck to serve multiple containers, reducing fleet size and operational costs
High strength steel swing arm system lifts and dumps bins with minimal operator effort
Cummins engine delivers 266 HP with no overhaul required within 500,000 km
Dual hydraulic control (electric and manual) ensures operation continuity during electrical failure
Sewage collection box at the base of the fill device prevents liquid spillage and re-pollution
Sealed or semi-enclosed bin options reduce dust and odor during transport
Rectangular or trapezoidal bin shapes adapt to different container types and loading sites
295/80R22.5 tires with spare provide stability on rough roads and unpaved access routes

Buyer Profile

Who It Is for

Municipal sanitation departments managing containerized waste collection
Private waste management companies operating under contract with local governments
Industrial parks and commercial complexes with centralized waste storage points
Port authorities and logistics hubs handling containerized refuse from shipping operations
Contractors supplying waste services to remote or low-density settlements
Municipalities in developing markets seeking cost-effective, durable waste collection solutions

Operating Problems

Problems It Solves

High labor costs and safety risks from manual container lifting and dumping
Limited vehicle utilization due to fixed bin-to-truck pairing
Frequent breakdowns from poor hydraulic system reliability in harsh operating conditions
Liquid leakage from bins causing environmental contamination and road hazards
Inflexible fleet size when service areas expand or contract seasonally
Delays caused by waiting for a single truck to return to a container site after dumping

Where It Works

Application Scenarios

Municipal waste collection in Suriname where multiple container drop points are spread over long distances
Commercial waste contractors managing mixed-use areas with high volume and frequent collection cycles
Rural and peri-urban regions with poor road infrastructure and limited access to centralized transfer stations
Ports and industrial zones requiring frequent container movement with minimal manual handling
Contractors operating under tight schedules who need to maximize container turnover per shift
Cities with strict environmental regulations on dust and liquid runoff during waste transport

Engineering

Technical Features

4x2 HOWO chassis with ZZ1167M4611W model and 4600 mm wheelbase for stable handling
Cummins WD615.62 diesel engine with 9726 ml displacement and 266 HP output
HW13710 10-speed manual transmission for precise gear control under load
Maximum speed of 90 km/h for efficient route coverage between sites
Hydraulic swing arm system with dual control (electric and manual) for fail-safe operation
Sewage collection box at the base of the fill device captures runoff and prevents re-pollution
Detachable skip bin with rectangular or trapezoidal shape and sealed or semi-enclosed design
Curb weight of 8150 kg with overall dimensions of 7680 x 2490 x 3140 mm
295/80R22.5 tires with 6+1 spare for extended operation on poor roads
Engine meets Euro 2 emission standards for compliance in export markets

Specifications

Technical Data


Vehicle Model	CLW5160BZLZ3
Chassis Model	ZZ1167M4611W
Curb Weight	8150 kg
Overall Dimensions	7680 x 2490 x 3140 mm
Wheelbase	4600 mm
Fuel Type	Diesel
Engine Model	WD615.62
Engine Horsepower	266 hp
Displacement	9726 ml
Emission Standard	Euro 2
Tire Specification	295/80R22.5
Number of Tires	6+1 SPARE
Traction System	4×2
Transmission	HW13710
Max Speed	90 km/h
Production Cycle	25-30 working days
Warranty	12 months from date of supply
Lead Time	20 days
Shipping Port	China Main Port
Payment	T/T
Tank Capacity	12 m3
Bin Material	Q235A carbon steel
Bin Shape	Rectangular or trapezoidal
Bin Type	Sealed or semi-enclosed
Control System	Electric and manual hydraulic control

Build Materials

Materials

Q235A carbon steel for skip bin body with high strength and corrosion resistance
High strength steel for swing arm and lifting mechanism
Aluminum alloy components for hydraulic control box and electrical housing
Rubber seals and gaskets on bin doors and joints to prevent leakage
Galvanized steel frame for the substructure and mounting brackets

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for frame alignment and wheelbase accuracy
Skip bin shell is cut from Q235A carbon steel and formed into rectangular or trapezoidal shape
Internal ribs and support brackets are welded into the bin to prevent deformation under load
Sewage collection box is installed at the base of the fill device and sealed against leaks
Swing arm and hydraulic lifting system are assembled and tested for smooth operation
Electrical and hydraulic control systems are installed and calibrated with dual mode operation
Bin is mounted onto the chassis and aligned with the swing arm pivot point
Final assembly includes cab, tires, fuel tank, and safety signage
All systems are tested under load with a full bin before delivery

Testing

Quality Control

Each truck is 100% tested before delivery with full hydraulic and mechanical operation checks
Bin and frame welds are inspected for structural integrity and leakage
Hydraulic system pressure tested to ensure no internal or external leaks
Electrical circuits and control panels are verified for correct function and safety
Photos and videos of the finished truck are sent to the buyer before final payment
All components meet GB and ISO standards for industrial vehicle safety and durability

Build to Order

Customization Options

Skip bin capacity can be adjusted from 10m3 to 15m3 based on customer needs
Bin material can be changed from Q235A carbon steel to stainless steel on request
Bin shape and type (sealed or semi-enclosed) selected to match local container standards
Swing arm system can be modified for different bin weights and lifting angles
Control system can be upgraded to include remote or automated operation features
Tank color and logo applied free of charge to match municipal or company branding

Comparison

How It Compares With the Alternatives

Standard rear loader truck	No need to drive into tight spaces; skips can be pre-loaded at drop points
Front loader truck	Better for uneven terrain and container drop points with limited access
Side loader truck	Higher lifting capacity and better bin stability but requires more space to turn

Operating Notes

Use Guide

Confirm bin shape and type (sealed or semi-enclosed) before ordering to match existing containers
Use the manual hydraulic control if the electric system fails during operation
Keep the sewage collection box clean and empty regularly to prevent overflow
Inspect the swing arm pivot and hydraulic hoses before each shift for wear or leaks
Do not exceed the 12m3 bin capacity or the 8150 kg curb weight to avoid chassis stress
Free technical training is available at the factory before shipment

Buyer Questions About This Truck

What is the lead time for this skip loader truck?

20 days after the advance payment is received. Production cycle is 25-30 working days, but we guarantee delivery within 20 days.

Can the bin be made from stainless steel?

Yes. The standard bin is Q235A carbon steel. Stainless steel is available on request. Confirm your water or waste exposure duration and we will advise the grade.

What are your payment terms?

All payments by T/T. 30 percent deposit, 70 percent before delivery. Photos and videos of the finished truck are sent before the balance is paid.

Can the truck be delivered with a right hand drive?

Yes. The HOWO chassis can be ordered in left or right hand drive. Confirm your local traffic regulations at order stage.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms include EXW, FOB, CFR, CIF, DAF, and DDU.

What warranty and after sales support do you provide?

12 months warranty from date of supply. Free parts for 12 months. Original parts available. DHL delivers spare parts worldwide in 7 days.

Can the bin shape be changed from rectangular to trapezoidal?

Yes. Both rectangular and trapezoidal shapes are available. Choose based on container compatibility and loading site layout.
