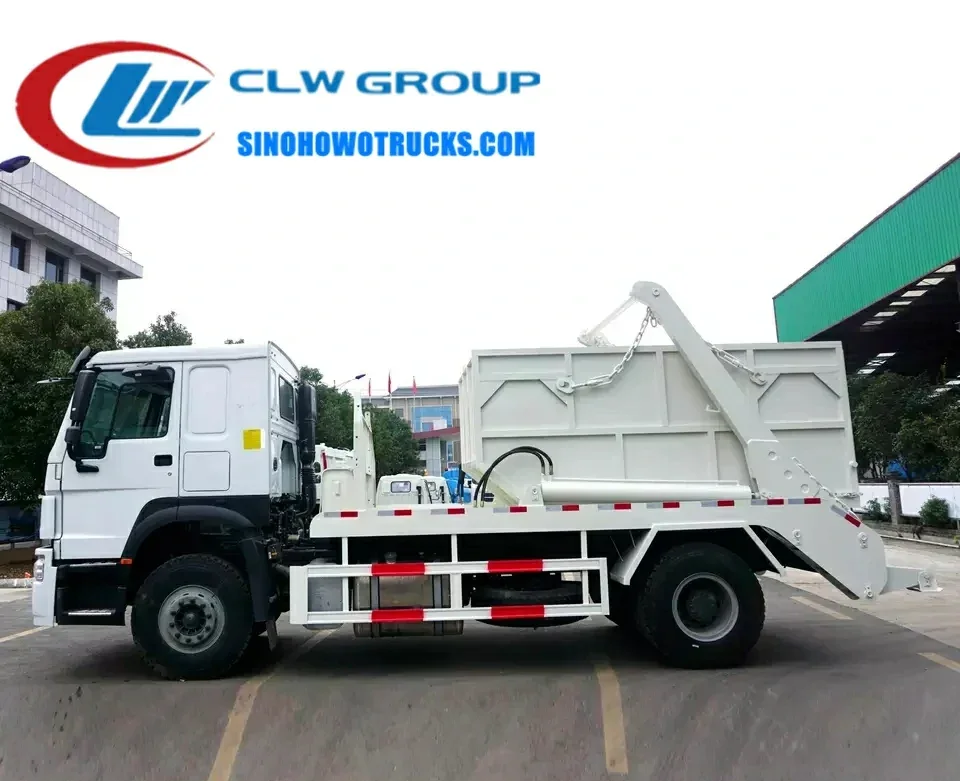

Sinotruk HOWO 4x2 skip lorry with 12cbm detachable container in urban waste collection setting

Rear view of the HOWO skip loader truck showing hydraulic lift system and container locking pins

Side view of the skip lorry with swing arm mechanism lifting a sealed 12cbm container

HOWO 12cbm skip lorry for sale Guyana

Name: HOWO 12cbm skip lorry for sale Guyana
Brand: Sinotruk HOWO

The Sinotruk HOWO 12cbm skip lorry is a 4x2 chassis mounted skip loader truck designed for municipal waste collection and recycling operations. It features a detachable 12 cubic metre skip container with a high strength steel swing arm system and hydraulic lifting mechanism. The truck is built for repeated loading and unloading cycles in urban and rural environments where access is limited and waste volumes are high. It operates with a 266 HP Cummins engine, 9 speed manual gearbox, and left hand drive configuration, meeting the demands of daily waste transport in developing and emerging markets.

Request A Quote Email Specification

Key Benefits

Detachable 12cbm skip container allows one truck to serve multiple sites with different containers
High strength steel swing arm system supports heavy lifting and repeated use without deformation
266 HP WECHAI WD615.92 engine delivers reliable performance with no overhaul required within 500,000 km
Dual hydraulic control system (electric and manual) ensures operation continuity during electrical failure
Sewage collection box at the base of the fill device prevents secondary pollution from liquid leakage
Sealed or semi-enclosed skip container options reduce dust and odour during transport
Left hand drive chassis matches local traffic regulations in Guyana and other right hand traffic countries
20 day lead time after deposit enables fast fleet deployment

Buyer Profile

Who It Is for

Municipal sanitation departments managing urban and rural waste collection
Private waste contractors operating under public service contracts
Construction and quarry site operators handling on-site waste removal
Recycling centres needing flexible container deployment across multiple collection zones
Government agencies procuring cost-effective waste transport solutions for remote regions
Municipalities upgrading fleets with modular, multi-container capable vehicles

Operating Problems

Problems It Solves

High cost of owning multiple full trucks for separate collection routes
Inefficient use of vehicles when containers are not available at the next site
Contamination from liquid waste during transport due to lack of drainage systems
Downtime caused by mechanical failure in remote areas with no local repair support
Inability to operate in low infrastructure areas due to poor chassis clearance or weak suspension
Lack of flexibility in container type and size for different waste streams

Where It Works

Application Scenarios

Municipal waste collection in urban areas with narrow streets and limited access points
Rural and peri-urban waste transport where infrastructure is underdeveloped and roads are unpaved
Recycling operations requiring multiple skip containers to be swapped between collection points
Contractor fleets managing multiple sites with shared vehicle assets and rotating containers
Temporary waste collection during construction or disaster recovery operations
Waste transfer stations that need to move containers between collection points and disposal sites

Engineering

Technical Features

4x2 HOWO chassis with 4600 mm wheelbase provides stable handling and good ground clearance
WECHAI WD615.92 engine with 9726ml displacement and 266 HP delivers consistent power under load
9 speed forward / 1 reverse manual transmission ensures smooth gear changes during lifting cycles
Power-assisted steering improves control during tight manoeuvres and container loading
Hydraulic system with dual control (electric and manual) allows operation during power loss
Sewage collection box at the base of the fill device captures liquids and prevents re-pollution
Sealed or semi-enclosed skip container options reduce dust and odour during transport
Left hand drive configuration matches traffic regulations in Guyana and similar markets
Rear hydraulic legs provide stable support during container loading and unloading
Unloading container locking pins ensure secure attachment during transit

Specifications

Technical Data


Chassis	SINOTRUCK HOWO 4x2
Engine	WECHAI WD615.92, 266 HP, 9726ml
Transmission	9 speed forward, 1 reverse manual
Overall Dimensions	7990 x 2496 x 2958 mm
Cab	HW76 single row and a half
Wheelbase	4600 mm
Curb Weight	7430 kg
Loading Capacity	8 m³
Skip Container Capacity	12 cbm
Container Material	Q235A carbon steel
Container Type	Rectangular or trapezoidal, sealed or semi-enclosed
Hydraulic Control	Electric and manual dual system
Steering	Power-assisted
Steering Wheel	Left-hand drive
Tire	12.00-20 steel wire
Emission Standard	Euro 2
Lead Time	20 days after deposit
Shipping Port	China main port
Payment	T/T
Vehicle Model	EHY5167ZBSZ
Vehicle Brand	HUAYI

Build Materials

Materials

Q235A carbon steel for skip container shell and structural frame
High strength steel for swing arm and lifting mechanism
Aluminium alloy for hydraulic control box and electrical components
Steel wire tires for durability on rough terrain
Sealed rubber gaskets on container doors to prevent dust and liquid leakage

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for frame alignment and wheelbase
Subframe is welded and mounted to the chassis to support the swing arm system
Skip container shell is cut, formed, and welded from Q235A carbon steel with internal stiffeners
Sewage collection box is installed at the base of the fill device and sealed
Hydraulic system components are assembled including cylinders, valves, and control box
Swing arm and lifting mechanism are fitted and aligned with the subframe
Rear hydraulic legs and container locking pins are installed and tested
Final assembly includes cab, steering, tires, and electrical wiring
All systems are tested under load before shipment, including hydraulic lift and container lock

Testing

Quality Control

Every truck is 100 percent tested before delivery
Hydraulic system tested under full load and emergency stop conditions
Container seal and drainage system verified with water test
Swing arm and lifting mechanism tested for fatigue and alignment
Photos and videos of the finished truck sent to buyer before balance payment
In-house testing available for pressure and non-destructive testing on request

Build to Order

Customization Options

Skip container size and shape (rectangular or trapezoidal) to match local waste stream
Container type: sealed or semi-enclosed based on environmental and safety requirements
Left or right hand drive chassis to match local traffic rules
Tank colour and logo applied free of charge
Optional chassis from ISUZU, Dongfeng, Shacman, or JAC available upon request
Custom hydraulic control layout or additional safety features on request

Comparison

How It Compares With the Alternatives

Standard rigid waste truck with fixed body	Lower initial cost but cannot swap containers; requires full vehicle turnaround at disposal site
Side loader with fixed body	Faster loading but limited to one container; less flexible for multi-site operations
Front loader with 10cbm body	Smaller capacity and less robust swing arm; not suitable for heavy or bulky waste

Operating Notes

Use Guide

Confirm chassis drive configuration and hand of drive before order to match local regulations
Use only the designated fill point to avoid damaging the sewage collection box
Engage rear hydraulic legs before lifting or unloading the container to prevent tipping
Inspect locking pins and swing arm mechanism before each use to ensure secure attachment
Drain the sewage collection box regularly to prevent overflow and corrosion
Free technical training is available at the factory before shipment

Buyer Questions About This Truck

How long is the lead time for this skip lorry?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and customization options.

Can the chassis be changed to ISUZU or Dongfeng?

Yes. The standard chassis is Sinotruk HOWO, but ISUZU, Dongfeng, Shacman, and JAC are available as optional chassis.

What are your payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Can the skip container be sealed or semi-enclosed?

Yes. Both sealed and semi-enclosed container types are available to meet environmental and safety requirements.

Is the truck available in right hand drive?

No. The standard is left hand drive. Right hand drive is not available for this model at this time.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

Free parts for 12 months and supply of original parts. Overseas engineers provide technical training and manuals before delivery.
