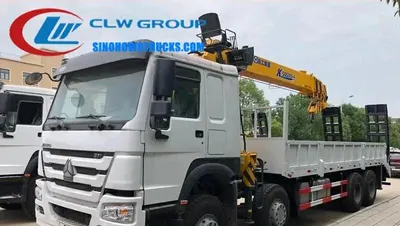

Rear view of the HOWO truck crane showing the hydraulic rear ladder and boom structure

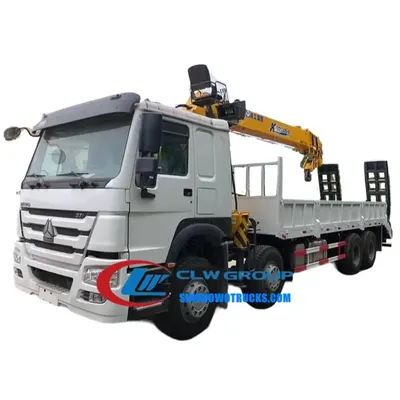

Side view of the truck crane with the cab and cargo box, highlighting the high-strength steel construction

8×4 HOWO 16tons service truck crane with Hydraulic Rear Ladder Cabo Verde

Name: 8×4 HOWO 16tons service truck crane with Hydraulic Rear Ladder Cabo Verde
Brand: Sinotruk HOWO

The 8x4 HOWO 16-ton service truck crane with hydraulic rear ladder is built on a Sinotruk HOWO 8x4 chassis and designed for heavy lifting tasks in construction, infrastructure, and industrial maintenance. It carries a 15-ton cargo load and features a high-capacity crane capable of 360-degree rotation, extension, and precise placement. The crane is used by contractors and public works teams that need to load and unload heavy materials without relying on external cranes, especially in remote or poorly accessible sites.

Request A Quote Email Specification

Key Benefits

8x4 HOWO chassis with 371 HP engine ensures strong traction and performance on rough terrain
15-ton cargo box capacity with high-strength steel construction for durability
Hydraulic rear ladder crane with 360-degree rotation and synchronized boom operation
Single cylinder synchronization and anti-slewing impulse systems improve safety and control
Float three-point bridge structure reduces stress on the chassis during travel
Optional radio remote control and top seat operation allow flexible positioning for the operator

Buyer Profile

Who It Is for

Construction and infrastructure contractors operating in remote or low-access areas
Municipal and regional public works departments managing road and utility maintenance
Telecom and power line maintenance teams deploying equipment in difficult terrain
Industrial maintenance teams requiring mobile lifting for plant upgrades and repairs
Port and logistics operators needing flexible lifting at temporary or underdeveloped docks
Government agencies procuring multi-purpose service vehicles for disaster response and field operations

Operating Problems

Problems It Solves

Lack of fixed crane access at remote or temporary work sites
High cost and scheduling delays from hiring external cranes for short tasks
Poor road conditions that prevent standard crane transport or setup
Inflexible crane positioning due to limited swing or reach on standard models
Need for a single vehicle to carry both cargo and lifting capability
Delays caused by long setup times and complex rigging for traditional cranes

Where It Works

Application Scenarios

Construction sites with limited crane access and poor road conditions
Road and bridge maintenance crews needing to lift heavy equipment on remote stretches
Industrial plants requiring frequent loading and unloading of machinery and pipes
Utility and telecom teams deploying poles and transformers in rural or mountainous areas
Port and terminal operators handling heavy containers and machinery without fixed cranes
Public works departments managing emergency repairs and equipment transport in flood zones

Engineering

Technical Features

371 HP WEICHAI diesel engine with 9726 ml displacement and Euro II emission standard
10-speed manual gearbox with 8x4 drive configuration and left or right hand drive option
Hydraulic rear ladder crane with single cylinder synchronization and guy cable technology
Pentagon and hexagon boom design with symmetrical center for high anti-bending capacity
Float three-point bridge structure reduces chassis stress during travel
Self-developed slewing machine with greater drive force for varied working conditions
Over-wind alarm and anti-slewing impulse systems enhance operational safety
Optional radio remote control and top seat control for improved operator visibility and reach

Specifications

Technical Data


Chassis	Sinotruk HOWO 8x4 left hand drive, optional right hand drive
Engine	WEICHAI 371 HP (272 KW), 9726 ml, Euro II
Gearbox	10 shift manual
Overall Size	11990 x 2500 x 3720 mm
GVW	25,000 kg
Cab	HOWO 76 cabin, 3 persons, one sleeper
Cargo Capacity	15 tons
Crane Type	Hydraulic rear ladder, optional telescopic or knuckle boom
Lifting Capacity	16 tons at maximum outreach
Boom Reach	Depends on boom type and configuration
Rotation	360 degrees
Control	Standard manual, optional radio remote or top seat
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

High-strength steel used in all structural components including crane and chassis
Steel cargo box with reinforced frame and load-bearing floor
Aluminium alloy used in cab and crane components where weight reduction is critical
Welded steel boom with internal clapboards for rigidity and anti-sway control

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and wheelbase is verified against crane and cargo box drawings
Cargo box is fabricated from high-strength steel and welded to the chassis frame
Crane boom and hydraulic system are assembled and aligned with the chassis
Slewing mechanism and anti-slewing impulse systems are installed and tested
Float three-point bridge structure is fitted to reduce chassis stress during travel
Cab is mounted and interior components including sleeper and air conditioner are installed
Final assembly includes crane control systems, remote control option, and safety alarms
Vehicle undergoes 100% testing including crane lift, rotation, and chassis load checks before delivery

Testing

Quality Control

All vehicles are 100% tested before delivery
Crane systems tested under full load and extreme reach conditions
Chassis and cargo box inspected for weld integrity and structural alignment
Hydraulic systems pressure tested and leak checked
Photos and videos of the finished truck are sent to the buyer before balance payment
In-house testing available for structural and mechanical components

Build to Order

Customization Options

Crane type can be selected as telescopic boom or knuckle boom
Left or right hand drive chassis to match local traffic regulations
Cab interior options including air conditioner and sleeper configuration
Cargo box color and logo applied free of charge
Optional radio remote control and top seat control systems
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6x4 truck crane with 10-ton capacity	Lower lifting capacity but better maneuverability in tight urban spaces
Mobile crane with fixed base	More mobile and self-contained but requires setup time and larger footprint
Standard lorry with external crane	Higher cost and coordination effort; this model integrates both functions in one vehicle

Operating Notes

Use Guide

Confirm left or right hand drive and cab configuration before ordering to match local regulations
Use the crane only within the rated lifting capacity and reach limits
Engage the anti-slewing impulse system when moving with the crane in operation
Inspect hydraulic hoses and connections before each shift for leaks or damage
Use radio remote control only in clear line of sight and with trained operators
Perform routine maintenance on the engine, gearbox, and hydraulic system as per the manual

Buyer Questions About This Truck

What is the lead time for this truck crane?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and crane configuration.

Can the crane be a telescopic or knuckle boom type?

Yes. The crane can be configured as a telescopic boom or knuckle boom. Specify your preference at order stage.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply right hand drive?

Yes. The chassis is available in left or right hand drive. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the cab be fitted with air conditioner and sleeper?

Yes. The cab is available with optional air conditioner and sleeper. Specify your preference at order stage.
