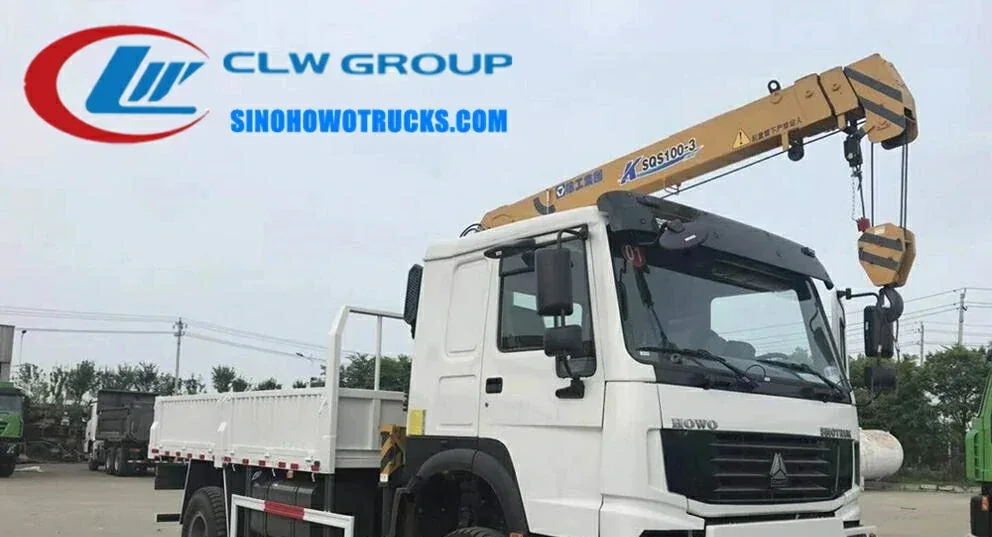

4×4 Sinotruk HOWO desert 8t mobile crane truck with telescopic boom in desert terrain

Rear view of the 4×4 HOWO crane truck showing the cargo box and crane mounting

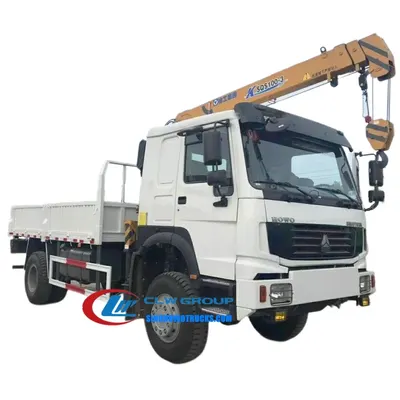

Side view of the 4×4 HOWO truck-mounted crane with knuckle boom extended

4×4 Sinotruk Howo desert 8t mobile crane truck Azerbaijan

Name: 4×4 Sinotruk Howo desert 8t mobile crane truck Azerbaijan
Brand: Sinotruk HOWO

The 4×4 Sinotruk HOWO desert 8t mobile crane truck is a heavy-duty truck-mounted crane built on a rugged 4×4 chassis for operation in remote and unpaved terrain. It is designed for construction, mining, and logistics companies that need to lift and transport heavy loads without relying on external cranes. The truck carries a 12,000 kg rated payload and is equipped with a high-strength cargo box and a crane capable of 360-degree rotation, extending and lifting with precision. It is supplied to clients in challenging environments such as desert regions, mountainous areas, and off-grid industrial sites where access roads are poor and infrastructure is limited.

Request A Quote Email Specification

Key Benefits

4×4 HOWO chassis delivers reliable traction and stability on unpaved, sandy, and rocky terrain
266 HP diesel engine with inter-cooling and turbo-charging ensures consistent power under heavy load
12,000 kg rated payload capacity allows for lifting and transporting large construction materials
Single cylinder synchronization guy cable technology improves lifting efficiency and reduces cycle time
Compact hinge point design reduces space occupation and improves maneuverability in tight areas
Float three-point bridge structure reduces stress on the chassis during travel
Optional radio remote control and top seat control allow flexible operator positioning
Anti-slewing impulse equipment enhances safety during crane operation

Buyer Profile

Who It Is for

Construction and civil engineering firms operating in remote or challenging terrain
Mining and quarry operators needing mobile lifting for heavy equipment and materials
Government infrastructure departments managing road and bridge projects in underdeveloped regions
Oil and gas field service contractors requiring mobile lifting for field maintenance
Logistics and freight companies operating in areas without crane infrastructure
Military or disaster response units deploying mobile lifting for field operations

Operating Problems

Problems It Solves

Lack of access to external cranes in remote or off-grid locations
High costs and delays from hiring third-party crane services
Poor road conditions that prevent standard trucks from carrying heavy loads
Limited space for crane setup in tight or confined work zones
Need for rapid deployment of lifting capability without waiting for crane delivery
Inadequate crane stability and safety on uneven or soft ground

Where It Works

Application Scenarios

Construction sites in remote desert regions with no access to paved roads
Mining operations where heavy equipment and materials must be moved without external crane support
Road and bridge building projects in mountainous or rural areas with limited infrastructure
Oil and gas field maintenance teams requiring mobile lifting for pipeline and valve handling
Logistics contractors operating in off-grid industrial zones with no crane availability
Emergency recovery operations in areas with damaged or blocked access routes

Engineering

Technical Features

4×4 right or left hand drive chassis with 5200 mm wheelbase
WD615.62 diesel engine with 266 HP, inter-cooled, turbo-charged, water-cooled
10-speed manual gearbox for precise control under heavy load
12,000 kg rated payload capacity with 10,800 kg curb weight
Cargo box dimensions: 5600 x 2350 x 550 mm, high-strength steel construction
Crane boom available as telescopic or knuckle type, with symmetrical pentagon/hexagon design for anti-bending strength
Single cylinder synchronization guy cable system for smooth and efficient lifting
Float three-point bridge structure reduces chassis stress during travel
Self-developed slewing machine with high drive force for varied working conditions
Over-wind alarm and anti-slewing impulse equipment for enhanced operational safety
Optional radio remote control and top seat control for operator flexibility

Specifications

Technical Data


Chassis	4×4 Sinotruk HOWO, left or right hand drive
Engine	WD615.62, 266 HP, diesel, 4-stroke, inter-cooled, turbo-charged
Gearbox	10 shift manual
Overall Size	9000 x 2500 x 3600 mm
Wheelbase	5200 mm
Curb Weight	10800 kg
Rated Payload	12000 kg
Max Speed	90 km/h
Cargo Box Size	5600 x 2350 x 550 mm
Crane Type	Telescopic or knuckle boom, optional
Lifting Capacity	8 tonnes
Boom Design	Pentagon and hexagon, symmetrical center for anti-bending
Control Option	Radio remote control or top seat control, optional
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

High-strength steel used in all structural components including crane boom and chassis
Cargo box made from high-strength steel with rational structure for load distribution
Aluminium alloy used in crane control panels and non-load-bearing parts
Steel frame and body panels with anti-corrosion coating for desert and high-temperature environments

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and verified for wheelbase and drive configuration
Cargo box is fabricated from high-strength steel and welded to the chassis frame
Crane boom is assembled with single cylinder synchronization system and anti-slewing components
Slewing machine and float bridge structure are installed to reduce chassis stress
Electrical and hydraulic systems for crane and chassis are integrated and tested
Truck is painted and logos applied as per customer requirement
Final inspection includes crane function test, load test, and safety system verification

Testing

Quality Control

All vehicles are 100 percent tested before delivery
Crane systems tested under full load and emergency stop conditions
Structural welds inspected using non-destructive testing methods
Hydraulic and electrical systems checked for leaks and signal integrity
Photos and videos of the finished truck sent to the buyer before balance payment
Crane performance verified against design specifications including lifting speed and stability

Build to Order

Customization Options

Left or right hand drive chassis to match local traffic regulations
Crane type selected as telescopic or knuckle boom based on lifting needs
Radio remote control or top seat control fitted as optional equipment
Cargo box size and shape adjusted to match specific load dimensions
Tank or box colour and logo applied free of charge
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

6×4 mobile crane with 10t capacity	Higher payload but less maneuverable in narrow or unpaved terrain
Standard 4×2 crane truck	Better off-road performance but higher fuel consumption and maintenance cost
Fixed crane on a trailer	No self-propelled mobility; requires separate towing vehicle and setup time

Operating Notes

Use Guide

Confirm left or right hand drive and chassis configuration before order to match local regulations
Use the radio remote control or top seat control for safe operation in tight or high-risk zones
Do not exceed 12,000 kg rated payload; check load distribution before lifting
Engage anti-slewing impulse equipment before operating the crane
Inspect hydraulic lines and boom joints before each shift
Perform routine maintenance on the engine and gearbox every 5,000 km

Buyer Questions About This Truck

What is the lead time for this crane truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and crane configuration.

Can the crane be telescopic or knuckle boom?

Yes. Both telescopic and knuckle boom options are available. Specify your preference at order stage.

What are the payment terms?

T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Is right hand drive available?

Yes. The chassis is available in left or right hand drive. Confirm this at order stage as it cannot be changed later.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the crane control be remote or top seat?

Yes. Radio remote control and top seat control are optional. Specify your preference when placing the order.
