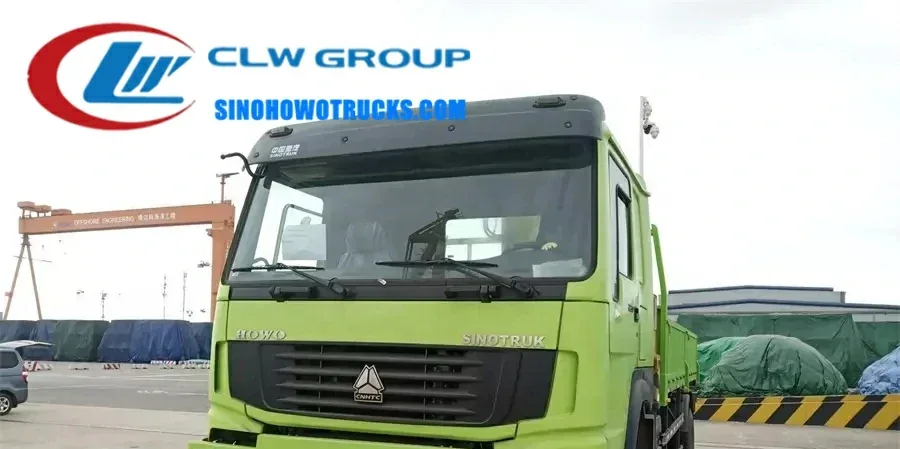

4WD Sinotruk HOWO Forest off-road container crane truck with SQ8SK3Q crane in operation on rough terrain

Side view of the HOWO crane truck showing the cargo body and crane installation space

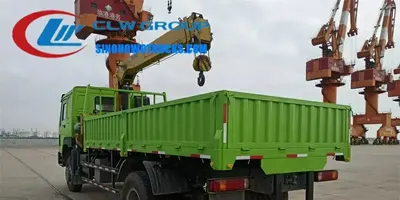

Rear view of the HOWO crane truck with the crane boom extended and hydraulic lines visible

4WD Sinotruk Howo Forest off-road container crane truck Saudi Arabia

Name: 4WD Sinotruk Howo Forest off-road container crane truck Saudi Arabia
Brand: Sinotruk HOWO

The 4WD Sinotruk HOWO Forest off-road container crane truck is a 8500 mm long, 290 HP diesel powered vehicle built on a 4x4 chassis with a 10 speed manual gearbox. It is designed for container handling and freight transport in remote or unpaved terrain where access roads are poor and fixed cranes are unavailable. The SQ8SK3Q crane has an 8000 kg lifting capacity and a 20 tonne metre maximum lifting moment, enabling it to load and unload heavy cargo without external lifting equipment. The truck is supplied to contractors, logistics operators and service fleets in regions like Saudi Arabia where rugged terrain and long distances between loading points require self-sufficient transport and lifting capability.

Request A Quote Email Specification

Key Benefits

4x4 HOWO chassis delivers reliable off-road performance on unpaved and uneven terrain
8000 kg crane capacity allows direct loading and unloading of containers and heavy freight
360 degree rotation and extendable boom enable flexible positioning without repositioning the truck
Single cylinder synchronization guy cable technology improves lifting efficiency and reduces cycle time
Float three-point bridge structure reduces stress on the chassis during travel
High-strength steel construction ensures durability under repeated heavy lifting and vibration
Optional radio remote control and top seat control allow safe operation from multiple positions
Crane and truck built as a single unit reduces dependency on external crane services

Buyer Profile

Who It Is for

Construction and quarry fleet owners operating in remote or off-grid locations
Oil and gas service contractors needing mobile lifting for field equipment
Logistics and freight operators managing container transport in areas without crane support
Government and military logistics units deploying in desert or rugged terrain
Telecom and power line maintenance crews moving heavy poles and transformers
Equipment rental companies supplying mobile cranes to remote job sites

Operating Problems

Problems It Solves

Lack of fixed cranes at remote or temporary job sites requiring frequent repositioning
Long delays and high costs when waiting for external crane availability
Inability to move heavy containers or equipment on unpaved or soft ground
High transport costs from central crane depots to isolated job locations
Multiple handling steps that increase risk of damage and time loss
Reliance on multiple vehicles (truck + crane) that complicate logistics and coordination

Where It Works

Application Scenarios

Remote mining and quarry sites with no access to fixed cranes or paved roads
Oil and gas field service operations requiring mobile lifting for equipment transport
Desert logistics hubs in Saudi Arabia and similar regions where infrastructure is limited
Construction sites in mountainous or rural areas with poor access and no crane availability
Emergency response and maintenance fleets operating in isolated zones with no support infrastructure
Port and terminal operations in developing regions where crane availability is inconsistent

Engineering

Technical Features

4x4 Sinotruk HOWO Forest chassis with 290 HP diesel engine and 10 speed manual gearbox
SQ8SK3Q crane model with 8000 kg lifting capacity and 20 tonne metre maximum lifting moment
360 degree full rotation with extendable boom for flexible positioning
Single cylinder synchronization guy cable system for smooth and efficient lifting
Float three-point bridge structure reduces chassis stress during travel
Anti-slewing impulse equipment improves stability during crane operation
All structural components made from high-strength steel for durability
Optional radio remote control and top seat control for operator safety and convenience
Max hydraulic oil flow of 55 L/min supports fast and responsive crane operation
Compact hinge point design minimizes space usage and improves maneuverability

Specifications

Technical Data


Chassis	4WD Sinotruk HOWO Forest off-road
Engine	290 HP diesel
Gearbox	10 shift manual
Driving Type	Right hand drive
Overall Size	8500 x 2496 x 3800 mm
Cargo Body Size	4700 x 2400 x 600 mm
Cargo Body Thickness	Bottom 3 mm, Side 2 mm
Crane Model	SQ8SK3Q
Crane Capacity	8000 kg
Max Lifting Moment	20 T.M
Crane Power	27 kW
Crane Weight	3300 kg
Installation Space	1200 mm
Rotation Angle	360 degrees
Max Hydraulic Flow	55 L/min
Lead Time	20 days
Shipping Port	China main port
Payment	T/T

Build Materials

Materials

High-strength steel for crane structure and chassis frame
Aluminium alloy components for crane control panels and access doors
Rubber seals and gaskets for weatherproofing on crane joints and access points
Galvanized steel for structural supports and mounting brackets

How It Is Built

Manufacturing Process

Chassis is received from Sinotruk and inspected for frame alignment and driveline integrity
Crane subframe is mounted to the chassis using high-strength bolts and alignment checks
SQ8SK3Q crane is assembled with single cylinder synchronization system and hydraulic lines
Hydraulic system is pressure tested and leak checked before final installation
Float three-point bridge structure is fitted and verified for stress distribution
Crane rotation and lifting functions are tested under load on the factory apron
Painting and logo application completed to customer specification before shipment
Final inspection includes crane operation, chassis mobility, and safety system checks

Testing

Quality Control

Every truck is 100 percent tested before delivery
Crane lifting capacity and moment are verified under full load conditions
Hydraulic system tested for leaks and response time at maximum flow
Chassis and crane structure inspected for weld quality and alignment
Safety systems including over-wind alarm and anti-slewing impulse tested
Photos and videos of the finished truck sent to buyer before balance payment
All structural components meet high-strength steel standards for durability

Build to Order

Customization Options

Crane type can be selected as telescopic boom or knuckle boom
Top seat control or radio remote control available as optional fitment
Cargo body size and thickness adjusted to match load requirements
Tank colour and logo applied free of charge to match customer branding
Crane installation space adjusted to fit specific load or access constraints
Manufacture to customer supplied technical drawings and specifications

Comparison

How It Compares With the Alternatives

Mobile crane on a separate truck	Higher total cost and coordination effort, but greater lifting capacity and reach
Truck with a fixed crane	Less flexible positioning and limited rotation, but lower maintenance and simpler operation
4x4 truck without a crane	No lifting capability, but lower cost and better fuel efficiency for pure transport

Operating Notes

Use Guide

Confirm right hand drive is required for local traffic regulations before order
Inspect crane hydraulic system and hoses before first use and top up fluid if needed
Use radio remote control or top seat control only when the crane is stable and secured
Do not exceed 8000 kg lifting capacity or 20 T.M maximum moment under any condition
Check anti-slewing impulse and over-wind alarm systems before each operation
Drain hydraulic fluid and clean the system if operating in freezing conditions

Buyer Questions About This Truck

What is the lead time for this crane truck?

Generally 20 days after the advance payment is received. The exact date depends on chassis availability and crane configuration.

Can the crane be a telescopic or knuckle type?

Yes. The crane can be configured as either a telescopic boom or a knuckle boom based on your lifting requirements.

What are your payment terms?

T/T with 30 percent as deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.

Do you supply left hand drive?

No. The standard is right hand drive. Left hand drive is not available for this model.

How is the truck shipped?

By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.

What warranty and after sales support do you provide?

The whole vehicle is guaranteed for one year and core parts on some products for two years. Our overseas engineers make regular return visits and provide technical training and manuals before delivery.

Can the cargo body size or thickness be changed?

Yes. The cargo body size and thickness can be adjusted to meet your load requirements. Let us know your specifications at order stage.
