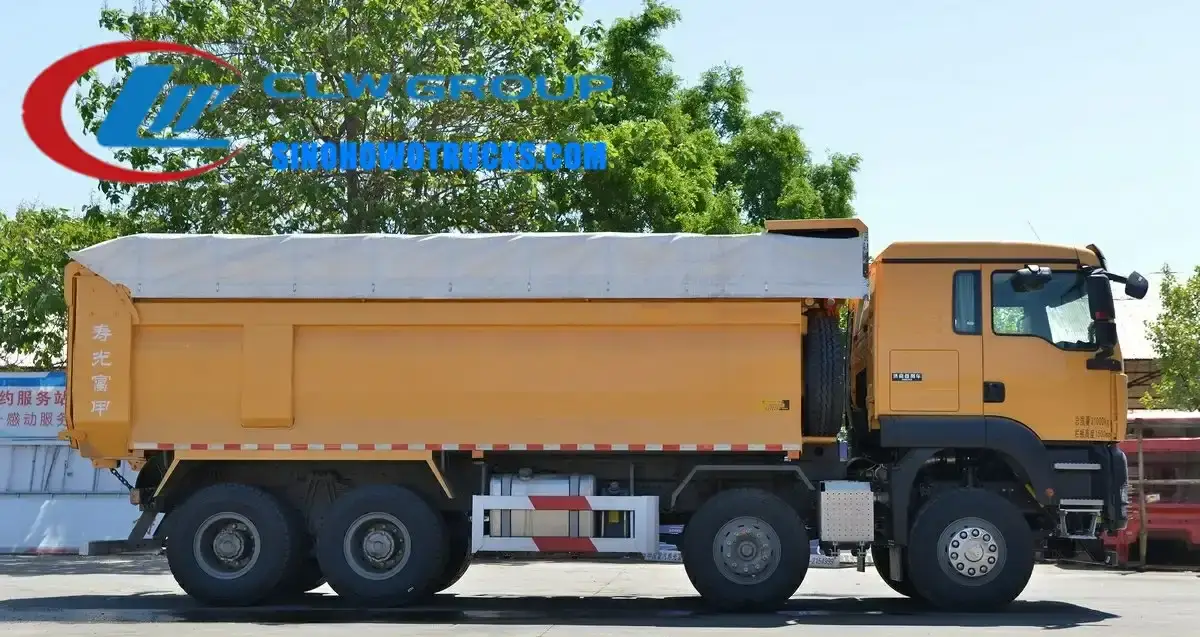

The 12 wheeler Sino SITRAK gravel truck is a heavy duty 8x4 dump truck built on a Sinotruk SITRAK chassis with a 371 HP diesel engine and 10 speed manual gearbox. It is designed for transporting bulk materials such as sand, gravel, coal, and rock in mining, quarry, construction, and road building operations. The front lifting tipper body with high strength steel construction allows for efficient dumping in remote or rough terrain environments. This truck is supplied with a 7300 x 2300 x 1700 mm cargo box and is suitable for operations requiring high payload capacity and durability under continuous use.
| Chassis | Sinotruk SITRAK ZZ3317N3567W |
|---|---|
| Drive Type | 8x4 |
| Engine | WD615.47, 371 HP |
| Transmission | HW19710, 10 shift manual |
| Cabin | HW76 with air conditioner |
| Driving Type | Right hand drive |
| Color | Sapphire blue |
| Lift Type | Front lifting |
| Cargo Box Length | 7300 mm |
| Cargo Box Width | 2300 mm |
| Cargo Box Height | 1700 mm |
| Floor Thickness | 10 mm |
| Side Thickness | 8 mm |
| Tire Specification | 12.00R20, 13 tires |
| Speed Ratio | 5.73 |
| Manufacture Year | 2022 |
| ABS | No |
| Emission Standard | Euro 2 |
| Overall Size | 9000 x 2500 x 3600 mm |
| Lead Time | 20 days |
| Shipping Port | China main port |
| Payment | T/T |
| Delivery Time | Based on shipping mode chosen |
| 6x4 dump truck with 5000 kg payload | Lower payload and less traction but better maneuverability in urban or tight construction sites |
|---|---|
| Side lift dump truck | Better for uneven terrain dumping but more complex maintenance and higher cost |
| Used imported dump truck | Lower upfront cost but higher long-term maintenance and parts availability issues |
Generally 20 days after the advance payment is received. The exact date depends on chassis availability and customization requests.
Yes. The chassis can be ordered in left or right hand drive. Confirm your preference at order stage as it cannot be changed later.
T/T with 30 percent deposit and 70 percent before delivery. We send photos and videos of the finished truck before you pay the balance.
Yes. The standard box is 7300 x 2300 x 1700 mm. We can adjust dimensions and steel thickness based on your load requirements.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
Yes. We provide CO, FORM E, FORM P, and pre-shipment inspection documents. We also offer professional guidance on import procedures.
No. This model does not include ABS. We can provide a version with ABS if required, but it must be specified at order stage.
Send us your destination port and we will quote price, lead time and freight.
