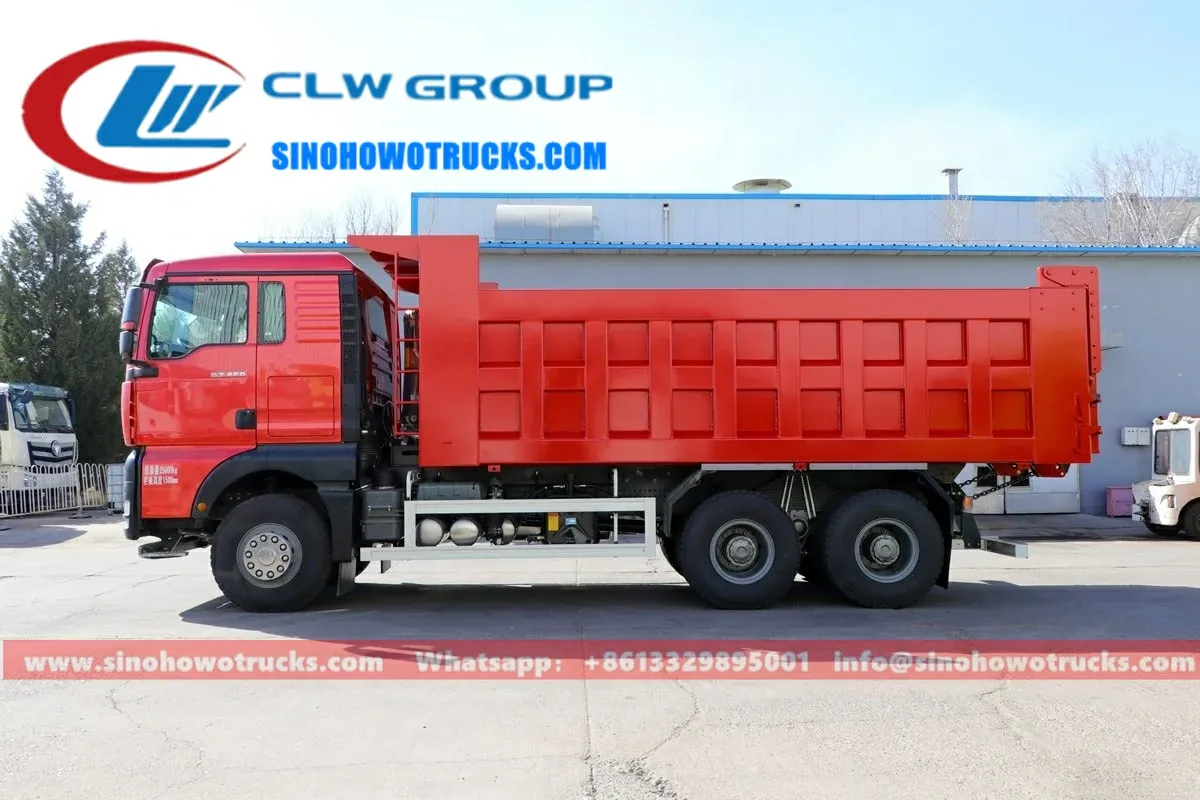

The 10 wheeler Sino SITRAK 20 ton dump truck is a 6x4 heavy duty tipper built on a Sinotruk SITRAK chassis for transporting bulk materials such as sand, gravel, coal, and dirt in mining, quarry, construction, and infrastructure projects. It is designed for rough terrain and high payload operations with a 25 ton loading weight and a 19 cubic metre high strength steel dump box. The truck is used by contractors and government agencies in countries like Burundi, Nigeria, Kenya, and Ethiopia where road conditions are poor and material transport volumes are high. The 371 HP diesel engine and 10 speed manual gearbox deliver reliable performance over long distances and steep gradients.
| Chassis | Sinotruk SITRAK 6x4 |
|---|---|
| Engine | WD615.47, 371 HP, Euro 2 |
| Gearbox | HW19710, 10 forward + 2 reverse |
| Wheelbase | 3825+1350 mm |
| Loading Weight | 25 tons |
| Dump Box Size | 5600 x 2300 x 1500 mm, 19 CBM |

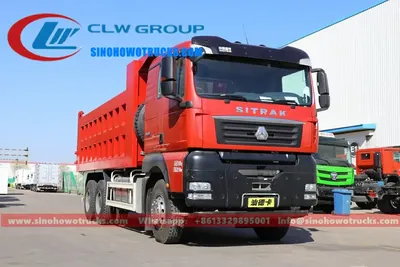

| Dump Box Thickness | 8 mm floor, 6 mm side |
| Cab | HW76/70, 2 seats + 2 sleeper, LHD/RHD |
| Tire | 12.00R20 radial, 10+1 spare |
| Fuel Tank | 300 L |
| Drive Type | 6x4 |
| Steering | ZF8118 |
| Overall Size | 9000 x 2500 x 3600 mm |
| Lead Time | 20 days after prepayment |
| Shipping Port | China main port |
| Payment | T/T |
| 8 wheeler 15 ton dump truck | Lower payload and smaller box but better turning radius in tight urban sites |
|---|---|
| Rear lift dump truck | Better for side dumping in narrow spaces but less stable on uneven ground |
| Used dump truck from Europe | Lower upfront cost but higher long term maintenance and parts availability issues |
20 days after prepayment. The exact delivery date depends on shipping mode and chassis availability.
Yes. The standard is 8 mm floor and 6 mm sides. We can customize thickness based on your material and load requirements.
T/T with prepayment. We send photos and videos of the finished truck before you pay the balance.
Yes. The chassis is ordered in left or right hand drive to match local traffic rules. Confirm at order stage.
By Ro-ro or bulk ship from a China main port. Trade terms can be EXW, FOB, CFR, or CIF.
Yes. We provide CO, FORM E, FORM P, and pre-shipment inspection documents. Professional guidance is available.
Yes. Truck colour and logo are applied free of charge as per your request.
Send us your destination port and we will quote price, lead time and freight.
