High quality J1962 OBD Splitter Adapter male to female 1 to 2

ST-SOA-011-B12 OBDII Adapter Brand SETOCONT

OBD Splitter Adapter Male to Female 2 In 1 ST-SOA-011-B12

Name: OBD Splitter Adapter Male to Female 1 to 2

Name: OBD Splitter Adapter Male to Female 1 to 2
Pin No.: 16
Pin Materials: Nickel Plated Brass
Plastic Materials: ABS + Nylon
Packaging: 1 pieces Each Bag
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-SOA-011-B12 is for

This is a very small size J1962 1 male to 2 female OBD splitter adapter , it can extend the vehicle’s standard OBD-II interface (16-pin) to two independent interfaces, supporting the simultaneous connection of two OBD devices (such as diagnostics, driving computers, GPS trackers, etc.) to solve the problem of single interface limitations.

It belongs to our OBDII Adapters family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality J1962 OBD Splitter Adapter male to female 1 to 2
Nickel plated brass terminals with all pin connected
Small mini size, avoid interaction by obd cables
Easy to use, very effective to protect your vehicle’s obd interface
Compliant with CE, RoHS, FCC
OEM available for colors, pins, materials..

obd adapterobd connectorobd converterOBD Splitter

Specification

Model	ST-SOA-011-B12
Color	Black
Pin No.	16
Pin Material	Nickel Plated Brass
Solder Resistance Temp	Customized
Heat Distortion Temp	Customized
Flammability	UL94 V-2

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

Gallery

ST-SOA-011-B12 in detail

Production photographs of the actual part, not a render.

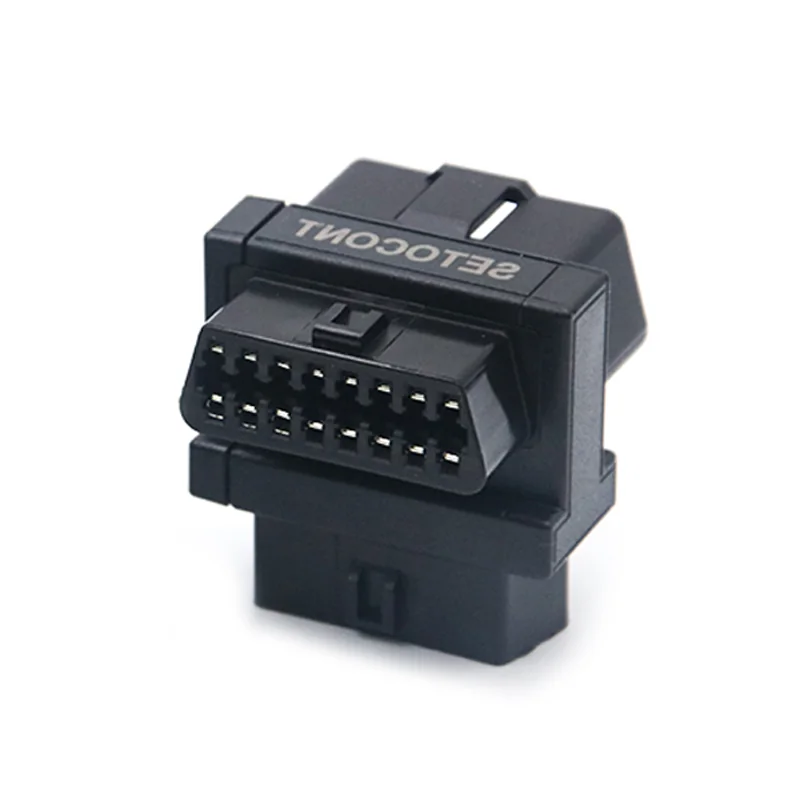

OBD Splitter Adapter Male to Female 1 to 2

Questions buyers ask

Before you order ST-SOA-011-B12

How many pins does ST-SOA-011-B12 have?

16 positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Nickel Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
