ST-SOA-005 Series OBDII Adapter Brand SETOCONT

OBD Adapter Male to Female ST-SOA-005

Name: OBD Adapter Male to Female

Name: OBD Adapter Male to Female
Pin No.: 16
Pin Materials: Nickel Plated Brass
Plastic Materials: Nylon + ABS
Packaging: 1 pieces Each Bag
Delivery Time: Based on Order Quantity

Housing moulded, terminal plated and cable crimped in our own factory — one accountable supplier. Inspected at incoming, in-process, final and outgoing stages before the carton is sealed. Pin configuration, plating, housing, cable and colour can all be changed on your drawing.

Description

What ST-SOA-005 Series is for

This is a J1962 male to female OBD adapter with 16 terminals full connected inside the shell, it’s used as an extension OBD converter instead of OBD cables to transfer signals from vehicles to your OBD devices. It can extend the vehicle’s standard OBD-II male (16-pin) to female independent interfaces, supporting the simultaneous connection of three OBD devices (such as diagnostics, driving computers, GPS trackers, etc.) to solve the problem of single interface limitations.

It belongs to our OBDII Adapters family, which means it shares tooling, terminal stock and inspection criteria with the other models in that range — so mixing parts across an assembly does not introduce a fit or plating mismatch.

Features

High quality J1962 OBD Adapter male to female
Nickel plated brass terminals with all pin connected
Normal size, avoid interaction by obd cables
Easy to use, very effective to protect your vehicle’s obd interface
Compliant with CE, RoHS, FCC
OEM available for colors, pins, materials..

obd adapterobd converter

Specification

Model	ST-SOA-005 Series
Color	Black
Pin No.	16
Pin Material	Nickel Plated Brass
Solder Resistance Temp	Customized
Heat Distortion Temp	Customized
Flammability	UL94 V-2

Need a value changed? Terminal plating, pin count, housing geometry and cable construction are tooling decisions we own in-house.

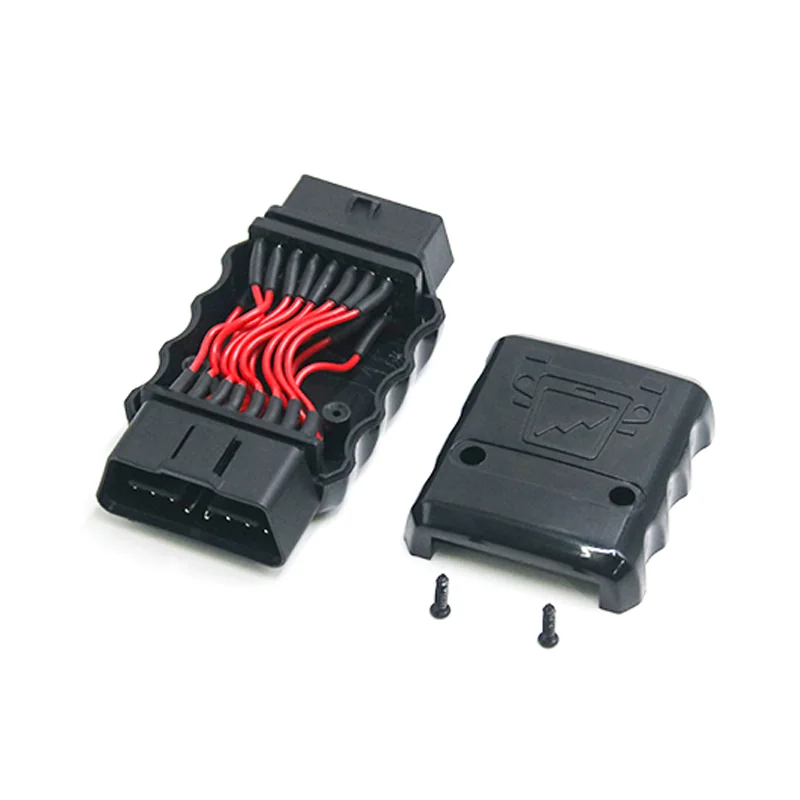

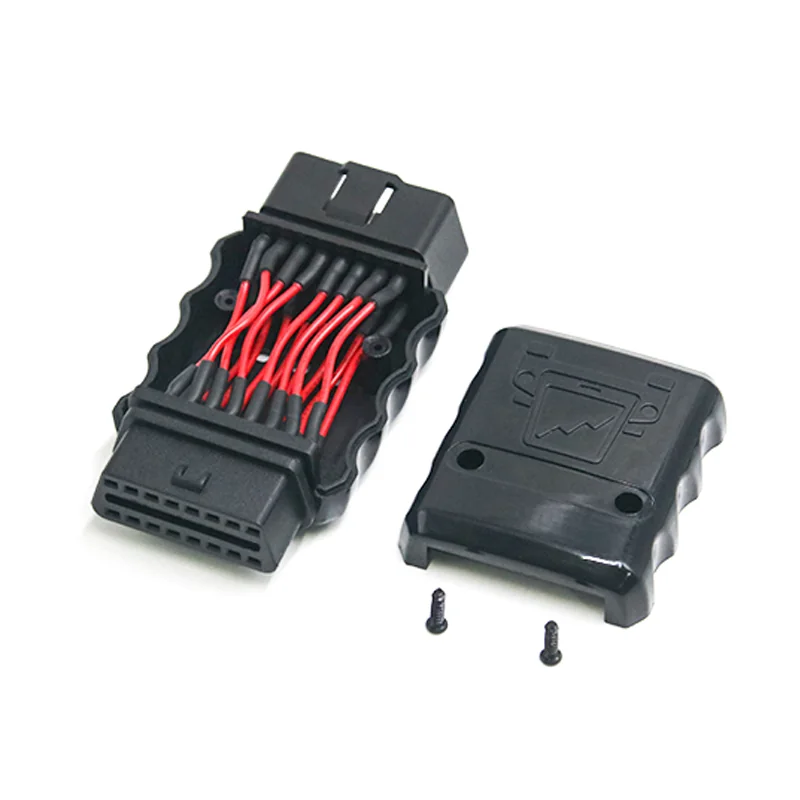

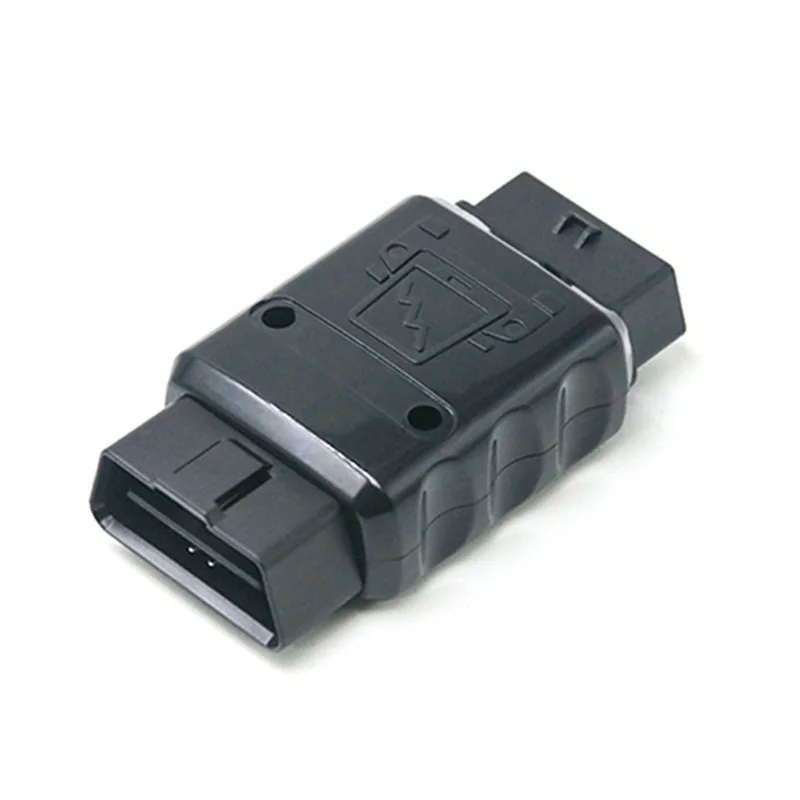

Gallery

ST-SOA-005 Series in detail

Production photographs of the actual part, not a render.

Questions buyers ask

Before you order ST-SOA-005 Series

How many pins does ST-SOA-005 Series have?

16 positions, to the J1962 layout. Populating fewer than the full count is a tooling option rather than a new part, so tell us the pin-out you actually need.

What are the terminals made of?

Nickel Plated Brass. Plating choice drives contact resistance and how many mating cycles the part survives, so it is stated on the drawing rather than left to the line.

Can this part be modified for my application?

Yes. Pin configuration, plating, housing and form factor, connector gender, cable and jacket, material and colour, and inline electronics such as resistors, LEDs or a small PCB are all things we change on request.

What is the delivery time?

Delivery is quoted against order quantity. Send the volume and the target date with your enquiry and we will confirm both before you place the order.

Do you supply samples before mass production?

Sampling runs through a dedicated channel — design review, material preparation and scheduling — using 3D printing, CNC machining or rapid prototyping, whichever proves your point fastest.
