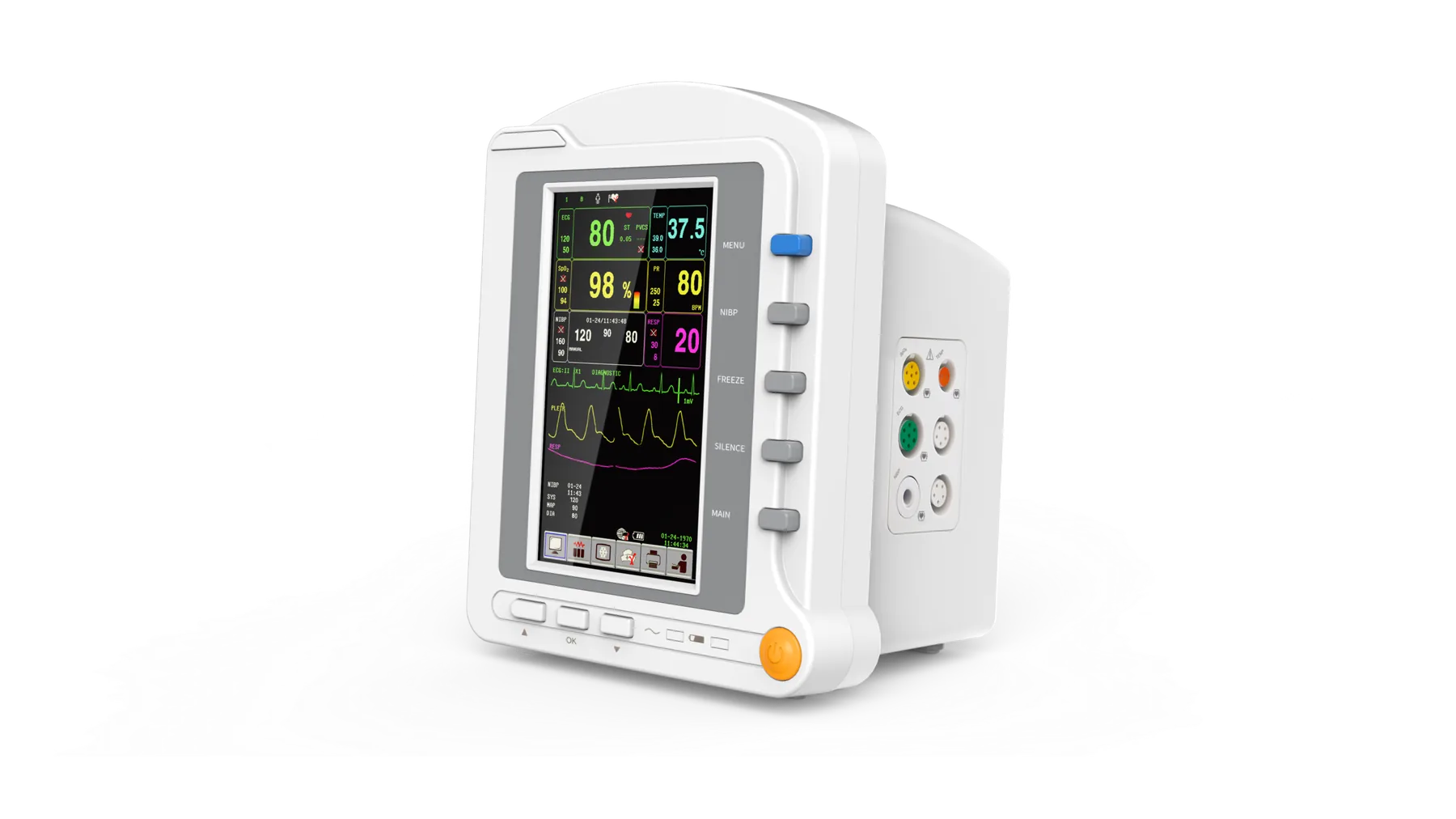

Multi Parameter Patient Monitor With 7 Inch Display
A compact multi-parameter patient monitor that integrates measurement modules, display and recorder into a single portable unit. Standard parameters are ECG, RESP, SpO2, PR, NIBP and single-channel temperature, with...
Product overview
What This Product Is And Who It Is For
A compact multi-parameter patient monitor that integrates measurement modules, display and recorder into a single portable unit. Standard parameters are ECG, RESP, SpO2, PR, NIBP and single-channel temperature, with heart rate, arrhythmia and ST segment analysis, respiratory waveform, plethysmogram, and systolic, diastolic and mean pressure. The 7 inch TFT colour display runs a multilingual interface in English, Chinese, Russian, Kazakh, Italian and Spanish, and the fanless design keeps dust out of the unit. NIBP can run manually, automatically or continuously and stores 4800 sets of data.
Problems It Solves
- Fan-cooled monitors draw dust into the electronics, so this unit is fanless
- Manual NIBP logging is error prone, so 4800 sets are stored in the monitor
- Plain rhythm display misses ST changes, so ST segment and arrhythmia analysis are built in
- Separate module, display and recorder units are not portable, so all three are integrated
- Single-language interfaces limit a distributor territory, so six languages are supported
Who It Is For
- Hospital ward and recovery unit buyers
- Emergency departments
- Medical equipment distributors
- Private hospital groups and day surgery centres
- Government and institutional tender buyers
Key benefits
Why Buyers Choose It
- Fanless design keeps dust and airborne contamination out of the unit, which extends service life in a busy ward
- 4800 sets of NIBP storage support long observation periods without external recording
- Arrhythmia and ST segment analysis add interpretation beyond a plain rhythm display
- Three NIBP modes of manual, automatic and continuous cover routine observation and acute assessment
- Multilingual interface across six languages suits multi-country distributor coverage
- Integrated modules, display and recorder in one 2.2 kg unit make the monitor genuinely portable between beds
Application scenarios
Where It Is Used
Scenarios
- General ward patient monitoring
- Recovery and post-anaesthesia care
- Emergency department observation
- Day surgery and procedural monitoring
- Patient transfer between departments
- Distributor supply to hospitals and clinics
Technical features
How It Is Built
- Standard parameters: ECG, RESP, SpO2, PR, NIBP, single-channel temperature
- ECG heart rate, waveform, arrhythmia and ST segment analysis
- Respiratory rate and waveform
- SpO2 saturation, plethysmogram waveform, pulse rate and bar graph
- NIBP systolic, diastolic and mean pressure
- Audible and visual alarms with alarm event marking
- Trend data storage and output
- Drug concentration calculation
- 7 inch TFT colour LCD with multilingual interface
- Fanless design
Specifications
Technical Data
| Standard Parameters | ECG, RESP, SpO2, PR, NIBP, single-channel temperature |
|---|---|
| ECG Analysis | Heart rate, arrhythmia and ST segment analysis |
| NIBP Measurement Modes | Manual, automatic, continuous |
| NIBP Data Storage | 4800 sets |
| Display | 7 inch TFT colour LCD |
| Interface Languages | English, Chinese, Russian, Kazakh, Italian, Spanish |
| Cooling | Fanless design |
| Dimensions | 192 mm L x 162 mm W x 243 mm H |
| Weight | 2.2 kg |
| Quality Certification | CE |
Materials
- ABS housing
- Sensor, cuff and lead accessories
Quality and compliance
Quality Control And Certification
Quality Control
- Each parameter channel is verified with a simulator before shipment
- NIBP modes are tested in manual, automatic and continuous operation
- Alarm behaviour and event marking are function-tested
- Display and multilingual interface are checked per unit
- CE technical documentation is maintained for the model
Certifications
Customisation and comparison
Options And Alternatives
Customisation Options
- Parameter and accessory configuration
- Interface and manual language selection
- Mounting bracket and trolley accessories
- Packaging artwork
- Export carton quantity and marks
Compared With Other Options
- Spot check monitors
- Continuous monitoring with arrhythmia and ST analysis covers clinical needs a spot device cannot
- Fan-cooled monitors
- A fanless design keeps dust out of the electronics in a busy ward
- Modular bedside systems
- Integrated modules, display and recorder in a 2.2 kg unit move easily between beds
Use guide
How To Use It Correctly
Step
Connect the parameter cables required for the patient before switching on
Step
Set alarm limits for each active parameter before leaving the bedside
Step
Select the NIBP mode that matches the observation protocol
Step
Mark alarm events so they can be reviewed with the trend data
Step
Export trend data at the end of the monitoring period
Step
Clean sensors and cuffs between patients according to the facility protocol
Related products
Other Products In Medical Equipment
Veterinary Syringe Pump for 10ml 20ml and 50ml Syringes
A syringe pump built for veterinary use in pet hospitals, accepting 10ml, 20ml and 50ml syringes for controlled animal...
View product →
Laptop Colour Doppler Ultrasound System DUS50
A laptop-format colour Doppler ultrasound system, model DUS50, supplied for animal health diagnosis. The 15 inch LCD...
View product →
Volumetric Infusion Pump With Flow Drip and Time Modes
A volumetric infusion pump that delivers medication evenly across a set range, covering 0.1 ml/h to 1200 ml/h with a...
View product →
Digital Blood Pressure Monitor With Dual 99 Group Memory
A digital blood pressure monitor using the pulse scanning and oscillometric method, measuring systolic and diastolic...
View product →Related reading
Industries Solutions And Guides
Hospitals and Clinics
Hospital and clinic buyers work against tender deadlines, infection control rules and a budget split across...
Diagnostic Imaging Centres
An imaging centre lives on throughput and on the patients it can actually scan. Systems that stall for tube...
Hospital Department Outfitting
Equipping a ward, a theatre or an outpatient department means buying furniture, equipment and consumables...
Export Logistics and After Sales
Qingdao sits next to the largest container port in North China, which is why import and export procedures and...
How Medical Ultrasound Equipment Works and How to Choose It
Ultrasound above 20,000 hertz is inaudible, highly directional and penetrates tissue. Diagnostic work uses 1...
Choosing a China Factory for Medical Products
Reputation, location, production capability and communication decide whether a factory suits your order. For...
FAQ
Multi Parameter Patient Monitor With 7 Inch Display FAQ
Which parameters does the monitor measure
ECG, RESP, SpO2, PR, NIBP and single-channel temperature as standard, with arrhythmia and ST segment analysis on the ECG.
How much NIBP data is stored
4800 sets of NIBP data, with trend data storage and output for review.
Why is the fanless design important
A fan draws dust into the electronics. A fanless monitor avoids that, which extends service life in a busy ward.
Which languages does the interface support
English, Chinese, Russian, Kazakh, Italian and Spanish on a 7 inch TFT colour LCD.
How large and heavy is the unit
192 x 162 x 243 mm at 2.2 kg, which makes it portable between beds.
Is the monitor CE certified
Yes. CE documentation is supplied before shipment for customs and procurement review.
