Volumetric Infusion Pump With Flow Drip and Time Modes
A volumetric infusion pump that delivers medication evenly across a set range, covering 0.1 ml/h to 1200 ml/h with a resolution of 0.1 ml/h. Three infusion modes are available, flow rate in ml/h with a convertible...
Product overview
What This Product Is And Who It Is For
A volumetric infusion pump that delivers medication evenly across a set range, covering 0.1 ml/h to 1200 ml/h with a resolution of 0.1 ml/h. Three infusion modes are available, flow rate in ml/h with a convertible weight mode, drip rate in drops per minute, and time mode in hours and minutes. A built-in 12V 2800mAh nickel-metal hydride battery gives 6 hours or more of continuous operation, so transfers and power interruptions do not stop an infusion. Occlusion alarms are set at three pressure levels and alarm volume is adjustable across three steps to the YY0709-2009 standard.
Problems It Solves
- Gravity sets drift with patient position and bag height, which a pump removes
- Power interruption stops mains-only pumps, so a 2800mAh battery gives 6 hours or more
- Single-threshold occlusion alarms nuisance-trip or miss real occlusions, so three levels are provided
- Fixed alarm volume is either lost in a noisy ward or excessive at night, so volume is adjustable in three steps
- Unit conversion between ml/h and drops/min introduces errors, so the pump supports both modes directly
Who It Is For
- Hospital and clinic procurement departments
- Intensive care and paediatric units
- Medical equipment distributors
- Private hospital groups and surgical centres
- Government and institutional tender buyers
Key benefits
Why Buyers Choose It
- A 0.1 ml/h resolution across a 0.1 to 1200 ml/h range covers neonatal micro-doses and adult volume infusion on one pump
- Battery backup of 6 hours or more keeps infusion running through transfers and power interruptions
- Three occlusion alarm thresholds let a department set sensitivity by line type and patient
- Alarm tones designed to YY0709-2009 with three volume steps stay audible in different ward environments and for staff with different hearing
- Three infusion modes let staff programme in the unit they actually work in, which reduces calculation errors
- Volumetric accuracy of plus or minus 5 percent supports protocols where gravity sets are not precise enough
Application scenarios
Where It Is Used
Scenarios
- General ward and intensive care medication infusion
- Paediatric and neonatal low-rate infusion
- Operating theatre and recovery
- Patient transfer on battery power
- Oncology and long-duration infusion protocols
- Ambulance and emergency transport
Technical features
How It Is Built
- Flow rate range 0.1 ml/h to 1200 ml/h, equal to 6 to 150 drops per minute
- Minimum resolution 0.1 ml/h
- Total volume setting range 0.1 ml to 9999.9 ml at 0.1 ml resolution
- Infusion modes: flow rate in ml/h with convertible weight mode, drip rate in drops per minute, time mode in hours and minutes
- Volumetric accuracy plus or minus 5 percent, and plus or minus 10 percent below 1 ml/h
- Three-level occlusion alarm thresholds
- Three-step adjustable alarm volume to YY0709-2009
- Class I type BF electric shock protection with IPX1 water rating
Specifications
Technical Data
| Dimensions | 140mm length x 160mm width x 220mm height |
|---|---|
| Weight | 2.15 kg |
| AC Power Supply | AC 100-240V, 50/60Hz plus or minus 1Hz |
| Built-in Battery | DC 12V 2800mAh nickel-metal hydride, rechargeable |
| Continuous Battery Operation | 6 hours or more |
| Power Consumption | 18VA or less |
| Flow Rate Range | 0.1 ml/h to 1200 ml/h, 6 to 150 drops per minute |
| Flow Resolution | 0.1 ml/h |
| Total Volume Range | 0.1 ml to 9999.9 ml, resolution 0.1 ml |
| Infusion Accuracy | Plus or minus 5 percent in volume mode, plus or minus 10 percent below 1 ml/h, plus or minus 2 drops in drip mode |
| Occlusion Alarm Thresholds | High 110kPa plus or minus 20kPa, medium 80kPa plus or minus 30kPa, low 60kPa plus or minus 20kPa |
| Operating Environment | 5C to 43C, humidity 90 percent RH or less, 860 to 1060 hPa |
| Storage Environment | -20C to +55C, humidity 95 percent RH or less, 860 to 1060 hPa |
| Waterproof Rating | IPX1 |
| Electric Shock Protection | Class I, type BF |
| Calibration Units | Infusion accuracy in ml, pressure in kPa |
Materials
- ABS housing
- Pumping mechanism and door assembly
Quality and compliance
Quality Control And Certification
Quality Control
- Flow accuracy is verified against the plus or minus 5 percent volumetric specification
- Occlusion alarm pressures are checked at all three thresholds
- Battery run time is tested against the 6 hour continuous figure
- Alarm sound pressure is checked against YY0709-2009 at each volume step
- Calibration is recorded in ml for volume and kPa for pressure
Certifications
Customisation and comparison
Options And Alternatives
Customisation Options
- Manual and interface language for your market
- Power cable and plug type
- Pole clamp and accessory selection
- Packaging artwork
- Export carton quantity and marks
Compared With Other Options
- Gravity infusion sets
- A pump holds the set rate regardless of bag height and patient position, within plus or minus 5 percent
- Syringe pumps
- A volumetric pump covers up to 1200 ml/h for larger volume infusion, where a syringe pump is limited by syringe size
- Pumps without battery backup
- 6 hours or more on battery keeps the infusion running during transfer and power interruption
Use guide
How To Use It Correctly
Step
Load the administration set into the pump door as shown in the manual
Step
Select the infusion mode that matches your protocol: flow rate, drip rate or time
Step
Set the total volume and rate, then confirm before starting
Step
Set the occlusion alarm threshold appropriate to the line and patient
Step
Keep the pump on AC power where possible so the battery stays charged for transfers
Step
Calibrate and service at the interval stated in the manual
Related products
Other Products In Medical Equipment

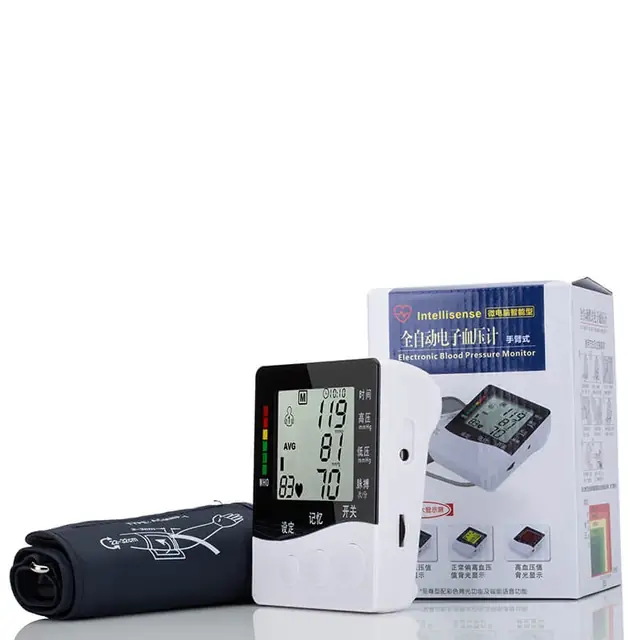

Digital Blood Pressure Monitor With Dual 99 Group Memory
A digital blood pressure monitor using the pulse scanning and oscillometric method, measuring systolic and diastolic...
View product →

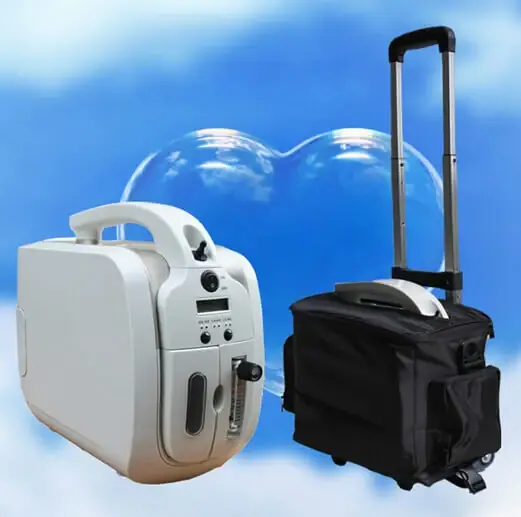

Portable Oxygen Concentrator Model B-1
A portable oxygen concentrator, model B-1, with an adjustable flow from 1 to 5 litres per minute and an imported French...
View product →
Compressor Nebulizer With 3.9 Micron Particle Output
A medical nebulizer that atomises liquid medication into particles small enough to reach the lower airway. The median...
View product →
Far Infrared Thermometer With One Second Measurement
A far infrared thermometer that returns a reading in one second, with an ergonomic single-hand body and an LCD display...
View product →Related reading
Industries Solutions And Guides
Hospitals and Clinics
Hospital and clinic buyers work against tender deadlines, infection control rules and a budget split across...
Diagnostic Imaging Centres
An imaging centre lives on throughput and on the patients it can actually scan. Systems that stall for tube...
Hospital Department Outfitting
Equipping a ward, a theatre or an outpatient department means buying furniture, equipment and consumables...
Export Logistics and After Sales
Qingdao sits next to the largest container port in North China, which is why import and export procedures and...
How Medical Ultrasound Equipment Works and How to Choose It
Ultrasound above 20,000 hertz is inaudible, highly directional and penetrates tissue. Diagnostic work uses 1...
Choosing a China Factory for Medical Products
Reputation, location, production capability and communication decide whether a factory suits your order. For...
FAQ
Volumetric Infusion Pump With Flow Drip and Time Modes FAQ
What flow range does the pump cover
0.1 ml/h to 1200 ml/h, equal to 6 to 150 drops per minute, with a minimum resolution of 0.1 ml/h.
How accurate is the delivery
Plus or minus 5 percent in volume mode, plus or minus 10 percent below 1 ml/h, and plus or minus 2 drops in drip mode.
How long does the pump run on battery
6 hours or more of continuous operation from the built-in DC 12V 2800mAh nickel-metal hydride battery.
What occlusion alarm settings are available
Three thresholds: high at 110kPa plus or minus 20kPa, medium at 80kPa plus or minus 30kPa and low at 60kPa plus or minus 20kPa.
Can the alarm volume be adjusted for a quiet ward
Yes. Alarm volume is adjustable across three steps and the alarm tone is designed to the YY0709-2009 standard so it stays audible for staff with different hearing.
What is the protection rating
IPX1 water rating with Class I type BF electric shock protection.
Request A Quote For This Product
Send your quantity, destination market and any labelling requirement. We confirm stock, lead time and the documentation that travels with the goods.
