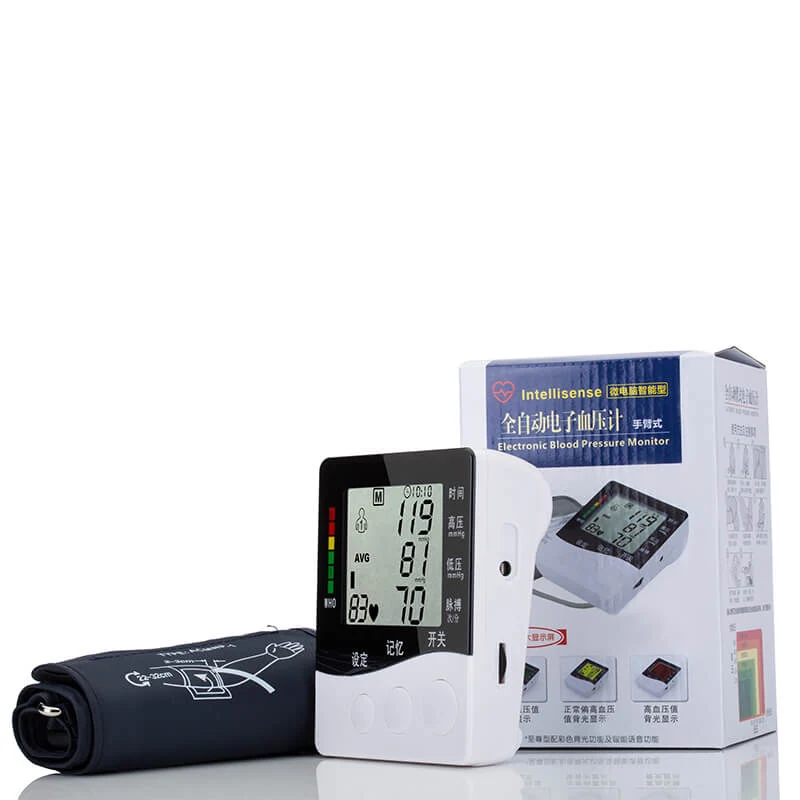

Digital Blood Pressure Monitor With Dual 99 Group Memory
A digital blood pressure monitor using the pulse scanning and oscillometric method, measuring systolic and diastolic pressure from 20 mmHg to 280 mmHg at 1 mmHg resolution with an accuracy of plus or minus 3 mmHg. Pulse...
Product overview
What This Product Is And Who It Is For
A digital blood pressure monitor using the pulse scanning and oscillometric method, measuring systolic and diastolic pressure from 20 mmHg to 280 mmHg at 1 mmHg resolution with an accuracy of plus or minus 3 mmHg. Pulse measurement runs from 40 to 200 beats per minute within plus or minus 3 percent of the reading. Dual 99-group memory lets two users track their own history, IHB detection flags an irregular heartbeat, and WHO classification puts each reading into context on the display. Real-time voice and Bluetooth are available as options.
Problems It Solves
- A single memory bank mixes two household users readings together, which dual 99-group memory separates
- Patients cannot interpret a bare number, so WHO classification is shown on the display
- Irregular heartbeats go unnoticed in home monitoring, which IHB detection flags
- Visually impaired users cannot read an LCD, so voice output is available as an option
- Handwritten logs are unreliable, which the optional Bluetooth transfer replaces
Who It Is For
- Clinic and hospital procurement departments
- Pharmacy chains and home diagnostics distributors
- Nursing home and elderly care operators
- Telehealth and remote monitoring providers
- Private-label brands in home monitoring
Key benefits
Why Buyers Choose It
- Dual 99-group memory lets two people in a household track separate histories on one device
- WHO blood pressure classification on the display tells a patient what the number means without a chart
- IHB heart rate detection flags an irregular heartbeat, which is the reading patients most often miss
- Accuracy of plus or minus 3 mmHg with 1 mmHg resolution supports clinical use as well as home monitoring
- Optional voice output serves visually impaired and elderly users
- Optional Bluetooth supports telehealth programmes that collect readings remotely
Application scenarios
Where It Is Used
Scenarios
- Home monitoring for hypertensive patients
- Clinic and pharmacy blood pressure checks
- Nursing home routine observation
- Community screening programmes
- Telehealth programmes using the Bluetooth option
- Retail home diagnostics ranges
Technical features
How It Is Built
- Pulse scanning and oscillometric measurement method
- LCD digital display
- Dual 99-group memory
- IHB irregular heartbeat detection

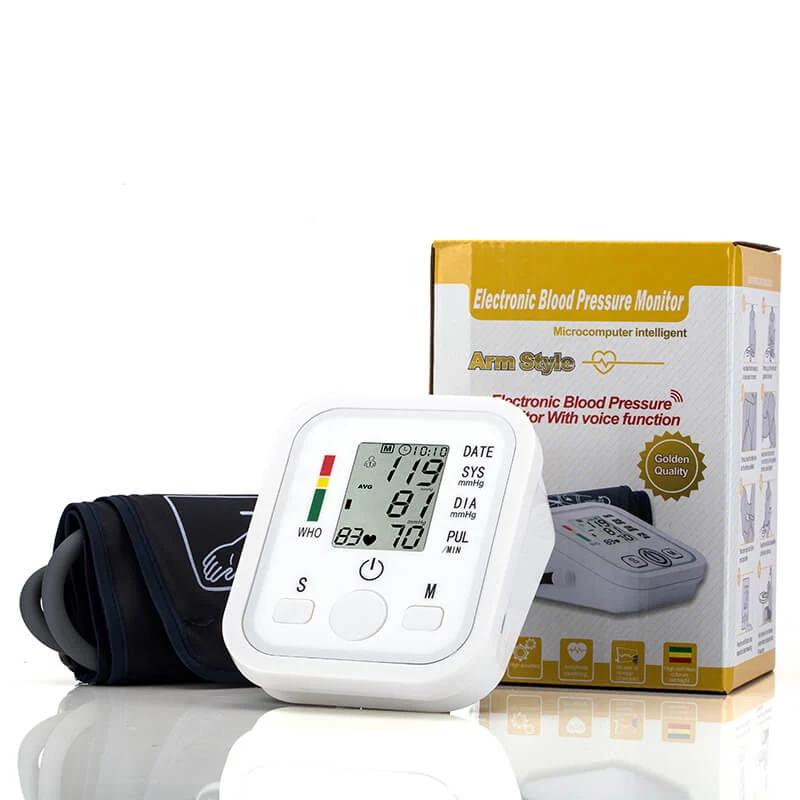

- WHO blood pressure classification
- Real-time voice output optional
- Bluetooth optional
- Voltage detection function
Specifications
Technical Data
| Product Dimensions | 118 mm x 95 mm x 65 mm |
|---|---|
| Measurement Method | Pulse scanning method and oscillometric method |
| Display Method | LCD digital display |
| Measurement Range | Systolic and diastolic pressure 20 mmHg to 280 mmHg |
| Pulse Range | 40 to 200 beats per minute |
| Resolution | 1 mmHg, equal to 0.1 kPa |
| Pressure Accuracy | Plus or minus 3 mmHg, equal to plus or minus 0.4 kPa |
| Pulse Accuracy | Within plus or minus 3 percent of the reading |
| Operating Temperature | 10C to 40C |
| Operating Humidity | 40 percent to 85 percent |
| Storage Temperature | -20C to 50C |
| Storage Humidity | 15 percent to 90 percent |
| Voltage | 6V |
| Power Consumption | 0.01W |
| Unit Weight | Approximately 500 grams |
| Packing | 30 units per box |
Materials
- ABS housing
- Fabric cuff with air bladder
Quality and compliance
Quality Control And Certification
Quality Control
- Pressure readings are verified against a reference manometer to the plus or minus 3 mmHg specification
- Pulse measurement is checked across the 40 to 200 beats per minute range
- Cuff inflation and deflation are tested on each unit
- Memory, IHB and WHO classification functions are checked before packing
Customisation and comparison
Options And Alternatives
Customisation Options
- Voice output and Bluetooth options
- Voice language selection where the voice option is taken
- Cuff size for your market
- Colour box artwork and manual language
- Export carton quantity and marks
Compared With Other Options
- Wrist blood pressure monitors
- An upper-arm oscillometric device measured to plus or minus 3 mmHg is less position sensitive
- Manual aneroid sphygmomanometers
- No trained operator with a stethoscope is required, and readings are stored automatically
- Monitors without IHB detection
- Irregular heartbeat flagging catches a finding that a plain reading hides
Use guide
How To Use It Correctly
Step
Sit quietly for a few minutes before measuring with the back supported and feet flat
Step
Fit the cuff on the bare upper arm at heart level
Step
Stay still and do not talk during the measurement
Step
Select the correct user memory bank so readings are not mixed between household users
Step
Note any IHB indication and report repeated occurrences to a clinician
Step
Take readings at the same time each day for a comparable record
Related products
Other Products In Medical Equipment
Portable Oxygen Concentrator Model B-1
A portable oxygen concentrator, model B-1, with an adjustable flow from 1 to 5 litres per minute and an imported French...
View product →
Compressor Nebulizer With 3.9 Micron Particle Output
A medical nebulizer that atomises liquid medication into particles small enough to reach the lower airway. The median...
View product →
Far Infrared Thermometer With One Second Measurement
A far infrared thermometer that returns a reading in one second, with an ergonomic single-hand body and an LCD display...
View product →
Video Laryngoscope With Disposable Blade
A video laryngoscope supplied with disposable blades for adult and paediatric tracheal intubation. Compared with a...
View product →Related reading
Industries Solutions And Guides
Hospitals and Clinics
Hospital and clinic buyers work against tender deadlines, infection control rules and a budget split across...
Diagnostic Imaging Centres
An imaging centre lives on throughput and on the patients it can actually scan. Systems that stall for tube...
Hospital Department Outfitting
Equipping a ward, a theatre or an outpatient department means buying furniture, equipment and consumables...
Export Logistics and After Sales
Qingdao sits next to the largest container port in North China, which is why import and export procedures and...
How Medical Ultrasound Equipment Works and How to Choose It
Ultrasound above 20,000 hertz is inaudible, highly directional and penetrates tissue. Diagnostic work uses 1...
Choosing a China Factory for Medical Products
Reputation, location, production capability and communication decide whether a factory suits your order. For...
FAQ
Digital Blood Pressure Monitor With Dual 99 Group Memory FAQ
What is the measurement accuracy
Plus or minus 3 mmHg on pressure with 1 mmHg resolution, and within plus or minus 3 percent of the reading on pulse.
How many readings does it store
Dual 99-group memory, so two users can each store 99 readings without mixing their histories.
Does it detect irregular heartbeat
Yes. IHB detection flags an irregular heartbeat, and WHO classification places each reading in context on the display.
Are voice and Bluetooth available
Both are optional. Tell us whether your market needs voice output, Bluetooth transfer or both and we will quote that configuration.
How is the monitor packed
Approximately 500 grams per unit, 30 units per box, in a colour box that can carry your artwork.
What are the operating conditions
Operating temperature 10C to 40C at 40 to 85 percent humidity, with storage from -20C to 50C.
Request A Quote For This Product
Send your quantity, destination market and any labelling requirement. We confirm stock, lead time and the documentation that travels with the goods.
