Compressor Nebulizer With 3.9 Micron Particle Output
A medical nebulizer that atomises liquid medication into particles small enough to reach the lower airway. The median particle diameter is 3.9 microns and more than 65 percent of the particles measure below 5 microns,...
Product overview
What This Product Is And Who It Is For

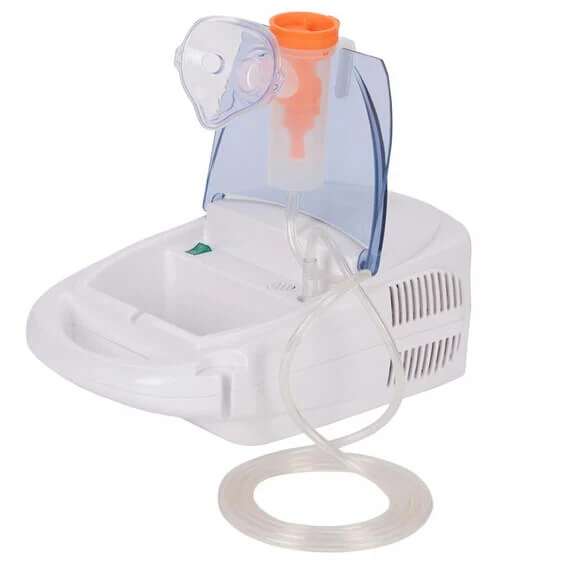

A medical nebulizer that atomises liquid medication into particles small enough to reach the lower airway. The median particle diameter is 3.9 microns and more than 65 percent of the particles measure below 5 microns, which is the size range that reaches the bronchi and alveoli rather than depositing in the mouth. Drug residue is 0.7 ml or less, so less of an expensive prescription is left in the cup. The unit measures 210 x 98 x 170 mm at 1.7 kg and ships with mouthpiece, catheter, medicine cup, fuse, filter, manual and certificate.
Problems It Solves
- Large particles deposit in the mouth instead of reaching the lungs, which a 3.9 micron median diameter addresses
- High residue wastes costly medication, so residue is held at 0.7 ml or less
- Missing accessories delay treatment, so the mouthpiece, catheter, cup, fuse and filter are included
- Uncertified units cannot be sold to clinics, so a certificate is supplied with each unit
Who It Is For
- Hospital respiratory departments and clinics
- Medical equipment distributors and pharmacies
- Elderly care operators
- Home care e-commerce sellers
- Private-label brands in home respiratory care
Key benefits
Why Buyers Choose It
- A 3.9 micron median particle diameter delivers medication to the lower airway rather than the mouth and throat
- More than 65 percent of particles below 5 microns means most of the dose reaches the target
- Drug residue of 0.7 ml or less reduces waste of expensive prescriptions across a treatment course
- Complete accessory set including mouthpiece, cup and filter means nothing extra has to be sourced
- Compact 210 x 98 x 170 mm body at 1.7 kg fits a bedside table in a home or a ward
Application scenarios
Where It Is Used
Scenarios
- Treatment of colds, fever, cough and sore throat at home
- Asthma and bronchitis management
- Rhinitis and pharyngitis treatment
- Pneumoconiosis and chronic respiratory conditions
- Hospital respiratory departments and clinics
- Elderly care facilities and paediatric clinics
Technical features
How It Is Built
- Particle median diameter 3.9 microns
- More than 65 percent of fog particles below 5 microns
- Drug residue 0.7 ml or less
- Noise 65 dB or less
- Accessories: mouthpiece, catheter, medicine cup, fuse, filter, manual, certificate
Specifications
Technical Data
| Product Type | Atomization inhaler, medical nebulizer |
|---|---|
| Particle Median Diameter | 3.9 microns |
| Particle Distribution | More than 65 percent of particles below 5 microns |
| Drug Residue | 0.7 ml or less |
| Noise | 65 dB or less |
| Dimensions | 210 x 98 x 170 mm |
| Weight | 1.7 kg |
| Accessories | Mouthpiece, catheter, medicine cup, fuse, filter, manual, certificate |
Materials
- ABS housing
- Medicine cup and mask set
- Air tubing
Quality and compliance
Quality Control And Certification
Quality Control
- Particle size distribution is verified against the 3.9 micron median specification
- Residual volume is checked against the 0.7 ml limit
- Noise is measured against the 65 dB limit
- Accessory sets are counted against the packing list
- Certificates are issued with each unit
Customisation and comparison
Options And Alternatives
Customisation Options
- Mask and mouthpiece accessory selection
- Housing colour and brand printing
- Plug type for your destination market
- Retail box artwork and manual language
- Export carton quantity and marks
Compared With Other Options
- Metered dose inhalers
- Nebulised delivery suits patients who cannot coordinate an inhaler, including children and elderly patients
- Nebulizers with larger particle output
- A 3.9 micron median diameter reaches the bronchi and alveoli instead of depositing in the mouth
- Units with higher residual volume
- Residue of 0.7 ml or less wastes less of each prescribed dose
Use guide
How To Use It Correctly
Step
Add the prescribed medication volume to the medicine cup
Step
Connect the catheter between the compressor and the cup
Step
Fit the mouthpiece or mask and breathe steadily through the session
Step
Keep the cup upright during treatment for consistent output
Step
Wash the cup, mouthpiece and mask after each session and let them dry
Step
Replace the filter at the interval stated in the manual
Related products
Other Products In Medical Equipment
Far Infrared Thermometer With One Second Measurement
A far infrared thermometer that returns a reading in one second, with an ergonomic single-hand body and an LCD display...
View product →
Video Laryngoscope With Disposable Blade
A video laryngoscope supplied with disposable blades for adult and paediatric tracheal intubation. Compared with a...
View product →
Handheld ETCO2 Carbon Dioxide Monitor
A handheld end-tidal carbon dioxide monitor measuring ETCO2 across 0 to 150 mmHg at 1 mmHg resolution, with respiration...
View product →
Handheld Dual Probe Colour Doppler Ultrasound VET-47
A handheld dual-probe colour Doppler ultrasound diagnostic system, model VET-47 in the CMS1600B-VET series, made up of...
View product →Related reading
Industries Solutions And Guides
Hospitals and Clinics
Hospital and clinic buyers work against tender deadlines, infection control rules and a budget split across...
Diagnostic Imaging Centres
An imaging centre lives on throughput and on the patients it can actually scan. Systems that stall for tube...
Hospital Department Outfitting
Equipping a ward, a theatre or an outpatient department means buying furniture, equipment and consumables...
Export Logistics and After Sales
Qingdao sits next to the largest container port in North China, which is why import and export procedures and...
How Medical Ultrasound Equipment Works and How to Choose It
Ultrasound above 20,000 hertz is inaudible, highly directional and penetrates tissue. Diagnostic work uses 1...
Choosing a China Factory for Medical Products
Reputation, location, production capability and communication decide whether a factory suits your order. For...
FAQ
Compressor Nebulizer With 3.9 Micron Particle Output FAQ
What particle size does the nebulizer produce
A median particle diameter of 3.9 microns, with more than 65 percent of particles below 5 microns, which is the range that reaches the lower airway.
How much medication is left in the cup
Drug residue is 0.7 ml or less, which matters across a full treatment course with expensive prescriptions.
What accessories are included
Mouthpiece, catheter, medicine cup, fuse, filter, manual and certificate.
How loud is the unit
65 dB or less. If overnight paediatric use is your main application, ask us about the quieter handheld battery nebulizer instead.
Can it be supplied under our brand
Yes. Housing colour, brand printing, retail box artwork and manual language can be produced to your specification.
What plug type is fitted
The plug type is fitted for your destination market. Confirm the market when you place the order.
Request A Quote For This Product
Send your quantity, destination market and any labelling requirement. We confirm stock, lead time and the documentation that travels with the goods.
