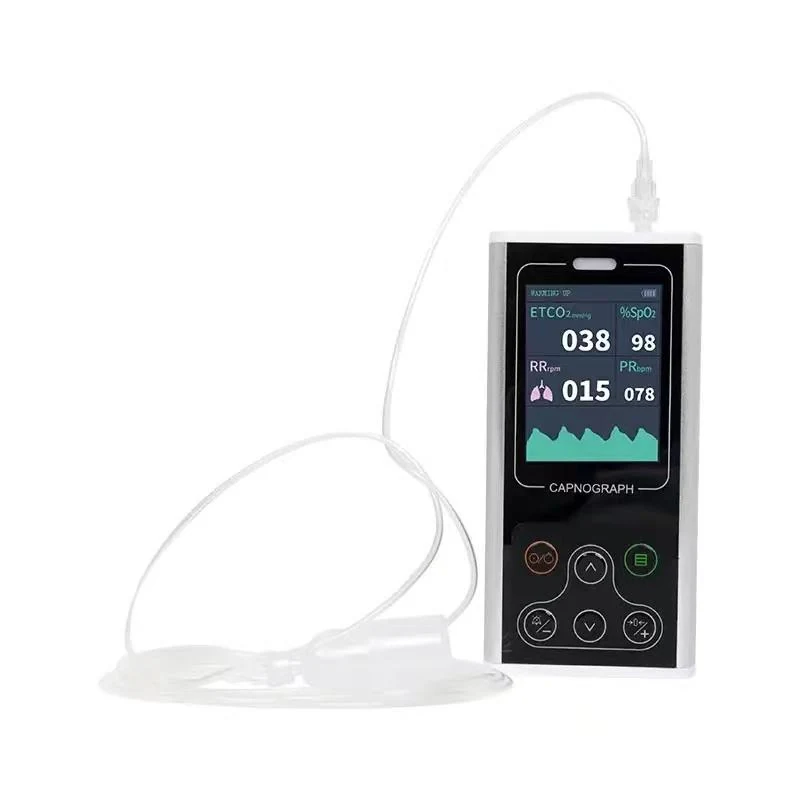

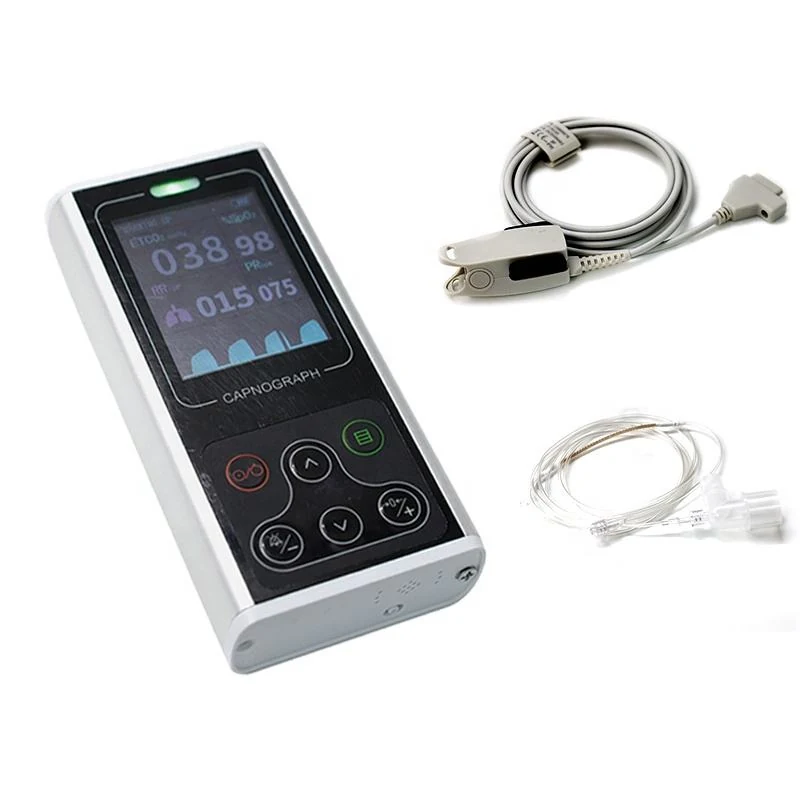

Handheld ETCO2 Carbon Dioxide Monitor
A handheld end-tidal carbon dioxide monitor measuring ETCO2 across 0 to 150 mmHg at 1 mmHg resolution, with respiration rate from 2 to 120 rpm at 1 rpm resolution. Accuracy is plus or minus 2 mmHg from 0 to 40 mmHg and...
Product overview
What This Product Is And Who It Is For
A handheld end-tidal carbon dioxide monitor measuring ETCO2 across 0 to 150 mmHg at 1 mmHg resolution, with respiration rate from 2 to 120 rpm at 1 rpm resolution. Accuracy is plus or minus 2 mmHg from 0 to 40 mmHg and moves to a percentage of reading above that. The unit preheats in 2 minutes, responds in under 3 seconds and runs for 8 hours, sampling gas at 60 to 100 ml per minute. At 159 x 72 x 31 mm and 270 g it is genuinely handheld, with IPX1 protection and type BF applied part classification.
Problems It Solves
- Bench capnographs cannot travel to the patient, so this monitor is handheld at 270 g
- Long warm-up times make a monitor useless in an emergency, so preheat is 2 minutes
- Slow response hides a changing airway, so response time is under 3 seconds
- Mains-tied monitors stop at the ambulance door, so the unit runs 8 hours internally powered
- Respiration rate has to be counted manually without capnography, which the monitor measures directly
Who It Is For
- Hospital anaesthesia and emergency departments
- Ambulance and emergency medical services
- Intensive care and recovery units
- Medical equipment distributors
- Private clinic and day surgery groups
Key benefits
Why Buyers Choose It
- A 2 minute preheat and under 3 second response make the monitor usable in an emergency rather than only in a planned procedure
- 8 hours of operation covers a full shift or a long transfer on internal power
- At 270 g and 159 x 72 x 31 mm it is carried rather than wheeled, which suits pre-hospital work
- Measuring respiration rate alongside ETCO2 gives two airway parameters from one device
- Sampling at 60 to 100 ml/min suits both adult and smaller patients
- Alarm sound pressure of 50 dB is audible without dominating a treatment area
Application scenarios
Where It Is Used
Scenarios
- Airway confirmation after intubation
- Procedural sedation monitoring
- Ambulance and patient transfer monitoring
- Emergency department resuscitation
- Recovery and post-anaesthesia care
- Ward response teams assessing deteriorating patients
Technical features
How It Is Built
- ETCO2 measurement range 0 to 150 mmHg at 1 mmHg resolution
- Respiration rate 2 to 120 rpm at 1 rpm resolution, accuracy plus or minus 1 rpm
- Preheat time 2 minutes and response time under 3 seconds
- Working time 8 hours
- Gas sampling rate 60 to 100 ml per minute
- Alarm sound pressure level 50 dB
- IPX1 waterproof and dustproof rating
- Internally powered equipment with type BF applied part
Specifications
Technical Data
| ETCO2 Measurement Range | 0 to 150 mmHg |
|---|---|
| ETCO2 Resolution | 1 mmHg |
| ETCO2 Accuracy | 0-40 mmHg plus or minus 2 mmHg, 41-70 mmHg plus or minus 5 percent, 71-100 mmHg plus or minus 8 percent, 101-150 mmHg plus or minus 10 percent |
| Respiration Rate Range | 2 to 120 rpm |
| Respiration Rate Accuracy | Plus or minus 1 rpm |
| Preheat Time | 2 minutes |
| Response Time | Under 3 seconds |
| Working Hours | 8 hours |
| Gas Sampling Rate | 60 to 100 ml per minute |
| Alarm Sound Pressure | 50 dB |
| Dimensions | 159 mm x 72 mm x 31 mm |
| Weight | 270 g |
| Waterproof and Dustproof | IPX1 |
| Electric Shock Protection | Internally powered equipment, type BF applied part |
| Quality Certification | CE |
Materials
- ABS housing
- Gas sampling line and connector
Quality and compliance
Quality Control And Certification
Quality Control
- ETCO2 accuracy is verified across the measurement bands against reference gas
- Respiration rate accuracy is checked against the plus or minus 1 rpm specification
- Preheat and response times are tested before shipment
- Sampling flow is verified within the 60 to 100 ml/min range
- Alarm sound pressure is checked against the 50 dB specification
Certifications
Customisation and comparison
Options And Alternatives
Customisation Options
- Sampling line and accessory selection
- Manual and interface language
- Carry case configuration
- Packaging artwork
- Export carton quantity and marks
Compared With Other Options
- Bench capnography modules
- A 270 g handheld unit travels to the patient and runs 8 hours on internal power
- Pulse oximetry alone
- ETCO2 shows ventilation directly and changes before oxygen saturation falls
- Colorimetric CO2 detectors
- A numeric measurement across 0 to 150 mmHg with waveform response replaces a yes or no colour change
Use guide
How To Use It Correctly
Step
Switch on and allow the 2 minute preheat before use
Step
Connect the sampling line to the airway adapter
Step
Check the reading responds within 3 seconds of a breath
Step
Set alarm limits appropriate to the patient and procedure
Step
Replace the sampling line according to the facility protocol
Step
Charge the unit after use so the 8 hour capacity is available for the next case
Related products
Other Products In Medical Equipment
Handheld Dual Probe Colour Doppler Ultrasound VET-47
A handheld dual-probe colour Doppler ultrasound diagnostic system, model VET-47 in the CMS1600B-VET series, made up of...
View product →
Anaesthesia Machine With Ventilator Trolley
A trolley-mounted anaesthesia machine for operating theatre use, classified as a Class II medical device with CE...
View product →
NE100 Electrocardiograph With Thermal Printing
The NE100 electrocardiograph records ECG waveforms using digital signal processing, applying line-frequency, baseline...
View product →
Vital Sign Monitor With Spot and Continuous Modes
A vital sign monitor operated from a 4 inch colour TFT touch screen, configurable across 3 or 5 lead ECG, NIBP, SpO2,...
View product →Related reading
Industries Solutions And Guides
Hospitals and Clinics
Hospital and clinic buyers work against tender deadlines, infection control rules and a budget split across...
Diagnostic Imaging Centres
An imaging centre lives on throughput and on the patients it can actually scan. Systems that stall for tube...
Hospital Department Outfitting
Equipping a ward, a theatre or an outpatient department means buying furniture, equipment and consumables...
Export Logistics and After Sales
Qingdao sits next to the largest container port in North China, which is why import and export procedures and...
How Medical Ultrasound Equipment Works and How to Choose It
Ultrasound above 20,000 hertz is inaudible, highly directional and penetrates tissue. Diagnostic work uses 1...
Choosing a China Factory for Medical Products
Reputation, location, production capability and communication decide whether a factory suits your order. For...
FAQ
Handheld ETCO2 Carbon Dioxide Monitor FAQ
What is the measurement range and accuracy
ETCO2 from 0 to 150 mmHg at 1 mmHg resolution. Accuracy is plus or minus 2 mmHg from 0 to 40 mmHg, then plus or minus 5, 8 and 10 percent of reading in the higher bands.
How quickly is it ready to use
Preheat takes 2 minutes and response time is under 3 seconds, which is why it is used in emergency airway confirmation.
How long does it run on internal power
8 hours of working time, which covers a shift or a long transfer.
Does it measure respiration rate
Yes, from 2 to 120 rpm at 1 rpm resolution with accuracy of plus or minus 1 rpm.
What is the protection rating
IPX1 waterproof and dustproof, internally powered equipment with a type BF applied part.
Is it certified for export
The monitor carries CE certification and documentation is supplied before shipment.
Request A Quote For This Product
Send your quantity, destination market and any labelling requirement. We confirm stock, lead time and the documentation that travels with the goods.
