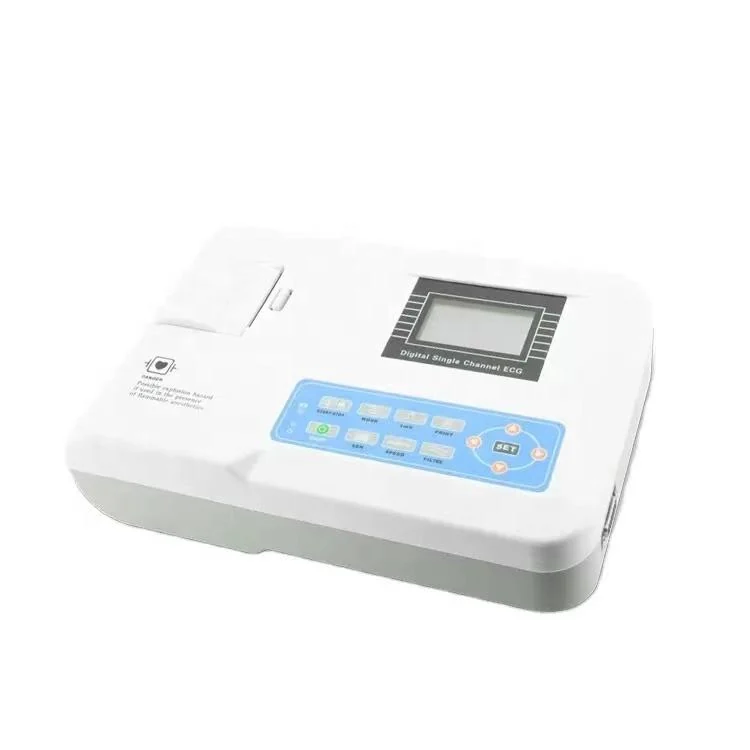

NE100 Electrocardiograph With Thermal Printing
The NE100 electrocardiograph records ECG waveforms using digital signal processing, applying line-frequency, baseline and EMG filters to produce a clean trace. A high-resolution thermal printing system at 8 dots per mm...
Product overview
What This Product Is And Who It Is For
The NE100 electrocardiograph records ECG waveforms using digital signal processing, applying line-frequency, baseline and EMG filters to produce a clean trace. A high-resolution thermal printing system at 8 dots per mm requires no adjustment, and recording frequency reaches 150 Hz. Automatic and manual modes are both available, with automatic recording completed by a single button press. Alerts for lead off and paper out prevent wasted recordings, and the interface and reports are multilingual.
Problems It Solves
- Electrical noise in a ward corrupts an ECG trace, which the filter set addresses
- A lead coming loose mid-recording wastes the examination, so a lead off alert is provided
- Running out of paper mid-trace loses the record, so a paper out alert is provided
- Multi-step recording procedures slow a clinic, so automatic mode completes with one button press
- Reports in a single language exclude many markets, so the interface and reports are multilingual
Who It Is For
- Clinic and hospital procurement departments
- Community health and screening programme buyers
- Medical equipment distributors
- Occupational health providers
- Private clinic groups
Key benefits
Why Buyers Choose It
- Line frequency, baseline and EMG filters produce a readable trace in wards with electrical noise
- Single button automatic recording shortens each examination, which matters in a busy outpatient clinic
- Lead off and paper out alerts stop a recording being wasted and repeated on the patient
- Thermal printing at 8 dots per mm needs no adjustment, so there is no print calibration routine
- Multilingual interface and reports cover Chinese, English, French, Italian, German, Spanish and Turkish
- Annotation characters printed with the trace record sensitivity, paper speed and filter status for later interpretation
Application scenarios
Where It Is Used
Scenarios
- Outpatient clinic ECG examination
- Ward and bedside recording
- Pre-operative assessment
- Community health and screening programmes
- Occupational health examinations
- Distributor supply to clinics and small hospitals
Technical features
How It Is Built
- Digital signal processing with line frequency, baseline and EMG filters
- High-resolution thermal printing system at 8 dots per mm requiring no adjustment
- Recording frequency up to 150 Hz
- Automatic and manual recording modes
- Lead off and paper out alerts
- Multilingual interface and reports in Chinese, English, French, Italian, German, Spanish and Turkish
- Annotation characters including labels, sensitivity, paper speed and filter status
Specifications
Technical Data
| Model | NE100 |
|---|---|
| Printing System | High-resolution thermal, 8 dots per mm |
| Recording Frequency | Up to 150 Hz |
| Recording Modes | Automatic and manual |
| Alerts | Lead off, paper out |
| Operating Temperature | 5C to 40C |
| Relative Humidity | 25 percent to 95 percent, non-condensing |
| Atmospheric Pressure | 700 hPa to 1060 hPa |
| Transport and Storage Temperature | -20C to +55C |
| Dimensions | 315 mm x 215 mm x 77 mm |
| Weight | 1.5 kg |
| Quality Certification | CE |
Materials
- ABS housing
- Thermal print head assembly
- Patient cable and lead set
Quality and compliance
Quality Control And Certification
Quality Control
- Trace quality is checked with a simulator before shipment
- Filter function is verified across line frequency, baseline and EMG settings
- Print head resolution is checked against the 8 dots per mm specification
- Lead off and paper out alerts are function-tested
- Operating environment limits are recorded in the technical file
Certifications
Customisation and comparison
Options And Alternatives
Customisation Options
- Interface and report language selection
- Patient cable and electrode set configuration
- Thermal paper supply with the order
- Manual language and packaging artwork
- Export carton quantity and marks
Compared With Other Options
- Devices without digital filtering
- Line frequency, baseline and EMG filters produce a readable trace in electrically noisy wards
- Machines requiring print calibration
- The thermal printing system at 8 dots per mm needs no adjustment
- Single-language ECG machines
- Multilingual interface and reports cover seven languages from the same unit
Use guide
How To Use It Correctly
Step
Prepare the skin and attach the electrodes before switching to recording mode
Step
Check the lead off indicator before starting the trace
Step
Use automatic mode for routine recordings to complete with one button press
Step
Confirm the printed annotation shows the sensitivity, paper speed and filter status used
Step
Keep the unit within 5C to 40C and 25 to 95 percent non-condensing humidity
Step
Store thermal paper away from heat and direct light
Related products
Other Products In Medical Equipment
Vital Sign Monitor With Spot and Continuous Modes
A vital sign monitor operated from a 4 inch colour TFT touch screen, configurable across 3 or 5 lead ECG, NIBP, SpO2,...
View product →
Multi Parameter Patient Monitor With 7 Inch Display
A compact multi-parameter patient monitor that integrates measurement modules, display and recorder into a single...
View product →
Veterinary Syringe Pump for 10ml 20ml and 50ml Syringes
A syringe pump built for veterinary use in pet hospitals, accepting 10ml, 20ml and 50ml syringes for controlled animal...
View product →
Laptop Colour Doppler Ultrasound System DUS50
A laptop-format colour Doppler ultrasound system, model DUS50, supplied for animal health diagnosis. The 15 inch LCD...
View product →Related reading
Industries Solutions And Guides
Hospitals and Clinics
Hospital and clinic buyers work against tender deadlines, infection control rules and a budget split across...
Diagnostic Imaging Centres
An imaging centre lives on throughput and on the patients it can actually scan. Systems that stall for tube...
Hospital Department Outfitting
Equipping a ward, a theatre or an outpatient department means buying furniture, equipment and consumables...
Export Logistics and After Sales
Qingdao sits next to the largest container port in North China, which is why import and export procedures and...
How Medical Ultrasound Equipment Works and How to Choose It
Ultrasound above 20,000 hertz is inaudible, highly directional and penetrates tissue. Diagnostic work uses 1...
Choosing a China Factory for Medical Products
Reputation, location, production capability and communication decide whether a factory suits your order. For...
FAQ
NE100 Electrocardiograph With Thermal Printing FAQ
What print resolution does the machine use
A high-resolution thermal printing system at 8 dots per mm, which requires no adjustment in use.
Which languages does the interface support
Chinese, English, French, Italian, German, Spanish and Turkish, for both the interface and the printed reports.
What happens if a lead comes off during recording
The machine alerts for lead off, and also for paper out, so a recording is not silently wasted.
What are the operating conditions
5C to 40C at 25 to 95 percent non-condensing humidity and 700 to 1060 hPa, with transport and storage from -20C to +55C.
How heavy is the unit
1.5 kg at 315 x 215 x 77 mm, which makes it practical to move between wards.
Can thermal paper be supplied with the order
Yes. Paper supply, patient cable and electrode configuration are confirmed with your order.
Request A Quote For This Product
Send your quantity, destination market and any labelling requirement. We confirm stock, lead time and the documentation that travels with the goods.
