Five Stripes EVA Foam Mat
Five-Stripe Textured Floor Tiles for Commercial Gyms and Dance Studios
What This Mat Is and Who It Is For

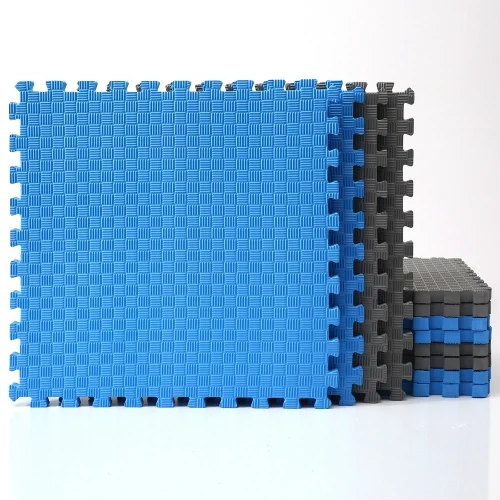

The Five Stripes EVA Foam Mat carries a ribbed five-stripe texture across the wear surface. The raised stripes break the contact area, which is what keeps a foot or a hand from sliding when the surface picks up sweat.
It is the line we recommend for commercial rooms that see continuous traffic: group fitness floors, dance studios and multi-purpose halls where the same square metre is used all day.
- Five-stripe raised texture running across the tile face
- Interlocking edges on all four sides
- Closed-cell EVA foam at 70-75 kg/m3 density
- Shore C 36 hardness - firm enough to stand on, soft enough to land on
What the Buyer Gets
Five-stripe pattern improves slip resistance
Grip that holds up when the surface is damp
Even cushioning protects joints
Even cushioning that takes load off knees and ankles during repeated impact
Hard-wearing surface for high traffic
A single damaged tile can be swapped instead of the whole floor
Custom colours available for branding
Custom colours let a chain keep one visual identity across sites
Who it is for
- Commercial gym fit-out contractors and equipment suppliers
- Dance and aerobics studio chains specifying a repeatable floor
- School and municipal sports facility buyers
- Wholesalers who need one SKU that covers both home and light commercial use
Problems it solves
- Smooth foam floors become slippery once a class starts sweating
- High-traffic lanes wear through before the rest of the floor does
- Floors laid by different crews end up looking inconsistent between rooms
- Damaged sections usually mean replacing an entire rolled floor
Application scenarios

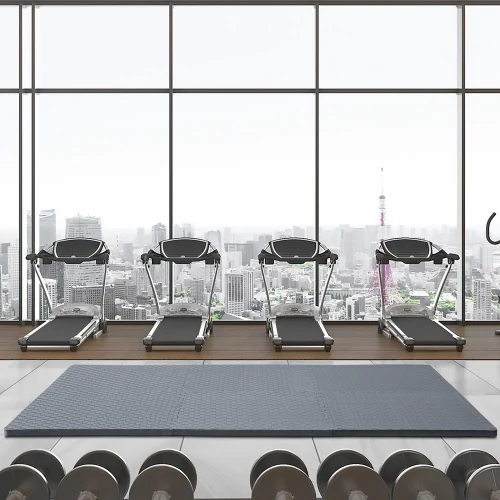

- Commercial gym floors
- Home workout rooms
- Aerobics and dance studios
- Multi-purpose sports halls
Technical features
- Five-stripe raised texture running across the tile face
- Interlocking edges on all four sides
- Closed-cell EVA foam at 70-75 kg/m3 density
- Shore C 36 hardness - firm enough to stand on, soft enough to land on
Five Stripes EVA Foam Mat Technical Data
Figures below are the factory specification for this line. Anything marked TBC is confirmed per order rather than guessed at.
| Product Name | Five Stripes EVA Foam Mat |
|---|---|
| Material | EVA foam |
| Thickness | 1 cm - 4 cm (customizable) |
| Size | 30x30 cm, 50x50 cm, 60x60 cm (customizable) |
| Density | 70-75 kg/m3 |
| Hardness | Shore C 36 |
| Formamide Index | < 200 ppm |
| Certificates | REACH, EN71, BSCI, ISO 9001, ISO 14001 |
| Packing | Shrink-wrapped inner + carton outer |
| MOQ | TBC - confirm with sales |
| Lead Time | 30 days for regular orders |
Materials
Closed-cell EVA foam. Non-toxic and environmentally friendly EVA and LDPE materials, with every batch tested.
Customization options
Custom sizes, thicknesses, colours, patterns and packaging. OEM and ODM branding available, including retail packaging and inserts.
How we specify a custom mat →Certifications
REACH, EN71, BSCI, ISO 9001 and ISO 14001. Test reports are shared with serious buyers on request.
View the certificates →How This Mat Is Made and Checked
Compounding
EVA resin and additives are weighed and mixed to the density the order calls for - 70-75 kg/m3 for standard lines, 80 kg/m3 for tatami and rubber-blend tiles.
Foaming
The compound is foamed into blocks on our own foaming lines. This is the step that fixes density, hardness and how the mat will behave under load.
Lamination
Printed film or suede surfaces are laminated onto the foam base for the wood-grain, plush and printed puzzle lines.
Die-cutting
Blocks are cut to tile size and the interlocking puzzle teeth are die-cut. Cut accuracy is what decides whether the seams close cleanly on site.
Quality control
Incoming material checks, in-process inspection and final sampling before every shipment.
Packing and shipping
Shrink-wrapped inner packing with a carton outer, loaded close to Shanghai and Qingdao seaports.
How It Compares With Our Other Lines
| Product | Key specification | Best suited to |
|---|---|---|
| Five Stripes EVA Foam Mat | Ribbed stripe texture, 70-75 kg/m3 | Commercial fitness and dance floors |
| Cross Pattern EVA Foam Mat | Cross-embossed texture, same density | Home gyms and yoga rooms |
| Gym Mats | Leaf-pattern texture, reversible | Dojos and functional training zones |
Laying and Maintaining the Floor
Measure the room and order around 5% extra tiles for cuts and future replacements.
Lay the tiles with the stripe direction consistent across the room.
Press the interlocking teeth home with hand pressure; no adhesive is needed.
Use border strips along walls and open edges for a finished line.
Mop weekly with a mild detergent and let the surface air dry.
Sectors This Mat Is Specified For
Guides Related to This Product
Wholesale EVA Foam Mats From China
Importing EVA foam mats at wholesale is straightforward once you understand how factories quote, what actually drives the price, and where first-time buyers lose...
Read the guide →
EVA vs Rubber Gym Flooring
Walk into any commercial gym and you will see both: rubber flooring under the free weights, foam-style tiles everywhere else. EVA and rubber gym flooring solve...
Read the guide →EVA Foam Tile Size Guide
"How many tiles do I need?" is the most frequent question we answer - and the answer starts with tile size. EVA foam mats ship in three main formats, and the format...
Read the guide →Related Products
Pool Grid EVA Foam Mat
Open-Grid Drainage Mats for Pool Surrounds Showers and Wet Rooms
View specifications →
Wood Grain EVA Foam Mat
Printed Wood-Grain Foam Tiles for Interiors Showrooms and Event Floors
View specifications →
Plush EVA Foam Mat
Suede-Surface Foam Tiles for Bedrooms Hotels and Premium Retail Floors
View specifications →Five Stripes EVA Foam Mat - Buyer Questions
Is this mat suitable for a commercial gym?
Yes. The five-stripe surface and 70-75 kg/m3 density are specified for high-traffic rooms such as commercial gym floors and multi-purpose sports halls.
Can we print our logo on the tiles?
Yes. We support OEM and ODM work including custom colours, patterns and packaging.
What is the formamide level?
The formamide index is below 200 ppm, and the product is tested against REACH and EN71.
Which sizes are standard?
30x30 cm, 50x50 cm and 60x60 cm are standard, and sizes are customizable.
What are your payment terms?
We accept T/T, L/C, D/P and O/A, and provide a 2-year product warranty with 24/7 after-sales support.
Get a Quote on the Five Stripes EVA Foam Mat
Send the size, thickness, colour, packaging and quantity. We reply within 24 hours, Monday to Saturday, and samples go by express with the courier charge refunded on your first bulk order.
