Pool Grid EVA Foam Mat
Open-Grid Drainage Mats for Pool Surrounds Showers and Wet Rooms
What This Mat Is and Who It Is For

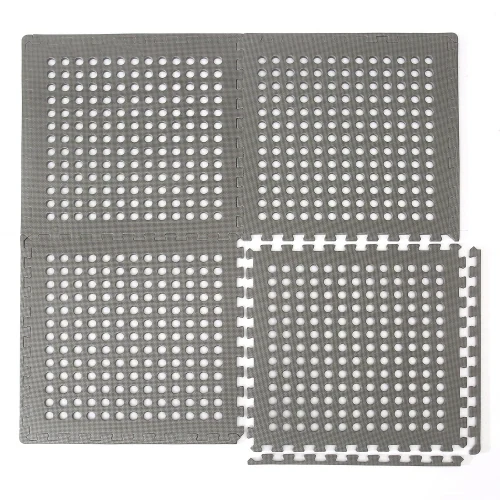

The Pool Grid EVA Foam Mat is an open-grid tile made for wet areas. Water falls straight through the grid instead of pooling on the surface, which is what keeps the walking area safe around a swimming pool, a shower block or a sauna.
The EVA body is resistant to water, mould and mildew, so the tile can be lifted, hosed down and put back rather than replaced at the end of a season.
- Open-grid structure across the full tile
- Interlocking edges for continuous runs along a pool surround
- Closed-cell EVA - the foam itself does not absorb water
- Mould and mildew resistant
What the Buyer Gets
Open-grid design drains water quickly
Water drains away immediately instead of sitting under bare feet
Slip-resistant even when wet
The area underneath the mat dries, so mould has nothing to grow in
Mildew and mould resistant
Tiles lift out one at a time for hosing down and go straight back
Lightweight and easy to lift for cleaning
A safer walkway without laying permanent flooring
Who it is for
- Swimming pool and leisure facility suppliers
- Hotel, spa and sauna fit-out buyers
- Marine, deck and patio product distributors
- Retailers selling bathroom and wet-room safety flooring
Problems it solves
- Wet tiled floors around pools are the most common slip hazard in a leisure facility
- Standing water breeds mould and creates a smell in changing areas
- Solid mats trap water underneath and stain the floor below
- Cleaning schedules in wet areas are frequent and labour-heavy
Application scenarios
- Swimming pool surrounds
- Showers, saunas and wet rooms
- Bathroom floors
- Outdoor deck and patio areas
Technical features
- Open-grid structure across the full tile
- Interlocking edges for continuous runs along a pool surround
- Closed-cell EVA - the foam itself does not absorb water
- Mould and mildew resistant
Pool Grid EVA Foam Mat Technical Data
Figures below are the factory specification for this line. Anything marked TBC is confirmed per order rather than guessed at.
| Product Name | Pool Grid EVA Foam Mat |
|---|---|
| Material | EVA foam |

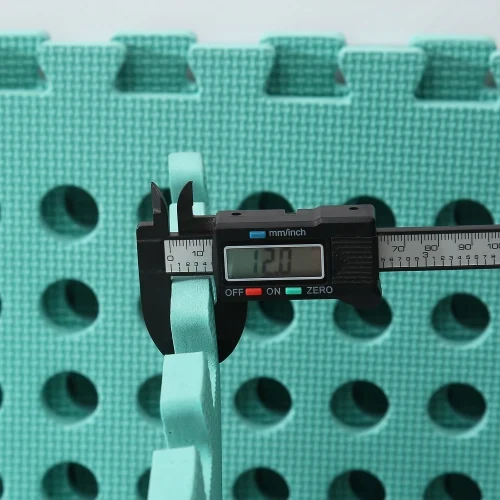

| Thickness | 1 cm - 4 cm (customizable) |
| Size | 30x30 cm, 50x50 cm, 60x60 cm (customizable) |
| Density | 70-75 kg/m3 |
| Hardness | Shore C 36 |
| Formamide Index | < 200 ppm |
| Certificates | REACH, EN71, BSCI, ISO 9001, ISO 14001 |
| Packing | Shrink-wrapped inner + carton outer |
| MOQ | TBC - confirm with sales |
| Lead Time | 30 days for regular orders |
Materials
Closed-cell EVA foam. Non-toxic and environmentally friendly EVA and LDPE materials, with every batch tested.
Customization options
Custom sizes, thicknesses, colours, patterns and packaging. OEM and ODM branding available, including retail packaging and inserts.
How we specify a custom mat →Certifications
REACH, EN71, BSCI, ISO 9001 and ISO 14001. Test reports are shared with serious buyers on request.
View the certificates →How This Mat Is Made and Checked
Compounding
EVA resin and additives are weighed and mixed to the density the order calls for - 70-75 kg/m3 for standard lines, 80 kg/m3 for tatami and rubber-blend tiles.
Foaming
The compound is foamed into blocks on our own foaming lines. This is the step that fixes density, hardness and how the mat will behave under load.
Lamination
Printed film or suede surfaces are laminated onto the foam base for the wood-grain, plush and printed puzzle lines.
Die-cutting
Blocks are cut to tile size and the interlocking puzzle teeth are die-cut. Cut accuracy is what decides whether the seams close cleanly on site.
Quality control
Incoming material checks, in-process inspection and final sampling before every shipment.
Packing and shipping
Shrink-wrapped inner packing with a carton outer, loaded close to Shanghai and Qingdao seaports.
How It Compares With Our Other Lines
| Product | Key specification | Best suited to |
|---|---|---|
| Pool Grid EVA Foam Mat | Open grid, drains water, 70-75 kg/m3 | Pool surrounds, showers and saunas |
| Cross Pattern EVA Foam Mat | Solid closed surface, cross emboss | Dry training rooms |
| Plush EVA Foam Mat | Velvety surface, solid tile | Dry residential and hotel interiors |
Laying and Maintaining the Floor
Lay the tiles directly on the existing hard floor - no adhesive is required.
Keep a clear run to the nearest drain so the water that passes through has somewhere to go.
Lift and hose the tiles on the facility's normal cleaning cycle.
Let the tiles drain before relaying them.
Replace individual tiles rather than the whole run when one is damaged.
Sectors This Mat Is Specified For
Guides Related to This Product
Pool Grid EVA Mats Guide
Poolside is the hardest test a floor mat can face: constant water, bare feet, chlorine, sunlight and soap. Smooth mats become ice rinks; absorbent mats grow mold....
Read the guide →Where EVA Foam Mats Are Used
2023-03-09 · Newin Best Fitness and exercise: EVA foam mats are often used in gyms, yoga studios, and home workout spaces as a comfortable and supportive surface...
Read the guide →Related Products
Wood Grain EVA Foam Mat
Printed Wood-Grain Foam Tiles for Interiors Showrooms and Event Floors
View specifications →
Plush EVA Foam Mat
Suede-Surface Foam Tiles for Bedrooms Hotels and Premium Retail Floors
View specifications →
Puzzle Baby Play EVA Foam Mat
Printed Puzzle Play Mats for Nurseries Daycare Centres and Family Homes
View specifications →Pool Grid EVA Foam Mat - Buyer Questions
Will the mat stay in place when wet?
The tiles interlock on all four sides, which holds the run together, and the open grid keeps water from building up under the foot.
Does the foam absorb water?
No. The EVA is closed-cell and resistant to water, mould and mildew, which is why the tile can be hosed down and reused.
Can it be used outdoors on a deck?
Yes. Outdoor deck and patio areas are one of the listed applications.
What sizes are available?
30x30 cm, 50x50 cm and 60x60 cm are standard, and sizes are customizable.
Can you supply in our own packaging?
Yes. OEM and ODM branding and packaging is part of our standard service.
Get a Quote on the Pool Grid EVA Foam Mat
Send the size, thickness, colour, packaging and quantity. We reply within 24 hours, Monday to Saturday, and samples go by express with the courier charge refunded on your first bulk order.
