Transparent Glass LED Screen
A rear-serviceable transparent glass LED screen with high transparency ratio, built for retail storefronts, museum exhibits, and architectural facades where visibility through the screen is required. The cabinet uses an aluminium and acrylic composite structure to maintain structural integrity while allowing light to pass through.
Transparent Glass LED Screen
A rear-serviceable transparent glass LED screen with high transparency ratio, built for retail storefronts, museum exhibits, and architectural facades where visibility through the screen is required. The cabinet uses an aluminium and acrylic composite structure to maintain structural integrity while allowing light to pass through. Pixel pitches available are 2.5mm, 3.91mm, 7.8mm and 10.4mm. Cabinet size is customisable to fit the installation opening.
- High transparency ratio allows the glass behind the screen to remain visible, preserving the storefront or architectural view
- Rear service access enables module replacement without removing the screen from the mounting surface
- Custom cabinet sizes fit any opening without requiring additional framing or structural modification
- Pixel pitch options from 2.5mm to 10.4mm allow precise matching to viewing distance and content resolution
- Aluminium and acrylic cabinet structure provides rigidity while minimizing visual obstruction
- No front-facing support structure needed, so the screen appears as a floating display
Where This Screen Is Used
- Retail store windows where the screen displays content but the product display behind remains visible
- Museum exhibit walls that show digital content while allowing visitors to see the original artifacts
- Architectural facades in shopping malls or office towers that require a media layer without blocking the view
- Exhibition booths where the screen must show branding while maintaining a transparent background
- Corporate lobbies or reception areas that use the screen for digital signage without hiding the interior space
Who It Is For
- Retail chain operators installing digital signage in glass storefronts with no room for a separate display
- Exhibition contractors building interactive displays that must preserve the view of the exhibit behind
- Museum curators integrating digital content into display cases without blocking the artifacts
- Architects and developers specifying media walls in glass buildings where transparency is required
- Corporate AV integrators fitting digital signage in lobbies with full glass walls
Problems It Solves
- Traditional opaque screens block the view through glass storefronts, reducing foot traffic and visibility
- Front-service screens require space in front of the display, which is not available in tight retail spaces
- Fixed cabinet sizes force awkward gaps or overhangs when installed in non-standard openings
- Low transparency screens make the display appear dark or heavy, reducing the sense of openness
- Rental screens are not designed for permanent glass mounting and lack the structural stability for long-term use
Technical Features

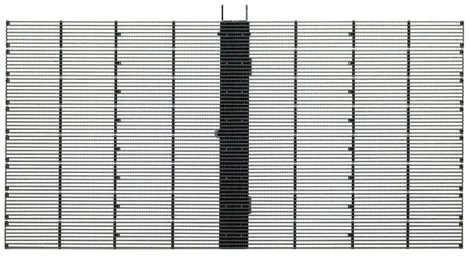

- Aluminium and acrylic composite cabinet structure for strength and high transparency

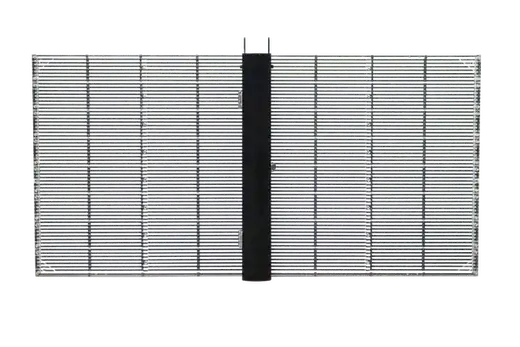

- Rear service access with quick-release module locks for easy maintenance
- Pixel pitch options of 2.5mm, 3.91mm, 7.8mm and 10.4mm to match viewing distance

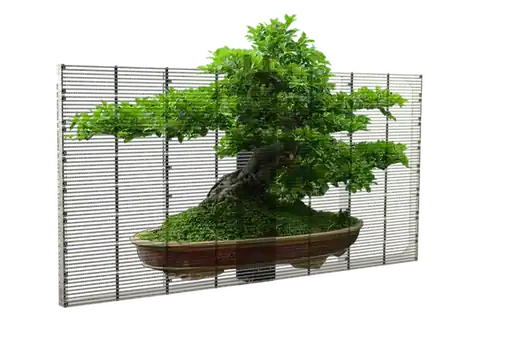

- High transparency ratio achieved through minimal front-facing frame and open mesh design
- Custom cabinet size design to fit any opening without structural modification
- LED modules mounted with minimal obstruction to light transmission through the glass
Transparent Glass LED Screen Technical Data
| Service Type | Rear service |
|---|---|
| Pixel Pitch | 2.5mm, 3.91mm, 7.8mm, 10.4mm |
| Transparency Ratio | High, based on aluminium and acrylic cabinet design |
| Cabinet Material | Aluminium and acrylic composite |
| Cabinet Size | Customisable to fit installation opening |
| Installation | Fixed, permanent mounting |
| Mounting Method | Surface mount with custom frame integration |
| Module Access | Rear service with quick-release locks |
| LED Type | SMD three-in-one, UV-proof encapsulation |
| Design Life | Up to ten years |
Pixel pitch, resolution and refresh rate are confirmed against your viewing distance and wall size when we quote. Send those two figures and we will return the exact configuration.
Materials
- Aluminium and acrylic composite cabinet structure
- SMD three-in-one LED lamps with UV-proof encapsulation
- Rear service quick-release module locks
- High-strength mounting brackets for surface installation
- UV-resistant adhesive and sealing for long-term clarity
How This Screen Is Built
- SMT placement of LED lamps and driver ICs on the module PCB
- Reflow soldering followed by automated soldering inspection
- Auto drying and module ageing test before assembly
- Cabinet assembly with acrylic and aluminium frame integration
- Module alignment and flatness check on the assembling line
- Full screen installation test and screen ageing test before packing
Quality Control
- Soldering inspection on every module after reflow
- Module ageing test to catch early-life lamp and driver failures
- Screen installation test with cabinets built up as a full wall
- Screen ageing test on the assembled wall before dismantling for shipping
- Transparency and visual uniformity check under daylight and low-light conditions
Customisation Options
- Cabinet size selected to match the exact dimensions of the installation opening
- Pixel pitch chosen based on the viewing distance and content resolution needs
- Mounting method tailored to the surface type and load capacity of the structure
- Transparency ratio optimised through frame design and module spacing
- Rear service access system configured for easy module replacement
How It Compares With the Alternatives
| Opaque fixed LED screen | The transparent screen maintains visibility through the glass, while the opaque version blocks the view entirely |
|---|---|
| Front-service transparent screen | Rear service allows the screen to be mounted flush against glass with no front clearance needed |
| Rental transparent screen | The fixed version is built for permanent mounting with higher structural stability and longer service life |
Use Guide
- Choose pixel pitch based on the closest normal viewing distance, not on cabinet count
- Confirm the mounting surface can support the cabinet weight before selecting the size
- Ensure the rear service access is clear of obstructions for module replacement
- Use the provided rear service locks to maintain alignment during maintenance
- Send the wall dimensions and viewing distance via WhatsApp to receive a recommended pitch and layout
Related Products
Perimeter LED Display Screen
A slim and lightweight perimeter LED display screen with a 960x960mm aluminium die-cast cabinet, designed for bo…
View Product →
Rental LED Screen A Series
A rental LED screen series built for touring and event applications with a slim, lightweight aluminium die-cast …
View Product →
Bright Curtain LED Screen
A bright curtain LED screen with a lightweight aluminium cabinet designed for high transparency and low weight, …
View Product →
Indoor Fixed With High Definition
An indoor fixed LED screen with front maintenance and high definition, built on a 640x480mm die-cast aluminium c…
View Product →Projects Using This Product
400sqm Transparent Glass LED Screen
Russia · Model MSR-TG-10
Read The Project →
315sqm Transparent Glass LED Screen
Beijing, China · Model MSR-TG-7
Read The Project →
180sqm Transparent Glass LED Screen
Belgium · Model MSR-TG-3
Read The Project →Questions About the Transparent Glass LED Screen
Can the screen be installed in a glass storefront?
Yes. The high transparency ratio allows the glass behind the screen to remain visible, making it ideal for retail storefronts.
Is the screen serviceable from the rear?
Yes. The cabinet is designed for rear service, so modules can be replaced without removing the screen from the wall.
What pixel pitches are available?
Available pixel pitches are 2.5mm, 3.91mm, 7.8mm and 10.4mm, selected based on viewing distance.
Can the cabinet size be customised?
Yes. Cabinet size is customisable to fit the exact dimensions of the installation opening.
Does the screen block the view through the glass?
No. The aluminium and acrylic cabinet design maximizes transparency, so the view through the glass remains clear.
Is the screen suitable for permanent installation?
Yes. The cabinet is built for fixed, permanent mounting with a design life of up to ten years.
How is the screen mounted?
It is surface-mounted using custom brackets and integrated into the structure without additional framing.
Quote the Transparent Glass LED Screen for Your Project
Send the wall dimensions and the closest viewing distance. We will confirm the pitch, the cabinet count, the resolution and the shipping weight.
