Bright Curtain LED Screen
A bright curtain LED screen with a lightweight aluminium cabinet designed for high transparency and low weight, ideal for retail facades, shopping malls, and architectural installations where the screen must not block the view. The cabinet weighs only 15kg per square metre and features a high transparent ratio with slim profile construction.
Bright Curtain LED Screen
A bright curtain LED screen with a lightweight aluminium cabinet designed for high transparency and low weight, ideal for retail facades, shopping malls, and architectural installations where the screen must not block the view. The cabinet weighs only 15kg per square metre and features a high transparent ratio with slim profile construction. IP65 protection on both front and rear faces ensures durability in outdoor environments, including coastal areas with salt exposure. Power and signal are combined into a single 2-in-1 cable to reduce installation complexity and cost.
- Weight of only 15kg per square metre, reducing structural load on buildings and mounting systems
- High transparent ratio allows the screen to blend into glass facades without blocking the view

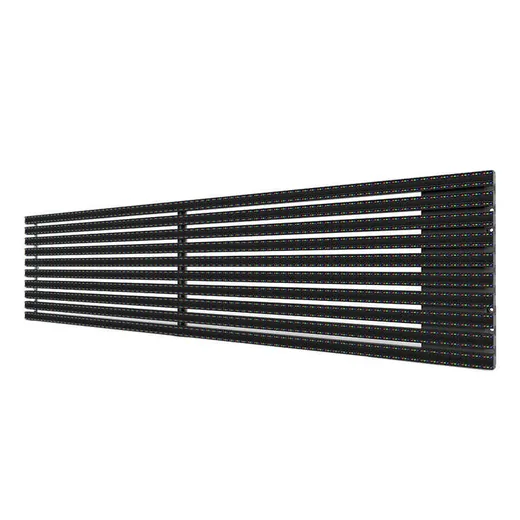

- Slim and lightweight cabinet design simplifies transport and on-site handling
- IP65 sealing on both front and rear faces protects against dust and water ingress in outdoor and coastal environments

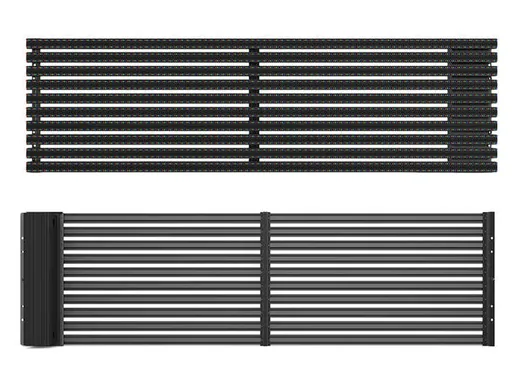

- 2-in-1 power and signal cable reduces cabling complexity and lowers installation labour cost
- High cooling performance prevents overheating in long operating hours without additional cooling
- Ultra-low power consumption reduces running cost and energy demand
- Strong adaptability to outdoor conditions including salt exposure, making it suitable for seaside locations
Where This Screen Is Used
- Retail storefronts with glass facades that need digital signage without blocking the view
- Shopping malls and exhibition halls using transparent screens for dynamic product displays
- Architectural installations on building exteriors where weight and visibility are critical
- Outdoor advertising on glass walls in coastal cities exposed to salt and humidity
- Temporary events and exhibitions where quick setup and low weight are required
Who It Is For
- Retail chain operators installing digital signage on glass storefronts
- Architectural firms specifying transparent screens for modern building designs
- AV integrators working on projects with weight-sensitive or view-blocking constraints
- Event and exhibition contractors needing fast setup and low transport cost
- DOOH media owners deploying screens in high-traffic urban or seaside locations
Problems It Solves
- Traditional opaque screens block the view through glass facades, reducing natural light and visibility
- Heavy LED cabinets strain building structures and increase installation complexity
- Poor heat dissipation leads to early failure in long-running outdoor installations
- Multiple cables for power and signal increase labour time and risk of connection errors
- Low IP rating on rear faces allows dust and moisture to enter, causing long-term reliability issues
- Screens with low transparency reduce the architectural integrity of glass buildings
Technical Features
- Aluminium cabinet with multiple standard sizes and custom size options available
- Weight of 15kg per square metre, achieved through slim profile and lightweight materials
- High transparent ratio design with minimal frame obstruction
- IP65 protection on both front and rear faces using traditional DIP solution
- 2-in-1 power and signal cable reduces cabling and installation time
- High cooling performance through natural convection and heat-dissipating cabinet design
- Ultra-low power consumption across all operating modes
- Strong resistance to salt and outdoor environmental stress for coastal applications
Bright Curtain LED Screen Technical Data
| Weight per Square Metre | 15kg/sqm |
|---|---|
| Transparent Ratio | High |
| Cabinet Material | Aluminium |
| Ingress Protection | IP65 front and rear |
| Cable Type | 2-in-1 power and signal |
| Cooling Performance | High |
| Power Consumption | Ultra-low |
| Environmental Adaptability | Outdoor, anti-salt |
| Installation Type | Fixed or temporary |
| Lamp Type | Traditional DIP |
Pixel pitch, resolution and refresh rate are confirmed against your viewing distance and wall size when we quote. Send those two figures and we will return the exact configuration.
Materials
- Aluminium cabinet frame

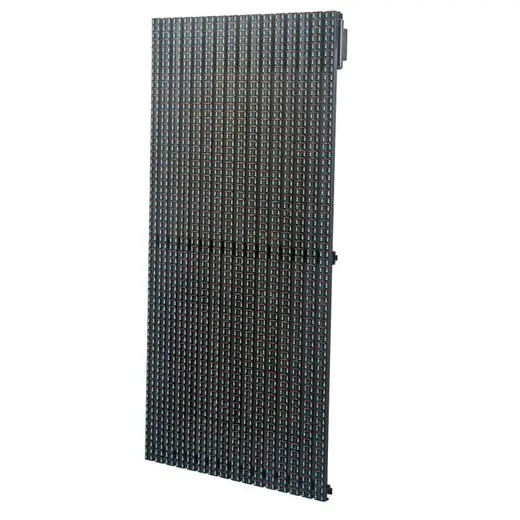

- Traditional DIP LED lamps with IP65 sealing
- 2-in-1 power and signal cable with durable connectors
- Heat-dissipating aluminium structure
- UV-resistant and salt-resistant surface coating
How This Screen Is Built
- SMT placement of DIP LED lamps and driver ICs on the module PCB
- Reflow soldering followed by automated soldering inspection
- Auto drying and module ageing test before assembly
- Cabinet assembly with alignment of modules and frame
- Full screen installation test with 2-in-1 cable connection
- Screen ageing test on the assembled wall before packing
Quality Control
- Soldering inspection on every module after reflow
- Module ageing test to detect early lamp and driver failures
- Screen installation test with full cabinet build-up and 2-in-1 cable run
- Screen ageing test on the assembled wall before shipment
- Final inspection of cabinet weight and transparency ratio
Customisation Options
- Cabinet size selected from standard options or custom dimensions to fit the opening
- Pixel pitch and resolution specified based on viewing distance
- Mounting method tailored to the structure, including wall, ceiling, or suspended rigging
- Cable length and connector type adjusted for site-specific needs
- Transparent ratio and frame size adjusted to match architectural design
How It Compares With the Alternatives
| Traditional opaque outdoor fixed screen | The bright curtain screen offers high transparency but has lower structural rigidity and is not suited for high-wind or high-impact areas |
|---|---|
| Rental LED screen with full rear access | The bright curtain is lighter and easier to install but lacks rear service access and is not designed for repeated rigging |
| Transparent glass LED screen | The bright curtain has lower weight and cost but may have lower resolution and higher frame visibility compared to glass-based transparent screens |
Use Guide
- Choose pixel pitch based on the viewing distance, not the cabinet count
- Confirm the mounting structure can support the screen weight, especially for large installations
- Keep the 2-in-1 cable run clear of sharp edges and compression points during installation
- Use the provided aviation-grade connectors and avoid splicing unless necessary
- Request a screen ageing test and review the assembled wall in the showroom before shipment
Related Products
Perimeter LED Display Screen
A slim and lightweight perimeter LED display screen with a 960x960mm aluminium die-cast cabinet, designed for bo…
View Product →
Rental LED Screen A Series
A rental LED screen series built for touring and event applications with a slim, lightweight aluminium die-cast …
View Product →
Indoor Fixed With High Definition
An indoor fixed LED screen with front maintenance and high definition, built on a 640x480mm die-cast aluminium c…
View Product →
Outdoor Fixed With Front Service
A front and rear serviceable outdoor LED screen built on a die-cast aluminium module chassis, designed for perma…
View Product →Guides Related to This Product
Transparent Glass LED Screen Versus Bright Curtain LED Screen
For storefronts, retail facades, and architectural glazing, a screen must let light through without blocking the view. T…
Read The Guide →
Cabinet Weight and Shipping Planning for LED Screen Orders
Cabinet weight per square metre directly affects shipping costs, crane or lift requirements, and on-site handling labour…
Read The Guide →Questions About the Bright Curtain LED Screen
How much does the screen weigh per square metre?
The screen weighs only 15kg per square metre, making it ideal for weight-sensitive installations.
Is the screen suitable for outdoor use?
Yes. The cabinet has IP65 protection on both front and rear faces and is designed for outdoor environments, including coastal areas with salt exposure.
Can the screen be used on a glass facade?
Yes. The high transparent ratio allows the screen to be installed on glass walls without blocking the view or natural light.
What type of cable does it use?
It uses a 2-in-1 power and signal cable, which reduces the number of cables and lowers installation cost.
Is the screen easy to install?
Yes. The lightweight design and 2-in-1 cable simplify handling and reduce installation time compared to traditional setups.
Can I customise the cabinet size?
Yes. Cabinet size can be selected from standard options or customised to fit your specific opening dimensions.
Does it require rear access for maintenance?
No. The screen is designed for front service, and modules can be accessed from the front without needing space behind the wall.
Quote the Bright Curtain LED Screen for Your Project
Send the wall dimensions and the closest viewing distance. We will confirm the pitch, the cabinet count, the resolution and the shipping weight.
