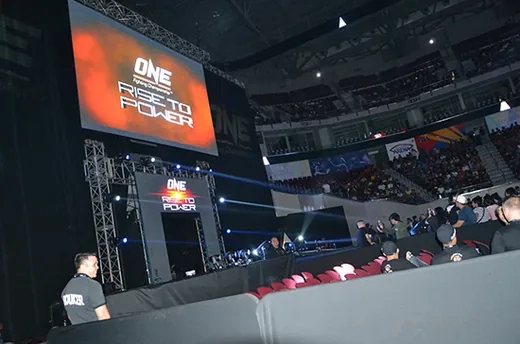

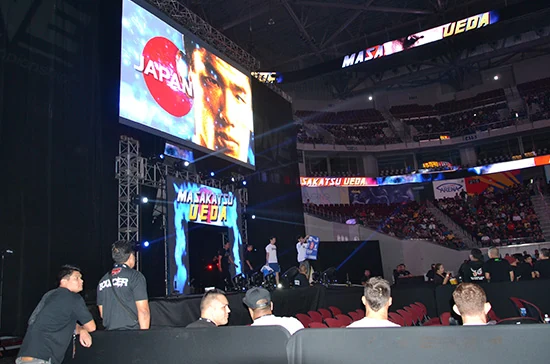

168sqm Indoor Rental LED Screen in Manila Philippines

168sqm · Model MSR-XI-2.97 · Manila, Philippines · Delivered September 2017

Product Model	MSR-XI-2.97
Screen Size	168sqm
Location	Manila, Philippines
Delivered	September 2017
Product Supplied	Rental LED Screen U Series
Sector	Rental and Staging Companies

Who It Was For

Client Background

The buyer is not named in our project records. What is documented is the screen itself: a 168sqm indoor rental LED wall supplied on MSR-XI-2.97 cabinets for an event in Manila, Philippines, in September 2017. A wall of that size on rental cabinets is bought by a rental and staging operation rather than by a venue.

Challenge

The Project Challenge

Build and install a 168sqm indoor LED wall for a touring event in a space with limited access and time constraints, where the cabinets must be rigged quickly and disassembled just as fast for transport to the next location.

Pain Points

Customer Pain Points

168sqm is a large wall to assemble and rig in a tight indoor venue with limited ceiling height and access points
Cabinets that require tools or shimming will delay setup and increase crew time during load-in
A touring screen must be lightweight enough to handle multiple rigging cycles without structural fatigue
The same cabinets must support both truss hanging and ground support configurations for different event layouts

Solution

Our Solution

The wall was supplied on MSR-XI-2.97 indoor rental cabinets: ultra-thin aluminium die-cast cabinets at 26kg per square metre in 500x500mm and 500x1000mm formats, with a fast lock system for high precision alignment, angle adjustment for curved builds, and a hanging structure designed for truss rigging and ground support. The cabinets feature front and rear access for module replacement and a handle design for easy handling.

How It Was Built

Manufacturing Process

SMT placement and reflow soldering of the LED modules
Soldering inspection and module ageing test before assembly
Cabinet assembly with flatness alignment on the assembling line
Screen installation test with the cabinets built up as a wall
Screen ageing test before the wall was dismantled and packed

Supply Chain

Supply Chain Coordination

Cabinets were packed together with spare modules, receiving cards, and power supplies so the crew had field spares from the first event rather than waiting on a second shipment.

Testing

Quality Control

Modules passed soldering inspection and an ageing test, and the cabinets were built up as a wall in the factory for a screen installation test and a screen ageing test, which is what matches brightness and colour across cabinets before they ship.

Result

Final Result

Documented delivery: 168sqm of MSR-XI-2.97 indoor rental LED screen, supplied for Manila, Philippines, in September 2017.

Benefit

Customer Benefit

Tool-free fast lock rigging and a lightweight cabinet design reduce setup and strike time, while factory-matched cabinets ensure consistent brightness and colour across the wall, even when modules are swapped between events.
