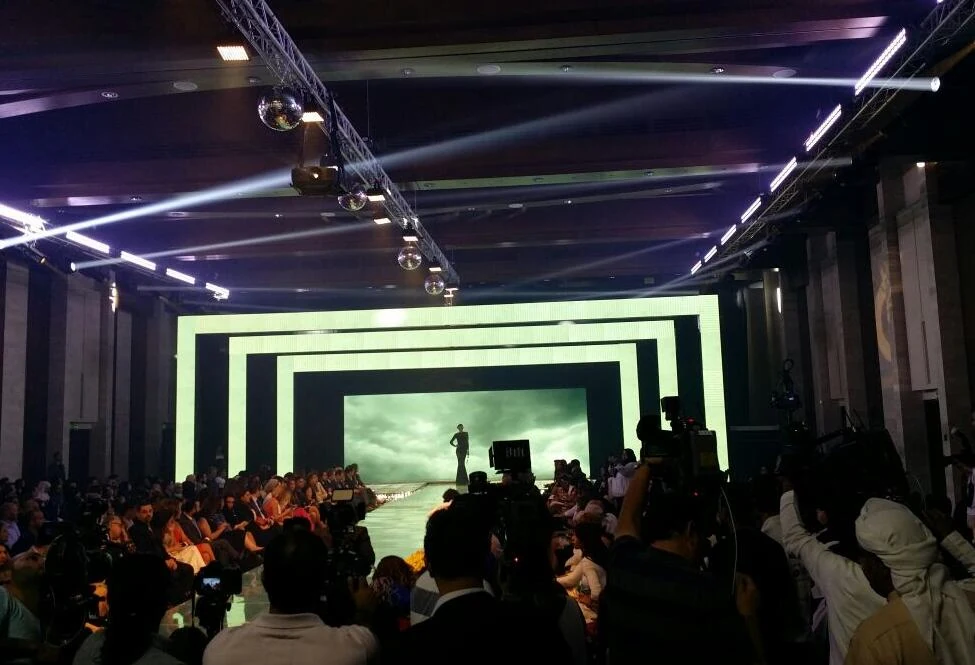

150sqm Indoor Rental LED Screen in Dubai

150sqm · Model MSR-XI-3 · Dubai, United Arab Emirates · Delivered 2014

Product Model	MSR-XI-3
Screen Size	150sqm
Location	Dubai, United Arab Emirates
Delivered	2014
Product Supplied	Rental LED Screen K Series
Sector	Rental and Staging Companies

Who It Was For

Client Background

The buyer is not named in our project records. What is documented is the screen itself: a 150sqm indoor rental wall supplied on MSR-XI-3 cabinets for an event in Dubai, United Arab Emirates, in 2014. A wall of that size on rental cabinets is bought by a rental and staging operation rather than by a venue.

Challenge

The Project Challenge

Build and strike a 150sqm indoor LED wall in a tight event timeline, where cabinets must be installed and removed quickly without tools, and the wall must maintain a seamless visual appearance across all panels.

Pain Points

Customer Pain Points

150sqm is a large indoor wall to install and strike within a single event window
Cabinets that require tools or shimming will delay setup and increase crew time
A rental wall must survive repeated rigging and disassembly without frame distortion
The wall must maintain visual consistency across all panels despite being reassembled at different venues

Solution

Our Solution

The wall was supplied on indoor rental cabinets from the K Series: die-cast aluminium at 28kg per square metre in 500x500mm and 500x1000mm formats, with a hanging structure for truss rigging and ground support, fast lock with high precision positioning, angle adjustment for curved builds, and front and rear access so a module can be replaced from either side.

How It Was Built

Manufacturing Process

SMT placement and reflow soldering of the LED modules
Soldering inspection and module ageing test before assembly
Cabinet assembly and flatness alignment on the assembling line
Screen installation test with the cabinets built up as a wall
Screen ageing test before the wall was dismantled and packed

Supply Chain

Supply Chain Coordination

Cabinets were packed together with spare modules, receiving cards and power supplies so the crew had field spares from the first event rather than waiting on a second shipment.

Testing

Quality Control

Modules passed soldering inspection and an ageing test, and the cabinets were built up as a wall in the factory for a screen installation test and a screen ageing test, which is what matches brightness and colour across cabinets before they ship.

Result

Final Result

Documented delivery: 150sqm of MSR-XI-3 indoor rental LED screen, supplied for Dubai, United Arab Emirates, in 2014.

Benefit

Customer Benefit

Tool-free fast lock rigging enables rapid installation and strike of a large wall, and factory-matched cabinets ensure consistent brightness and colour across all panels when modules are swapped between events.
