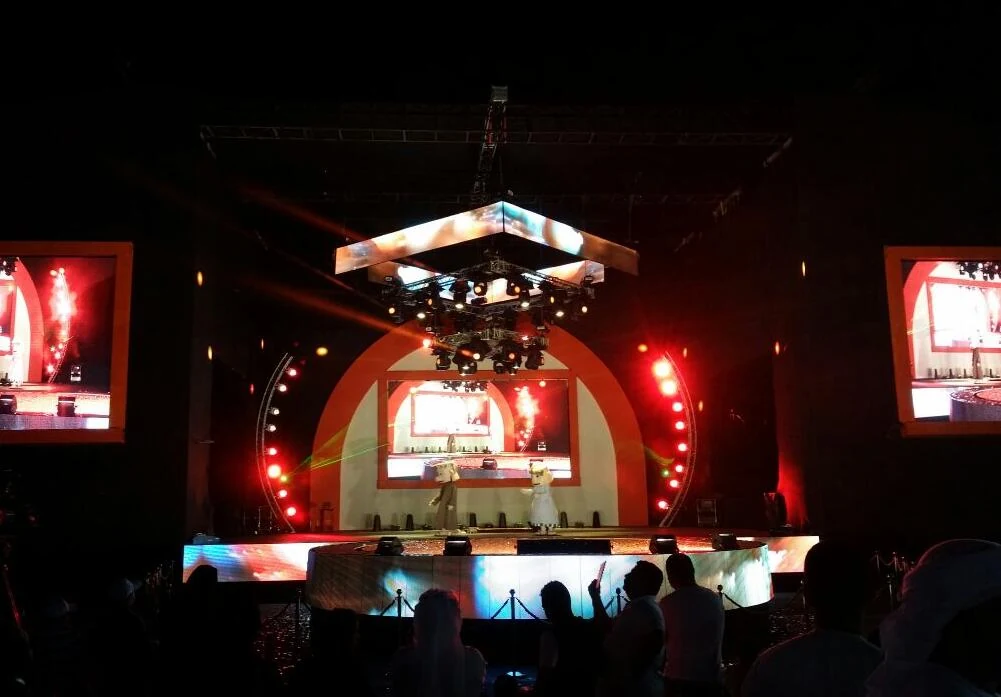

120sqm Indoor Rental LED Screen in Dubai

120sqm · Model MSR-XI-3 · Dubai, United Arab Emirates · Delivered 2015

Product Model	MSR-XI-3
Screen Size	120sqm
Location	Dubai, United Arab Emirates
Delivered	2015
Product Supplied	Rental LED Screen K Series
Sector	Rental and Staging Companies

Who It Was For

Client Background

The buyer is not named in our project records. What is documented is the screen itself: a 120sqm indoor rental wall supplied on MSR-XI-3 cabinets for an event in Dubai, United Arab Emirates, in 2015. A wall of that size on rental cabinets is bought by a rental and staging operation rather than by a venue.

Challenge

The Project Challenge

Build and strike a 120sqm indoor rental screen in a tight timeline at a venue with limited access, where the cabinets must be assembled quickly, transported between events, and remain structurally stable during repeated rigging and disassembly.

Pain Points

Customer Pain Points

120sqm is a large wall to assemble and strike within a tight event schedule
Cabinets that require tools or shimming will delay installation and increase crew effort
A rental cabinet must maintain its shape and alignment after multiple rigging cycles
The screen must be lightweight enough to be handled by a small crew yet stable enough to support its own weight when hung
The venue may have limited rear access, requiring front maintenance capability

Solution

Our Solution

The wall was supplied on indoor rental cabinets from the K Series: die-cast aluminium at 28kg per square metre in 500x500mm and 500x1000mm formats, with a hanging structure for truss rigging and ground support, fast lock with high precision positioning, angle adjustment for curved builds, and front and rear access so a module can be replaced from either side.

How It Was Built

Manufacturing Process

SMT placement and reflow soldering of the LED modules
Soldering inspection and module ageing test before assembly
Cabinet assembly and flatness alignment on the assembling line
Screen installation test with the cabinets built up as a wall
Screen ageing test before the wall was dismantled and packed

Supply Chain

Supply Chain Coordination

Cabinets were packed together with spare modules, receiving cards and power supplies so the crew had field spares from the first event rather than waiting on a second shipment.

Testing

Quality Control

Modules passed soldering inspection and an ageing test, and the cabinets were built up as a wall in the factory for a screen installation test and a screen ageing test, which is what matches brightness and colour across cabinets before they ship.

Result

Final Result

Documented delivery: 120sqm of MSR-XI-3 indoor rental LED screen, supplied for Dubai, United Arab Emirates, in 2015.

Benefit

Customer Benefit

Tool-free fast lock rigging reduces installation time, and factory-matched cabinets ensure consistent brightness and colour across the wall, even when modules are swapped between events.
