Chip Size Sheet Size and Why Orders Come Up Short
Mosaic is specified by the chip and bought by the sheet. Mixing the two up is the most common reason a pallet arrives and the job is still short.
The three dimensions that matter
Chip size is the individual piece — 25 x 25 mm, 1" x 2", 38.6 x 74 mm and so on. It decides how the surface reads and how tightly the tile follows a curve.
Sheet size is what you actually order — for example a 283 x 308 mm mesh sheet, or a 12" x 12" sheet of 6" x 6" tile. Take-offs must be done in sheets.
Thickness matters at junctions. An 8 mm pool tile and a 20 mm outdoor paver cannot meet flush without a detail, and that detail is cheaper to design than to improvise on site.
Converting a schedule into sheets
Work out the net area or the linear run, convert to sheets using the published sheet size, then add for cuts. Straight rectangular runs waste little; radii, steps and beach entries waste a lot.
Some catalogue items publish coverage directly — several porcelain pool items state a box yield such as 44 pieces to one square metre — which makes the conversion simpler. Where the original specification did not state it, ask rather than assume.
Why mixed formats in one series help
Several series are published in more than one format — Semporna in 1" x 2" and 2" x 3", Carrara ceramic in 75 x 300, 100 x 200 and 100 x 300 mm. Using two formats of the same series lets you change the scale of the pattern at a feature without introducing a second colour reference.
Before you place the order
Confirm the sheet size on the product page, confirm the format matches what the installer has priced, and order the waste allowance in the same batch rather than as a top-up later.
Everything in this guide reflects what LSDECO publishes for the series concerned. Where a figure is not published — a slip rating, a thickness, a test report — we say so and ask the factory rather than estimating it.
Collections This Guide Applies To
Other Guides
- Glass or Porcelain for a Swimming Pool
- Choosing a Waterline Tile You Will Still Like in Five Years
- Where 20 mm Porcelain Pavers Earn Their Cost
- Kit Kat Tile Is a Format Not a Trend
- What To Check Before Your First Order From Foshan
- Mounting Types and What They Mean on Site
- Keeping a Tiled Pool and Bathroom Looking New
Items Referenced in This Guide
Hot Melting Glass Dot-Mounting Series
The Hot Melting Glass Dot-Mounting Mosaic Series featuring rich colors and textured finishes…

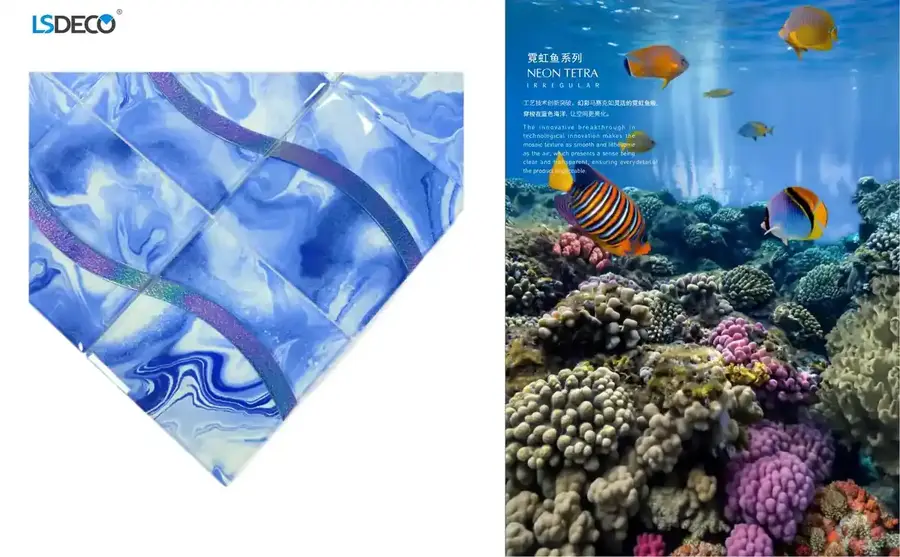

Neon Tetra Series Glass Pool Mosaic Tile
A smooth, clear glass mosaic with a light, transparent quality across the blend, developed f…
Goelia Glass Mosaic Tile
This elegant surface glass tile brings subtle textures and impressive classicism. Goelia is …
100×300MM Abnormity Series
Irregular shapes are the point of this series: unusual outlines with distinctive colour and …
200×200MM Flower Tile Series
Flower Tile Series with embossed patterns, glossy and matte finishes, and vibrant colors.
Straight Series
Straight Series with Textured ceramic tiles blend modern design with soft colors.
Questions on This Topic
Why does the product page sometimes show two sizes?
Because the series is produced in more than one format, or because the chip and the sheet are both published. Chip size describes the piece; sheet size is the ordering unit.
What if the thickness is not listed?
We publish thickness only where the original product specification stated it, and mark the rest to be confirmed. Ask us and we will check with the factory for that series rather than estimate.
How much waste should I allow?
It depends entirely on geometry and layout. Send the drawing or the take-off and we will look at it with you before the order is placed.
Still Deciding Ask Us Directly
Send the drawing, the area or the series you are weighing up. We would rather answer a question before the order than solve a problem after it.
