Cutting vinyl plotter

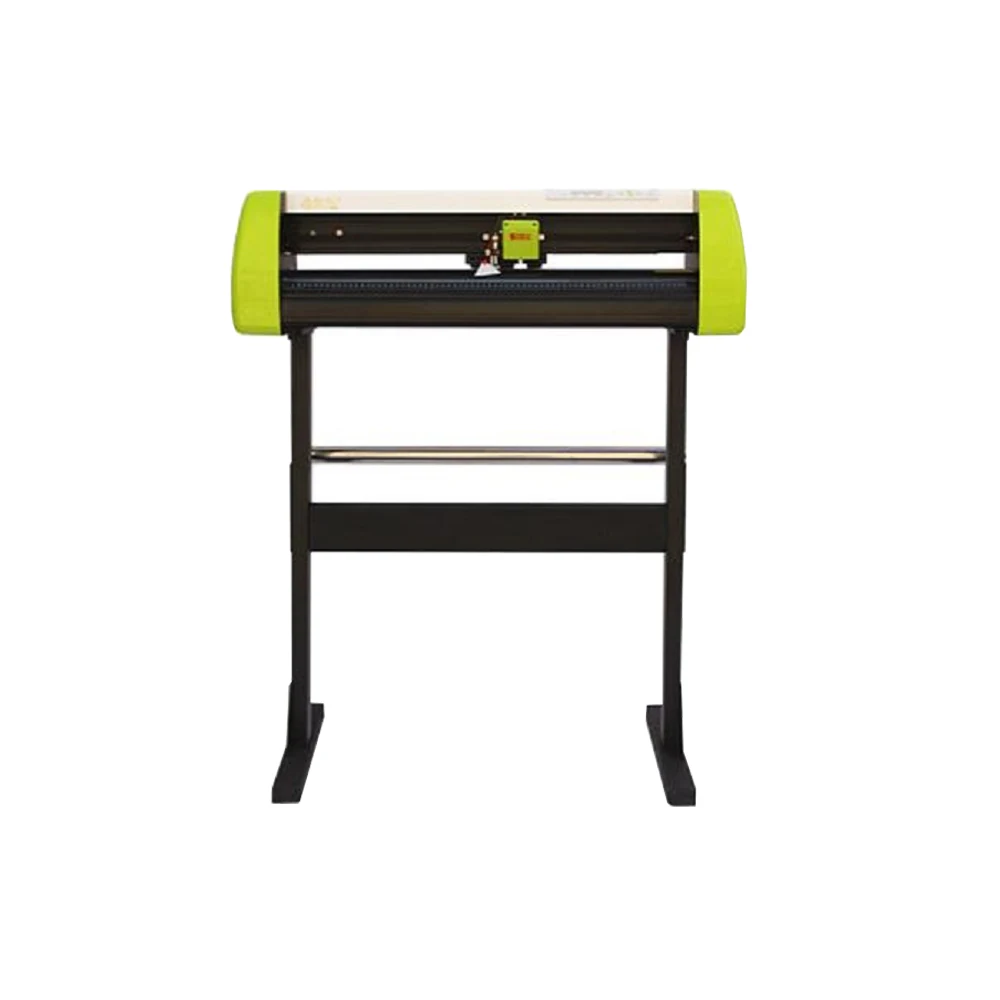

The WH880 is a vinyl cutting plotter with a 850 mm maximum feed width and a 700 mm maximum cutting width. It runs at speeds up to 780 mm/s with a cutter pressure of 500g, designed for organic materials up to 0.5 mm thick.
Product Overview
What This Machine Is Built To Do
The WH880 is a vinyl cutting plotter with a 850 mm maximum feed width and a 700 mm maximum cutting width. It runs at speeds up to 780 mm/s with a cutter pressure of 500g, designed for organic materials up to 0.5 mm thick. The machine features a large casting aluminum roller for pressure balance and a linear bearing carriage for high precision. It supports HP-GL and DMPL languages and connects via dual USB interfaces or a 9-pin port. The system is compatible with Windows XP, 7, and 10, making it suitable for workshops needing reliable contour cutting for stickers, banners, and light boxes without complex setup.
- Cuts organic materials up to 0.5 mm thick with 500g pressure for clean edges
- Linear bearing carriage ensures high cutting precision and perfectly closed character lines
- Large casting aluminum roller provides good pressure balance to prevent deviation on long sheets
- Dual USB interfaces and 9-pin port support flexible connection to desktops or laptops
- HP-GL and DMPL language compatibility allows integration with existing design software
- Reverse paper function simplifies handling and alignment of long vinyl rolls
Where It Is Used
Application Scenarios
- Advertising workshops producing vehicle stickers and mobile beauty decals
- Signage makers cutting light box films and banner materials
- Garment and textile producers preparing woven bag printing stencils
- Retailers creating timely stickers and promotional display graphics
- Industrial users cutting engraved dust cloth and reflective film materials
Buyer Fit
Who It Is For
- Small to medium advertising agencies needing precise contour cutting
- Sign makers who work with vinyl, paper, and thin organic materials
- Producers of custom stickers who require consistent line closure
- Workshops upgrading from manual cutting to automated plotter systems
Process Problems
Problems It Solves
- Manual cutting leads to uneven edges and wasted material on small batches
- Cheaper plotters often deviate when processing long rolls of vinyl
- Poor pressure balance causes the carriage to skip or drag on thick media
- Complex software setups delay production when switching between computers
- Inaccurate line closure results in broken characters and failed decals
Engineering
Technical Features
- Large LCD display for clear parameter adjustment and status monitoring
- Big casting aluminum roller with high precision and reverse paper function
- Imported high-grade carriage with linear bearing for stable movement
- Double spring big press paper seat for steady feeding without slippage
- Supports Windows XP, Win7, and Win10 operating systems
- 4M buffer memory for storing cut files locally
Specifications
Published Figures For Cutting vinyl plotter
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH880 |
|---|---|
| Max Paper Width | 850 mm |
| Max Cutting Width | 700 mm |
| Cutting Speed | 0-780 mm/s |
| Cutter Pressure | 500g |
| Language Supported | HP-GL / DMPL compatible |
| Voltage | AC110v / 220v, 50Hz/60hz |
| Buffer | 4M |
| Display | Chinese |
| Operation System | Windows XP, Win7, Win10 |
| Computer Compatibility | Desktop, laptop both ok |
| Package | Carton box |
| Warranty | 1 year |
Materials
Materials It Handles
- Organic materials up to 0.5 mm thickness
- Soft double layer materials
- Vinyl for stickers and decals
- Reflective film for signage
- Paper for CAD sketches and banners
Working Process
From File To Finished Part
Load the vinyl roll or sheet into the feed mechanism
Adjust the roller pressure using the double spring seat
Connect the plotter to the computer via USB or 9-pin interface
Send the cut file from design software using HP-GL or DMPL
Set cutting speed and pressure on the LCD display
The carriage cuts the material along the defined path
Quality Control
Quality Control Before Shipment
- Carriage movement is checked for linearity before shipping
- Roller pressure balance is tested to ensure no deviation
- Cutting precision is verified with test patterns
- Electronic components are tested for stable voltage operation
Options
Customisation Options
- Available in multiple widths: WH800, WH880, WH980, WH1180, WH1380, WH1660
- Feed width options range from 720mm to 1600mm
- Cutting width options range from 600mm to 1500mm
- Voltage configuration for 110v or 220v markets
Comparison
How It Compares With The Alternatives
| Laser cutting machines | Vinyl plotters cut without heat or smoke, suitable for heat-sensitive films, but cannot cut metal |
|---|---|
| Manual cutting tables | The plotter automates contour cutting for speed and consistency, but requires digital files |
| Industrial flatbed cutters | This roller plotter is more compact and affordable for thin materials, but cannot handle rigid sheets |
Operating Notes
Use Guide
- Ensure material thickness does not exceed 0.5 mm to prevent carriage damage
- Keep the linear bearing carriage clean for smooth movement
- Use the reverse paper function to align long rolls accurately
- Check USB connections if the computer does not recognize the device
- Adjust pressure settings based on material density for clean cuts
Buyer Questions
Cutting vinyl plotter FAQ
What is the maximum material thickness?
The machine is designed for organic materials preferably soft double layer, not exceeding 0.5 mm in thickness.
What is the cutting width?
The WH880 model has a maximum paper width of 850 mm and a maximum cutting width of 700 mm.
Which operating systems are supported?
The plotter is compatible with Windows XP, Windows 7, and Windows 10 on both desktop and laptop computers.
What languages does the machine support?
It supports HP-GL and DMPL compatible languages for standard design software integration.
How is the machine connected to a computer?
It features double USB interfaces and a 9-pin interface for flexible connectivity options.
What is the warranty period?
The vinyl cutting plotter comes with a 1-year warranty.
