Vinyl cutter WH720
The WH720 is a vinyl cutting plotter with a 720 mm maximum paper width and a 630 mm maximum cutting width. It cuts organic materials up to 0.5 mm thick using a 0 to 500 g pressure range and 0.0254 mm precision.
Product Overview
What This Machine Is Built To Do
The WH720 is a vinyl cutting plotter with a 720 mm maximum paper width and a 630 mm maximum cutting width. It cuts organic materials up to 0.5 mm thick using a 0 to 500 g pressure range and 0.0254 mm precision. The machine runs on a high-performance stepping motor with a dual CPU control system and a 4 M buffer. It supports HP-GL/DMPL languages and connects via USB or serial port. The aluminum casing is compact and durable, designed for workshops producing stickers, banners, and reflective film. It includes software on CD, three blades, and a pen holder.
- Cuts organic materials up to 0.5 mm thick with 0.0254 mm precision for clean small lines
- Dual CPU control and imported motherboard program keep machine performance stable during long runs
- 4 M buffer allows fast data copy and pull off signal line to continue lettering without stopping

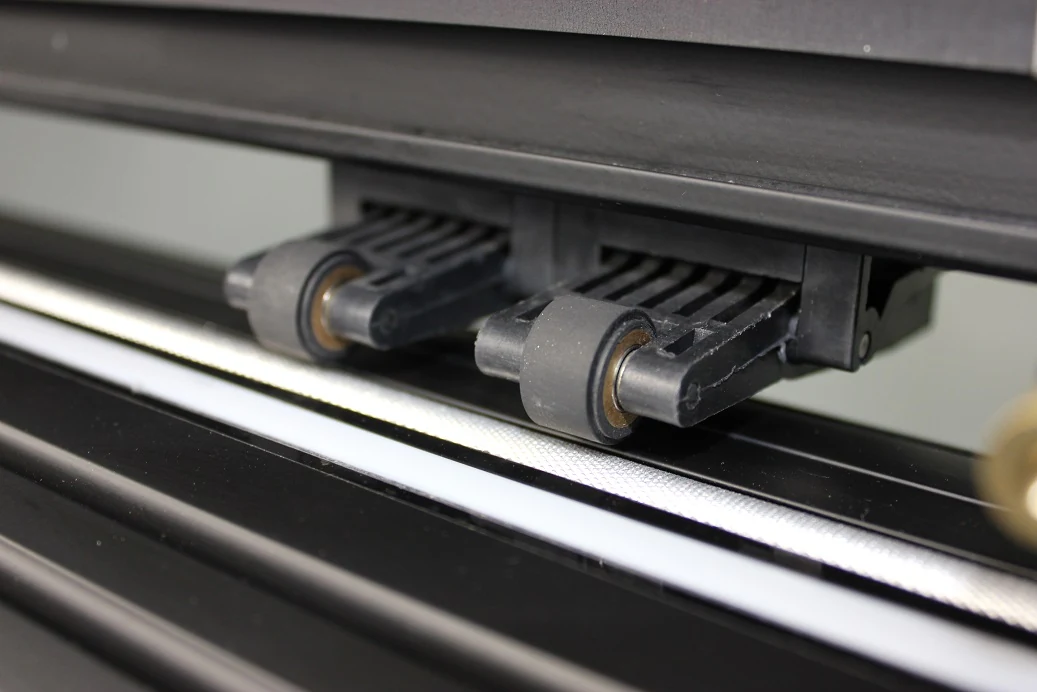

- Adjustable paper holder with precision steel knurling shaft prevents skew during long-distance feeding
- Large LCD backlight English display and button panel make parameter adjustment easy and clear
- Emergency stop function and origin positioning provide safety and control during operation
Where It Is Used
Application Scenarios
- Advertising workshops cutting vinyl stickers and banners for retail displays
- Car wrapping shops producing timely stickers and mobile beauty decals
- Sign makers engraving reflective film and light box materials
- Textile printers cutting transfer paper for garment decoration
- Glass etching studios preparing sandblasting masks from vinyl
Buyer Fit
Who It Is For
- Small to medium advertising production shops needing compact vinyl cutters
- Sign workshops that require precise cutting for small text and logos
- Sticker producers handling organic materials up to 0.5 mm thick
- Makers who need a machine with English interface and clear display
Process Problems
Problems It Solves
- Skewed paper feeding during long cuts is prevented by the precision steel knurling shaft
- Slow data processing is reduced by the 4 M buffer and dual CPU control system
- Inaccurate small lines are closed perfectly using the high-advanced linear bearing tool holder
- Complex parameter adjustment is simplified by the large button panel and LCD display
- Machine instability during operation is addressed by the imported motherboard and original IC chip
Engineering
Technical Features
- Aluminum casing with streamlined design for compact and durable housing

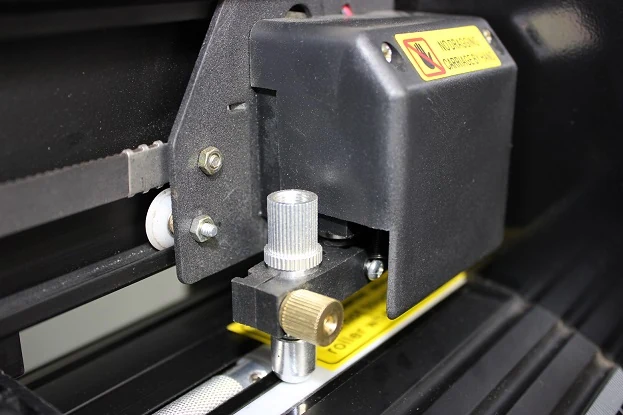

- Imported high-advanced car linear bearing tool holder for high carving accuracy
- Large LCD backlight English display with clear and bright interface
- High-performance genuine stepping motor with emergency stop and origin positioning
- Fast data copy function allowing signal line removal to continue lettering
- Imported motherboard program with dual CPU control and built-in switching power supply
- Double spring adjustable paper holder with precision steel fine knurling shaft
- Reverse paper feeding function for correcting material position
Specifications
Published Figures For Vinyl cutter WH720
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH720 |
|---|---|
| Max Paper Width | 720 mm |
| Max Cutting Width | 630 mm |
| Cutting Speed | 0-780 mm/s |
| Cutter Pressure | 0-500 g |
| Language Supported | HP-GL/DMPL compatible |
| Voltage | AC110/220v, 50hz/60hz |
| Buffer | 4 M |
| LCD Display | Chinese/ English |
| Cutting Precision | 0.0254 mm |
| Motor Type | Stepper |
Materials
Materials It Handles
- Organic materials up to 0.5 mm thickness
- Soft double layer materials
- Vinyl film
- Reflective film
- Transfer paper
Working Process
From File To Finished Part
Load vinyl or organic material into the adjustable paper holder
Set cutting pressure and speed on the LCD display
Send design file via USB or serial port using HP-GL/DMPL language
Start cutting with the linear bearing tool holder
Use reverse paper feed if material position needs correction
Unload cut parts and clear debris from the bed
Quality Control
Quality Control Before Shipment
- Two time inspections before packaging to ensure product quality
- Every machine is tested for cutting precision and speed stability
- Accessories are counted and packed according to standard list
Options
Customisation Options

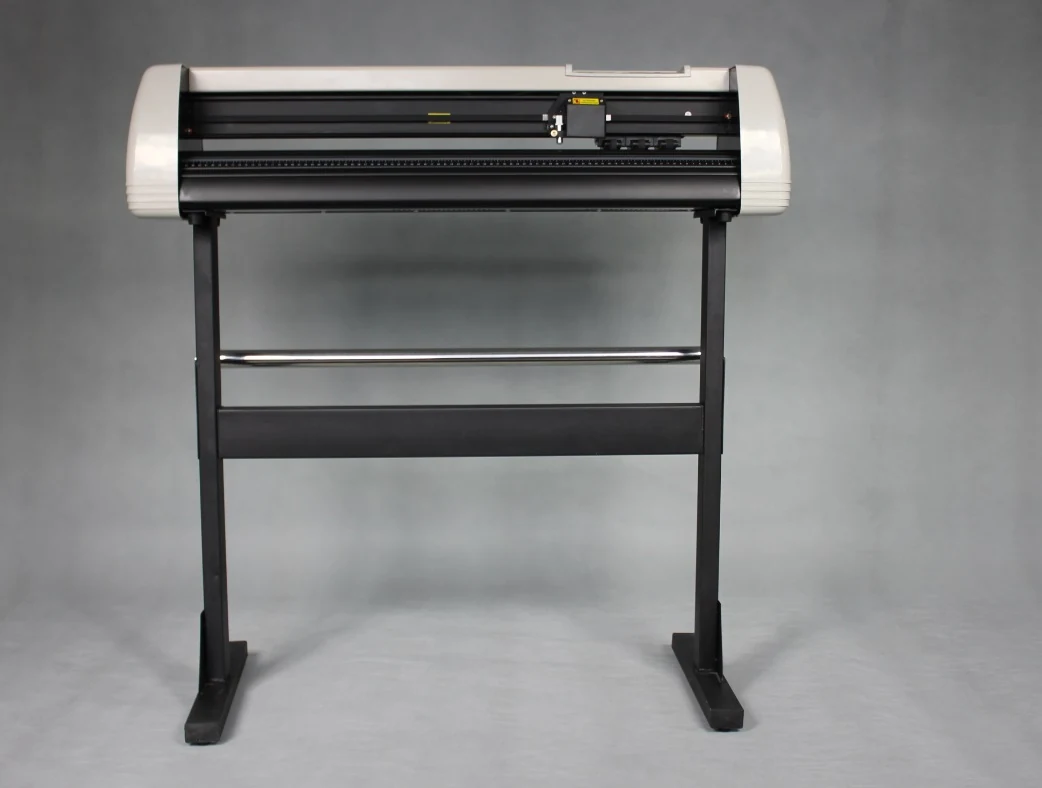

- Plotter stand can be chosen as an accessory
- Software includes ArtCut and drawing programs on two CDs
- Blades and pen holders are included in the standard package
Comparison
How It Compares With The Alternatives
| Larger format vinyl cutters | The WH720 has a 630 mm cutting width, which is more compact for small shops than larger models |
|---|---|
| Manual cutting tools | The machine provides 0.0254 mm precision and automated speed, which is faster and more accurate than hand cutting |
| Inkjet printers | This is a cutter for vinyl and film, not a printer, so it requires pre-printed or solid color material |
Operating Notes
Use Guide
- Ensure material is organic and does not exceed 0.5 mm thickness for best results
- Adjust the double spring paper holder to prevent skew on long feeds
- Use the fast data copy function to continue lettering if the connection drops
- Keep the linear bearing tool holder clean to maintain high carving accuracy
- Check the emergency stop function regularly to ensure it works correctly
Buyer Questions
Vinyl cutter WH720 FAQ
What is the maximum material thickness?
The machine is designed for organic materials up to 0.5 mm thick, preferably soft double layer materials.
What is the cutting width?
The maximum cutting width is 630 mm, with a maximum paper width of 720 mm.
What software is included?
Two CDs are included, one with ArtCut software and one with a drawing program.
What is the cutting precision?
The cutting precision is 0.0254 mm, allowing for small lines to be perfectly closed.
What languages does the display support?
The LCD display supports both Chinese and English.
What accessories come with the machine?
The package includes three blades, one blade holder, one pen holder, one USB wire, one serial port wire, one power wire, and a warranty card.
