The Contour Cutting Plotter series includes the WH500, WH880, and WH1380 models, designed for cutting vinyl, reflective film, and soft organic materials up to 0.5 mm thick.

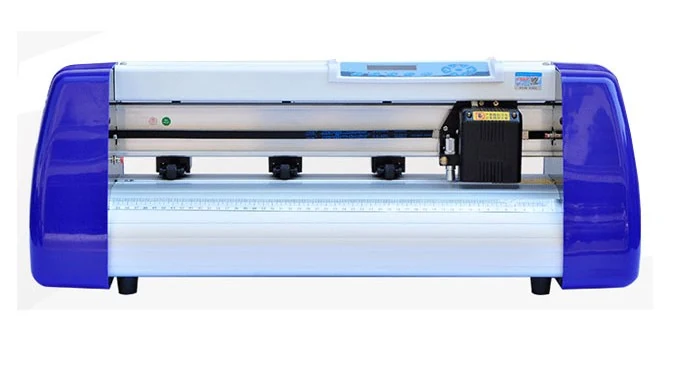

Product Overview
What This Machine Is Built To Do
The Contour Cutting Plotter series includes the WH500, WH880, and WH1380 models, designed for cutting vinyl, reflective film, and soft organic materials up to 0.5 mm thick. The WH500 is a desktop unit with a 300 mm cutting width, while the WH880 and WH1380 come with support legs for 700 mm and 1200 mm widths respectively. All models feature a 32-bit ARM processor and a backlit LCD display for standalone operation. The WH500 includes a CCD camera for contour cutting, allowing it to cut printed graphics without a computer connection. The machines support HP-GL and DMPL languages and operate on AC110V or 220V.
- Cutting widths from 300 mm to 1200 mm across three models
- CCD camera on WH500 enables contour cutting of printed graphics
- 32-bit ARM processor handles complex paths at speeds up to 780 mm/s

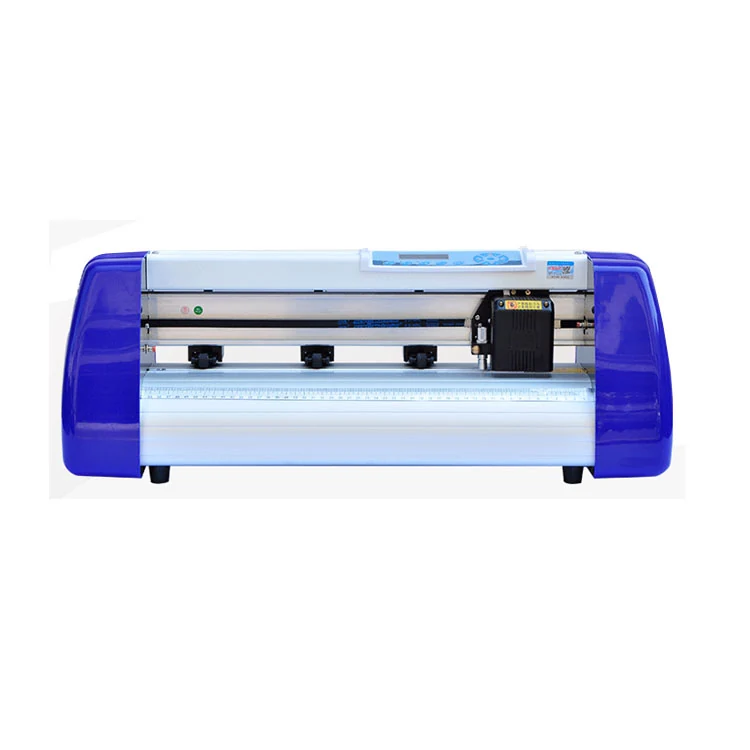

- Support legs included on WH880 and WH1380 for floor-standing operation
- Offline cutting via U disk or virtual serial port reduces PC dependency
- Cuts soft organic materials up to 0.5 mm thickness for signage and stickers
Where It Is Used
Application Scenarios
- Sign shops cutting vinyl lettering and car decals
- Light box producers cutting backlit film materials
- Garment workshops cutting woven bag printing templates
- Advertising agencies producing exhibition graphics
- Mobile accessory sellers cutting phone skin stickers
Buyer Fit
Who It Is For
- Signage workshops needing desktop contour cutting for small batches
- Print shops requiring wide-format cutting up to 1200 mm
- Manufacturers producing reflective film or dust cloth items
- Retailers cutting custom stickers and mobile beauty decals
Process Problems
Problems It Solves
- Manual cutting of vinyl lettering is slow and inconsistent
- Large format cutters require heavy support structures for wide rolls
- Contour cutting printed graphics often requires expensive software integration
- Desktop cutters typically lack the speed for production runs
- Offline cutting frees up design computers for other tasks
Engineering
Technical Features
- 32-bit ARM processor for fast data processing

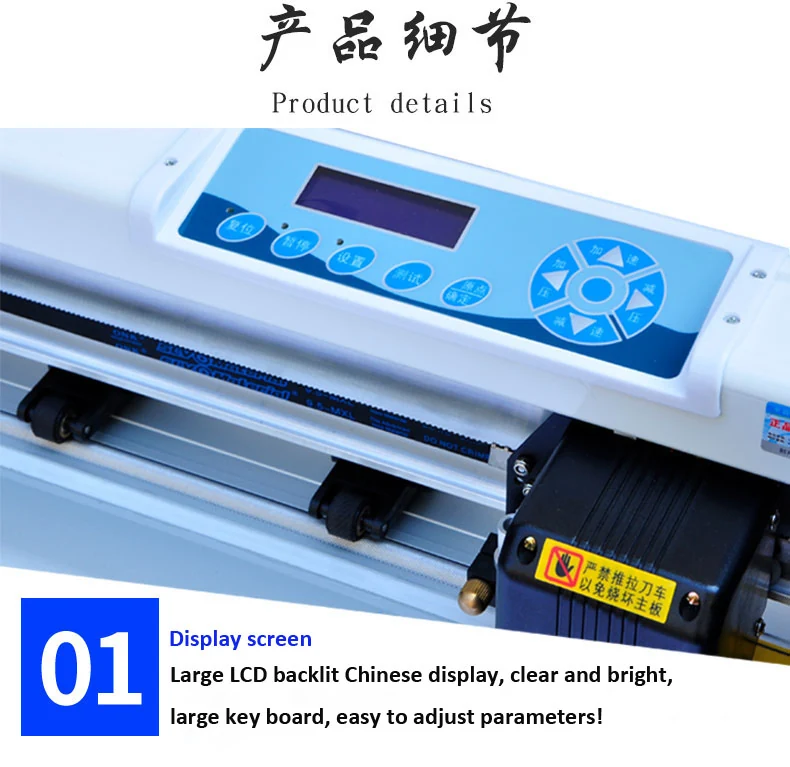

- Backlit LCD display for machine status and settings
- CCD camera system for contour recognition on WH500

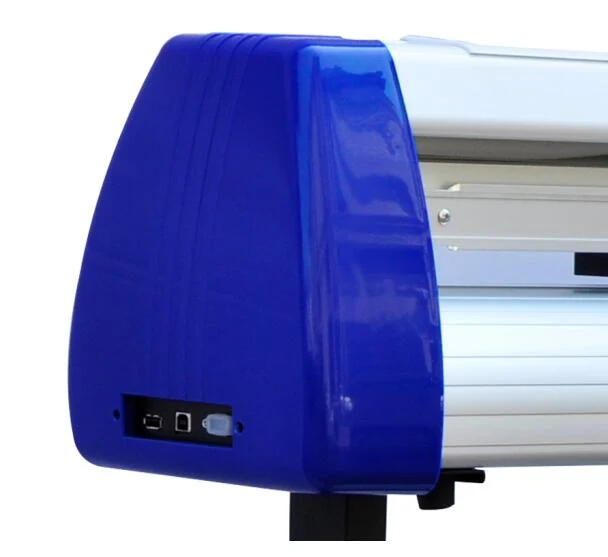

- Virtual serial port and U disk support for offline operation
- Latest patch welding technology for structural integrity
- HP-GL and DMPL language compatibility for software flexibility
Specifications
Published Figures For Contour Cutting Plotter
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH500 (A3) / WH880 / WH1380 |
|---|---|
| Feeding Width | 400 mm (WH500) / 800 mm (WH880) / 1300 mm (WH1380) |
| Cutting Width | 300 mm (WH500) / 700 mm (WH880) / 1200 mm (WH1380) |
| Cutting Speed | 0-780 mm/s |
| Cutter Pressure | 500 g |
| CCD Camera | Yes (WH500) |
| Processor | 32-bit ARM |
| Buffer | 4M |
| Voltage | AC110V / 220V, 50Hz/60Hz |
| Languages | HP-GL / DMPL compatible |
| OS Support | Windows XP, Win7, Win10 |
| Package Size | 100 x 33 x 39 cm |
| Gross Weight | 21 kg |
| Net Weight | 12 kg |
Materials
Materials It Handles
- Soft organic materials up to 0.5 mm thickness
- Double layer soft materials
- Vinyl
- Reflective film
- Dust cloth
Working Process
From File To Finished Part
Load vinyl or film roll onto the feeding mechanism
Align material using the CCD camera if contour cutting
Send cut file via USB, virtual serial port, or print mode
Set cutting speed and pressure on the LCD display
Machine cuts the design at up to 780 mm/s
Weed excess material and apply the cut graphic
Quality Control
Quality Control Before Shipment
- Latest patch welding technology ensures frame stability
- CCD camera alignment checks for contour accuracy
- Processor buffer tests for data integrity
Options
Customisation Options
- Choose between desktop WH500 or leg-supported WH880/WH1380
- Select voltage configuration for AC110V or AC220V markets
- Configure software compatibility for HP-GL or DMPL languages
Comparison
How It Compares With The Alternatives
| Laser engraving machines | Plotter cuts soft materials without heat or smoke, preserving material integrity |
|---|---|
| Manual cutting | Automated plotter achieves consistent speed and precision for complex paths |
| Large industrial plotters | This series is compact and lighter, suitable for small workshops and desktop use |
Operating Notes
Use Guide
- Ensure material thickness does not exceed 0.5 mm to prevent blade damage
- Use the CCD camera to align printed contours before starting the cut
- Adjust cutter pressure based on material hardness and blade wear
- Keep the blade tip clean to prevent dragging on vinyl
- Update software drivers if the virtual serial port is not recognized
Buyer Questions
Contour Cutting Plotter FAQ
What is the maximum cutting width?
The WH500 cuts up to 300 mm, the WH880 up to 700 mm, and the WH1380 up to 1200 mm.
Does the machine need a computer?
No, it supports offline cutting via U disk or virtual serial port, but can also connect to Windows XP, 7, or 10.
What materials can be cut?
Soft organic materials up to 0.5 mm thick, such as vinyl, reflective film, and dust cloth.
Is the support stand included?
The WH500 is a desktop model without legs. The WH880 and WH1380 models include support legs.
What is the cutting speed?
The machine operates at speeds up to 780 mm/s.
How is the machine packaged?
It ships in a carton box measuring 100 x 33 x 39 cm with a gross weight of 21 kg.
