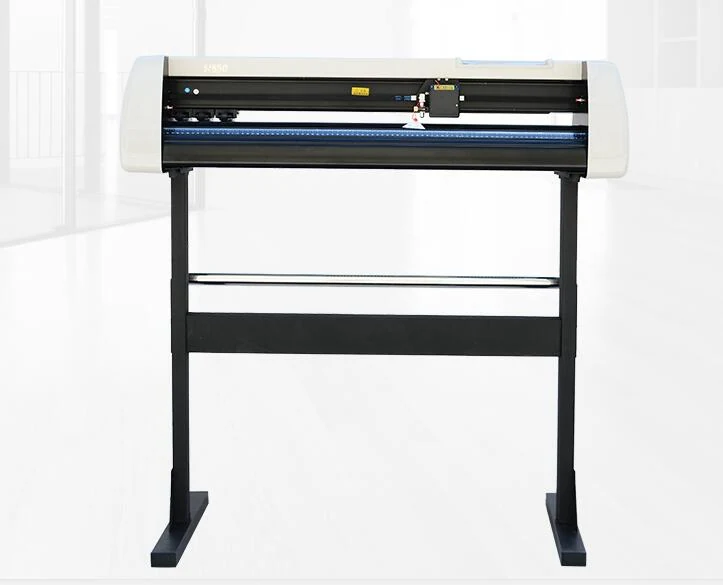

Vinyl paper cutter WH1380
The WH1380 is a 1300 mm wide vinyl cutting plotter with a 1200 mm cutting width and 0.005 mm cutting precision. It runs at 50 to 800 mm/s using a micro-step subdivision driver and a steel metal and aluminum alloy body.
Product Overview
What This Machine Is Built To Do
The WH1380 is a 1300 mm wide vinyl cutting plotter with a 1200 mm cutting width and 0.005 mm cutting precision. It runs at 50 to 800 mm/s using a micro-step subdivision driver and a steel metal and aluminum alloy body. The machine supports ArtCut, Flexi and Sign Master software, making it suitable for signage shops and apparel studios that need to cut adhesive film, reflective stickers and transfer paper without manual weeding delays.
- 0.005 mm cutting precision keeps small lettering and intricate patterns clean
- 1200 mm cutting width handles wide signage and large apparel transfers
- Micro-step subdivision driver reduces noise to 60 to 65 decibels
- Big casting aluminum roller maintains pressure balance on long paper
- Dual CPU control with original IC chip provides stable output
- Unlimited cutting length supports continuous rolls without stopping
Where It Is Used
Application Scenarios
- Cutting advertising lettering and light box graphics from reflective film
- Producing car wall stickers and glass sandblasting masks
- Drawing clothing patterns and thermal transfer designs for T-shirts
- Preparing CAD sketches and screen printing stencils
- Hollowing wall painting templates from kraft paper
Buyer Fit
Who It Is For
- Signage workshops producing large volume vinyl lettering
- Apparel manufacturers cutting heat transfer paper
- Print shops needing precise cutting for adhesive stickers
- Machine dealers stocking versatile vinyl cutters
Process Problems
Problems It Solves
- Manual weeding of small letters is slow and error-prone
- Inconsistent pressure causes deviates on long paper rolls
- Noisy machines disrupt shared workshop environments
- Unstable drivers cause cut failures on intricate designs
Engineering
Technical Features
- Blacklight display with large screen LCD in English characters
- USB port and U disk interface for file transfer
- Imported motherboard program with dual CPU control
- Big casting aluminum roller with high precision and reverse paper function
- Built-in switching power supply for stable machine performance
- Micro-step subdivision driver system
- Cutter pressure adjustable from 0 to 1000 g
Specifications
Published Figures For Vinyl paper cutter WH1380
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH1380 |
|---|---|
| Max Paper Width | 1300 mm |
| Max Cutting Width | 1200 mm |
| Machine Body Material | Steel metal + aluminum alloy |
| Stand Type | Steel metal vertical support |
| Cutting Speed | 50-800 mm/s |
| Cutting Length | Unlimited |
| Driver System | Micro-step subdivision driver |
| Origin Setting | By hand |
| Cutting Precision | 0.005 mm |
| Repeat Precision | <0.005 mm |
| Cutter Pressure | 0-1000 g |
| Cutting Thickness | 0.05-0.5 mm |
| Idling Speed Adjustment | 0-3 gears |
| Noise | 60-65 Decibels |
| Software | ArtCut, Flexi, Sign master |
| Display Language | English |
| Voltage | AC110/220 50Hz/60hz |
| Work Environment | 5-35 degree, humidity 30%-70% |
| Package Size | 1580*330*380mm |
| Package Weight | 36kgs |
Materials
Materials It Handles
- Self-adhesive vinyl
- Sticky notes
- Advertising-grade reflective stickers
- Lettering film
- Fluorescent paper
- Drawing paper
- Kraft paper
- Thermal transfer paper
- Glass sandblasting film
Working Process
From File To Finished Part
Import design file via USB or U disk into ArtCut, Flexi or Sign Master
Load vinyl or paper roll onto the casting aluminum roller
Set origin by hand on the control panel
Adjust cutter pressure between 0 and 1000 g for material thickness
Start cutting at speeds up to 800 mm/s
Use reverse paper function for long roll management
Quality Control
Quality Control Before Shipment
- Imported motherboard program ensures stable output
- Original IC chip provides reliable control
- Big casting aluminum roller tested for high precision and pressure balance
- Built-in switching power supply verified for whole machine stability
Options
Customisation Options
- Voltage configuration for AC110 or AC220 markets
- Software compatibility with ArtCut, Flexi or Sign Master
Comparison
How It Compares With The Alternatives
| Standard vinyl cutters | The WH1380 uses dual CPU control and a casting aluminum roller to maintain precision on long rolls where standard machines deviate |
|---|---|
| Laser cutters | The plotter cuts without heat, preventing edge melting on sensitive vinyl and paper materials |
Operating Notes
Use Guide
- Set cutting pressure based on material thickness between 0.05 and 0.5 mm
- Adjust idling speed from 0 to 3 gears for different paper types
- Keep work environment between 5 and 35 degrees with humidity 30 to 70 percent
- Use the reverse paper function when handling long continuous rolls
- Ensure the casting aluminum roller is clean to maintain pressure balance
Buyer Questions
Vinyl paper cutter WH1380 FAQ
What is the maximum cutting width?
The WH1380 has a maximum paper width of 1300 mm and a maximum cutting width of 1200 mm.
What software does the machine support?
The machine works with ArtCut, Flexi and Sign Master software for design and cutting control.
How thick can the material be?
The cutter handles materials with a thickness between 0.05 mm and 0.5 mm.
What is the cutting precision?
The cutting precision is 0.005 mm and the repeat precision is less than 0.005 mm.
How is the machine powered?
It uses a built-in switching power supply and operates on AC110 or AC220 voltage at 50Hz or 60Hz.
What is the noise level?
The machine operates at a noise level of 60 to 65 decibels.
