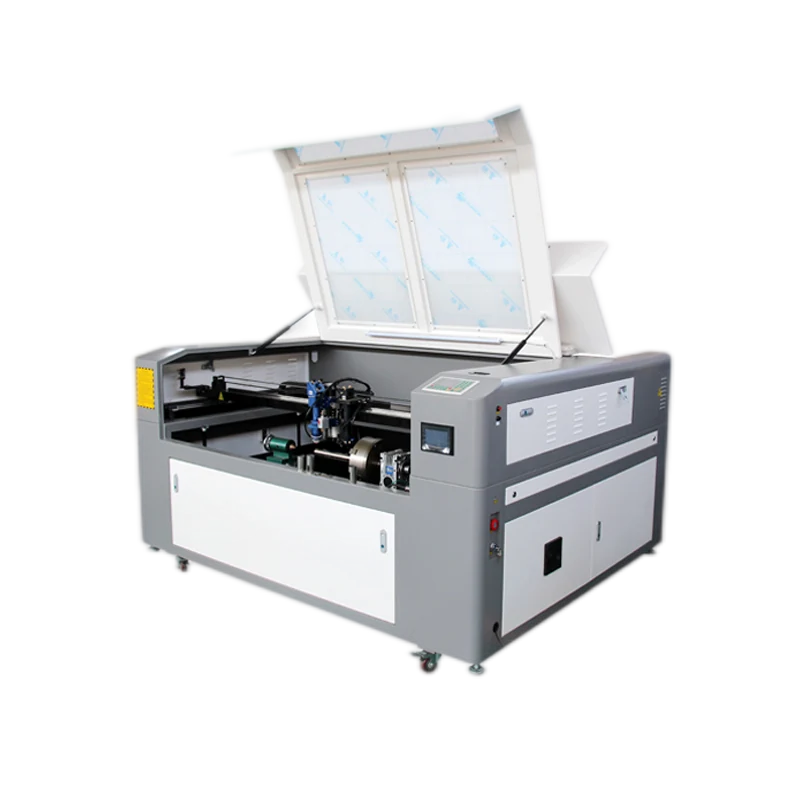

The WH-1390M is a hybrid CO2 laser cutter with a 1300 x 900 mm working area, designed to cut thin metals and non-metals on one machine.
Metal and Nonmetal CO2 Laser Cutters
1390 Tube Laser Cutting Machine
The WH-1390M is a dual-head CO2 laser cutter with a 1300 x 900 mm work area and a 300 W sealed tube for cutting metal and nonmetal sheets. A second 80 W tube handles engraving tasks without stopping the main cutting cycle.
Product Overview
What This Machine Is Built To Do

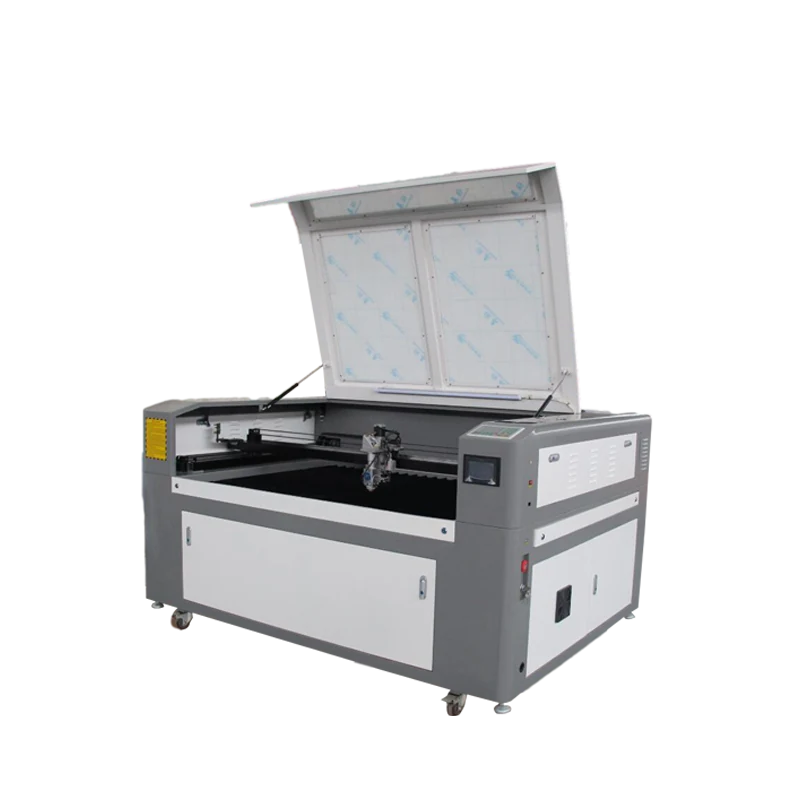

The WH-1390M is a dual-head CO2 laser cutter with a 1300 x 900 mm work area and a 300 W sealed tube for cutting metal and nonmetal sheets. A second 80 W tube handles engraving tasks without stopping the main cutting cycle. The machine includes a rotary axis that cuts round metal tubes from 80 mm to 200 mm in diameter, allowing you to process structural components and decorative rails on the same bed. Motorized Z-axis height adjustment and auto-focus maintain beam alignment on corrugated or curved metal plates, so you do not need to re-level the bed manually between different part geometries. Ruida 6332m control with a separate touch screen for metal operations gives you direct parameter control while the button panel manages standard nonmetal tasks.
- Rotary axis enables cutting 80 mm to 200 mm metal tubes, eliminating the need for a separate pipe cutter
- Dual laser heads allow simultaneous engraving and cutting, reducing cycle time for mixed jobs
- Auto-focus works on corrugated and curved metal plates, maintaining beam consistency on uneven surfaces
- Motorized up-down table adjusts height automatically, preventing manual re-leveling between material changes
- Ruida 6332m control system with a dedicated touch screen for metal cutting parameters
- 300 W sealed CO2 tube cuts 2 mm stainless and carbon steel plates as well as acrylic and wood
Where It Is Used
Application Scenarios
- Signage workshops producing metal letters and acrylic panels on the same machine
- Furniture manufacturers cutting plywood parts and engraving decorative patterns
- Metal fabricators processing round tubes for handrails and structural frames
- Gift and novelty producers engraving wood, leather and acrylic items
- Small batch metal shops cutting thin stainless steel plates and curved components
Buyer Fit
Who It Is For
- Machine dealers needing a hybrid cutter that handles both tube and sheet metal
- Fabricators whose current CO2 machine cannot cut metal tubes or curved plates
- Workshops with limited space that need to combine engraving and cutting operations
- Signage producers cutting acrylic and metal letters without changing machines
Process Problems
Problems It Solves
- Separate pipe cutters take up floor space and require additional operator training
- Manual focus adjustment on curved metal sheets causes inconsistent cut quality
- Stopping the machine to switch from cutting to engraving wastes production time
- Standard CO2 machines cannot cut metal tubes, forcing you to outsource that work
- Re-leveling the bed for different material thicknesses slows down mixed-order days
Engineering
Technical Features
- Dual laser head configuration with 300 W for cutting and 80 W for engraving
- Sealed CO2 laser tube with 10.64 μm wavelength for metal and nonmetal processing

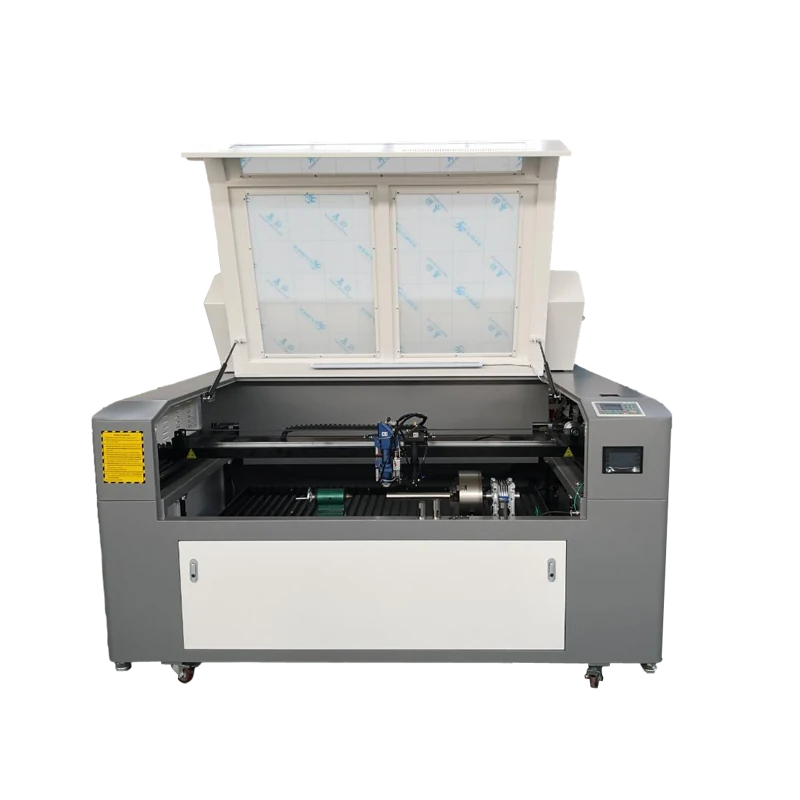

- Rotary attachment for cutting round metal tubes from 80 mm to 200 mm diameter
- Motorized up-down table with automatic height adjustment for varying thicknesses
- Auto-focus system that maintains beam alignment on corrugated and curved surfaces
- Ruida 6332m control system with separate touch screen for metal cutting parameters
- Water chiller CW6000 for maintaining stable laser tube temperature during operation
Specifications
Published Figures For 1390 Tube Laser Cutting Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH-1390M |
|---|---|
| Work Size | 1300 x 900 mm |
| Laser Power | 300 W and 80 W |
| Laser Type | Sealed CO2 laser tube |
| Wave Length | 10.64 μm |
| Control System | Ruida 6332m |
| Max Cutting Speed | 10000 mm/min |
| Repetition Accuracy | <=±0.01 mm |
| Min Letter Size | Chinese 1.5 mm, English 1 mm |
| Cooling Mode | Water chiller CW6000 |
| Laser Power Control | 0-100% software control |
| Working Voltage | Single phase 110V/220V, 50-60HZ |
Materials
Materials It Handles
- Stainless steel plate up to 2 mm
- Carbon steel plate up to 2 mm
- Round metal tubes 80 mm to 200 mm diameter
- Acrylic sheet
- Plywood and wood board
- Leather
- Paper and cardboard
Working Process
From File To Finished Part
Load sheet material or mount tube on the rotary axis
Select the appropriate laser head for cutting or engraving
Set parameters on the Ruida 6332m control system
Use the touch screen interface for metal cutting adjustments
Activate auto-focus for curved or corrugated metal surfaces
Run the motorized table to adjust height for material thickness
Quality Control
Quality Control Before Shipment
- Repetition accuracy is verified at <=±0.01 mm before machine dispatch
- Water chiller CW6000 maintains stable laser tube temperature during operation
- Auto-focus system is tested on curved and corrugated metal samples
- Rotary axis alignment is checked for consistent tube cutting diameter
Options
Customisation Options
- Voltage configuration available for single phase 110V or 220V operation
- Rotary attachment can be included or omitted based on your production needs
- Laser power control adjustable from 0-100% via software for different materials
- English user manuals and video guidance supplied with the machine
Comparison
How It Compares With The Alternatives
| Standard single-head CO2 laser cutter | The dual-head configuration allows simultaneous engraving and cutting, reducing cycle time for mixed jobs |
|---|---|
| Fiber laser tube cutter | The CO2 machine cuts nonmetal materials like acrylic and wood, which fiber lasers cannot process |
| Manual focus CO2 machine | Auto-focus maintains beam alignment on curved and corrugated metal, eliminating manual adjustment errors |
Operating Notes
Use Guide
- Use the 300 W head for cutting metal and the 80 W head for fine engraving tasks
- Mount tubes securely on the rotary axis and verify diameter range is 80-200 mm
- Activate auto-focus when processing corrugated or curved metal plates
- Check water chiller temperature before long cutting runs to prevent tube overheating
- Use the touch screen interface for metal cutting parameters and button panel for nonmetal
Buyer Questions
1390 Tube Laser Cutting Machine FAQ
What tube diameter range can the rotary axis handle?
The rotary attachment cuts round metal tubes from 80 mm to 200 mm in diameter.
Can this machine cut curved metal sheets?
Yes, the auto-focus system maintains beam alignment on corrugated and curved metal plates without manual adjustment.
What is the maximum metal thickness for cutting?
The 300 W laser head cuts stainless steel and carbon steel plates up to 2 mm thick.
How does the dual head system work?
The 300 W head handles cutting operations while the 80 W head performs engraving, allowing you to switch between tasks without stopping the machine.
What control system does the machine use?
The machine uses a Ruida 6332m control system with a separate touch screen interface for metal cutting parameters.
What nonmetal materials can this machine cut?
Without the rotary attachment, the machine cuts plywood, acrylic, leather, paper and cardboard.
