1390 Hybird Laser Cutter

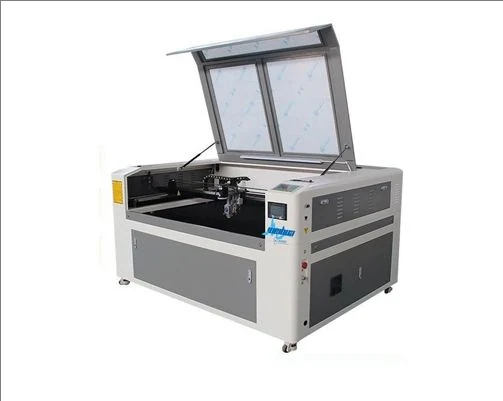

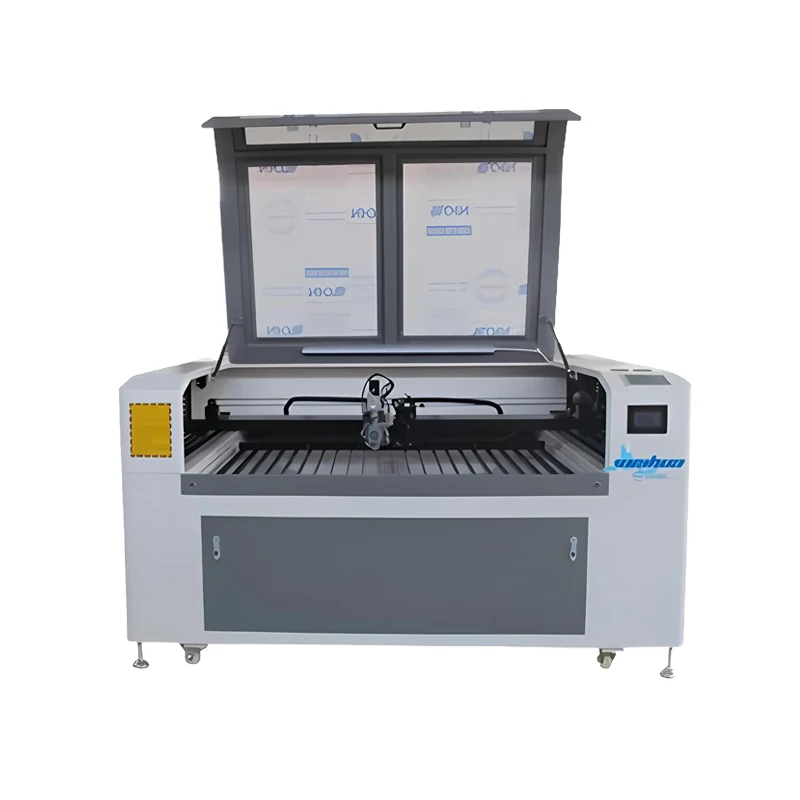

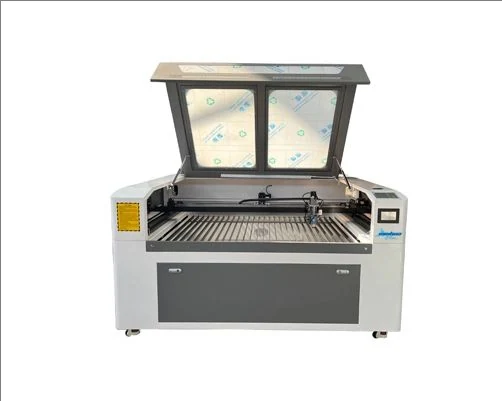

The WH-1390M is a hybrid CO2 laser cutter with a 1300 x 900 mm working area, designed to cut thin metals and non-metals on one machine. It uses a 10.6um CO2 sealed tube with power options from 150 W to 600 W.
Product Overview
What This Machine Is Built To Do
The WH-1390M is a hybrid CO2 laser cutter with a 1300 x 900 mm working area, designed to cut thin metals and non-metals on one machine. It uses a 10.6um CO2 sealed tube with power options from 150 W to 600 W. At 600 W it cuts stainless steel up to 3 mm and carbon steel up to 3 mm, while handling acrylic, wood, and MDF up to 15 mm. The machine features a thickened blade workbench and ±0.02 mm/m positioning accuracy. It is built for signage workshops and furniture makers who need to process both metal lettering and acrylic panels without buying two separate machines.
- Cuts stainless and carbon steel up to 3 mm alongside non-metals like acrylic and wood on one platform
- Ruida control software supports BMP, PLT, DST, DXF and AI files for direct design workflow
- Water cooling chiller maintains stable tube temperature for continuous cutting of thick non-metals
- Optional ball screw transmission with Yaskawa servo motors improves precision over standard belt drive
- Thickened blade workbench supports mixed material loading without frequent table changes
- Offline control system allows operation without a connected PC for simplified shop floor use
Where It Is Used
Application Scenarios
- Advertising agencies producing mixed metal and acrylic signage components
- Furniture workshops cutting wooden panels and thin metal brackets for creative pieces
- Kitchenware manufacturers processing stainless steel templates and decorative elements
- Photo frame makers cutting wood, acrylic, and thin metal backing plates
- Template makers producing durable plastic and thin metal guides for assembly lines
Buyer Fit
Who It Is For
- Signage shops replacing separate metal and non-metal cutters to save floor space
- Job shops handling small batches of mixed material orders
- Fabricators needing to cut thin metal parts alongside acrylic covers
- Educational institutions requiring a safe and versatile cutting machine for diverse projects
Process Problems
Problems It Solves
- Eliminates the need to outsource thin metal cutting when you already have a CO2 machine
- Reduces setup time by handling both metal and non-metal files in the same Ruida software
- Prevents thermal damage to thin metals with controlled oxygen assist gas settings
- Solves space constraints in small workshops by combining two machine functions into one frame
- Avoids high maintenance costs of fiber lasers for shops that only need thin metal capability
Engineering
Technical Features
- CO2 sealed laser tube with 10.6um wavelength for broad material absorption
- Ruida control software with offline control capability
- Water cooling chiller (CW-5200 or CW-6000AN) depending on tube power
- Thickened blade workbench for stable material support
- Standard belt drive with Yankong stepper motors or optional ball screw with Yaskawa servos
- Software-controlled laser output power from 0 to 100 percent
Specifications
Published Figures For 1390 Hybird Laser Cutter
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH-1390M |
|---|---|
| Work Size | 1300 x 900 mm |
| Laser Power | 150 W / 180 W / 200 W / 300 W / 500 W / 600 W |
| Laser Type | CO2 sealed laser tube, 10.6um |
| Positioning Accuracy | ±0.02 mm/m |
| Max Cutting Speed | 20 m/min |
| Max Cutting Thickness | 40 mm (material dependent) |
| Control System | Ruida control software with offline control |
| Cooling | Water cooling chiller |
| Voltage | AC110-220V ±10%, 50-60Hz |
| Rated Power | <2000 W |
Materials
Materials It Handles
- Stainless steel up to 3 mm
- Carbon steel up to 3 mm
- Galvanized steel
- Acrylic up to 30 mm
- Wood and MDF up to 15 mm
- PVC, plastic, foam, and rubber
Working Process
From File To Finished Part
Import DXF or AI files into Ruida control software
Select material preset or set manual parameters for power and speed
Ensure oxygen assist gas is connected for metal cutting
Load material onto the thickened blade workbench
Start cutting via offline controller or connected PC
Unload parts and clear debris from the workbench
Quality Control
Quality Control Before Shipment
- Laser tube power is verified against rated output before shipment
- Positioning accuracy is checked using standard test patterns
- Water chiller and exhaust systems are tested for leaks and flow
- Electrical components are inspected for secure connections and voltage stability
Options
Customisation Options
- Choose between 150 W to 600 W laser tube power
- Select standard belt drive or advanced ball screw with Yaskawa servos
- Configure voltage for your local power grid
- Add optional air compressor and exhaust fan package
Comparison
How It Compares With The Alternatives
| Dedicated fiber laser cutter | The hybrid CO2 machine cuts non-metals like acrylic and wood, which fiber lasers cannot, but it is slower on thick metals |
|---|---|
| Standard CO2 engraver | This hybrid model includes an oxygen assist system and reinforced bed to cut thin metals, which standard engravers cannot do |
| Plasma cutter | The laser provides a finer kerf and less heat-affected zone on thin metal, but plasma is faster for thick steel plate |
Operating Notes
Use Guide
- Always use oxygen assist gas when cutting stainless or carbon steel to ensure clean edges
- Check water chiller temperature regularly to prevent laser tube power drop
- Clean the lens and mirrors after cutting acrylic or wood to prevent smog buildup
- Ensure the exhaust fan is running to remove fumes from PVC and other materials
- Verify material thickness against the cutting parameters before starting a job
Buyer Questions
1390 Hybird Laser Cutter FAQ
Can this machine cut copper or brass?
No, the machine is not designed to cut copper or brass due to their high reflectivity.
What is the maximum thickness for stainless steel?
With the 600 W tube, you can cut stainless steel up to 3 mm thick.
Does it come with software?
Yes, it uses Ruida control software and supports files like DXF, AI, and PLT.
What warranty is included?
The whole machine is guaranteed for 12 months, with lifetime technical support available.
Can I upgrade the drive system?
Yes, you can choose the advanced configuration with ball screw transmission and Yaskawa servo motors.
How is the machine shipped?
It is packed in a wooden box and shipped by sea, air, or international express.
