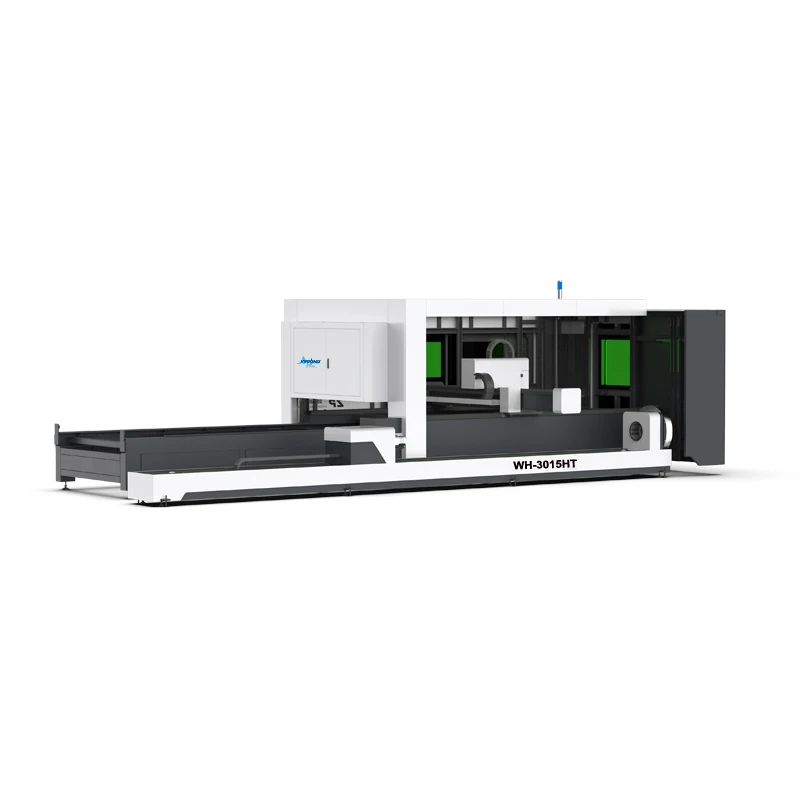

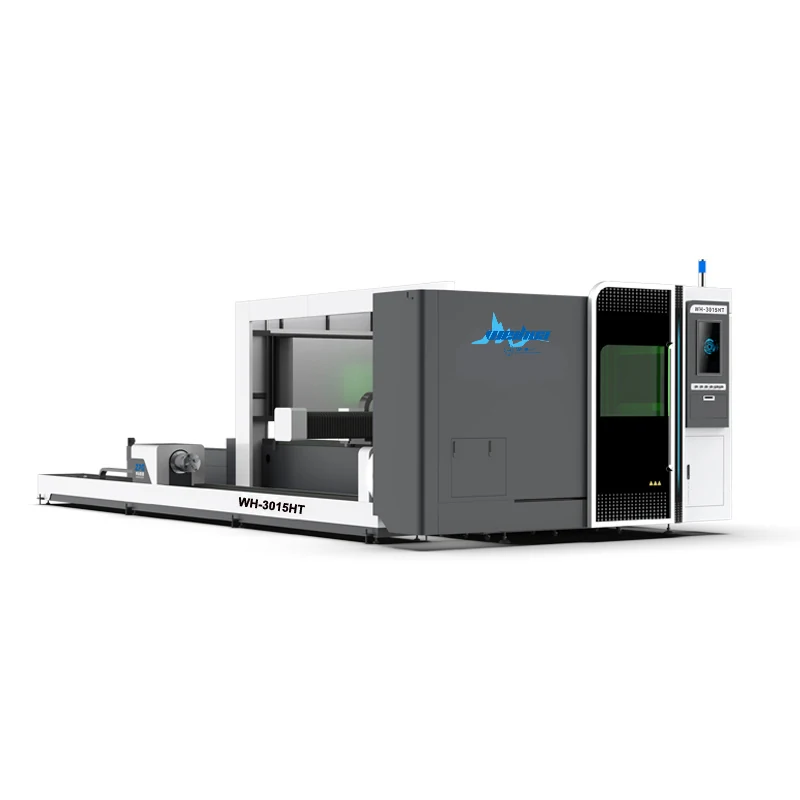

HT Series Enclosure Metal Sheet Tube Fiber Laser Cutter
The HT Series is a fully enclosed fiber laser cutter designed to process both metal sheet and pipe on a single machine. Available in three bed sizes ranging from 1500 x 3000 mm to 2000 x 6000 mm, it handles carbon steel, stainless steel and other metals.
Product Overview
What This Machine Is Built To Do
The HT Series is a fully enclosed fiber laser cutter designed to process both metal sheet and pipe on a single machine. Available in three bed sizes ranging from 1500 x 3000 mm to 2000 x 6000 mm, it handles carbon steel, stainless steel and other metals. The machine features a high-temperature annealed bed to prevent deformation and a laser dedicated control system with a handheld terminal for easy operation. It supports pipe diameters from φ20 to φ350 mm (depending on model) with a maximum length of 7000 mm. With positioning accuracy of 0.03 mm and repeat positioning accuracy of 0.02 mm, it suits workshops needing to switch between flat sheet and tubular parts without moving workpieces to separate machines.
- Combines sheet and tube cutting functions on one machine to save floor space and capital

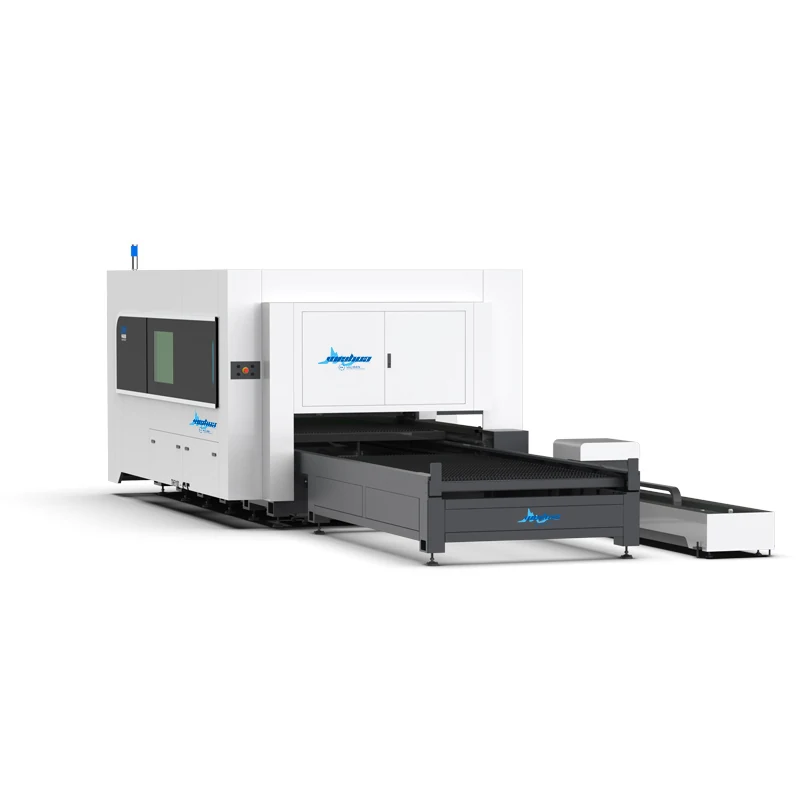

- Fully enclosed design with CE standard protective glass ensures operator safety during high-speed cutting
- High temperature annealed and naturally aged bed maintains geometry and accuracy over years of use
- Integrated smoke filtration system keeps the workshop environment clean and compliant with local regulations
- Laser dedicated control system with handheld terminal simplifies programming and real-time status monitoring
- Three bed sizes allow you to select the exact working area needed for your specific production volume
Where It Is Used
Application Scenarios
- Fabrication shops producing mixed orders of sheet metal panels and structural pipes
- Automotive and motorcycle parts manufacturers cutting exhaust systems and frames
- Fitness equipment producers cutting steel tubes and sheet components for frames
- Advertising and signage companies creating 3D metal letters and structural supports
- Agricultural machinery workshops repairing or manufacturing metal frames and guards
Buyer Fit
Who It Is For
- Sheet metal fabricators expanding into tube processing without buying a separate pipe cutter
- Machine dealers offering a versatile entry-level enclosed fiber laser solution
- Workshops with limited floor space that need to maximize utility from a single footprint
- Procurement engineers requiring a CE compliant enclosed machine for safety standards
Process Problems
Problems It Solves
- Eliminates the need to transport heavy pipes and sheets between separate machines
- Reduces dust and fumes in the workshop through integrated internal smoke filtration
- Prevents bed deformation and accuracy loss using high-temperature annealing and natural aging
- Solves complex programming issues with a user-friendly laser dedicated control system
- Protects operators from laser radiation with a fully enclosed cabin and CE standard glass
Engineering
Technical Features
- High-quality carbon steel plate bed welded to resist high tensile force
- Bed stress relief via high-temperature annealing and natural aging for anti-deformation durability
- Fully enclosed structure with observation window using European CE Standard laser protective glass
- Internal smoke filtering system to capture cutting fumes and maintain air quality
- Laser dedicated control system with handheld terminal for convenient operation and feedback
- Auto-focus laser head and servo motors for precise movement and focus adjustment
Specifications
Published Figures For HT Series Enclosure Metal Sheet Tube Fiber Laser Cutter
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Models | WH-3015HT, WH-4020HT, WH-6020HT |
|---|---|
| Rated Sheet Size | WH-3015HT: 1500 x 3000 mm; WH-4020HT: 2000 x 4000 mm; WH-6020HT: 2000 x 6000 mm |
| Machine Tool Travel | WH-3015HT: X 1530 mm, Y 3050 mm; WH-4020HT: X 2030 mm, Y 4050 mm; WH-6020HT: X 2030 mm, Y 6050 mm; Z 100 mm (all) |
| Max Positioning Speed | 80 m/min |
| Linkage Max Positioning Speed | 120 m/min |
| Max Acceleration | 1.5 G |
| Max Pipe Length | 7000 mm |
| Pipe Diameter Range | WH-3015HT/WH-4020HT: φ20-φ230 mm; WH-6020HT: φ20-φ350 mm |
| Positioning Accuracy | 0.03 mm/m |
| Repeat Positioning Accuracy | 0.02 mm |
| Max Worktable Load | WH-3015HT: 800 kg; WH-4020HT: 1500 kg; WH-6020HT: 2000 kg |
| Control System | Laser dedicated system with handheld terminal |
Materials
Materials It Handles
- Carbon steel sheet and pipe
- Stainless steel sheet and pipe
- Other metal sheets and pipes compatible with fiber laser technology
Working Process
From File To Finished Part
Load sheet or pipe into the enclosed cutting area
Import part geometry into the laser dedicated control system
Set material type and thickness to adjust focus and power
Close the enclosure to engage safety interlocks and smoke extraction
Execute cutting program with auto-focus head tracking surface
Unload finished parts and clear slag from the bed
Quality Control
Quality Control Before Shipment
- Bed undergoes high-temperature annealing and natural aging to release welding stress
- Positioning and repeat accuracy tested before shipment
- Enclosure and protective glass checked for laser safety compliance
- Smoke filtration system verified for operational efficiency
Options
Customisation Options
- Select bed size from WH-3015HT, WH-4020HT, or WH-6020HT based on part dimensions
- Configure voltage and plug standards for destination country
- Add specific laser power sources if required by material thickness needs
Comparison
How It Compares With The Alternatives
| Open frame fiber laser cutter | The HT series offers full enclosure for safety and smoke control, but takes up more floor space and costs more than open frames |
|---|---|
| Separate sheet and tube cutters | One HT machine handles both formats, saving space and investment, but may have slower throughput on very high volume single-type production |
| CO2 laser cutter | Fiber lasers cut metal faster and with lower maintenance, but cannot cut acrylic or wood which CO2 machines handle |
Operating Notes
Use Guide
- Ensure the enclosure doors are closed before starting any cutting operation
- Check the smoke filtration system status to maintain air quality
- Use the handheld terminal to monitor real-time processing status
- Clean the protective glass regularly to maintain visibility and safety
- Verify pipe diameter and length fit within the specified model limits
Buyer Questions
HT Series Enclosure Metal Sheet Tube Fiber Laser Cutter FAQ
What is the maximum pipe diameter this machine can cut?
The WH-3015HT and WH-4020HT models cut pipes from φ20 to φ230 mm. The WH-6020HT model handles pipes up to φ350 mm.
Is the machine fully enclosed for safety?
Yes, it features a fully enclosed design with an observation window using European CE Standard laser protective glass.
What is the positioning accuracy?
The positioning accuracy is 0.03 mm/m and the repeat positioning accuracy is 0.02 mm across all HT series models.
How does the control system work?
It uses a laser dedicated control system with a handheld terminal, providing a friendly interface and real-time feedback on processing status.
What happens to the smoke during cutting?
The machine has an internal smoke filtration system that captures fumes, keeping the workshop environment clean and non-polluting.
Can it cut both sheet and tube?
Yes, the HT series combines tube and sheet cutting functions, allowing you to process both metal sheets and pipes on one machine.
