3D Sign Printer

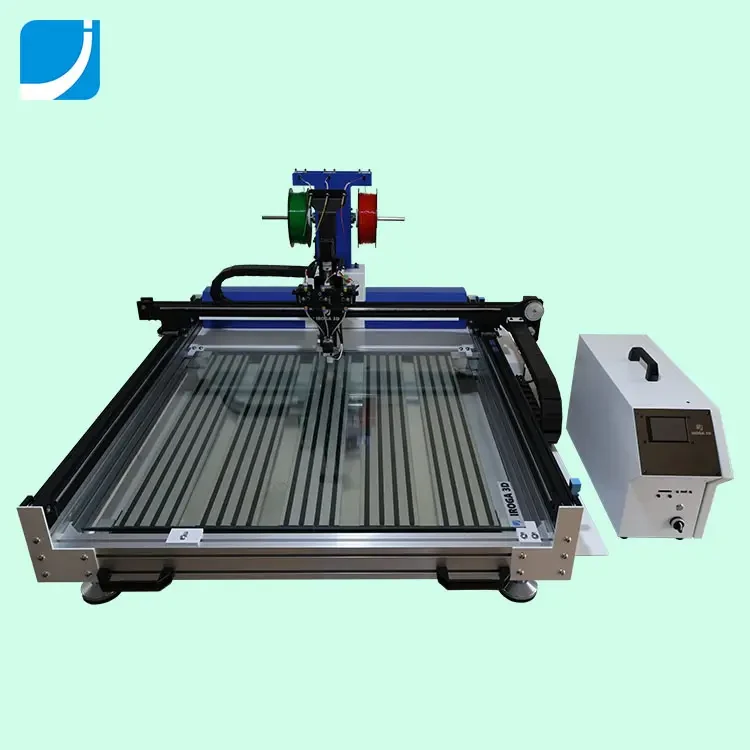

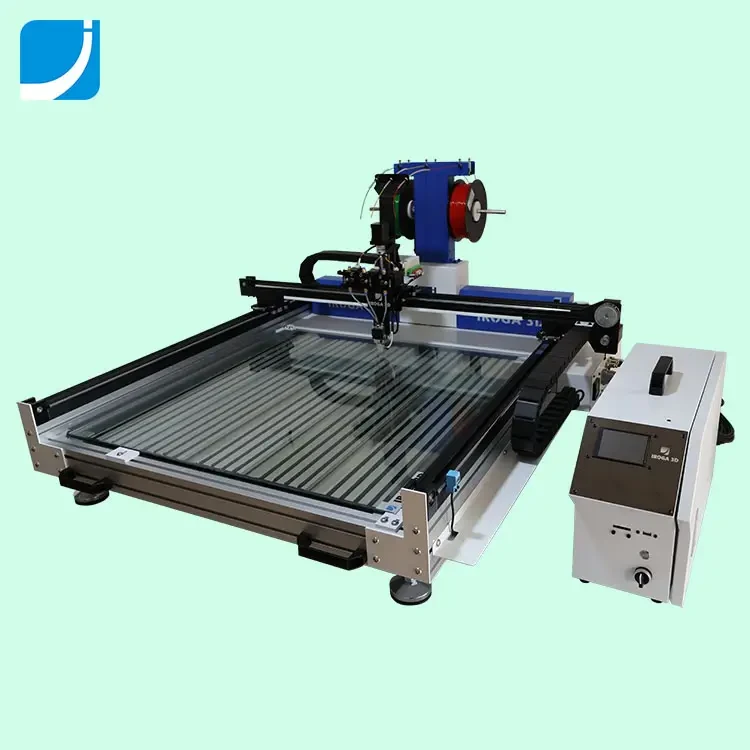

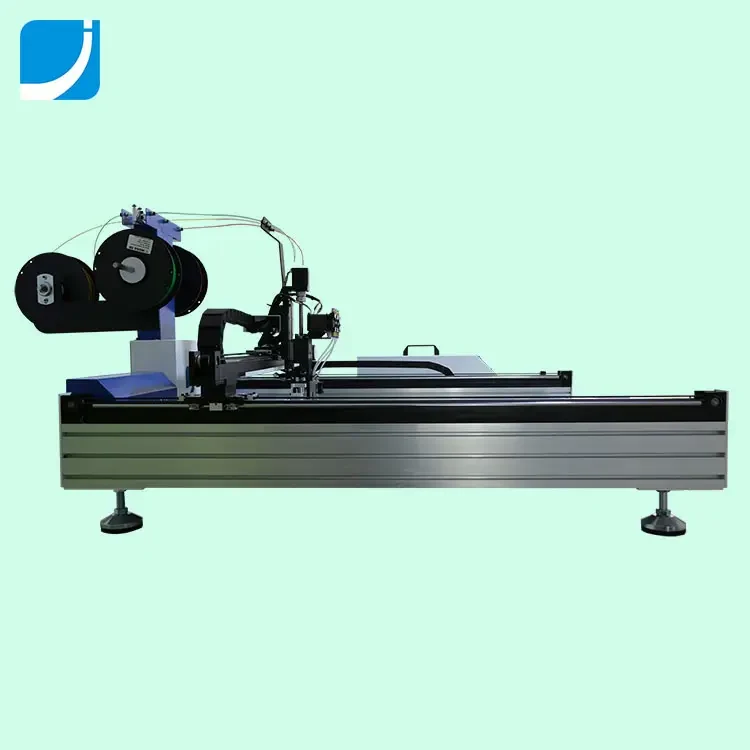

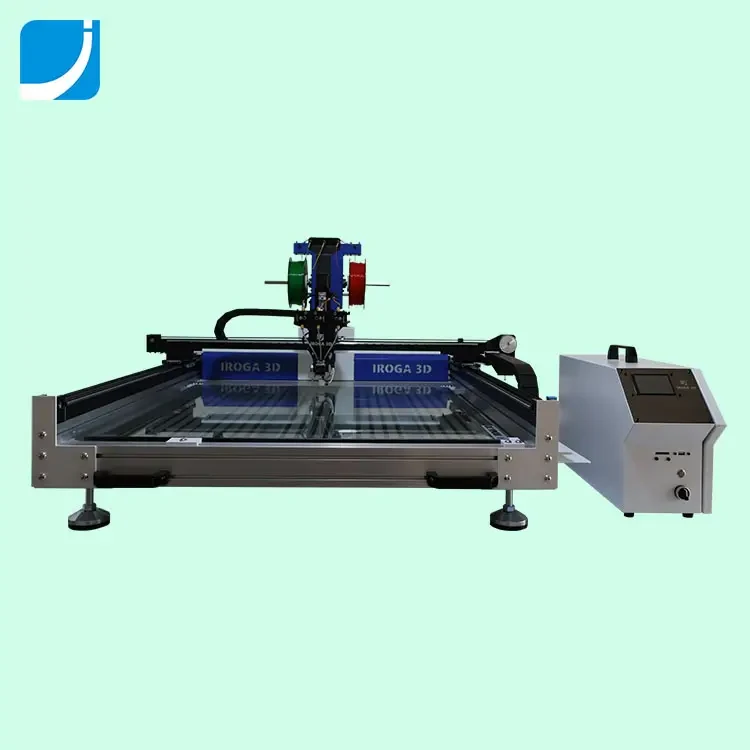

120cm Large 3D Sign Printer for LED Channel Letters
Model MITO-120
The 120 cm machine framed around LED channel letter work. A 1200 mm bed means the tallest letter in a typical fascia set still prints in one piece, and with three filament rolls installed the face and the return can be different colours without a secondary process.
- 1200 mm bed keeps the tallest letter of a fascia set in one piece
- Face and return can be printed in different colours in the same job
- Sidelit frontlit and backlit constructions are all possible from the same machine
- 1000 W and 130 kg net fit a normal workshop supply and the two layer shelf
Product Overview
The 120 cm machine framed around LED channel letter work. A 1200 mm bed means the tallest letter in a typical fascia set still prints in one piece, and with three filament rolls installed the face and the return can be different colours without a secondary process.
Who It Is For
- Channel letter producers working at full fascia scale
- Sign companies supplying trade customers
- Workshops that need colour flexibility between face and return
- Buyers matching a 120 cm bed to an existing 80 cm machine
Problems It Solves
- Tall letters that do not fit a small bed have to be split and joined
- Separate painting or wrapping is needed when the face and return colours differ
- Traditional returns are single colour and straight sided only
- Outsourcing large letters removes control of lead time and finish
Key Benefits
- 1200 mm bed keeps the tallest letter of a fascia set in one piece
- Face and return can be printed in different colours in the same job
- Sidelit frontlit and backlit constructions are all possible from the same machine
- 1000 W and 130 kg net fit a normal workshop supply and the two layer shelf
- Compatible with PETG-S ASA ABS and PLA so material choice follows the application
Technical Features
- Maximum printing size 1200 x 1200 x 90 MM
- Printing speed 30 to 80 MM per second
- Power 1000 W at 110 V or 220 V

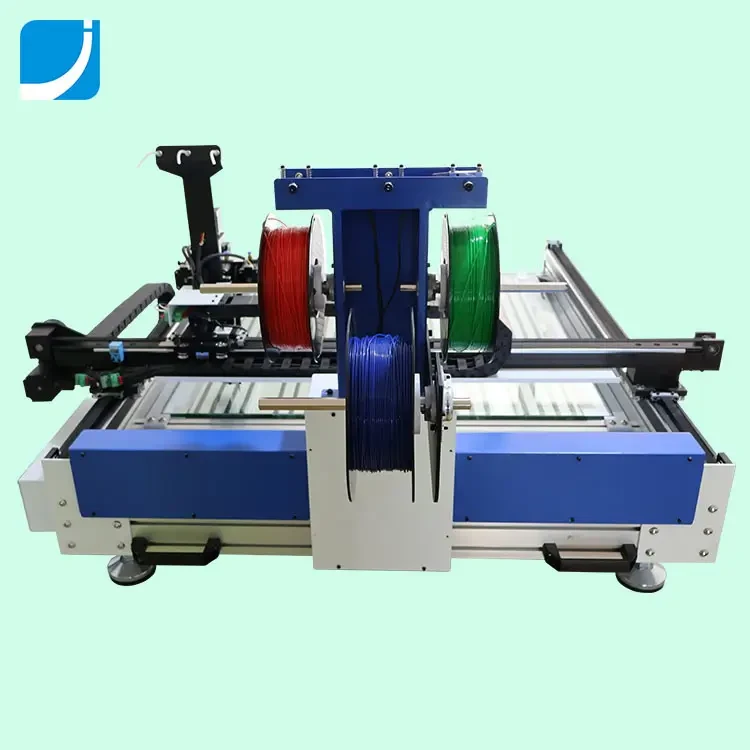

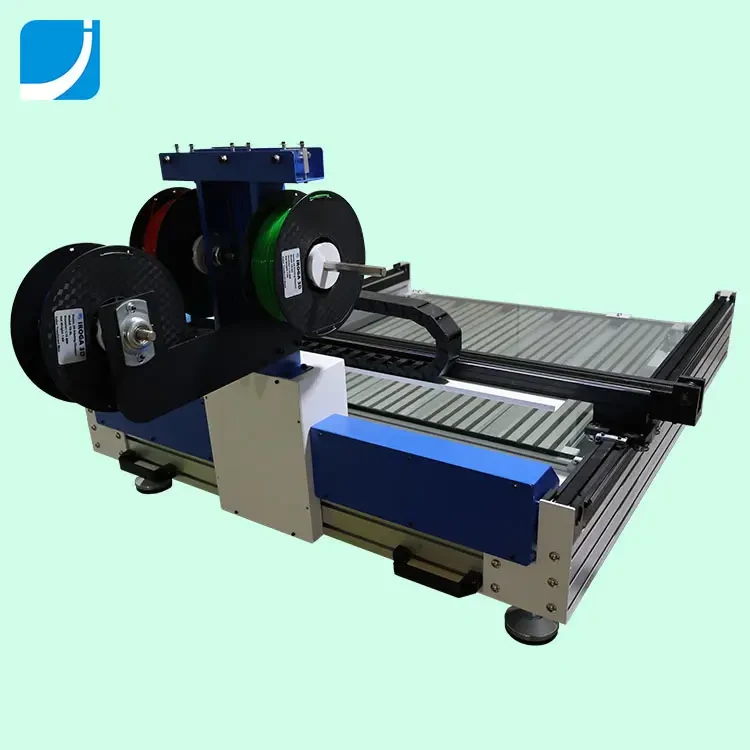

- Three filament rolls installed at once
- Printer size 1630 x 1500 x 700 MM
- Net weight 130 KG and gross weight 195 KG
- Nozzle temperature 230 to 250 degrees and platform 40 to 60 degrees
Application Scenarios
- LED channel letter sets for retail fascia
- Mixed height letter sets printed in one production run
- Sidelit letters where the return colour differs from the face
- Outdoor signage built from weather resistant filament
- Workshops supplying letters to other sign companies
Customisation Options
- OEM and ODM from 10 sets
- Voltage and frequency configured for the market
Product Gallery
Specifications
| Product Model | MITO-120 |
|---|---|
| Brand Name | IROGA 3D |
| Color | Blue & White |
| Packaging Size | 1800 x 1700 x 870 MM |
| Maximum Printing Size | 1200 x 1200 x 90 MM |
| Net Weight | 130 KG |
| Gross Weight | 195 KG |
| Power | 1000 W |
| Purpose | Printing Large 3D Signs & LED Channel Letters |
| Certificate | CE |
Materials
- PETG-S ASA ABS and PLA filament at 1.75 MM
Certifications
- CE
Manufacturing and Quality Control
Process
- FDM fused deposition modeling
- Slicing in the IROGA 3D slicing software
Quality Control
- Machine function tested before delivery
- Fumigation free wooden box packing
Comparison With Other Options
Compared with MITO-80 at 80 cm
The 80 cm machine covers letters to around 32 inch at 720 W. Choose 120 cm when a letter set includes elements beyond 800 mm.
Compared with Big 3D logo printer configuration
The same 1200 mm platform framed for one piece logos rather than letter sets. Both share the mechanics and the consumables.
Compared with New generation MITO-120
The new generation prints 120 mm deep at up to 120 mm per second on Klipper firmware with a steel nozzle.
Use Guide
- Group a letter set into one nested print where the bed allows
- Set face and return colours in the slicer before the job starts
- Apply platform glue across the whole nested area
- Install the LED strip in the return before closing the face panel
- Cool the bed before removing tall letters to avoid distortion
Questions
Frequently Asked Questions
Answers to what buyers ask before ordering 120cm Large 3D Sign Printer for LED Channel Letters.
What is the maximum letter size
1200 x 1200 x 90 MM.
Can the face and the return be different colours
Yes. Three filament rolls are installed at once, so multi colour faces and sides are possible.
Which filaments are compatible
PETG-S ASA ABS and PLA at 1.75 MM diameter.
What power and voltage does it use
1000 W at 110 V or 220 V, 50 or 60 HZ.
How long until delivery
Production takes around 20 to 25 days, then shipping depends on destination and method.
What warranty is included
18 months quality warranty and lifetime technical support.
How is payment handled
Telegraphic transfer with 30 percent deposit before production and 70 percent balance before delivery.
