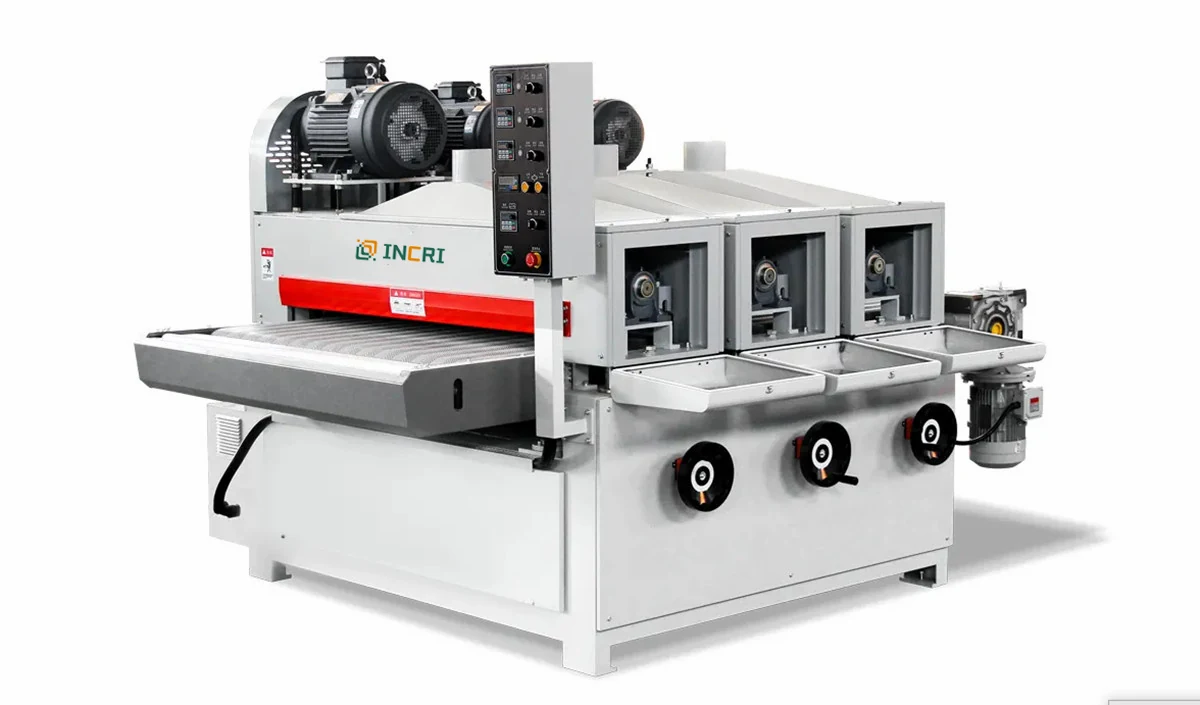

Wire Brush Machine
wire brush machine for soild floor floor wire brush
Drawing and polishing rollers that raise a textured wood grain on solid board. The solid flooring configuration.
Product Overview
Wire Brush Machine For Solid Floor Wire Brushing
The solid flooring configuration.
A wire brush machine for solid wood panel, flooring and synthetic board. Drawing rollers cut out the soft grain and polishing rollers smooth what is left, so the surface comes out with a raised, skid free texture where the main and collateral channels of the grain read clearly. Working widths are 600, 1000 and 1300 mm and processing thickness is 0.3 to 110 or 160 mm.
3 roller drawing and brushing configuration5 head relief drawing configuration6 head drawing and brushing configurationSteel roller configuration for wood grain work
Key Benefits
What This Machine Changes On Your Floor
1
Drawing and polishing rollers produce a natural raised grain with clear channels
2
The processed surface is skid free, three dimensional and even
3
Disc brushes have a swing device, which makes the texture read more strongly
4
Each group of disc brushes raises and lowers independently
5
Drawing and polishing rollers are removable and re-arrangeable with accurate positioning
Who It Is For
Plants That Buy This Machine
- Furniture and table board makers wanting textured surfaces
- WPC and synthetic board plants cleaning and texturing panel surfaces
- Solid wood flooring producers making brushed and rustic ranges
Problems It Solves
What It Removes From Your Process
- Hand wire brushing gives a different depth on every board
- Changing between texture depths means stripping the machine down
- Brushed and rustic finishes are bought in because the plant cannot make the texture
Application Scenarios
Typical Jobs It Runs
Brushed oak flooring with a raised grain
Archaised and embossed floor ranges
Wire drawing on veneer faced and synthetic panels
Surface cleaning of WPC board before finishing
Technical Features
How It Is Built
- Disc brush swing device for a stronger three dimensional texture
- Drawing and polishing rollers removable and re-arrangeable with high positioning accuracy
- Lower supporting roller or belt feeding mode with adjustable feed speed
- Feed table height accurately lifted or held constant
- PLC, engine and motor as core components
- Conveyor belt, drawing roller and polishing roller each on an independent motor
- Frequency conversion feeding
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Max working width of belt | 600 mm / 1000 mm / 1300 mm |
| Actual processing thickness | 0.3-110 (160) mm |
| Place of origin | Shandong, China |
| Machine type | Wire brush machine |
| Core components | PLC, engine, motor |
| Warranty | 1 year |
| Weight | 1500 kg for the 3 roller build, varies by configuration |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Roller positioning accuracy checked after assembly
- Sample boards brushed and texture depth measured
- Independent lift of each disc brush group tested
Customisation Options
Specified Per Order
- Roller and disc brush count set for your board texture
- 600, 1000 or 1300 mm working width
- Steel or abrasive roller selection
- Feed table fixed or lifting
Comparison
How It Compares With The Alternatives
vs Hand wire brushing
Roller positioning is calculated and read off, so the hundredth board has the same texture depth as the first
vs Embossing press
Brushing cuts away the soft grain to reveal the real texture of the wood rather than pressing a pattern into it
Use Guide
Setting The Machine Up For A Run
Select roller type and count for the texture depth you want
Set processing thickness within the 0.3-110 mm range
Adjust feed speed on the frequency converter
Run sample boards and compare texture against your standard
Related Machines
wire brush machine For Woodworking Automatic Wood Grain Drawing Machine
Drawing and polishing rollers that raise a textured wood grain on solid board. Built to order.
View Machine Data →
wire brush machine relief drawing machine
Drawing and polishing rollers that raise a textured wood grain on solid board. Built to order.
View Machine Data →
Archaistic Wire Brush Machine for wood
Drawing and polishing rollers that raise a textured wood grain on solid board. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for solid floor wire brushing?
Yes. The solid flooring configuration. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What material can it brush?
Solid wood panels and flooring, wood board, and synthetic materials including WPC.
What thickness can it process?
0.3 to 110 mm, and up to 160 mm in some configurations.
How many heads can I have?
Configurations range from 3 rollers up to 6 heads, and the machine can be customised to requirement.
What is the widest board?
1300 mm.
What warranty comes with it?
One year.
Ask For A Quotation On The Wire Brush Machine for Soild Floor Floor Wire Brush
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
