Packing Film

TCM Herb Liquid Packing Film and Non-Woven Bags

Name: TCM Herb Liquid Packing Film and Non-Woven Bags
Brand: Huayan Medical
SKU: Packing Film

Huayan TCM herb liquid packaging film and non-woven bags provide clean containment consumables for automated herb decoction and pouch packing machines.

Product Overview

What the Packing Film Is Built To Do

Huayan TCM herb liquid packaging film and non-woven bags provide clean containment consumables for automated herb decoction and pouch packing machines. The sterile composite PET and PE film has a 100 mm width, 400 m roll length, and 0.1 mm thickness, rated to UL 130 degrees Celsius for thermal sealing. Paired with 520 mm by 550 mm non-woven boiling bags, this packaging system prevents dregs from entering the liquid path while sealing finished medicine and drink liquids into stable single-dose pouches.

Request A Quote Email For Specifications

At A Glance

Film type: Sterile package mutual PET&PE film (WSS Film)
Film width: 100 mm
Film length: 400 m
Film thickness: 0.1 mm
Film carton packaging: 18 kg (2 pairs = 4 rolls / carton)
Thermal rating: Thermostatic, UL temperature rated 130 degrees Celsius

Rolls of Huayan TCM herb liquid packaging film for automatic pouch sealing machines

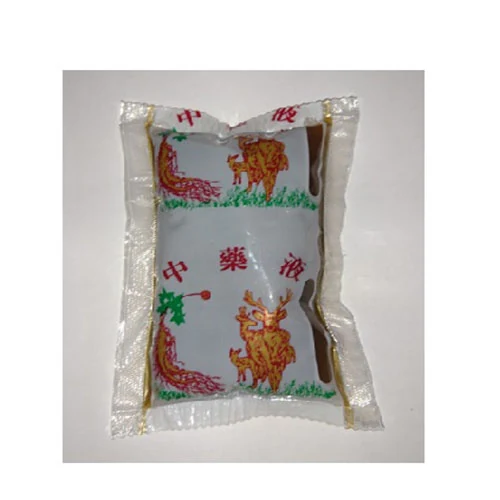

Printed roll of composite PET and PE herb liquid packaging film

Key Benefits

Why Buyers Specify the Packing Film

Compounded PET and PE sterile film structure provides reliable high-barrier protection matching hygienic standards for oxygen transmission
UL temperature rating of 130 degrees Celsius ensures consistent thermal heat sealing across automated herb pouch packaging machinery
Standard 100 mm film width and 400 m roll length fit continuous pouch filling and heat sealing mechanisms
Carton packaging of four rolls totalling 18 kg simplifies storage and routine consumable restocking in hospital pharmacies
Large 520 mm by 550 mm non-woven filter bags hold raw herbal materials securely during boiling cycles
Supplied non-woven bags filter loose herb particles to prevent residue from blocking machine drains and pouch liquid nozzles

Problems It Solves

Loose raw herbal sediment enters the liquid line and clogs packing machine nozzles during dispensing cycles
Substandard sealing films rupture or leak during heat-sealing operations at elevated liquid decoction temperatures
Unprotected herbal liquids spoil quickly when exposed to high oxygen transmission through non-barrier packaging materials
Dispensing liquids into unsealed containers increases contamination risks and creates carrying inconveniences for outpatients
Incompatible film roll dimensions cause frequent feed jams and tension faults on automatic pouch filling equipment

Where It Is Used

Where the Packing Film Is Used

Application Scenarios

TCM hospital pharmacies sealing ready-to-drink decoctions into sterile single-dose liquid pouches for outpatients
Private acupuncture and TCM clinics packaging custom herbal medicine prescriptions directly from decoction machines
Retail Chinese pharmacies operating automated boiling and pouch packaging services for walk-in prescription customers
Food and beverage production workrooms packing herbal tea and drink liquids into heat-sealed pouches
Raw herbal decoction processing where loose ingredients require containment inside 520 mm non-woven filter bags

Who It Is For

Hospital pharmacy procurement managers ordering consumable heat-seal film and filter bags for daily decoction workloads
TCM clinic operators seeking compatible 100 mm wide composite film rolls for automated pouch packing machines
Distributors supplying medical consumables and raw herb filter bags to TCM hospitals across overseas markets
Liquid beverage packagers requiring high-barrier food and medicine grade PET and PE pouch film rolls

Technical Features

Inside the Packing Film

Composite PET and PE sterile package mutual film construction engineered for thermal liquid pouch packaging
High-barrier material composition formulated to comply with national hygienic standards for oxygen transmission rate
Thermostatic material performance with an established UL thermal rating of 130 degrees Celsius
Film rolls produced at 100 mm width and 400 m continuous running length per roll
Precise 0.1 mm film thickness delivering uniform heat transfer across machine sealing jaws
Non-woven herb decoction bags measuring 520 mm width by 550 mm length for raw ingredients
Compatibility with food beverage and medical TCM herbal liquid pouch packing equipment

Materials and Build

Sterile mutual PET and PE composite film providing high-barrier protection and 130 degrees Celsius thermal tolerance
Porous non-woven fabric suited for containing raw herbal pieces during high-temperature water decoction cycles

Specifications

TCM Herb Liquid Packing Film and Non-Woven Bags Technical Data

Figures below are taken from the manufacturer data sheet for this model. Tell us your local voltage and dosing practice and we will confirm the build before the order.

Film type	Sterile package mutual PET&PE film (WSS Film)
Film width	100 mm
Film length	400 m
Film thickness	0.1 mm
Film carton packaging	18 kg (2 pairs = 4 rolls / carton)
Thermal rating	Thermostatic, UL temperature rated 130 degrees Celsius
Non-woven bag width	520 mm
Non-woven bag length	550 mm
Non-woven bag carton packaging	10 kg (1000 pcs / carton)
Suitable liquids	TCM herb liquid, drink liquid, food and medicine liquid

How It Is Made and Checked

How the Packing Film Is Built and Checked

How This Model Is Built and Tested

Place weighed raw herbal medicine into the 520 mm by 550 mm non-woven filter bag
Immerse the filled non-woven bag into the decoction pot for soaking and boiling extraction
Mount the 100 mm PET and PE film rolls onto the packaging machine roll spindle
Thread the film through the tension rollers and into the vertical heat-sealing mechanism
Pump finished decocted liquid through the nozzle into the formed film pouch section
Heat-seal at working temperature up to 130 degrees Celsius and cut into finished pouches

Quality Control

High-barrier film verified against oxygen transmission rate standards for national hygienic packaging compliance
UL thermal testing validates continuous heat-seal stability up to 130 degrees Celsius
Roll dimensions and 0.1 mm thickness verified to maintain consistent feeding on automated packaging equipment
Manufactured under certified ISO 9001 and ISO 13485 facility quality management systems

Certification Held By The Plant

ISO 9001ISO 13485CE markingTested as a complete cycle before packing

Customization

Building the Packing Film To Your Practice

Custom printed clinic logos and specific branding graphics applied directly to the packaging film
Multiple ink colors and print layouts customized according to customer packaging specifications
Non-woven raw herb bags and packing film rolls supplied in flexible consolidated shipment volumes

Use Guide

Store film rolls and non-woven bags in a clean dry area away from direct sunlight
Fill non-woven bags with raw herbs leaving enough room for herbs to expand during boiling
Install film rolls ensuring paired rolls align evenly along the machine guide rollers
Set packaging machine sealing temperatures within the UL rated 130 degrees Celsius thermal operating limits
Inspect the first sealed liquid pouches of every run for seam integrity and leak tightness

Comparison

How the Packing Film Compares

An honest read on where this model wins and where another one suits you better.

vs Monolayer PE film

Monolayer PE lacks the composite high-barrier structure of PET and PE, resulting in higher oxygen transmission and weaker thermal seal margins

vs Boiling loose herbs without non-woven bags

Direct decoction saves bag consumables but releases herb sediment that fouls valves and clogs pouch liquid packing nozzles

vs Rigid medicine bottles

Rigid plastic bottles consume significantly more storage space and require manual filling compared to compact 400 m roll film

Who Buys This

Industries Using the Packing Film

Retail Pharmacies and Herbal Dispensaries

Retail dispensaries running a same-day decoction service over the counter, plus raw herb preparation on site.

TCM Hospital Pharmacies

Pharmacy managers decocting to a timetable, who need pot count and sealing rate to clear the dispensing window.

TCM Clinics and Acupuncture Practices

Clinic owners with one dispensary corner and one member of staff, who still want patients leaving with pouches.

Questions Buyers Ask

Packing Film Questions and Answers

What is the standard packaging and weight per carton for this film?

The film is packed 4 rolls (2 pairs) per carton with a total weight of 18 kg. Each roll is 100 mm wide and 400 m long.

Can we print our own clinic logo and text on the film?

Yes. Various printing logos and colors are available based on your demand. Share your artwork and layout requirements for a quotation.

What are the dimensions and packing quantity of the non-woven herb bags?

The non-woven bags measure 520 mm in width by 550 mm in length and are packed 1,000 pieces per carton weighing 10 kg.

What is the typical production lead time after payment?

Lead time is generally about 6 days after payment is received via T/T, depending on the specific model and order quantity.

Can this film be used for packaging liquids other than TCM decoctions?

Yes. The sterile high-barrier PET and PE film is used extensively for drink liquids, food liquids, and medical liquid packaging.

What temperature rating does the packaging film support?

The thermostatic film has a UL temperature rating of 130 degrees Celsius, suitable for hot liquid dispensing and heat-sealing.
