Titanium Saucer Head Screws
Grade 5 titanium saucer head screws in M5 and M6 with a low domed head and a wide flanged bearing face.
Overview
What This Range Is
The saucer head is shallow and domed, with the bearing face flared out to a diameter well beyond the shank. That combination gives a low head height and a large contact area at the same time, so the screw can be used against softer materials and thin panels without a separate washer.
Every size in the range is made in Grade 5 titanium. The head geometry and the drive size are listed for each size in the table below, taken from the product data for that size rather than from a general specification.
Problems This Range Solves
- Clamping thin panels and soft materials without adding a separate washer
- Low clearance joints where a cap head or a hex head would stand too proud
- Visible assemblies where a clean low head is wanted rather than a tall cylinder
- Corrosive service where a plated steel flange screw would lose its coating at the bearing face
Range At A Glance
- Material
- Ti-6Al-4V Gr.5
- UNS
- R56400
- Head style
- Low profile saucer head with a flanged bearing face
- Drive
- Torx internal drive
- Threads
- M5 M6
- Lengths
- 8–90 mm
- Sizes in stock
- 23
- Price per piece
- $0.80–$2.80

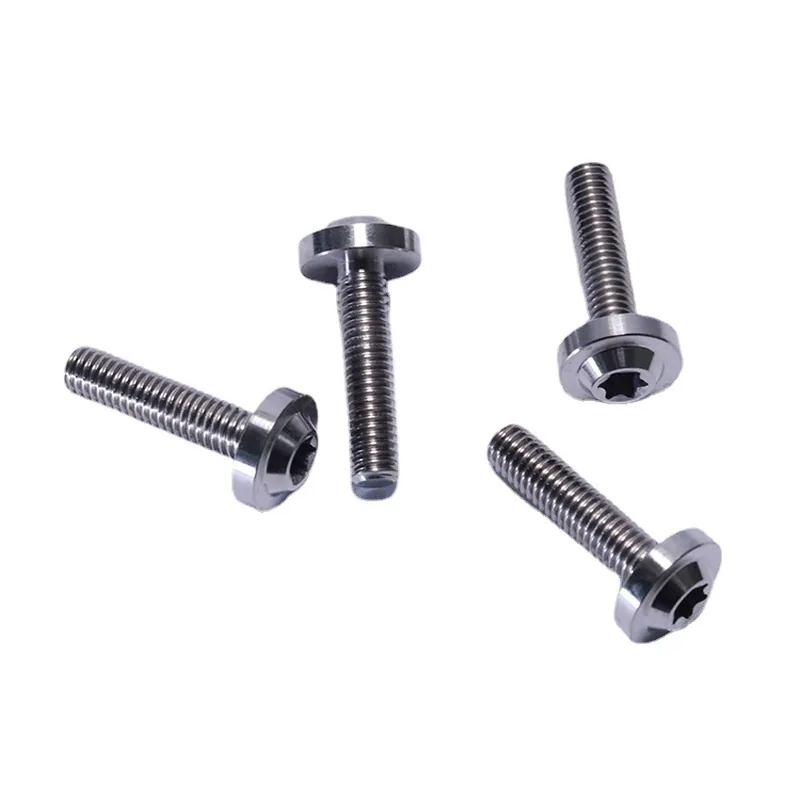

Photograph of the saucer head screws range. Head dimensions and length vary by size as listed below.
Head Geometry
Dimensions By Thread Size
| Thread | Head | Drive | Length range | Sizes |
|---|---|---|---|---|
| M5 | Head 12 mm dia, 4 mm high | Torx T25 | 8–30 mm | 6 |
| M6 | Head 14 mm dia, 5 mm high | Torx T30 | 12–90 mm | 17 |
Full Size List
All 23 sizes with SKU dimensions and price per piece. Click any size for the full detail page.
| Product | SKU | Thread | Length | Head | Drive | Price / pc |
|---|---|---|---|---|---|---|
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M5*8 | TiSHS58 | M5 | 8 mm | Head 12 mm dia, 4 mm high | Torx T25 | $0.80 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M5*10 | TiSHS510 | M5 | 10 mm | Head 12 mm dia, 4 mm high | Torx T25 | $0.80 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M5*15 | TiSHS515 | M5 | 15 mm | Head 12 mm dia, 4 mm high | Torx T25 | $0.80 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M5*20 | TiSHS520 | M5 | 20 mm | Head 12 mm dia, 4 mm high | Torx T25 | $0.80 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M5*25 | TiSHS525 | M5 | 25 mm | Head 12 mm dia, 4 mm high | Torx T25 | $0.80 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M5*30 | TiSHS530 | M5 | 30 mm | Head 12 mm dia, 4 mm high | Torx T25 | $0.80 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*12 | TiSHS612 | M6 | 12 mm | Head 14 mm dia, 5 mm high | Torx T30 | $0.80 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*16 | TiSHS616 | M6 | 16 mm | Head 14 mm dia, 5 mm high | Torx T30 | $0.80 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*20 | TiSHS620 | M6 | 20 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.00 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*25 | TiSHS625 | M6 | 25 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.00 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*30 | TiSHS630 | M6 | 30 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.00 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*35 | TiSHS635 | M6 | 35 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.00 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*40 | TiSHS640 | M6 | 40 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.00 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*45 | TiSHS645 | M6 | 45 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.20 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*50 | TiSHS650 | M6 | 50 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.20 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*55 | TiSHS655 | M6 | 55 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.20 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*60 | TiSHS660 | M6 | 60 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.50 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*65 | TiSHS665 | M6 | 65 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.50 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*70 | TiSHS670 | M6 | 70 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.50 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*75 | TiSHS675 | M6 | 75 mm | Head 14 mm dia, 5 mm high | Torx T30 | $1.50 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*80 | TiSHS680 | M6 | 80 mm | Head 14 mm dia, 5 mm high | Torx T30 | $2.00 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*85 | TiSHS685 | M6 | 85 mm | Head 14 mm dia, 5 mm high | Torx T30 | $2.50 |
| Gr.5 Ti6Al4V Titanium Saucer Head Screw M6*90 | TiSHS690 | M6 | 90 mm | Head 14 mm dia, 5 mm high | Torx T30 | $2.80 |
Material
Ti-6Al-4V Grade 5 Reference Data
Published values for the alloy and for ASTM B348. They describe the material, not a batch certificate.
| Alloy designation | Ti-6Al-4V, ASTM Grade 5 |
|---|---|
| UNS number | R56400 |
| Nominal composition | 6 percent aluminium, 4 percent vanadium, balance titanium |
| Alloy class | Alpha beta alloy |
| Density | 4.43 g/cm³ |
| Minimum tensile strength | 895 MPa / 130 ksi |
| Minimum yield strength | 828 MPa / 120 ksi |
| Minimum elongation | 10 percent |
| Modulus of elasticity | About 114 GPa |
| Magnetic response | Non magnetic |
| Melting range | About 1604 to 1660 °C |
Why It Matters For This Range
- Roughly 44 percent less mass than the same fastener in steel, which is the whole reason the range exists
- Yield strength high enough to replace a medium strength steel fastener rather than an aluminium one
- A stable oxide film that re-forms in air or water, so chloride service does not pit the fastener
- Non magnetic, so the fastener can sit next to sensors and imaging equipment
Comparison
How This Range Compares With The Others
| Range | Head | Drive | Threads | Lengths | Sizes |
|---|---|---|---|---|---|
| Saucer Head Screws | Low profile saucer head with a flanged bearing face | Torx internal drive | M5 M6 | 8–90 mm | 23 |
| Self Tapping Screws | Pan head with a wide integral bearing face | Torx internal drive | M4 M5 | 12–25 mm | 8 |
| Socket Head Cap Screws | Cylindrical cap head | Torx internal drive | M5 M6 M8 | 10–95 mm | 39 |
| Saucer Head Bolts | Low profile saucer head with a flanged bearing face | Torx internal drive | M8 M10 | 12–90 mm | 28 |
| Hex Flange Head Bolts | Hexagon head with an integral flange | External hex across flats 8 mm | M6 | 10–90 mm | 16 |
Use Guide
Fitting Titanium Fasteners
Use anti seize on the threads
Titanium galls readily against titanium and against stainless. A dry film or copper free anti seize on the thread and under the head keeps the torque to tension relationship predictable and lets the joint be broken later.
Torque to a titanium figure not a steel figure
Do not carry over a torque value from a steel or stainless fastener of the same size. The friction behaviour is different and the safe clamp load has to be set for the alloy and for the lubricant actually used.
Seat the drive fully before applying load
Push the Torx key or the socket right to the bottom of the recess before turning. A partly seated drive concentrates load on the top edge of the recess.
Watch galvanic pairings
Titanium is a noble metal. Where it is bolted directly to aluminium or magnesium in a wet environment, isolate the joint or accept that the lighter metal will carry the corrosion.
Keep the bearing face clean and flat
A wide flange or saucer face only works if it lands on a flat clean surface. Swarf or paint under the head shifts the clamp load off centre.
FAQ
Questions About Titanium Saucer Head Screws
What material are these saucer head screws made from
Which thread sizes and lengths are available
How are the head dimensions measured
Can I torque these to the same value as a steel fastener of the same size
Are they magnetic
Do you supply sizes outside this range
What is the price
Quote The Saucer Head Screws You Need
Send the thread size the length and the quantity. If the size is not in the range above we will quote it from bar.
