Titanium Socket Head Cap Screws
Grade 5 titanium socket head cap screws in M5 M6 and M8 with a cylindrical head and a Torx drive, in lengths from 10 mm to 95 mm.
Overview
What This Range Is
A cylindrical cap head sits inside a counterbore, so the fastener can be driven flush or recessed where a projecting head would foul a moving part. This is the deepest range on this site, covering M5 M6 and M8 in 5 mm length steps, which makes it the usual starting point when a steel or stainless cap screw is being replaced with titanium one for one.
Every size in the range is made in Grade 5 titanium. The head geometry and the drive size are listed for each size in the table below, taken from the product data for that size rather than from a general specification.
Problems This Range Solves
- Direct one for one replacement of a steel or stainless socket cap screw at a lower assembly mass
- Recessed and counterbored joints where the head has to sit inside the part
- Joints exposed to seawater chlorides or wash down chemicals that pit stainless
- Bi-metallic joints where a corroding steel fastener would mark the surrounding component
Range At A Glance
- Material
- Ti-6Al-4V Gr.5
- UNS
- R56400
- Head style
- Cylindrical cap head
- Drive
- Torx internal drive
- Threads
- M5 M6 M8
- Lengths
- 10–95 mm
- Sizes in stock
- 39
- Price per piece
- $0.80–$3.00

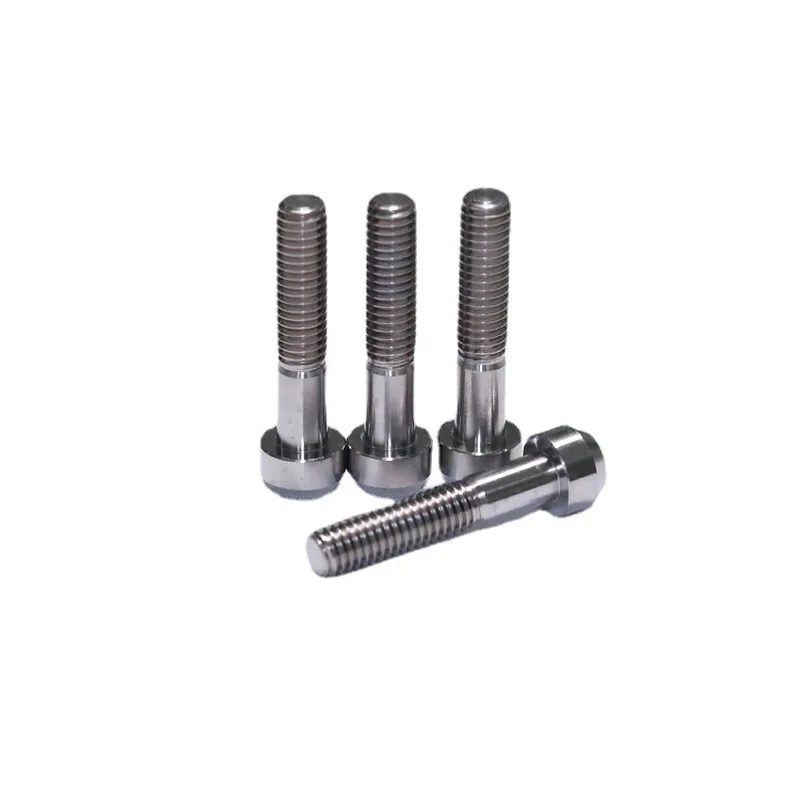

Photograph of the socket head cap screws range. Head dimensions and length vary by size as listed below.
Head Geometry
Dimensions By Thread Size
| Thread | Head | Drive | Length range | Sizes |
|---|---|---|---|---|
| M5 | Head 8.5 mm dia, 5 mm high | Torx T25 | 10–30 mm | 5 |
| M6 | Head 10 mm dia, 6 mm high | Torx T30 | 10–95 mm | 18 |
| M8 | Head 13 mm dia, 8 mm high | Torx T40 | 15–90 mm | 16 |
Full Size List
All 39 sizes with SKU dimensions and price per piece. Click any size for the full detail page.
| Product | SKU | Thread | Length | Head | Drive | Price / pc |
|---|---|---|---|---|---|---|
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M5*10 | TiSHCS510 | M5 | 10 mm | Head 8.5 mm dia, 5 mm high | Torx T25 | $0.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M5*15 | TiSHCS515 | M5 | 15 mm | Head 8.5 mm dia, 5 mm high | Torx T25 | $0.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M5*20 | TiSHCS520 | M5 | 20 mm | Head 8.5 mm dia, 5 mm high | Torx T25 | $0.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M5*25 | TiSHCS525 | M5 | 25 mm | Head 8.5 mm dia, 5 mm high | Torx T25 | $0.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M5*30 | TiSHCS530 | M5 | 30 mm | Head 8.5 mm dia, 5 mm high | Torx T25 | $0.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*10 | TiSHCS610 | M6 | 10 mm | Head 10 mm dia, 6 mm high | Torx T30 | $0.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*15 | TiSHCS615 | M6 | 15 mm | Head 10 mm dia, 6 mm high | Torx T30 | $0.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*20 | TiSHCS620 | M6 | 20 mm | Head 10 mm dia, 6 mm high | Torx T30 | $0.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*25 | TiSHCS625 | M6 | 25 mm | Head 10 mm dia, 6 mm high | Torx T30 | $0.90 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*30 | TiSHCS630 | M6 | 30 mm | Head 10 mm dia, 6 mm high | Torx T30 | $0.90 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*35 | TiSHCS635 | M6 | 35 mm | Head 10 mm dia, 6 mm high | Torx T30 | $1.00 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*40 | TiSHCS640 | M6 | 40 mm | Head 10 mm dia, 6 mm high | Torx T30 | $1.00 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*45 | TiSHCS645 | M6 | 45 mm | Head 10 mm dia, 6 mm high | Torx T30 | $1.20 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*50 | TiSHCS650 | M6 | 50 mm | Head 10 mm dia, 6 mm high | Torx T30 | $1.20 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*55 | TiSHCS655 | M6 | 55 mm | Head 10 mm dia, 6 mm high | Torx T30 | $1.20 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*60 | TiSHCS660 | M6 | 60 mm | Head 10 mm dia, 6 mm high | Torx T30 | $1.20 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*65 | TiSHCS665 | M6 | 65 mm | Head 10 mm dia, 6 mm high | Torx T30 | $1.50 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*70 | TiSHCS670 | M6 | 70 mm | Head 10 mm dia, 6 mm high | Torx T30 | $1.50 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*75 | TiSHCS675 | M6 | 75 mm | Head 10 mm dia, 6 mm high | Torx T30 | $2.00 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*80 | TiSHCS680 | M6 | 80 mm | Head 10 mm dia, 6 mm high | Torx T30 | $2.00 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*85 | TiSHCS685 | M6 | 85 mm | Head 10 mm dia, 6 mm high | Torx T30 | $2.50 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*90 | TiSHCS690 | M6 | 90 mm | Head 10 mm dia, 6 mm high | Torx T30 | $2.50 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M6*95 | TiSHCS695 | M6 | 95 mm | Head 10 mm dia, 6 mm high | Torx T30 | $3.00 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*15 | TiSHCS815 | M8 | 15 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.00 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*20 | TiSHCS820 | M8 | 20 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.00 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*25 | TiSHCS825 | M8 | 25 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.00 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*30 | TiSHCS830 | M8 | 30 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.20 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*35 | TiSHCS835 | M8 | 35 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.20 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*40 | TiSHCS840 | M8 | 40 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.50 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*45 | TiSHCS845 | M8 | 45 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.50 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*50 | TiSHCS850 | M8 | 50 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*55 | TiSHCS855 | M8 | 55 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*60 | TiSHCS860 | M8 | 60 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*65 | TiSHCS865 | M8 | 65 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*70 | TiSHCS870 | M8 | 70 mm | Head 13 mm dia, 8 mm high | Torx T40 | $1.80 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*75 | TiSHCS875 | M8 | 75 mm | Head 13 mm dia, 8 mm high | Torx T40 | $2.00 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*80 | TiSHCS880 | M8 | 80 mm | Head 13 mm dia, 8 mm high | Torx T40 | $2.00 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*85 | TiSHCS885 | M8 | 85 mm | Head 13 mm dia, 8 mm high | Torx T40 | $2.50 |
| Gr.5 Ti6Al4V Titanium Socket Head Cap Screw M8*90 | TiSHCS890 | M8 | 90 mm | Head 13 mm dia, 8 mm high | Torx T40 | $2.50 |
Material
Ti-6Al-4V Grade 5 Reference Data
Published values for the alloy and for ASTM B348. They describe the material, not a batch certificate.
| Alloy designation | Ti-6Al-4V, ASTM Grade 5 |
|---|---|
| UNS number | R56400 |
| Nominal composition | 6 percent aluminium, 4 percent vanadium, balance titanium |
| Alloy class | Alpha beta alloy |
| Density | 4.43 g/cm³ |
| Minimum tensile strength | 895 MPa / 130 ksi |
| Minimum yield strength | 828 MPa / 120 ksi |
| Minimum elongation | 10 percent |
| Modulus of elasticity | About 114 GPa |
| Magnetic response | Non magnetic |
| Melting range | About 1604 to 1660 °C |
Why It Matters For This Range
- Roughly 44 percent less mass than the same fastener in steel, which is the whole reason the range exists
- Yield strength high enough to replace a medium strength steel fastener rather than an aluminium one
- A stable oxide film that re-forms in air or water, so chloride service does not pit the fastener
- Non magnetic, so the fastener can sit next to sensors and imaging equipment
Comparison
How This Range Compares With The Others
| Range | Head | Drive | Threads | Lengths | Sizes |
|---|---|---|---|---|---|
| Socket Head Cap Screws | Cylindrical cap head | Torx internal drive | M5 M6 M8 | 10–95 mm | 39 |
| Self Tapping Screws | Pan head with a wide integral bearing face | Torx internal drive | M4 M5 | 12–25 mm | 8 |
| Saucer Head Screws | Low profile saucer head with a flanged bearing face | Torx internal drive | M5 M6 | 8–90 mm | 23 |
| Saucer Head Bolts | Low profile saucer head with a flanged bearing face | Torx internal drive | M8 M10 | 12–90 mm | 28 |
| Hex Flange Head Bolts | Hexagon head with an integral flange | External hex across flats 8 mm | M6 | 10–90 mm | 16 |
Use Guide
Fitting Titanium Fasteners
Use anti seize on the threads
Titanium galls readily against titanium and against stainless. A dry film or copper free anti seize on the thread and under the head keeps the torque to tension relationship predictable and lets the joint be broken later.
Torque to a titanium figure not a steel figure
Do not carry over a torque value from a steel or stainless fastener of the same size. The friction behaviour is different and the safe clamp load has to be set for the alloy and for the lubricant actually used.
Seat the drive fully before applying load
Push the Torx key or the socket right to the bottom of the recess before turning. A partly seated drive concentrates load on the top edge of the recess.
Watch galvanic pairings
Titanium is a noble metal. Where it is bolted directly to aluminium or magnesium in a wet environment, isolate the joint or accept that the lighter metal will carry the corrosion.
Keep the bearing face clean and flat
A wide flange or saucer face only works if it lands on a flat clean surface. Swarf or paint under the head shifts the clamp load off centre.
