Ship's Steel Pipe U-Bolts

Product Overview

Ship's Steel Pipe U-Bolts belongs to marine store group 69, Screws & Nuts. Brass dog bolts with wing nuts, hex bolts, stud bolts, ship's toggle pins and steel pipe U-bolts, listed under IMPA group 69.

Key Benefits

• Brass dog bolts listed in both metric coarse and Whitworth with lengths for each size
• Toggle pins, hex bolts and stud bolts coded separately
• Steel pipe U-bolts for pipe support work
• Sizes recorded so the reorder matches

Problems It Solves

• Steel fasteners seizing where brass should have been used
• Dog bolts ordered in metric when the fitting is Whitworth
• U-bolts that do not match the pipe outside diameter
• Fasteners bought loose with no size record for the next order

Who It Is For

• Chief officers and bosuns maintaining deck fittings
• Engineers securing pipework and supports
• Ship chandlers supplying fastener requisitions
• Shipyard and repair teams

Application Scenarios

• Watertight door and hatch dogging arrangements
• Deck fitting and locker security
• Pipe support and hanger work
• General fastening on deck and in the engine room

Technical Features

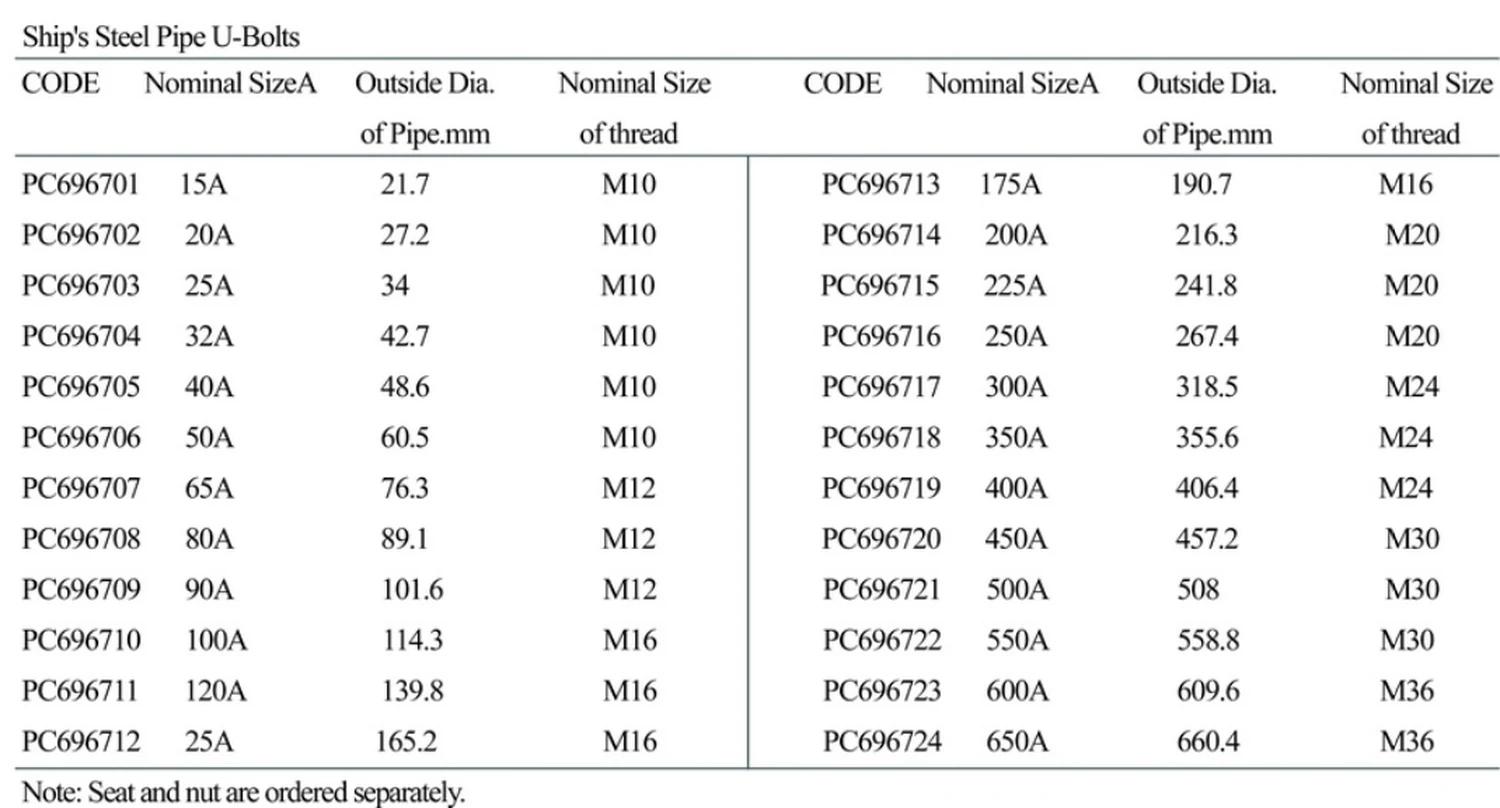

The technical detail for this line is published exactly as the manufacturer issued it, in the specification sheet below. We do not restate figures in our own words, so what you read here is what the maker states.

Materials

Material is stated per code on the specification sheet where the manufacturer publishes it. Where a choice exists in this group — for example brass against stainless, or wool against acrylic — both options carry their own code so you can order the one the duty needs.

Customization Options

Sizes, quantities, packing and marking are confirmed at order stage. Where a line exists in more than one size, rating or material, tell us the duty and we will point you at the right code rather than sending the nearest one.

How This Item Reaches You

• Your requisition line is matched to the catalogue code and any missing size, rating or material is queried before quoting
• The item is drawn from our supply base around Suzhou, a large mechanical manufacturing area in Jiangsu
• Quantity, size and marking are checked against the specification sheet before packing
• Packed and marked as part of one consignment with the rest of your store order
• The packing list carries the same codes as your requisition so receiving on board is a straight tick-off

Quality Control Before Shipment

• Code and quantity verified against the confirmed order
• Dimensions and ratings checked against the manufacturer specification sheet
• Visual check for transit damage, corrosion and packaging condition
• Photographs of the packed goods sent on request before dispatch

Documentation

The following can be issued with the shipment on request: commercial invoice, packing list, the manufacturer specification sheet for each line, and certificate of origin where the destination requires one. Where a manufacturer issues a certificate for a specific item — for example the EC certificate referenced on the chemical protection suit sheet — that certificate is supplied with the goods. We do not claim certification an item does not carry.

Comparison Within This Group

Group 69 carries 5 items. Where two lines look similar, the difference is usually material, size or rating rather than function. The quickest way to compare is to open the sibling products below and read the two specification sheets side by side, or send us both codes and we will tell you which suits the duty.

Use Guide

Confirm the size, rating or material against the vessel's existing fitting before ordering, note the catalogue code in the ship's inventory when the item is received, and reorder against that code. Doing this once turns every later reorder into a one line message.
