BS1702 Wireless Mouse Barcode Scanner, front product view

Scanning Scanners

BS1702 Wireless Mouse Barcode Scanner

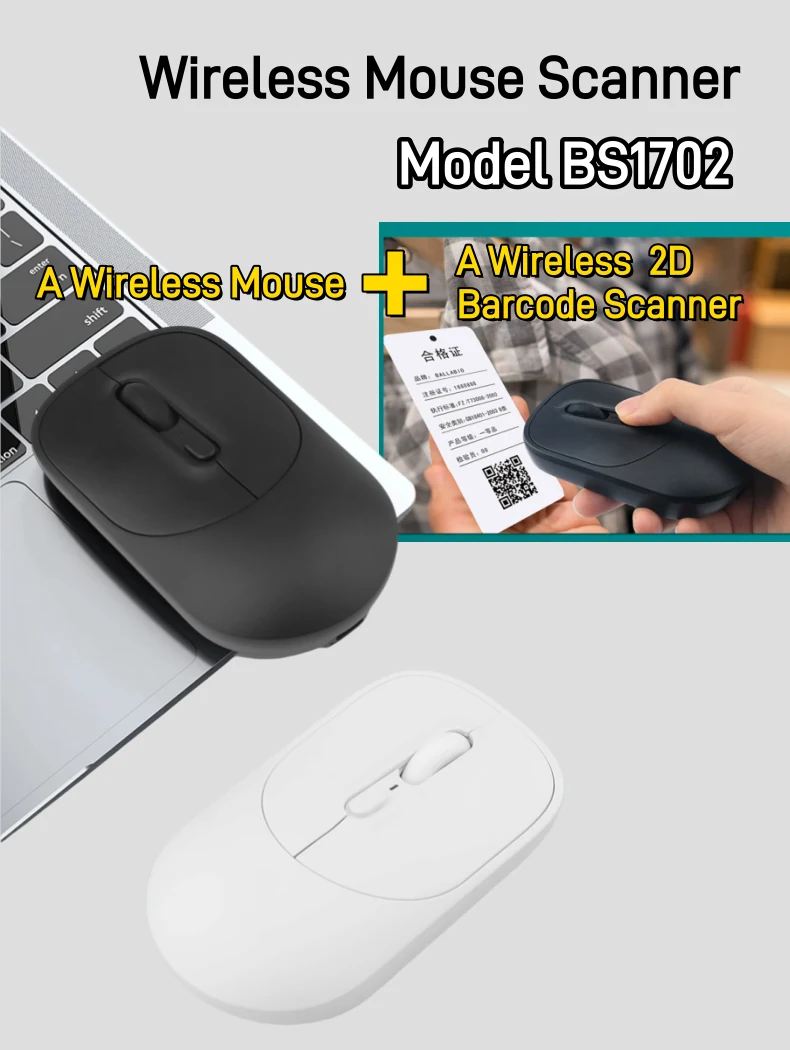

A working wireless mouse and a 2D scanner in one device, for desks with no space left.

Scanning ScannersModel BS1702
Quote on WhatsApp Email for a quotation

Manufacturer feature list

  • Multi-function = a wireless barcode scanner + a wireless mouse
  • Support 1D, 2D and QR code A
  • Support 2.4G wireless and USB wired
  • Offline storage

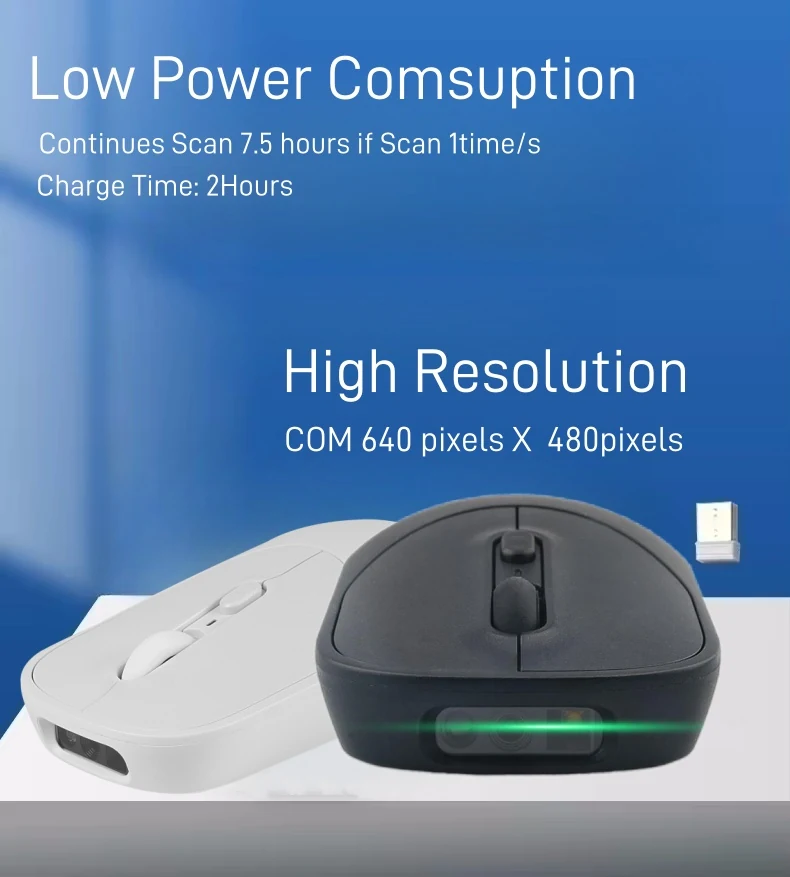

  • Image Pixels: 640 pixels (H) X 480 pixels (V), CMOS
  • Strong Decoding Ability:
  • Widely Application: Drug store, restaurant, warehouse & Inventory, medical pharmacy Store, book shop, express & Logistics, supermarket, retail store etc.

Overview

What this model is for

Reception desks, pharmacy counters and small clinic workstations rarely have room for a mouse, a scanner and a cradle. The BS1702 is both: a normal 2.4G wireless mouse for the day's cursor work, and a 1D/2D/QR scanner when you turn it to a label.

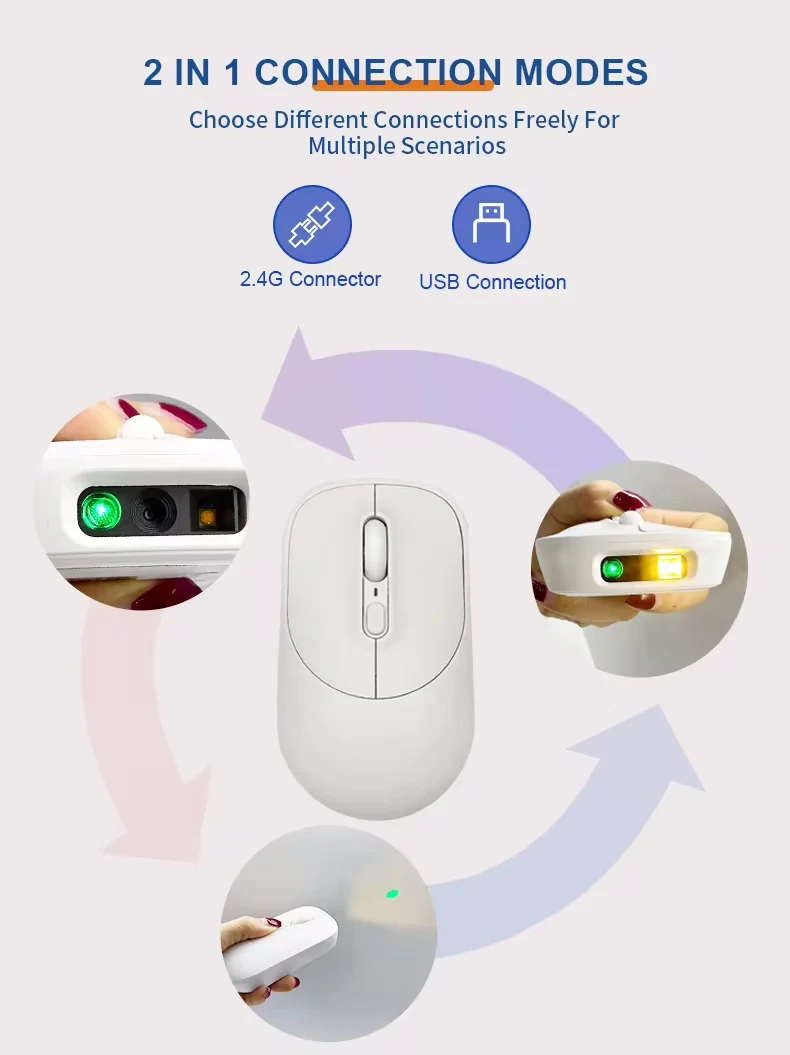

It runs over 2.4G wireless or USB cable, carries a 640x480 CMOS engine with offline storage, and reads the mainstream 1D families plus QR, PDF417, MicroPDF417, Data Matrix and Aztec.

What it fixes

  • Counter space runs out before the hardware list does.
  • A separate scanner gets pushed aside and then cannot be found.
  • Wired guns add another cable to a desk already full of them.

Who buys it

Pharmacies and drug stores, restaurants, medical counters, bookshops, warehouse offices, logistics desks and retail back offices.

Typical positions

  • Prescription counter check-in
  • Front-desk goods receipt
  • Office asset registration
  • Small-shop checkout

Why it holds up

Four things that decide whether this works in your position

One device, two jobs

Removes a peripheral and a cable from a crowded desk.

Nothing new to learn

Staff already know how to hold a mouse; scanning is a button press.

Offline storage

Buffers reads when the host is asleep or out of range.

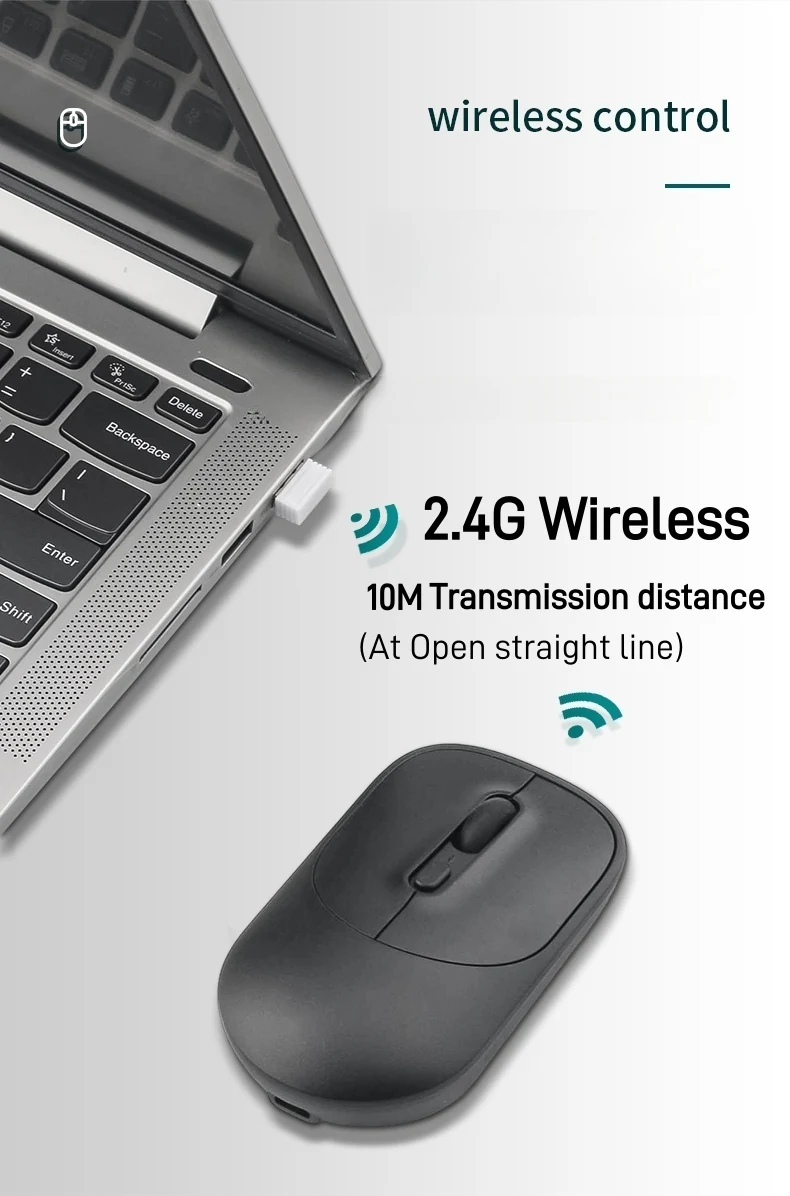

2.4G wireless or wired

Use the dongle for a clean desk, the cable where wireless is restricted.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
ModelBS1702
Image sensor640 pixels (H) X 480 pixels (V)
Offline storageOffline storage
1D symbologiesUPC-A,UPC-E,EAN-8,EAN-13,*ISBN,Code 128,GS1-128,GS1 DataBar,Code 39,Code 32,Code 93,Code 11,Interleaved 2 of 5,Industrial 2 of 5,Matrix 2 of 5,Codabar,MSI Plessey
2D symbologiesQR Code,PDF417,Micro PDF417,Data Matrix,Aztec Code
Connection2.4G wireless, USB wired

Questions

About the BS1702 Wireless Mouse Barcode Scanner

Which codes does the BS1702 Wireless Mouse Barcode Scanner read?
It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.
How does the BS1702 Wireless Mouse Barcode Scanner connect to a host?
Supported connection modes are: 2.4G wireless, USB wired. Tell us the host operating system and whether a radio is permitted at that position, and we will advise which mode to order.
Can the BS1702 Wireless Mouse Barcode Scanner be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the BS1702 Wireless Mouse Barcode Scanner?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the BS1702 Wireless Mouse Barcode Scanner?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.

Compare

Related models

Quote the BS1702 Wireless Mouse Barcode Scanner

Tell us the quantity, the destination country and the host operating system, and we will come back with a price, a lead time and the certificate documents that exist for this model.
