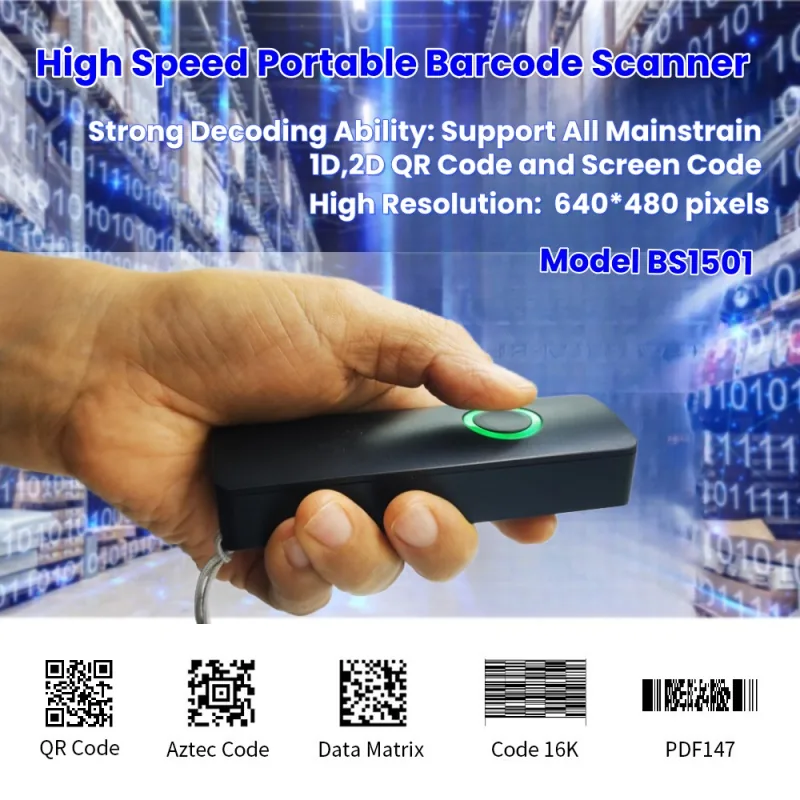

BS1501 Pocket Bluetooth Barcode Scanner, front product view

Wearable Scanner

BS1501 Pocket Bluetooth Barcode Scanner

A pocketable 1D/2D reader for staff who scan occasionally but everywhere.

Wearable ScannerScanning ScannersWearable DeviceModel BS1501
Quote on WhatsApp Email for a quotation

Manufacturer feature list

  • Portable and mini size
  • Can work at harsh environment from -20°C to 60°C
  • Multi-communication, Support bluetooth, 2.4G wireless and USB wired
  • Image Pixels: 640 pixels (H) X 480 pixels (V), CMOS
  • Strong Decoding Ability:
  • Widely application: cold-chain inventory, express & Logistics, warehouse & Inventory, medical pharmacy Store,Drug store, restaurant, book shop, supermarket, retail store etc.

Overview

What this model is for

Not every role needs a gun on a stand. The BS1501 is a mini scanner that lives in an apron or trouser pocket and comes out for a few dozen scans a shift — stock checks, price queries, goods-in on a side door.

It carries the same 640x480 CMOS engine and the same triple connection options as the ring model: Bluetooth, 2.4G wireless and USB wired. Rated from -20°C to 60°C, it is specified for chilled areas rather than only the shop floor.

What it fixes

  • Shared terminals create queues and dead time at the point where the count happens.
  • Phone cameras misread creased and low-contrast labels.
  • Cold areas are usually the ones left without scanning hardware.

Who buys it

Small retail and convenience stores, pharmacies, restaurants, bookshops, logistics back offices and warehouse spot checks.

Typical positions

  • Spot stock checks
  • Goods-in at a side entrance
  • Price and batch queries
  • Mobile inventory counts

Why it holds up

Four things that decide whether this works in your position

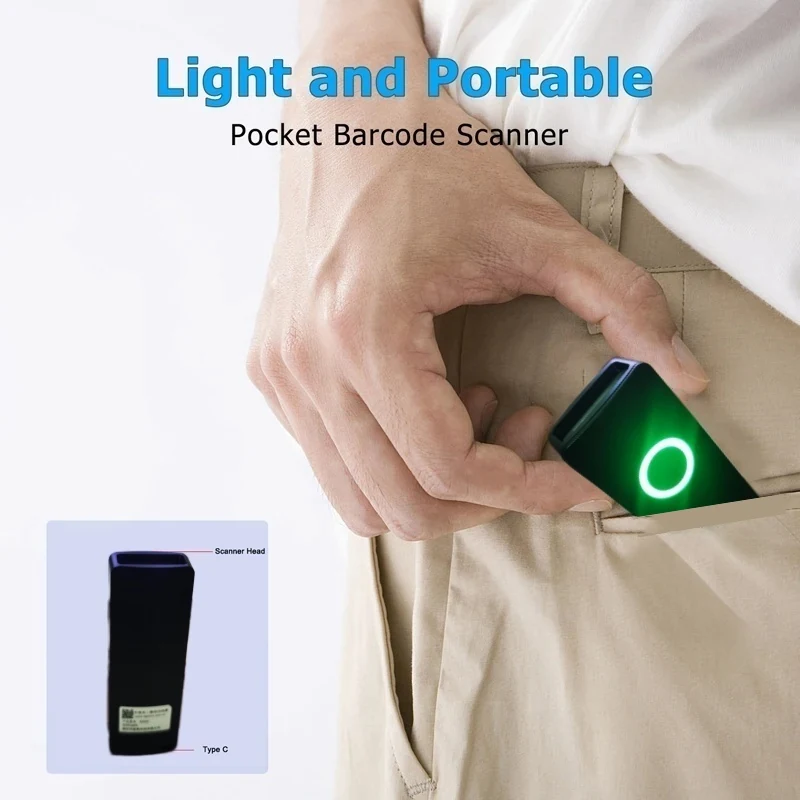

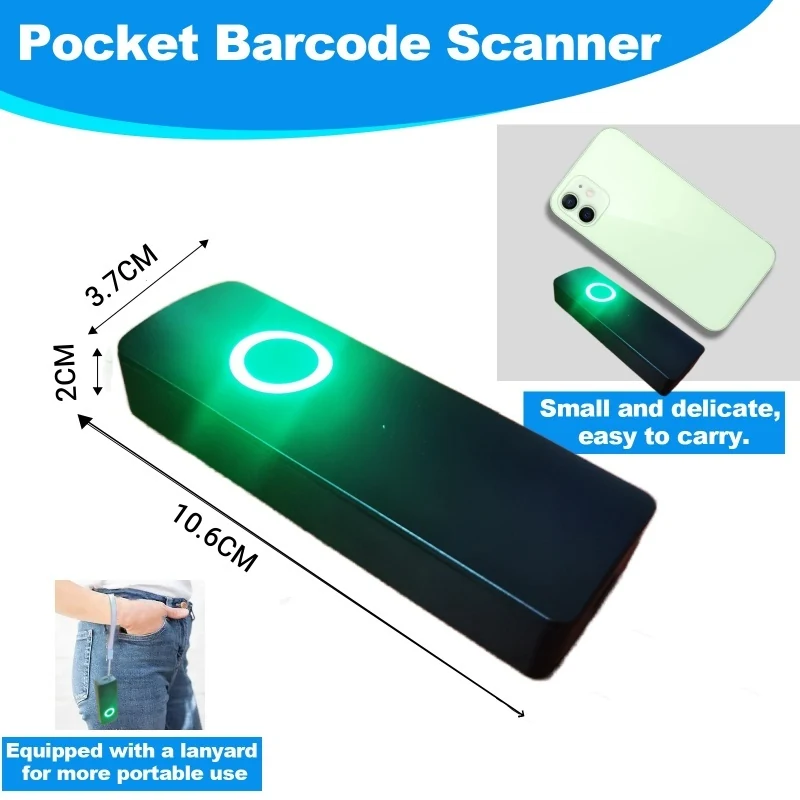

Pocket sized

Small enough to carry all day, so staff actually have a scanner when they need one.

Bluetooth, 2.4G or cable

Pairs to a phone or tablet in the aisle and plugs into a PC at the desk.

Reads damaged and dense codes

Full 1D set plus QR, PDF417, Data Matrix, Aztec and MicroQR.

Low unit cost per scanning point

Lets you give more staff a scanner instead of sharing one terminal.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
ModelBS1501
Image sensor640 pixels (H) X 480 pixels (V)
1D symbologiesUPC-A, UPC-E, EAN-13, ISBN10, ISBN13, EAN-8, CODE39, CODE 11, CODE 93, CODE128 INTERLEAVED25, INDUSTRIAL25, MATRIX25 , S25, CODE 32, TRIOPTIC39, GS1_128, CODABAR, MSI, CHINA POST CODE, TELEPEN, RSS, GS1_DATABAR, GS1_DATABAR_LIM, GS1_DATABAR_EXP
2D symbologiesQR, MICROQR , PDF417, MICROPDF, HANXIN Code, DATAMATRIX , MAXICODE, AZTEC, CODABLOCK_F
ConnectionBluetooth, 2.4G wireless, USB wired

Questions

About the BS1501 Pocket Bluetooth Barcode Scanner

Which codes does the BS1501 Pocket Bluetooth Barcode Scanner read?
It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.
How does the BS1501 Pocket Bluetooth Barcode Scanner connect to a host?
Supported connection modes are: Bluetooth, 2.4G wireless, USB wired. Tell us the host operating system and whether a radio is permitted at that position, and we will advise which mode to order.
Can the BS1501 Pocket Bluetooth Barcode Scanner be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the BS1501 Pocket Bluetooth Barcode Scanner?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the BS1501 Pocket Bluetooth Barcode Scanner?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.

Compare

Related models

Quote the BS1501 Pocket Bluetooth Barcode Scanner

Tell us the quantity, the destination country and the host operating system, and we will come back with a price, a lead time and the certificate documents that exist for this model.
