Android 14 Rugged Handheld PDA (GJY F20T) held in the hand

Scanning Scanners

Android 14 Rugged Handheld PDA (GJY F20T)

A 5.45-inch IP67 mobile computer for teams that scan all shift, outdoors and in.

Scanning ScannersIndustrial PDA
Quote on WhatsApp Email for a quotation

Manufacturer feature list

  • High sensitive 5.45" full touch screen
  • Android 14, Octa-core
  • 64GB ROM + 4GB RAM
  • LTE 4G,3G,2G, WIFI, bluetooth 5.0
  • Support GPS, AGPS, BDS navigation
  • IP67 protection grade
  • Professional high speed 2D Barcode Scanner
  • Workable at harsh environment from -20°C to 55°C
  • Widely used in Smart hospital, medical, heathcare, manufacturing, transportation, warehouse & inventory, express & courier, supermarket, park management, police administration etc.

Overview

What this model is for

Warehouse, courier and hospital teams lose time when a consumer phone with a clip-on scanner fails in rain, cold or a drop onto concrete. The GJY F20T replaces that stack with one sealed device: an IP67 handheld running Android 14 on an octa-core MediaTek MT6762V, with a professional 2D scan engine built into the top of the housing.

The 5.45-inch full touch screen accepts glove and wet-hand input, so operators do not strip PPE to confirm a pick. 4G LTE, dual-band WiFi and Bluetooth 5.0 keep the device on your WMS whether it is inside a racking aisle or on a delivery round, and GPS/AGPS/BDS positioning stamps each scan with a location.

What it fixes

  • Consumer phones crack, ingress and die in cold stores — this is sealed and temperature rated.
  • Bluetooth sleds add a second battery and a second pairing to manage; the engine here is internal.
  • Scans without location context are hard to audit; GPS/AGPS/BDS is on board.

Who buys it

Warehouse and inventory teams, courier and express operators, hospital and healthcare logistics, manufacturing lines, transport and park management.

Typical positions

  • Inbound receiving and putaway
  • Order picking and cycle counting
  • Courier proof-of-delivery
  • Bedside specimen and asset scanning

Why it holds up

Four things that decide whether this works in your position

Sealed to IP67, rated -20°C to 55°C

The same unit goes from a freezer aisle to an outdoor yard without a protective case or a second device.

Scan engine, not a camera

A dedicated high-speed 2D engine reads damaged and low-contrast labels that a phone camera gives up on.

Glove and wet-hand touch

Capacitive tempered-glass screen with glove mode, so gloves stay on during picking and inspection.

5000mAh with 9V/2A fast charge

Built-in lithium polymer pack sized for a full shift, topped up between shifts rather than swapped mid-task.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
CPUMediaTek MT6762V/WB, Cortex-A53, Octa-cores , 2.0GHz+1.5GHz
Memory4GB RAM+64GB ROM , optional 6GB RAM+64GB ROM, 8GB RAM+128GB ROM
OSAndroid 9/Android 13/Android 14
Display5.45inches , HD+, 720*1440, LTPS
Touch screenCapacitive touch screen, tempered glass, support glove mode/wet hand operation
Front camera5MP, FF
Rear camera13MP , PDAF, with flash LED
Keypad3 virtual keys: Menu, Home, Back Physical keys: 1 power key, 2 scan keys, 1 volume keys(volume+/-)
Battery5000mAh build-in lithium polymer battery, support 9V/2A fast charging
Speaker12*17*2.5(dual speaker)
PromptVibration prompt /LED prompt/audio prompt
VibrationBuilt-in vibration motor
SensorG-sensor/Proximity sensor/Light sensor/Gyroscope/Geomagnetic sensor
InterfaceType-C USB waterproof port, support OTG
Expansion slotSIM*1, TF*1
Dimension158mm×76mm×13.7mm(LxWxD)
Weight230g(battery included)
Package size180mm*100mm*65mm(LxWxD)
Gross weight520g
Wi-Fi802.11a/b/g/n/ac/k/v/r (dual bands: 2.4GHz+5GHz)
Mobile communicationsGSM/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE GSM: B3/B5/B8 TD-SCDMA: B34/B39 WCDMA: B1/B8 LTE-TDD: B34/B38/B39/B40/B41 LTE-FDD: B1/B3/B5/B8
BluetoothBluetooth 5.0
GPSSupport GPS/AGPS/Glonass/BDS
Scan engineSelf-developed 2D scanner SE6100-2D (Optional) Honeywell 6703
Optical resolution1280*800 Pixes
Scan precision≥3mil , Code 39/128
Scan anglesTilt:360°，Pitch:±45°，Skew:±60°
Laser Safety GradeClass II

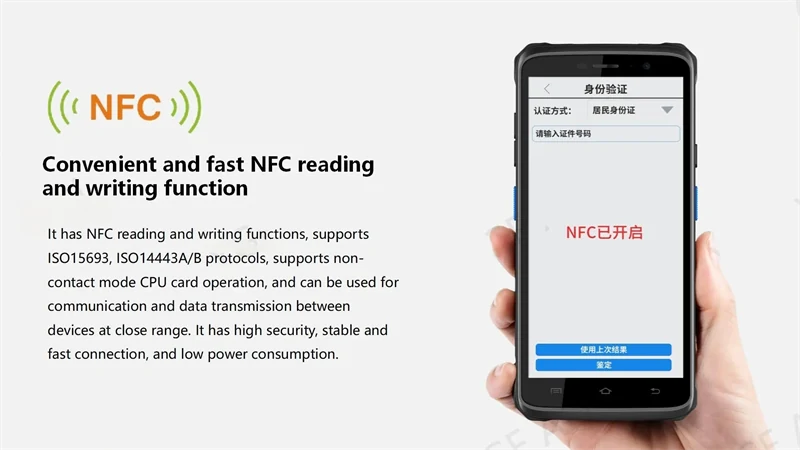

Frequency13.56MHz
ProtocolISO14443A/ISO14443B
Operating temperature-20~55°C
Storage temperature-40~60°C
Humidity0%~95%
Drop protectMarble 2M, Concrete 1.5M

Questions

About the Android 14 Rugged Handheld PDA (GJY F20T)

What temperature range is the Android 14 Rugged Handheld PDA (GJY F20T) rated for?
The stated operating range is -20~55°C. Confirm the coldest point the device will actually see — condensation on the way out of a cold store is as damaging as the cold itself.
Does the Android 14 Rugged Handheld PDA (GJY F20T) need a driver installed?
The plug-and-play models in this range present to the host without a driver, which is what makes a multi-site rollout practical. Confirm the host OS with us and we will state exactly what is required for this model.
Can the Android 14 Rugged Handheld PDA (GJY F20T) be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the Android 14 Rugged Handheld PDA (GJY F20T)?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the Android 14 Rugged Handheld PDA (GJY F20T)?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.
