BS701 Pocket Scanner With Data Screen, front product view

Wearable Scanner

BS701 Pocket Scanner With Data Screen

A mini 2D scanner with its own display, so the operator sees the read without a host.

Wearable ScannerScanning ScannersModel BS701
Quote on WhatsApp Email for a quotation

Manufacturer feature list

  • Real time data visible via screen on the scanner

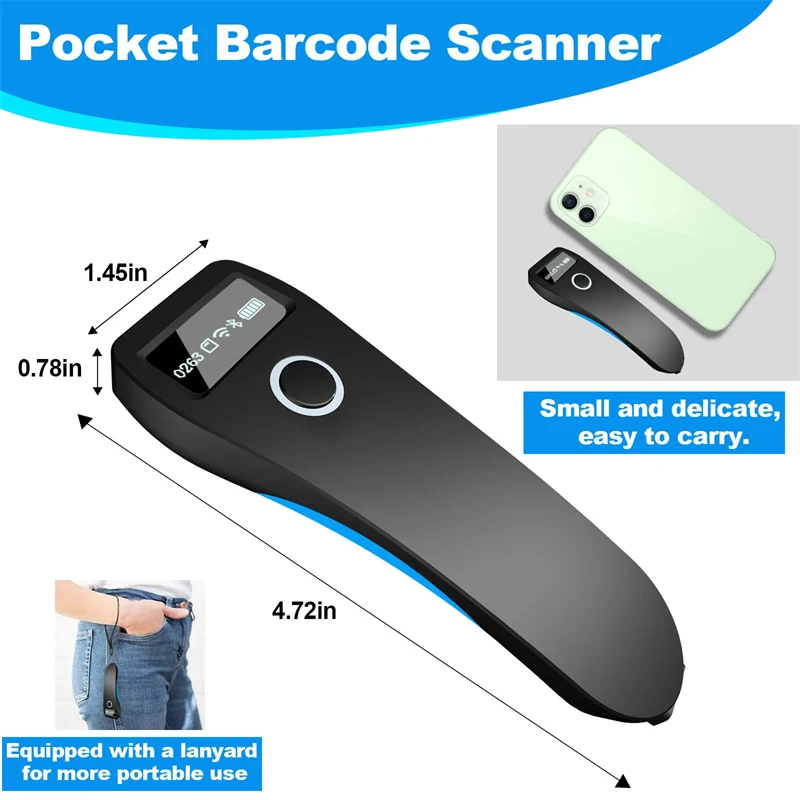

  • Portable and mini size
  • Multi-communication, Support bluetooth, 2.4G wireless and USB wired
  • Offline storage: 900k
  • Image Pixels: 640 pixels (H) X 480 pixels (V), CMOS
  • Scan rate:120 fps
  • Strong Decoding Ability:
  • Workable for mobile coupons, e-tickets, digital wallets, and digital loyalty cards. And widely application: express & Logistics, warehouse & Inventory, medical pharmacy Store,Drug store, restaurant, book shop, supermarket, retail store etc.

Overview

What this model is for

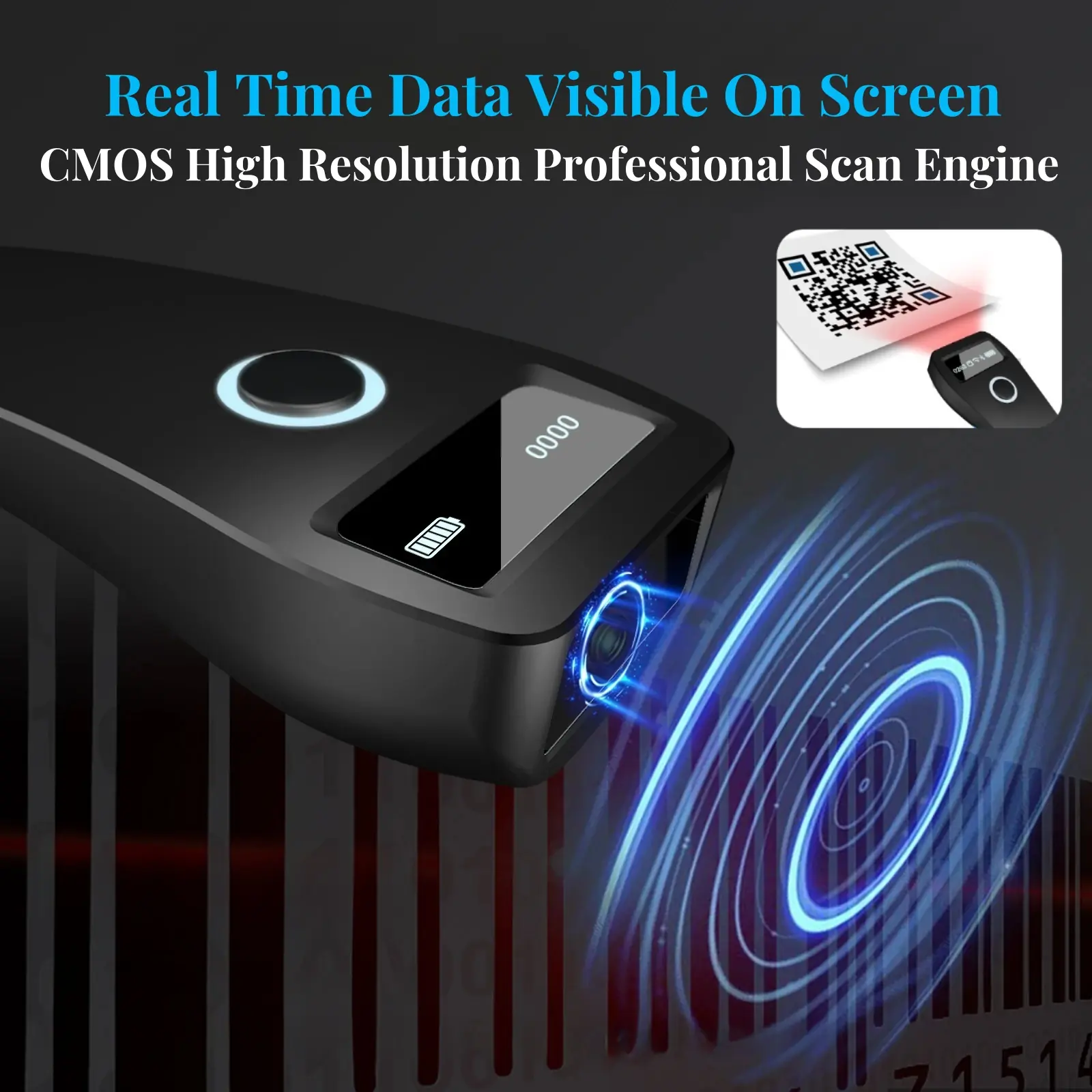

The weakness of a pocket scanner is feedback: a beep does not tell you what was read. The BS701 puts a screen on the scanner, showing captured data in real time — useful when the host device is in a pocket, or when scanning in storage mode with no host at all.

It holds up to 900k of offline storage, scans at 120 fps with a 640x480 CMOS imager, and connects by Bluetooth, 2.4G wireless or USB. It also reads codes off phone screens, so mobile coupons, e-tickets, digital wallets and loyalty cards work the same as printed labels.

What it fixes

  • Blind scanning into a pocketed phone produces errors nobody notices until the count is wrong.
  • Wireless drop-outs stop work unless the scanner can buffer.
  • Older imagers struggle with backlit phone screens.

Who buys it

Express and logistics, warehouse and inventory, pharmacies and drug stores, restaurants, bookshops, supermarkets and retail stores.

Typical positions

  • Offline stocktake in a dead-zone aisle
  • Ticket and coupon validation
  • Mobile wallet redemption
  • Goods-in verification

Why it holds up

Four things that decide whether this works in your position

On-device data display

The operator confirms the read on the scanner instead of stopping to check a host screen.

900k offline storage

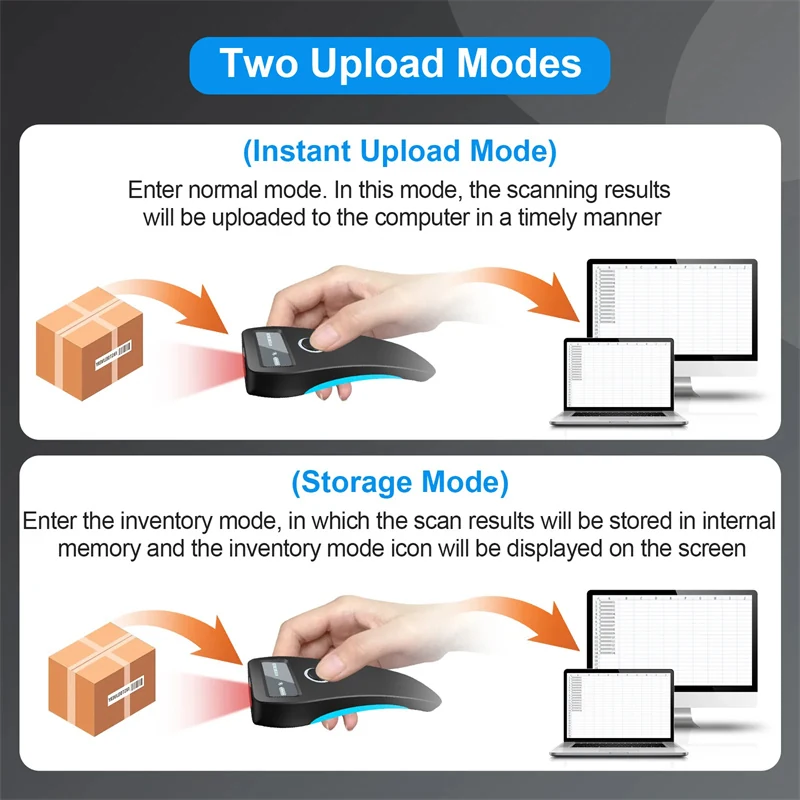

Keeps counting when out of range, then uploads in a batch.

120 fps scan rate

Fast enough to sweep a shelf rather than aim at each label.

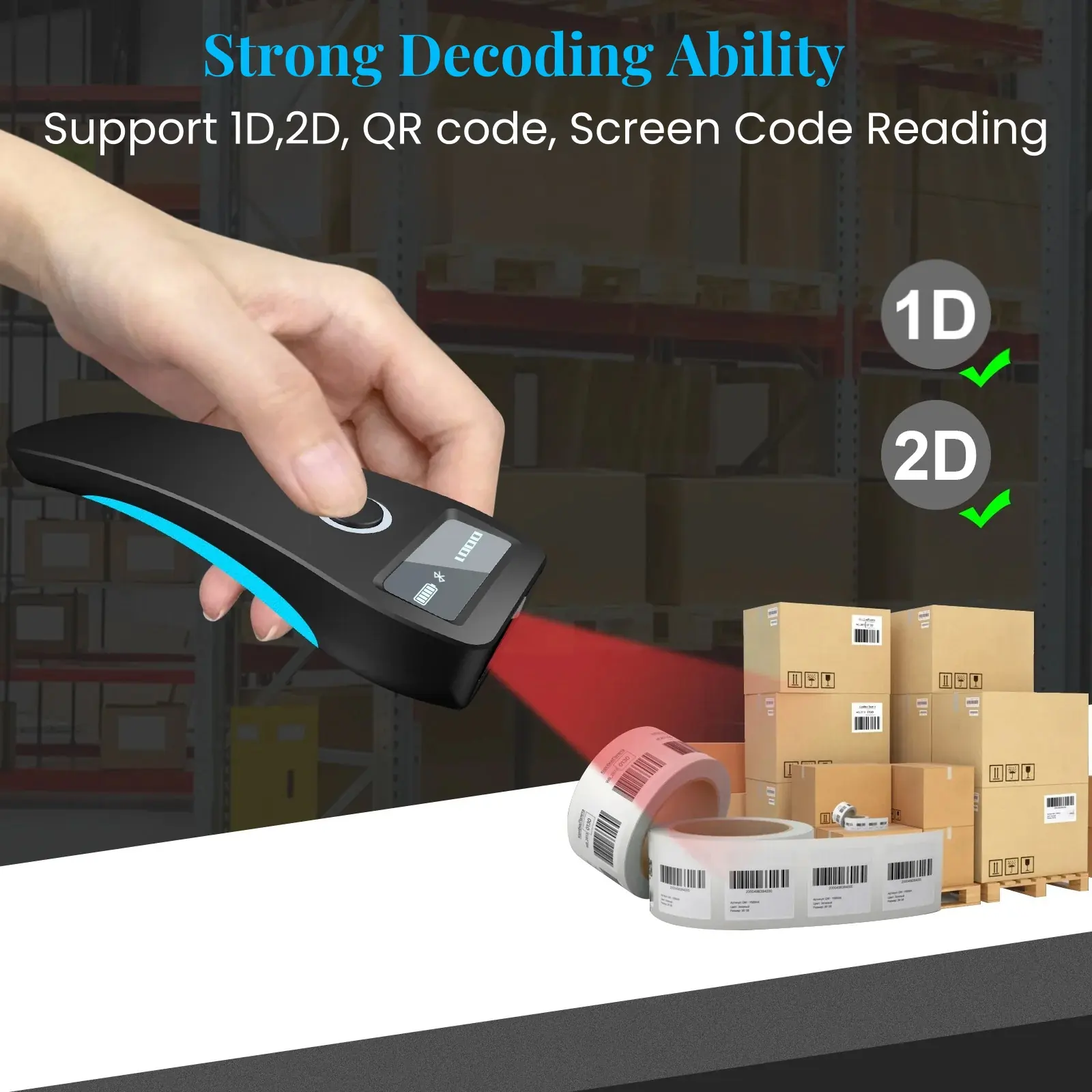

Reads phone screens

Mobile coupons, e-tickets, digital wallets and loyalty codes, not just paper.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
ModelBS701
Image sensor640 pixels (H) X 480 pixels (V)
Scan rate120 fps
Offline storage900k
1D symbologiesEAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey,etc
2D symbologiesQR Code,Data Matrix,PDF417,Micro QR, Aztec,etc,Support mobile phone screen code reading
ConnectionBluetooth, 2.4G wireless, USB wired

Questions

About the BS701 Pocket Scanner With Data Screen

Which codes does the BS701 Pocket Scanner With Data Screen read?
It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.
How does the BS701 Pocket Scanner With Data Screen connect to a host?
Supported connection modes are: Bluetooth, 2.4G wireless, USB wired. Tell us the host operating system and whether a radio is permitted at that position, and we will advise which mode to order.
Can the BS701 Pocket Scanner With Data Screen be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the BS701 Pocket Scanner With Data Screen?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the BS701 Pocket Scanner With Data Screen?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.

Compare

Related models

Quote the BS701 Pocket Scanner With Data Screen

Tell us the quantity, the destination country and the host operating system, and we will come back with a price, a lead time and the certificate documents that exist for this model.
