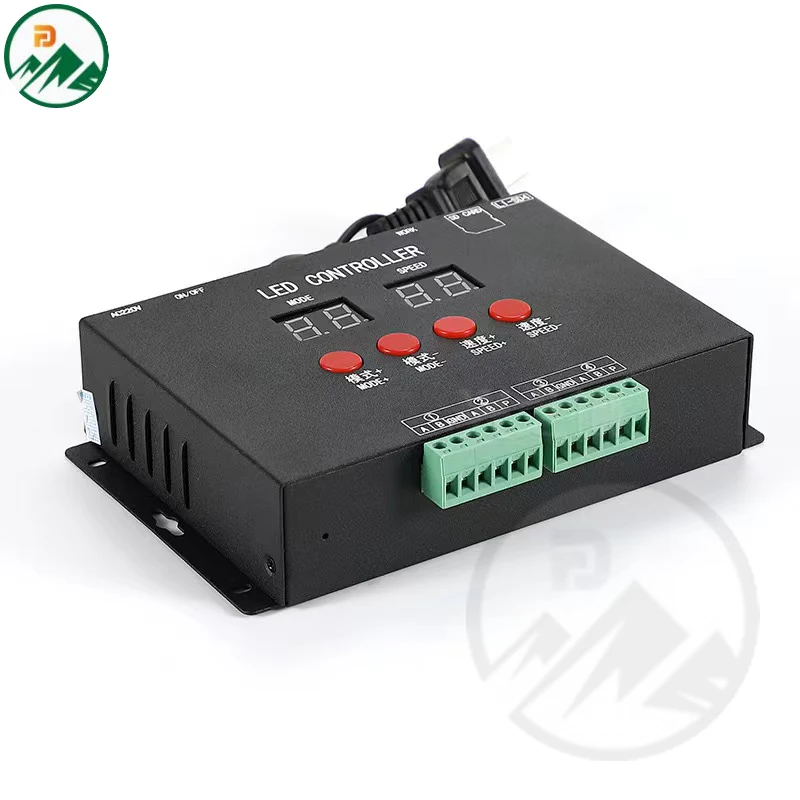

DMX512 Controller for RGB RGBW LED Lights
The FD-DMX-C01010 is a 10W DMX512 controller designed for use with RGB and RGBW LED lighting systems. It accepts AC85-265V input and provides AC85-265V output to drive connected LED fixtures. The unit is rated IP20, making it suitable for indoor use in dry environments where dust and water ingress are not a concern. It enables precise control of colour and animation sequences in architectural and landscape lighting projects using standard DMX512 protocol.
| Model | FD-DMX-C01010 |
|---|---|
| Power | 10W |
| Input Voltage | A85-265V |
| IP Rating | IP20 |
| Warranty | 5 Years |
Key Benefits
- Supports DMX512 protocol for precise control of RGB and RGBW LED lighting systems
- Operates on wide AC85-265V input, compatible with standard mains voltage across regions
- Delivers AC85-265V output to power multiple LED fixtures in a chain
- 10W power rating supports moderate-scale lighting arrays without overloading
- IP20 rating suitable for indoor installations in dry, protected locations
- 5-year warranty provides long-term reliability for project-based applications
Application Scenarios

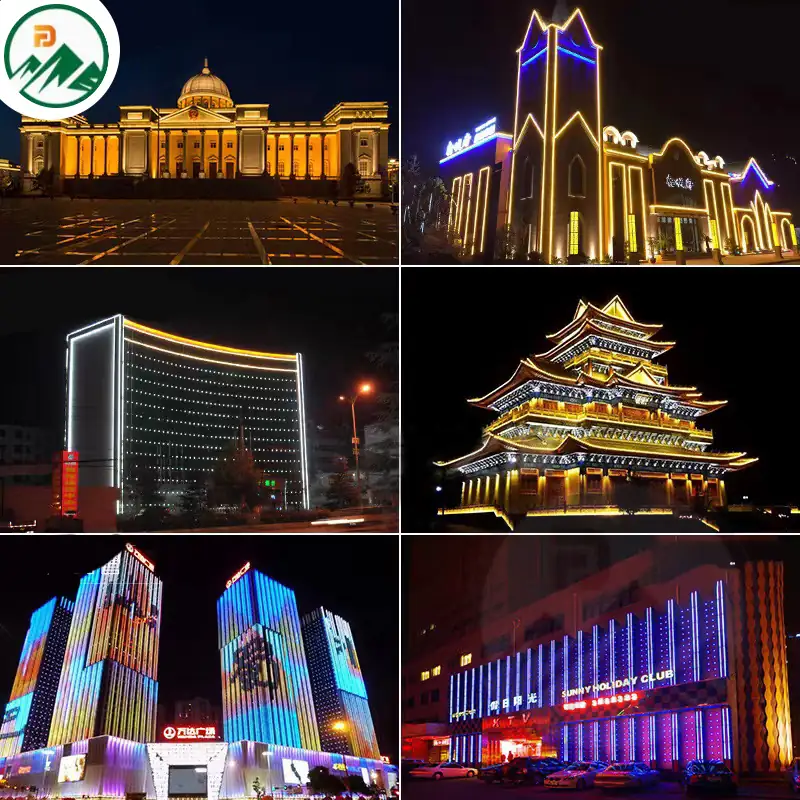

- Controlling dynamic colour changes in architectural facade lighting using RGBW LED strips
- Programming animated sequences in landscape lighting for public parks and plazas
- Integrating with central control systems in commercial office or retail environment lighting
- Synchronising multiple LED fixtures in a single zone using DMX512 addressing
Who It Is For
- Lighting project contractors managing RGB/RGBW LED installations with DMX control
- Facade and landscape lighting designers specifying programmable lighting sequences
- Electrical wholesalers supplying DMX controllers for architectural lighting projects
- Brand owners sourcing OEM DMX controllers under their own label for distribution
Problems It Solves
- Without a dedicated DMX controller, RGB/RGBW LED systems cannot be programmed for dynamic effects
- Using non-DMX-compatible controllers limits the ability to change colour or animation on site
- Inconsistent power delivery from unregulated sources can cause flickering or colour shifts
- Lack of a standard protocol leads to compatibility issues between different fixture brands
- Short warranty periods increase risk for long-term project reliability
Technical Features
- DMX512 protocol support for standardised control of RGB and RGBW LED systems
- AC85-265V input voltage range for compatibility with global mains supply
- AC85-265V output to drive multiple LED fixtures in a daisy-chain configuration
- 10W power handling capacity for moderate-sized LED lighting zones
- IP20 rating suitable for indoor, dry environments only
- 5-year warranty across the product line, with no specified variation by model
Materials
- Plastic housing for lightweight and cost-effective enclosure
- Internal circuit board with standard electronic components for DMX signal processing
- Metal terminals for secure wiring connections
Manufacturing Process
- Circuit board assembly with DMX512 control IC and power regulation components
- Enclosure housing fabrication and internal component mounting
- Wiring and terminal connection for input and output lines
- DMX signal and power testing under load before packaging
- Final inspection and packaging for shipment
Quality Control
- Incoming inspection of DMX ICs and power components
- Functional test of DMX signal reception and output under load
- Voltage stability test across the AC85-265V input range
- Stated defective rate below 0.2%
- Aged operation test before packing
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- OEM and ODM production available for buyers selling under their own brand
- Can be supplied with or without driver to match the site's control strategy
Compared With the Alternatives
Non-DMX controller with manual switches
Allows dynamic colour and animation control, but requires manual input and lacks remote programming
Low-voltage DMX controller (e.g. 12V DC)
Requires separate power supply and isolation, but this model uses mains voltage directly
IP65-rated outdoor controller
More robust for wet or dusty environments, but this IP20 unit is sufficient for indoor dry locations
Use Guide
- Install the controller in a dry, indoor location protected from moisture and dust
- Connect the input to a standard AC85-265V power source using appropriate cable gauge

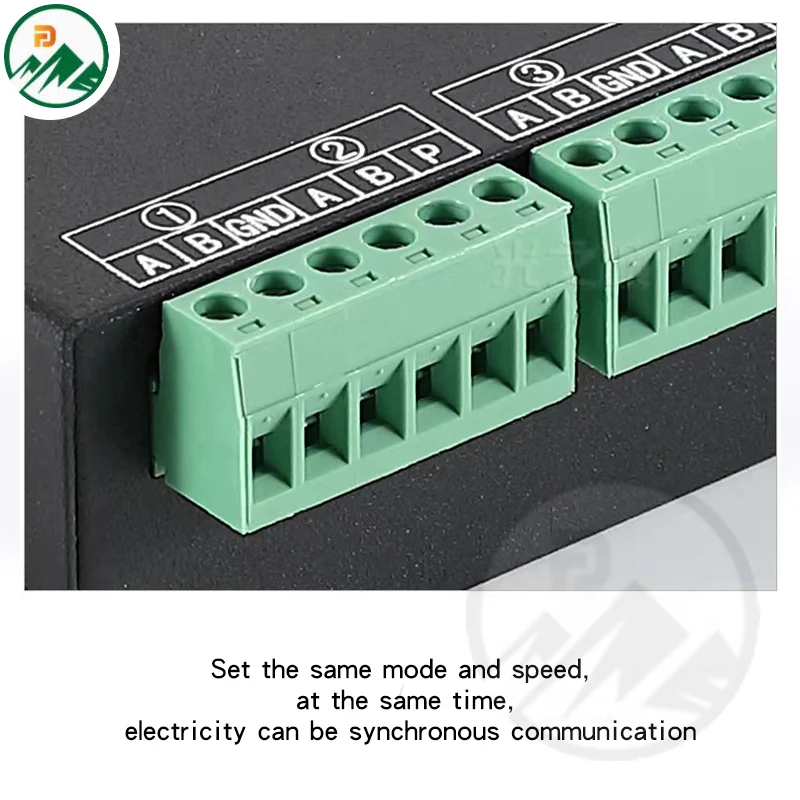

- Link the output to the first LED fixture in the DMX chain using standard 3-pin or 5-pin DMX cables
- Set the DMX address using the controller's dip switches or front panel controls
- Verify signal transmission using a DMX tester or compatible lighting software
- Ensure all connected fixtures are compatible with the DMX512 protocol and power requirements
DMX512 Controller for RGB RGBW LED Lights Questions
What is the input voltage for this DMX controller?
The input voltage is AC85-265V, compatible with standard mains supply across most regions.
Can it output to multiple LED fixtures?
Yes. The controller provides AC85-265V output and can drive multiple fixtures in a daisy-chain configuration.
Is the controller suitable for outdoor use?
No. It is rated IP20, which is for indoor dry environments only. Use an IP65 or higher rated controller for outdoor or wet locations.
What is the warranty period?
This model carries a 5-year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship in 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
Is logo printing available on the controller?
Yes. Customer logo printing is available and confirmed against an approved sample before production begins.
