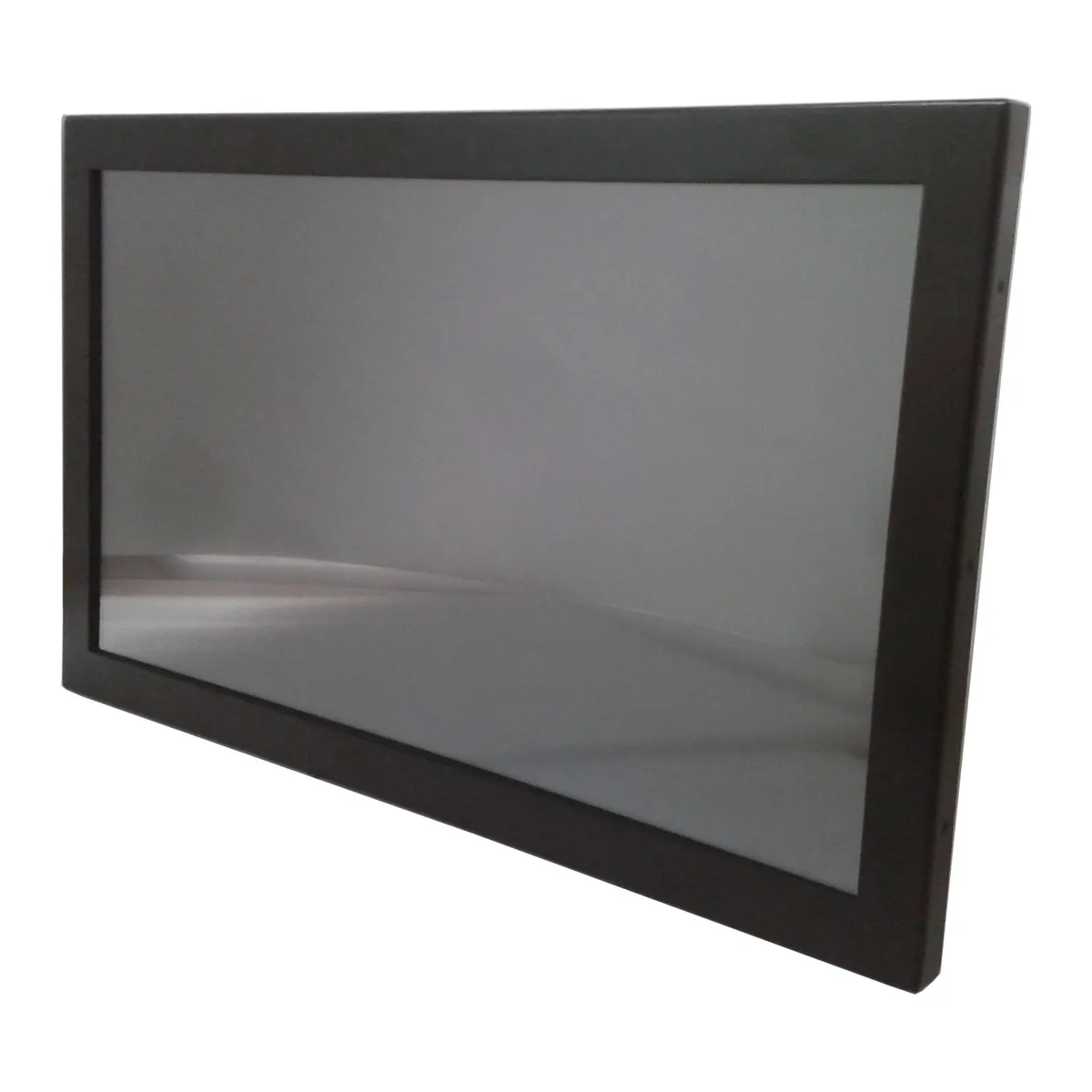

21.5 inch Industrial Touch Screen Panel PC
- 21.5 inch Industrial Touch Screen Panel PC
- 21.5 inch 1920*1080 Full HD 16:9 Industrial Fanless Panel PC
- IP65 rated Front Panel Aluminum Chassis
- Support Windows/Linux OS
- Powerful Intel® 2.42 GHz J1900 processor
- WLAN module & antenna (optional)
- Fanless cooling Design
- Panel Mount and VESA Mounting Compatible
Working with RESUN on this model
- Customised I/O, IP65 front bezel, 7H anti-scratch panel, open frame or flat screen housing.
- RFID, NFC, front camera and barcode reader can be integrated.
- Multiple CPU, memory, storage and operating system options.
- Two-year warranty on computer and monitor hardware.
Industrial Fanless Panel PC with 21.5 inch Touch Screen
| O/S | Drivers for Windows, Linux OS | |||||||
| CPU | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) | |||||||
| Chipsets | North bridge: Intel NM10 | |||||||
| RAM | 1*4GByte DDR3-1600 | |||||||
| Hard Drive | 32GB SSD | |||||||
| Graphic | Intel® HD Graphics | |||||||
| Audio | Realtek HD ALC 662, | |||||||
| LAN | Realtek RTL8111E, 1*10/100/1000MBit RJ45 Ports | |||||||
| USB | 8* USB 2.0 ports, 4 as external | |||||||
| External Ports ( Can be customized) | HDMI | |||||||
| 2*USB 2.0 2*USB 3.0 | ||||||||
| VGA | ||||||||
| 2* COM | ||||||||
| 1*RJ45 | ||||||||
| Audio-in/ Audio-out | ||||||||
| Power on/off | ||||||||
| SIM card slot | ||||||||
| 2*12V DC-in(1*screwable) | ||||||||
| 2*Sata 300MB/S (1*MSATA) | ||||||||
| Internal port | 1*MiniPCI-E | |||||||
| 4* USB2.0 | ||||||||
| 2*COM/RS 232 | ||||||||
| 1* Front panel header | ||||||||
| Input Voltage | 12V DC-in | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Storage Temperature | ,-20℃ to +70℃ | |||||||
| Aspect Ratio | 16 ; 9 | |||||||
| Physical Resolution | 1920×1080 | |||||||
| Luminance(cd/㎡) | 6000:00:00 | |||||||
| Visual angle h:v(°) | 80/80/80/80 | |||||||
| Touch Panel | 5 wire resistive touch | |||||||
| React time touch panel | <10 ms | |||||||
| Input Force(g) | 20-150 | |||||||
| Power Supply | AC100-240V,DC12V | |||||||
| Cooling System | Fanless | |||||||
| Install | VESA100 | |||||||
| Case | Aluminum | |||||||
Ask about the EB-215PPC
Send the configuration you need — CPU, memory, storage, operating system, I/O and quantity — and RESUN Electronics Co., Ltd. will confirm the build and quote it.
Other Industrial Panel PC models
See all 21
Flat Screen Panel Mount Panel PC
Model EB-CPC104
- Multi-touch
- 10.1 inch
- / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
7"7 inch All-in-one Touch Screen Panel PC – Embedded Panel PC
Model EB-70PPC
- 7” 1024* 600 Resolution
- High Brightness
- Intel Celeron Quad Cores CPU
8"8 inch Industrial Panel PC
Model EB-LJ80
- 8 inch True-Flat Panel Touch Screen
- High Brightness LCD display
- Intel Quad-Core CPU, Upgrades Available
8"8 inch Industrial Touch Screen PC
- 8 inch Industrial AIO Touch Panel PC
8"8″ Industrial All-In-One Panel PC
Model EB-80SY
- 8 inch Panel PC
- Intel processor available for Windows 10, Windows 11,or Linux OS
- Glove-friendly, multi-touch screen
9.7"9.7 inch Fanless Industrial Flat Panel PCs
Model EB-97FCPC
- 9.7″ True-Flat Projective Capacitive Touch screen
- Aluminum Housing
- Powered by Intel Celeron CPU J1900 (2M Cache, up to 2.42 GHz)
10.1"10.1″ Industrial Panel PC
Model EB-101PCY
- 10.1” All-in-one Industrial Panel PC
- 10.1 inch 1280*800 TFT LCD display with LED Backlight
- Multiple Intel CPUs for options
12"12 inch Rugged Panel PC
Model EB-122LPPC
- 12 inch Intel Core i5 Industrial Panel PC
Frequently Asked Questions
Can this model be customised?
Yes. RESUN is an OEM/ODM manufacturer, so I/O, housing, mounting, touch technology, IP rating, RFID or NFC, camera and barcode reader can be changed to suit the application.
What is the lead time and minimum quantity?
Both depend on the configuration and the volume. Send your requirement to +86-1351-0185730 or through the contact page and the sales team will confirm.
Is a sample available before production?
Yes. The custom design route includes sample making and sample approval before mass production; for a standard configuration a sample unit can be quoted directly.
What warranty applies?
Two years from the date of purchase against manufacturing and material defects on computer and monitor hardware.
